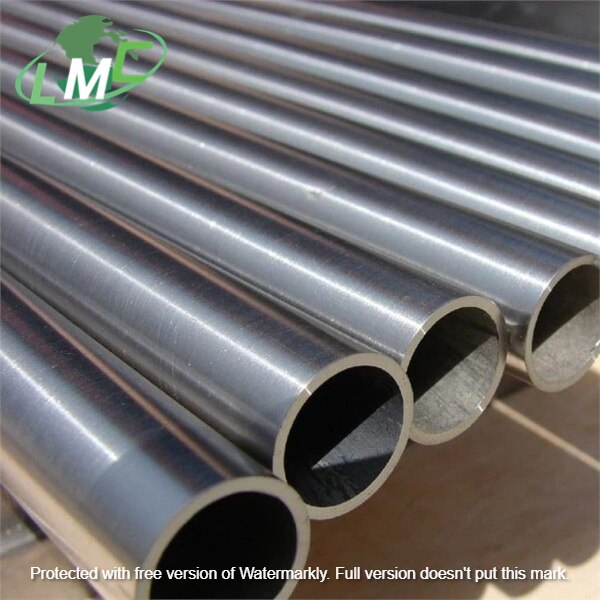

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium pipe is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium pipes as standard pipes for their units

Porduct name : Titanium Clad Steel Tube plates Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Clad Steel Tube plates Titanium clad metal can reduce equipment costs exponentially and avoid many defects. The equipment made of titanium steel plate is well resistant to corrosion due to its inner titanium layer and also has strong strength due to its outer steel layer. Two layers of bonding, with good thermal conductivity, overcome thermal stress, thermal fatigue resistance, so that it can work in more severe conditions. Titanium steel clad tube sheet / plate is widely used in storage tanks, towers, heat exchangers and pipelines in petrochemical industry due to its good corrosion resistance and high temperature resistance, which improves the service life of equipment. Compared with the traditional welding method, the heat exchanger made of titanium steel composite tube plate and titanium tube has incomparable advantages. Product name Titanium Clad Steel Tube plates Size Customized Cladding metal: AISI 405,410,410S,429,430,304,309,316 ,321,06Cr13,06Cr13A1, 022Cr17Ti, 06Cr19Ni10, 06Cr18Ni11Ti etc. Base metal: Titanium Gr1 Gr2 Gr3 Gr7 Gr12 Production code ASTM B898, ASME SB898 Edge Treatment Waterjet cutting Applications Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc. Packing Standard export packing

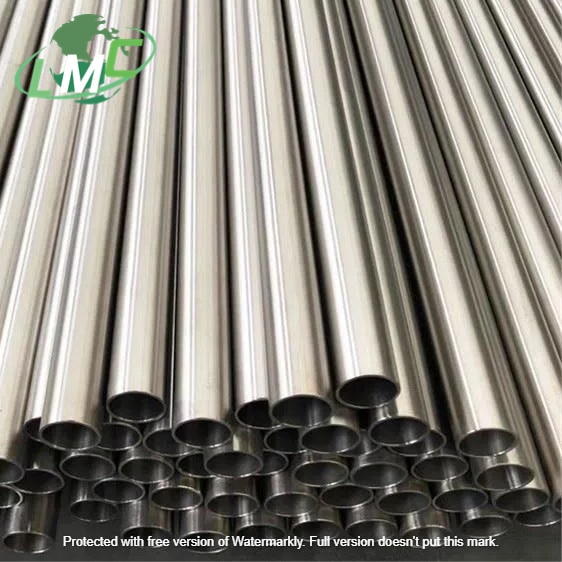

Product name: Gr1 Titanium seamless tube Standard:ASTM B338 Material:Grade 1 titanium Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr1 Titanium seamless tube The production process of titanium seamless pipe is complex. Three roll or multi roll rolling mill and drawing machine are usually used to roll or draw a certain specification of pipe blank through multiple passes, and finally produce seamless pipe after reducing diameter and wall. The production efficiency and yield of this process are low. Titanium seamless pipe from sponge titanium to pipe, through rolling or drawing, the material waste is large, the yield is only about 50%, and can not achieve mass production, and the production cycle is relatively long. Product name Titanium seamless tube Standard ASTM B861, ASTM B337, ASTM B338 Size OD5.0-114.0mmxWT0.5-7.0mmx1000-12000mm OD55mm-914mmxWT1.0-10.0mmx1000-6000mm Or according customer’s requirement. Material Titanium(Gr1, Gr2, Gr5, Gr7,Gr9,GR12) Technique Rolled Status Annealled Surface Acid wash,bright Application Exhaust pipe; exhaust pipe, petroleum pipeline;Sea farming; electroplating equipment;Fluid Transportation Piping etc. Certificate ISO9001:2008, TUV, EN10204.3.1 Types Out diameter Sizes Length NB Sizes (in stock) .0035” ~ 8” 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" Cut to length Titanium Seamless Tube (Custom Sizes) 6.35 mm OD To 101.6 mm OD As per requirement Cut to length Titanium seamless pipe features: 1. The thicker the wall thickness is, the more economical and practical it is. The thinner the wall thickness is, the higher its processing cost will be 2. The process of titanium seamless pipe determines its limited performance. Generally, the precision of seamless steel pipe is low, the wall thickness is uneven, the brightness of the inner and outer surface of the pipe is low, the sizing cost is high, and there are pockmarks and black spots on the inner and outer surface, which are not easy to remove 3. Its detection and shaping must be processed offline. Therefore, it embodies its advantages in high pressure, high strength and mechanical structure materials.

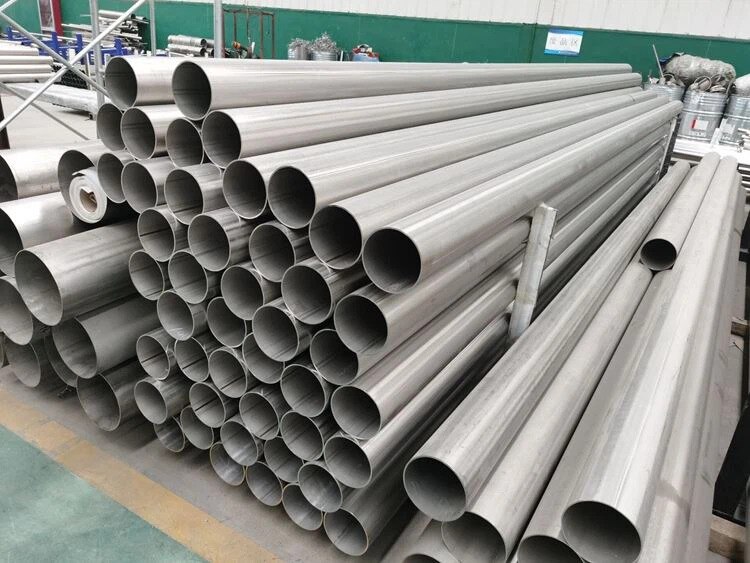

Product name: Gr2 Titanium welded Tube Standard:ASTM B338 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube Titanium welded pipe is produced by automatic continuous production line, using titanium strip coil with uniform wall thickness through cold bending forming, welding, online heat treatment, sizing straightening, non-destructive testing and air tightness test and other procedures. From sponge titanium to welded pipe, the material utilization rate is usually about 80%, if the titanium strip coil as the raw material, its material utilization rate is more than 95%. With the rapid development of titanium industry and mature welding technology, the titanium tube welding will also greatly enhance production efficiency, quality stability, consistency, and the production efficiency will be higher, can according to customer request length cut into the required length, short delivery time, high material utilization, cost per unit is seamless tube will be lower. Product name: Gr2 Titanium welded Tube Standard:ASTM B338 ASTMB 862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled MOQ:100kgs Titanium welded pipe production process: titanium with open book - shearing butt - looping the loading - titanium belt cleaning - type pipe forming and welding to eddy current flaw detection, the predetermined diameter - online annealing - pure sizing/straightening to eddy current flaw detection, laser caliper - online printing - scale cutting and ultrasonic testing to fine scale/flat head, air tightness test to the finished product inspection, packaging warehousing.

Product name: Gr2 Titanium Welded pipe Standard:ASTM B338 ASTM B862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube With the progress of titanium welded pipe welding and heat treatment technology, the titanium thin wall welded pipe widely used single or multiple gun gun TIG/PAW from fusion welding, after welding using on-line heat treatment process, through optimizing welding, annealing process, make the parent metal, weld and heat affected zone microstructure close, basically eliminate the welding stress at the same time, make the weld microstructure of homogenization. By comparison, it is found that the weld composition of the titanium welded pipe is basically the same as that of the base metal, and the mechanical properties and anti-corrosion properties of the weld are the same as those of the base metal. Widely used in petrochemical industry, exhaust pipe industry, machinery industry and so on. Product Name Titanium welded tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr7, Gr12, etc. Length ≤16000mm Size(mm) Diameter 10-914mm Section shape Round Certification ISO9001:2015 Surface Treatment pickling, polished, bright finish etc. Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity In order to study the application technology of ultra-thin wall titanium welded pipe in the distillation seawater desalination, experts have studied and analyzed the heat exchange performance, mechanical performance, corrosion performance, preventing microbial adhesion and precipitation of non-condensible gas of ultra-thin wall titanium welded pipe, and compared with copper pipe, stainless steel pipe. The results show that the ultra-thin wall titanium welded pipe is the core component of distillation seawater desalination equipment, its wall thickness has been used in batches of 0.4mm, or even thinner, the product has excellent heat exchange performance, mechanical properties, corrosion resistance, is the preferred material of distillation seawater desalination heat exchange tube.

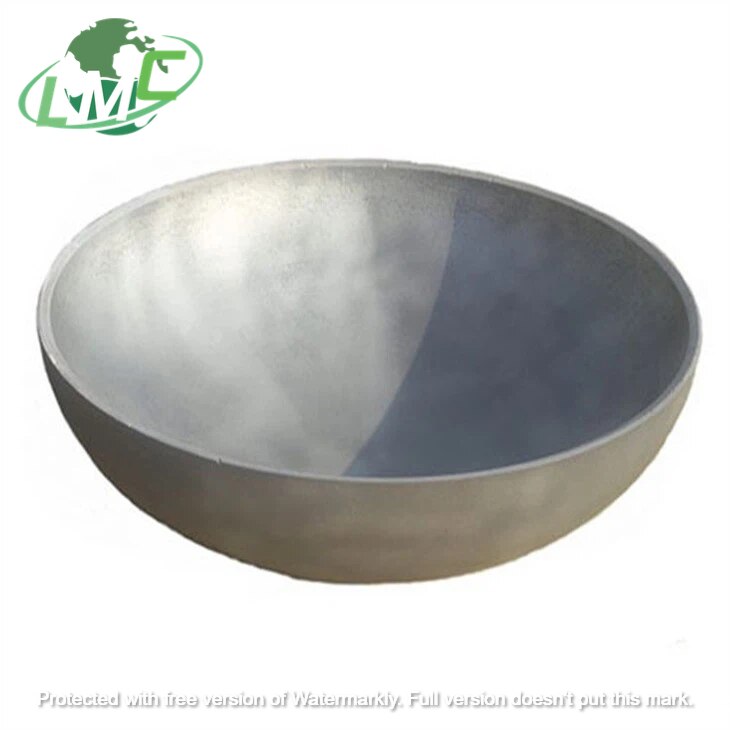

Product name:Gr2 titanium dome dish heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 titanium dome dish heads A dish head is a part of a container that is welded to the cylinder. According to the different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, vertebral shell and cap. The sphere, the ellipse,disc head is also referred to as convex head. In the welding way is divided into butt welding head, socket welding head, used for all kinds of container equipment, such as storage tanks, heat exchanger, tower, reactor, boiler and separation equipment. Materials are carbon steel, stainless steel, alloy steel, aluminum, titanium, copper, nickel and nickel alloy etc Dish head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy and food and pharmaceutical industries. Standard: ASME VIII-I, DIN28013 Thickness:5-100mm Size: Customized Material: GR1, GR2, GR7, GR12 High temperature resistant:100-1000°℃ Resistance to high pressure:0.25-100kg Application:Pressure vessel equipment Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

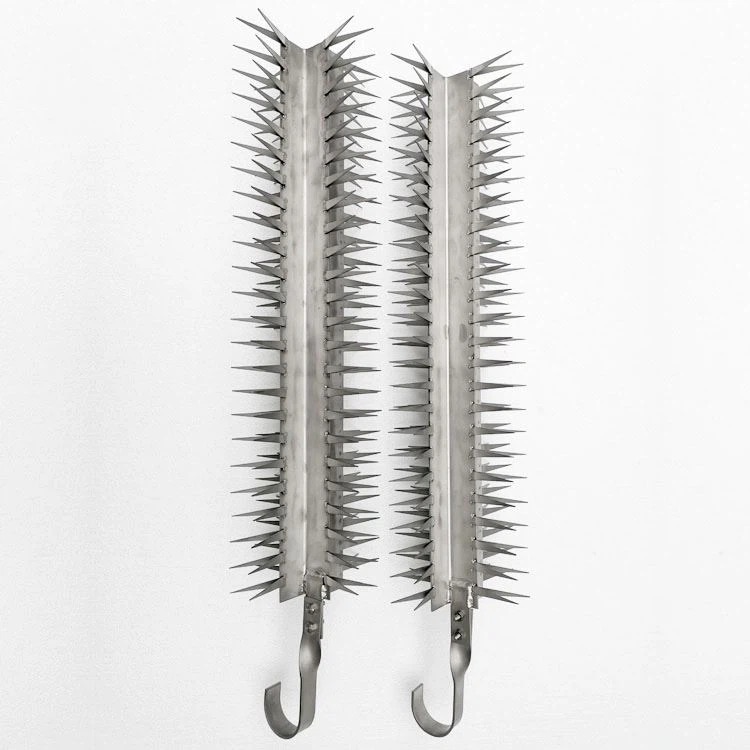

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright Characteristics Sufficient mechanical strength Good electrical conductivity Light weight Sturdiness and durability Convenient loading and unloading of parts Appropriate loading

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright Precautions for the Installation and Use 1. The distance between the bottom of the racks and the bottom of the groove is 150mm~200mm 2. The depth of the workpiece sinking into the electrolyte is about 40~60mm 3. The distance between the racks and the wall of the tank should be greater than 50mm 4. The position of the lifting rod should be more than 80mm away from the liquid surface
