Introduction
Ladhani Metal Corporation is a leading manufacturer, supplier, and exporter of
stainless steel (SS) pipe supports and accessories, designed to meet the needs
of critical piping systems across industries. Among our wide range of products,
the SS Pipe Shoe Clamp is engineered to provide reliable support, stability,
and load distribution for pipelines in high-temperature, high-pressure, and
corrosive service conditions. These clamps are widely used in power plants,
refineries, petrochemical industries, fertilizer units, and process plants.
What is an
SS Pipe Shoe Clamp?

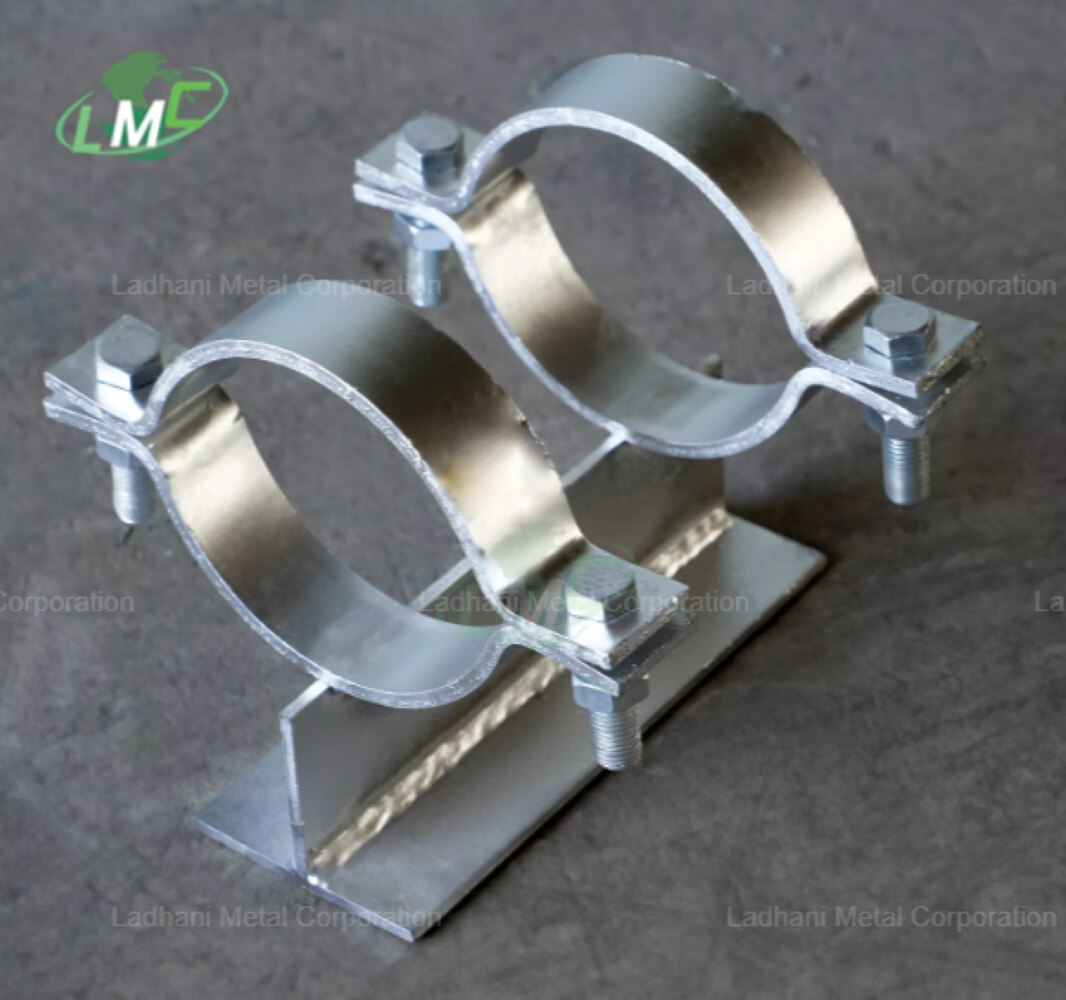

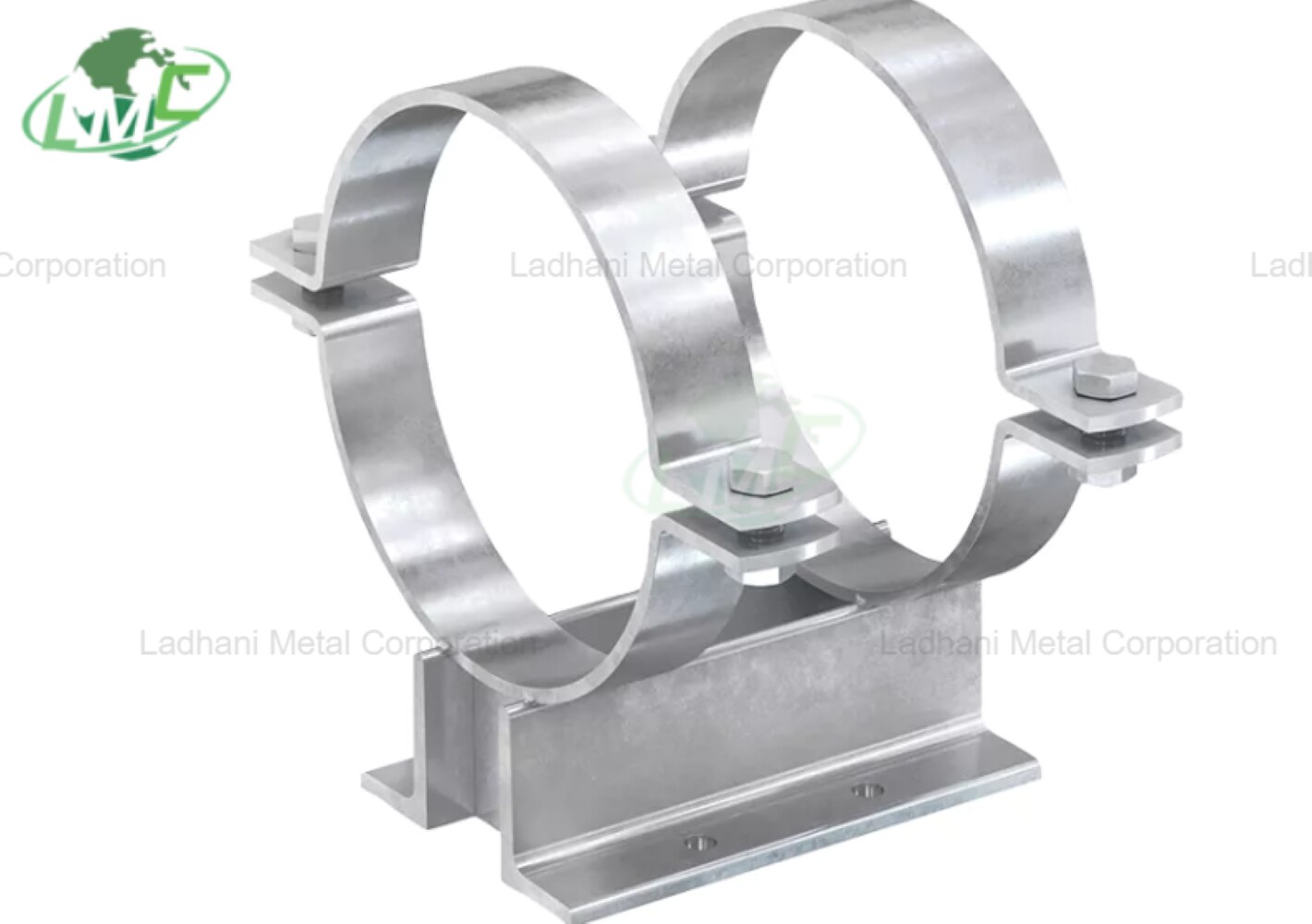

An SS Pipe Shoe Clamp is a structural support component designed to hold,
guide, and secure piping systems while allowing controlled thermal expansion
and contraction. It consists of a clamp body with extended shoes that rest on
structural beams or supports. These shoes elevate the pipe from the supporting
surface, preventing direct metal-to-metal contact and reducing wear, corrosion,
and vibration-related issues. Pipe shoe clamps are available in various
configurations, including fixed, adjustable, sliding, and insulated types, to
suit different operating conditions.
Purpose and
Functionality
The primary purpose of an SS Pipe Shoe Clamp is to support pipelines and
maintain their alignment while accommodating movement caused by temperature
fluctuations, pressure changes, and vibrations. They distribute the load evenly
across the pipeline structure, minimize stress concentrations, and prevent
damage to both the pipe and its supporting framework. In industries handling
hot fluids, corrosive chemicals, or high-pressure steam, stainless steel shoe
clamps ensure longer service life by providing excellent corrosion resistance
and mechanical strength.
Key Features
· Manufactured from high-grade stainless steel for superior corrosion
resistance
· Designed to handle high-temperature and high-pressure service conditions
· Available in fixed, sliding, and adjustable variants
· Provides elevation to pipes, avoiding direct contact with structural beams
· Minimizes vibration and noise transmission
· Easy to install, remove, or replace during maintenance
· Suitable for both horizontal and vertical pipeline installations
Product
Range
|
Product Name |
Description |
|
SS
Adjustable Pipe Shoe Clamp |
Designed
with adjustable height and clearance for precise alignment and flexibility. |
|
SS
Insulated Pipe Shoe Clamp |
Equipped
with insulation to minimize heat transfer and prevent thermal bridging. |
|
Heavy-Duty
Pipe Shoe Clamp |
Built for
large-diameter or high-load pipelines in industrial applications. |
|
SS
Heavy-Duty Pipe Shoe Clamp |
Stainless
steel version offering added corrosion resistance for heavy-duty use. |
|
Sliding
Pipe Shoe Clamp |
Allows
controlled sliding movement of pipelines under thermal expansion. |
|
SS Sliding
Pipe Shoe Clamp |
Stainless
steel sliding clamp for corrosive or high-temperature environments. |
Material
Grades Offered by Ladhani Metal Corporation
SS Pipe Shoe Clamps are manufactured in various grades of stainless steel and
alloys depending on the service conditions. Commonly used materials include:
· Stainless
Steel 304 / 304L
· Stainless Steel 316 / 316L
· Special alloys upon request
Chemical
Composition of the Following Grades
Stainless
Steel 304 / 304L
• Carbon (C): ≤ 0.08% / ≤ 0.03%
• Silicon (Si): ≤ 1.00%
• Manganese (Mn): ≤ 2.00%
• Phosphorus (P): ≤ 0.045%
• Sulfur (S): ≤ 0.030%
• Chromium (Cr): 18.0 – 20.0%
• Nickel (Ni): 8.0 – 12.0%
• Iron (Fe): Balance
Stainless
Steel 316 / 316L
• Carbon (C): ≤ 0.08% / ≤ 0.03%
• Silicon (Si): ≤ 1.00%
• Manganese (Mn): ≤ 2.00%
• Phosphorus (P): ≤ 0.045%
• Sulfur (S): ≤ 0.030%
• Chromium (Cr): 16.0 – 18.0%
• Nickel (Ni): 10.0 – 14.0%
• Molybdenum (Mo): 2.0 – 3.0%
• Iron (Fe): Balance
Applications
SS Pipe Shoe Clamps are used across a wide range of industries and
applications, including:
· Power
plants and thermal power stations
· Refineries and petrochemical plants
· Fertilizer and chemical processing units
· Oil and gas pipelines
· Water treatment and desalination plants
· Food and beverage industries
· Pharmaceutical and hygienic piping systems
Manufacturing
Capabilities
Ladhani Metal Corporation utilizes advanced fabrication methods such as CNC machining,
precision forming, and TIG/MIG welding to manufacture SS Pipe Shoe Clamps. Each
product undergoes rigorous quality checks including dimensional inspection,
mechanical testing, and corrosion resistance evaluation to ensure compliance
with international standards.
Fixing and
Installation Options
· Fixed shoe clamps for rigid support
· Sliding shoe clamps for controlled movement
· Insulated clamps for thermal applications
· Adjustable clamps for flexible alignment
· Weld-on and bolt-on designs as per client requirements
Advantages
of Ladhani Metal Corporation’s SS Pipe Shoe Clamps
· High corrosion resistance in harsh operating environments
· Excellent strength for supporting heavy loads
· Precision design for accurate fitment and long-term reliability
· Available in a variety of types and sizes to suit project needs
· Reduced maintenance costs and extended service life of pipelines
Conclusion
Ladhani Metal Corporation is Manufacturer, Supplier, and Exporter of SS Pipe
Shoe Clamps. Designed for superior performance in diverse industries, our pipe
shoe clamps ensure robust support, durability, and operational reliability of
critical piping systems. We specialize in delivering customized designs to
match specific project requirements.
For product
specifications, technical assistance, or quotations, contact us at
info@ladhanimetals.com or visit www.ladhanimetals.com.
