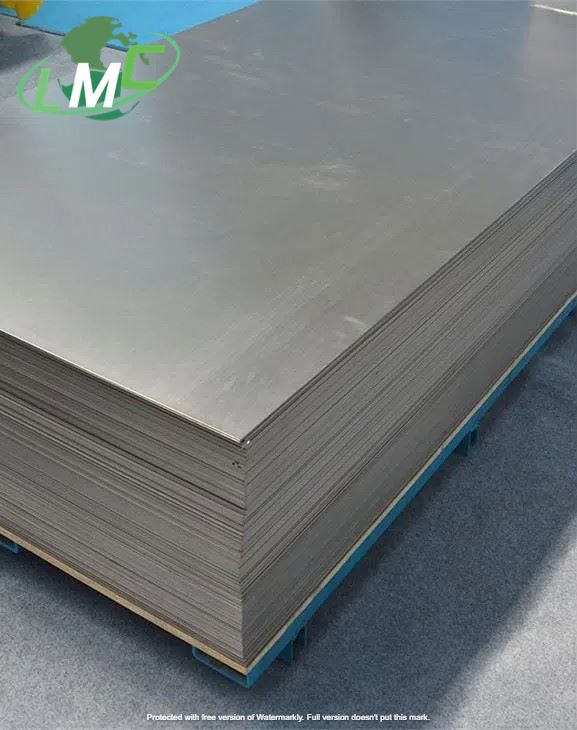

Product name:Titanium sheet Grades: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Standard: ASTM B265/ASME B265 AMS 4911 ASTM F67 ASTM F136 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate There is Grade 1, Grade 2, Grade 3, Grade4, Grade5, Grade 7, Grade 12 titanium plates in stock. Titanium plate is widely used in various fields, including metallurgy, electronics, medical, chemical, petroleum, medicine, aerospace, etc.. We offer competitive prices online, available incutting size as customers' requets. 1, Specifications Thickness range: 0.5mm-200mm Titanium coil plate/titanium coil strip: 0.1mm-0.5mm thick *1m/1.2m/1.5m wide. Standard plate: 0.5mm-20mm thick *1m*2m. Cold rolled plate: 1mm-4mm*1m*2m hot rolled plate: above 4mm thick wide and thick plate: above 5mm *2m*6m is a common specification, and specific specifications can also be customized according to customer requirements. 2, Material TA1 (Grade 1), TA2 (Grade 2), TA9 (Grade 7), TA10 (Grade 12), TA18 TC4 (Grade 5), TC6 and TC11 3.Standard dimension in stock: 1000 mm Width * 2000 mm Length 1500 mm Width* 6000 mm Length 2000 mm Width* 6000 mm Length 4,Surface:Pickled, polished, sand-blasted

Product Name:Titanium wire Standard: ASMT B863,AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing,sand-blasting Anodizing with titanium wire has many advantages. Firstly, titanium wire is resistant to corrosion and has excellent mechanical properties, making it an ideal choice for anodizing applications. Secondly, the uniform thickness and high-quality oxide layer produced by anodizing with titanium wire ensures excellent surface finish and durability for the treated metal part. Thirdly, titanium wire is cost-effective and readily available, making it a popular choice for anodizing applications. Fourthly, anodizing with titanium wire is an environmentally friendly process as it does not involve any hazardous chemicals or by-products. Overall, anodizing with titanium wire offers numerous benefits, making it a preferred choice among manufacturers and industries for enhancing the appearance, durability, and performance of their products. Product Name: Titanium wire Standard: ASTM B863 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing,sand-blasting Titanium wire manufacture is devided into two technique: Cold drawing and hot drawing. Dimension Tolerance of titanium wire: Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm 2.0-6.0mm Tolerance +/- 0.025 +/-0.04 +/-0.05 +/-0.10 Length 200-500mm 500-1000mm 1000-2000mm &2000mm Tolerance +/-1.0 +/-1.5 +/-2.0 +/-2.5

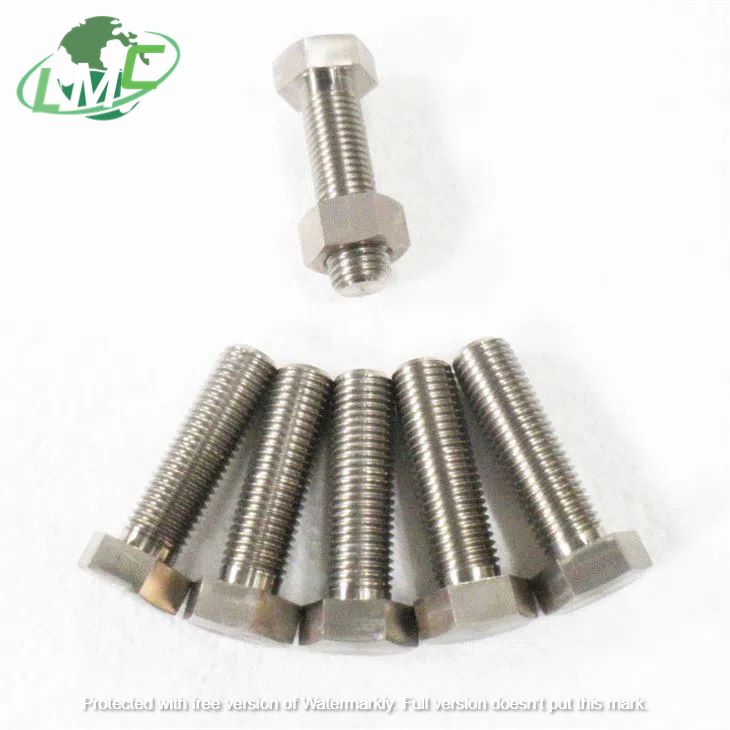

Product name:Titanium Hex Bolts And Nuts Standard: DIN127 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Size: M2-M52 Surface: Polished Technique: CNC Machined, Forged Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.The bolts made of GR2 pure titanium are corrosion resistant and light in weight, which is suitable for application in chemical industry.Titanium hex bolts are produced in strictly accordance with DIN933 standard, and the smallest spot specifications from M3 are available in stock. Item Name DIN933 Titanium hex head bolts and nuts Material Pure Titanium Grade Gr1 Gr2 Gr5 Gr7 Gr12 Standard DIN933 DIN 934 Surface Treatment Forged or CNC machined Color Ti natural Applications Chemical Industry Certificate ISO 9001:2015, EN 10204/3.1 Features 1. Not easy to rust; 2. Resistance to acid and alkali corrosion; 3. Light weight; 4. Has a long service life, widely used in aerospace, electroplating, chemical industry, machinery, etc. Gr2 Titanium Bolts Nuts Hex Type M6 M8 M10 High Stability Anti Alkali Corrosion 0 Physical properties of different grade titanium bolts: Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Gr7 Unit Price: $222.5usd/kg-$285.7usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Gr7 titanium sheet is high palladium content, and it is very resistant to corrosion. For example, titanium grade 7 is resistant to salt water and is also suitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impacts. plate usually used for Pressure vessel, fastener, frame, Aerospace vehicle, Chemical industry, ocean engineering etc. Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Grade 7 (Ti-0.2Pd) Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Quality inspections: Flaw detection, eddy current test, etc Grade Chemicai composition(WT%) (Ti) (Fe) (C) (N) (H) (O) (Pd) (Al) (Sn) Others Each Total Gr7 Ti-0.2Pd Remainder ≤0.30 ≤0.08 ≤0.03 ≤0.015 ≤0.25 0.12～0.25 / / ≤0.1 ≤0.4

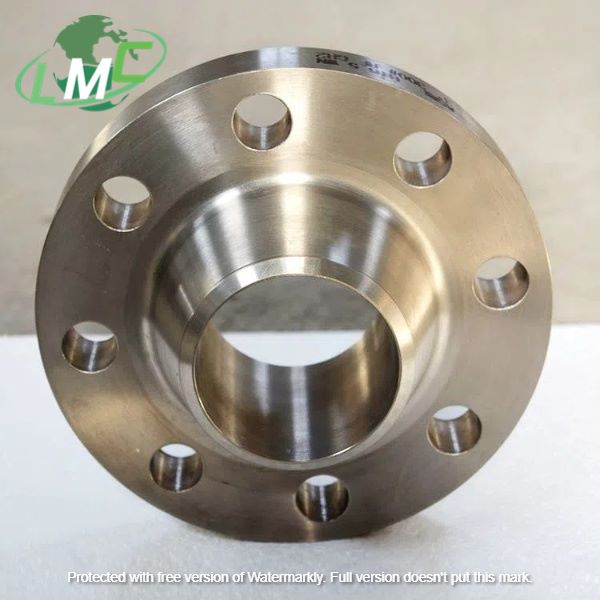

Product Name:Titanium weld neck flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Titanium Weld Neck Flanges Titanium weld neck flanges are not easy to deform, have good sealing, and are widely used. They are suitable for pipelines with large fluctuations in pressure or temperature or high temperature, high pressure and low temperature pipelines. The advantage is that the price is low, and the nominal pressure does not exceed 2.5MPa. It is also used for transportation on pipelines with expensive, flammable and explosive media, and the nominal pressure is around PN16MPa.

Product Name: titanium welding wire Standard: AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing Titanium welding wire is usually used for Aerospace industry, shipbuilding industry, metallurgical industry, pharmaceutical industry, sports equipment, daily necessities and other fields. We have a plenty of titanium welding wire in stock, and can send goods in 5-7 days. Welcome to contact us in any time! Material grade: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 (ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5,ERTi-7,ERTi-12 Standard: AWS A5.16 Specification: Coil wire：Diameter 1.0, 1.2, 1.6mm Circle wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0mm Straight wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0, 6.0mm Length: 1000mm, or as customers' requets Surface treatment: pickling, polishing Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, scars and inclusions. Slight local scratches, abrasions, spots and pits;do not exceed the allowable tolerance of the wire diameter are allowed. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

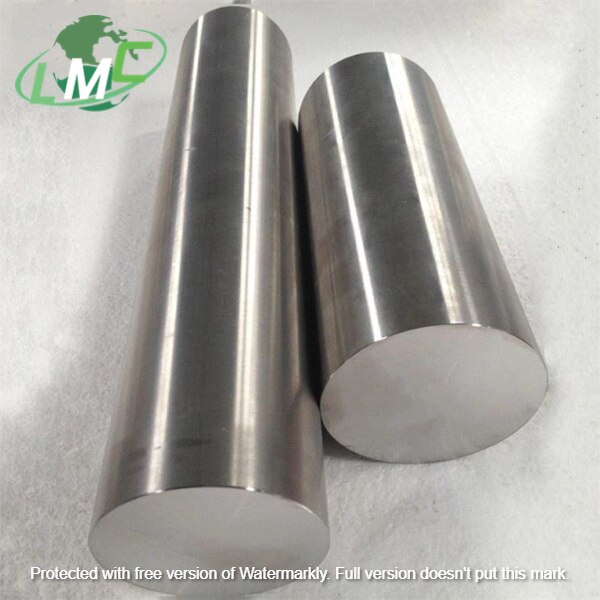

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc. Russian Grade: BT1-100,BT1-0,BT6 etc. Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: R/M/Y Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc. Size(mm) Tolerance(mm) Ovality(mm) 6.35 to 7.94 ±0.13 0.20 7.94 to 11.11 ±0.15 0.23 11.11 to 15.88 ±0.18 0.25 15.88 to 22.22 ±0.20 0.30 22.22 to 25.40 ±0.23 0.33 25.40 to 28.58 ±0.25 0.38 28.58 to 31.75 ±0.28 0.41 31.75 to 34.92 ±0.30 0.46 34.92 to 38.10 ±0.36 0.53 38.10 to 50.80 ±0.40 0.58 50.80 to 63.50 +0.79, − 0 0.58 63.50 to 88.90 +1.19, − 0 0.89 88.90 to 114.30 +1.59, − 0 1.17

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc. Russian Grade: BT1-100,BT1-0,BT6 etc. Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: R/M/Y Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc. Dia （mm） Weight per meter （kg） Dia （mm） Weight per meter （kg） Dia （mm） Weight per meter （kg） Dia （mm） Weight per meter （kg） 6 0.13 30 3.19 54 10.33 78 21.55 7 0.17 31 3.40 55 10.71 79 22.11 8 0.23 32 3.63 56 11.11 80 22.67 9 0.29 33 3.86 57 11.51 81 23.24 10 0.35 34 4.09 58 11.92 82 23.82 11 0.43 35 4.34 59 12.33 83 24.40 12 0.51 36 4.59 60 12.75 84 24.99 13 0.60 37 4.85 61 13.18 85 25.59 14 0.69 38 5.11 62 13.62 86 26.20 15 0.80 39 5.39 63 14.06 87 26.81 16 0.91 40 5.67 64 14.51 88 27.43 17 1.02 41 5.95 65 14.96 89 28.06 18 1.15 42 6.25 66 15.43 90 28.69 19 1.28 43 6.55 67 15.90 91 29.33 20 1.42 44 6.86 68 16.38 92 29.98 21 1.56 45 7.17 69 16.86 93 30.63 22 1.71 46 7.49 70 17.36 94 31.30 23 1.87 47 7.82 71 17.86 95 31.97 24 2.04 48 8.16 72 18.36 96 32.64 25 2.21 49 8.50 73 18.88 97 33.33 26 2.39 50 8.86 74 19.40 98 34.02 27 2.58 51 9.21 75 19.92 99 34.72 28 2.78 52 9.58 76 20.46 100 35.42 29 2.98 53 9.95 77 21.00
