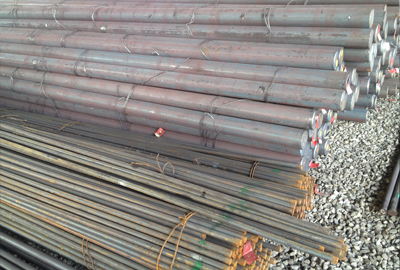

1.2826, DIN 60MnSiCr4 Bar Manufacturer , Supplier , Exporter

1.2826, DIN 60MnSiCr4 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI VZ197 197 1.2826 60MnSiCr4 - - Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.62 0.90 1.00 0.30 - - - - - DescriptionVZ197 is a heat treatable, low alloy steel containing manganese, silicon and chromium.  ApplicationsDies and lower dies, tri mming tools, hammer and pressing saddles.  Physical properties (avarage values) at ambient temperatureModulus of elasticity [103 x N/mm2]: ...

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 VZ197 is a heat treatable, low alloy steel containing manganese, silicon and chromium.

Applications
 Dies and lower dies, tri mming tools, hammer and pressing saddles.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 210
 Density [g/cm³]: 7.78

Continuous Cooling Transformation (CCT) Diagram

Soft Annealing
 Heat to 680-720^oC, cool slowly. This will produce a maximum Brinell hardness of 240.

Hardening
 Harden from a temperature of 820-860^oC followed by oil quenching or hot quenching at 180-220^oC.

Tempering
 Tempering temperature: 300-550^oC.

Forging
 Hot forming temperature: 1050-850^oC.

Machinability
 Machining is best done with this alloy in the annealed or normalized and tempered condition. It can be machined by all conventional methods.

Corrosion Resistance
 This is a low alloy steel and not a corrosion resistant alloy. Protective coating should be used.

Welding
 The alloy can be fusion or resistance welded. Preheat and post heat weld procedures should be followed when welding this alloy by established methods.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
