Introduction

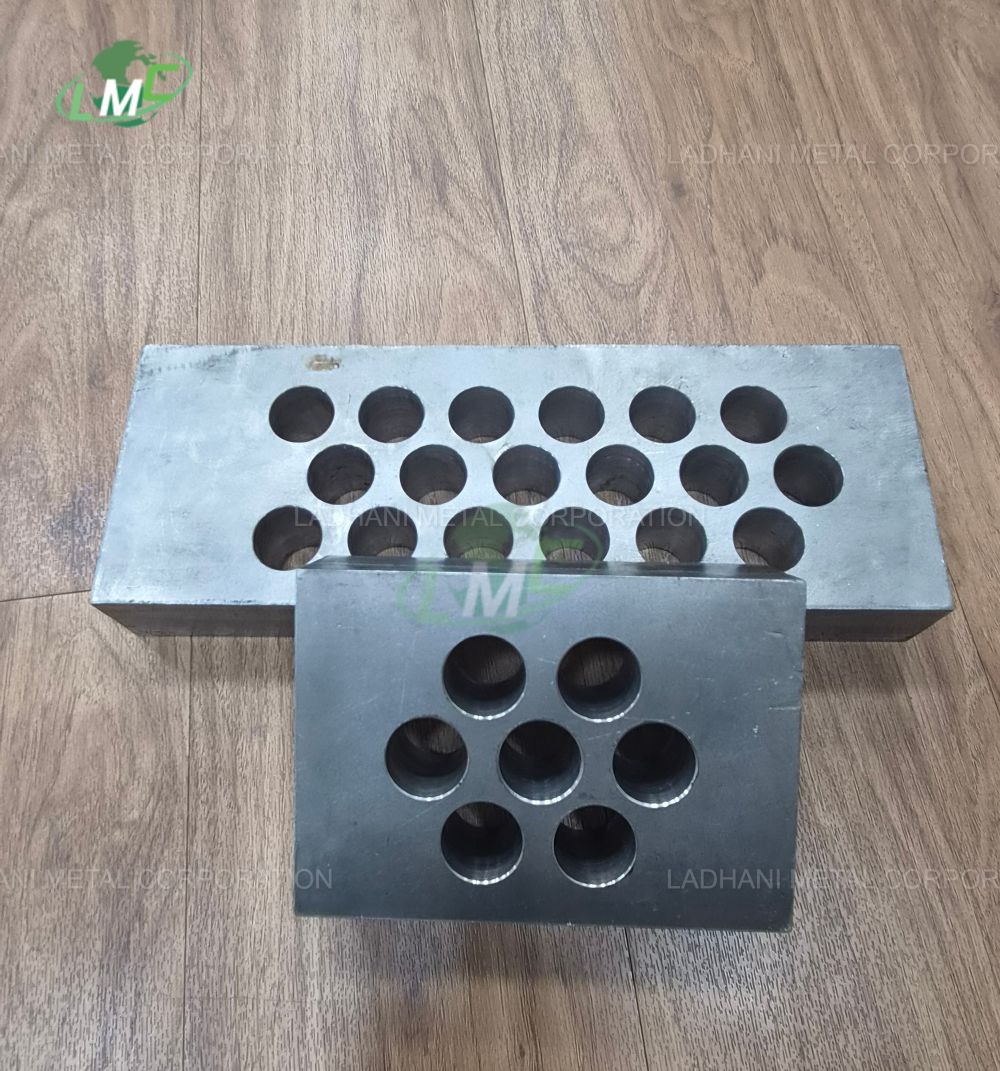

Titanium
clad plates are composite metal plates consisting of a titanium layer
metallurgically bonded to a base metal such as carbon steel, low alloy steel,
or stainless steel. They combine the excellent corrosion resistance and
lightweight properties of titanium with the strength, structural support, and
cost efficiency of the base metal.
Construction of Titanium Clad Plates
Titanium
clad plates generally consist of:
Titanium
Cladding Layer
Base Metal Layer
Metallurgical Bond Interface
The
titanium layer provides corrosion resistance, while the backing plate provides
mechanical strength and structural rigidity.
Titanium Grades
Common
titanium grades used for cladding include:
Grade 1 |
Grade 2 | Grade 5 | Grade 7
Grade 1
and Grade 2 are widely used where high corrosion resistance and good
formability are required. Grade 5 is a higher-strength titanium alloy, while
Grades 7, 9 and 12 are selected for specific corrosion and mechanical
requirements.
Base Materials
Titanium
can be clad with various backing materials depending on the application:
Carbon
Steel | Low Alloy Steel | Pressure Vessel Steel | Stainless Steel | Nickel
Alloy Base Materials
The base
material is selected according to the required structural strength, operating
temperature, pressure and fabrication requirements.
Cladding Methods
Titanium
clad plates can be produced using different bonding technologies, including:
Explosion
Cladding
Hot Roll Bonding
Diffusion Bonding
Roll Bonding
Explosion
cladding is commonly used for producing large titanium-steel composite plates
with a strong metallurgical bond.
Titanium Cladding Thickness
Titanium
cladding thickness can be selected according to corrosion allowance, operating
conditions and design requirements.
Typical
titanium cladding thickness may include:
1 mm |
1.5 mm | 2 mm | 3 mm | 4 mm | 5 mm | 6 mm and above
Custom
cladding thicknesses can also be supplied according to customer requirements.
Base Plate Thickness
The
backing plate can be supplied in a wide range of thicknesses depending on the
pressure and structural requirements of the equipment.
Custom
combinations of titanium cladding thickness and base plate thickness can be
produced according to drawings and specifications.
Forms of Supply
Titanium
clad plates can be supplied in:
Clad
Plates | Clad Sheets | Cut Plates | Custom Cut Components | Circular Plates |
Rectangular Plates | Custom Shapes
Key Features
- Excellent corrosion resistance
- High strength-to-weight ratio
- Metallurgical bonding between
dissimilar metals
- Reduced use of expensive titanium
- Suitable for corrosive process
environments
- Good resistance to many chemical
media
- Available in customized dimensions
- Suitable for pressure equipment
fabrication
Applications
Titanium
clad plates are used in:
Chemical
Processing Equipment
Petrochemical Equipment
Heat Exchangers
Pressure Vessels
Reactors
Storage Tanks
Condensers
Desalination Equipment
Chlor-Alkali Equipment
Power Generation Equipment
Oil and Gas Equipment
Pharmaceutical Equipment
Advantages
Titanium
clad plates provide a combination of corrosion resistance and structural
strength while reducing the quantity of solid titanium required for large
fabricated equipment.
They are
particularly useful where the process side requires titanium corrosion
resistance while the structural side can be constructed from a lower-cost steel
backing material.
Customization
Titanium
clad plates can be supplied according to customer requirements for:
Titanium
Grade
Base Metal Grade
Cladding Thickness
Base Plate Thickness
Plate Length
Plate Width
Cladding Area
Surface Finish
Cutting Dimensions
Quantity
Availability
Titanium
clad plates are available in ready stock for selected specifications and can
also be produced according to customized requirements.
Conclusion
Titanium
clad plates provide a practical combination of titanium corrosion resistance
and the structural strength of steel or other backing materials. They are
suitable for demanding industrial applications where corrosion protection,
mechanical strength and material economy are required.
For enquiries or customized requirements, contact Ladhani Metal Corporation.
