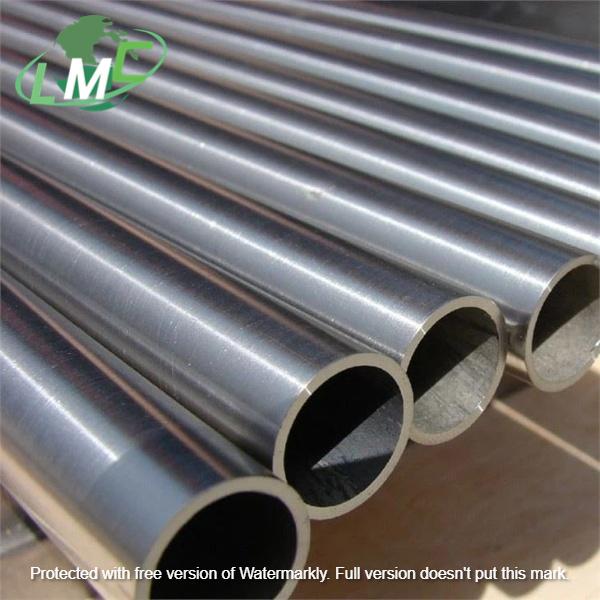

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium welded pipe is formed by rolling a cold-rolled titanium strip into a tube shape and then using tungsten inert gas shielded welding to weld the gap. Due to its excellent seawater corrosion resistance, it has become the first choice for various types of condensers and heat exchangers to replace stainless steel and copper tubes as heat exchange tubes since it was developed. Therefore, it has been widely used in the manufacture of coastal power plants, nuclear power plants, Condensers and heat exchangers that require sea water as a cooling medium in seawater desalination and petrochemical industries.

Product name: Gr2 Titanium Welded pipe Standard:ASTM B338 ASTM B862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube With the progress of titanium welded pipe welding and heat treatment technology, the titanium thin wall welded pipe widely used single or multiple gun gun TIG/PAW from fusion welding, after welding using on-line heat treatment process, through optimizing welding, annealing process, make the parent metal, weld and heat affected zone microstructure close, basically eliminate the welding stress at the same time, make the weld microstructure of homogenization. By comparison, it is found that the weld composition of the titanium welded pipe is basically the same as that of the base metal, and the mechanical properties and anti-corrosion properties of the weld are the same as those of the base metal. Widely used in petrochemical industry, exhaust pipe industry, machinery industry and so on. Product Name Titanium welded tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr7, Gr12, etc. Length ≤16000mm Size(mm) Diameter 10-914mm Section shape Round Certification ISO9001:2015 Surface Treatment pickling, polished, bright finish etc. Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity In order to study the application technology of ultra-thin wall titanium welded pipe in the distillation seawater desalination, experts have studied and analyzed the heat exchange performance, mechanical performance, corrosion performance, preventing microbial adhesion and precipitation of non-condensible gas of ultra-thin wall titanium welded pipe, and compared with copper pipe, stainless steel pipe. The results show that the ultra-thin wall titanium welded pipe is the core component of distillation seawater desalination equipment, its wall thickness has been used in batches of 0.4mm, or even thinner, the product has excellent heat exchange performance, mechanical properties, corrosion resistance, is the preferred material of distillation seawater desalination heat exchange tube.

Product name: Titanium pipe coil/ titanium coil tube Grade: Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape: Coiled Tubes, "U" Shape,Or as customer’s drawing Titanium pipes and plates are rapidly gaining popularity in the industry due to their exceptional advantages. Firstly, titanium pipes and plates possess superior strength and durability, making them suitable for use in numerous projects where high-performance abilities are necessary. Additionally, these materials are lightweight, which makes them easy to handle and transport, reducing labor costs considerably. Moreover, titanium pipes and plates exhibit excellent corrosion resistance properties, even in the most corrosive environments. They are suitable for use in seawater applications, chemical processing plants, and other harsh conditions. With minimal maintenance, titanium pipes and plates can last for many years, saving the industry significant costs on replacement and repair. Finally, titanium pipes and plates have high-temperature resistance abilities, which make them ideal for various high-temperature applications, including exhaust systems, heat exchangers, and furnace components. Their high melting point and thermal stability make them a perfect choice for extreme temperatures. In conclusion, titanium pipes and plates offer a range of exceptional benefits such as strength, durability, lightweight, corrosion resistance, and high-temperature resistance, which make them the preferred choice for numerous industrial applications. Product name.:Titanium coil pipe,titanium coil tube,titanium tube coil,titanium coil tubing Type:Seamless, welded Technique: Cold Drawn Material: Titanium Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Surface Treatment:Polish Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape and dimension: As per the drawing ;as Per The Clients Usage:Pipeline Transport Section Shape:Round Origin:China Following is the material grade of Titanium Coiled Tubes that we could do: Ti CP - Grade 1 R50250 3.7025 Ti CP - Grade 2 R50400 3.7035 Ti CP - Grade 3 Ti-0.7Pd Grade 7 Ti 3Al2.5V Grade 9 R56320 3.7194 Ti 0.3Mo 0.8Ni Grade 12 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 Grade 3 0.05 0.08 0.015 0.30 0.35 Grade 7 0.03 0.08 0.015 0.30 0.25 / / 0.12-0.25 / / Bal Grade 9 0.05 0.08 0.015 0.25 0.12 2.0-3.5 1.5-3.0 Grade 12 0.03 0.08 0.015 0.25 0.15 / / / 0.2-0.4 0.6-0.9 Bal

Product Name: Titanium Pipe Standard: ASTM B861, ASTM B862 Material: Gr7 Type: Welded/Seamless Shape: Round Outer Diameter: 3-114mm or as customized Wall Thickness: 0.5-7mm or as customized Length: Max 12000mm Surface: Bright Product Information of Grade 7 Titanium Pipe Material: Gr7 Standard: ASTM B861, ASTM B862 OD: 3-114mm or as customized WT: 0.5-7mm or as customized Length: Max 12m Type: Welded/Seamless Surface: Polishing, Pickling Grade 7 Titanium Grade 7 titanium has physical and mechanical properties equivalent to Grade 2 titanium (CP3). It has excellent welding and fabrication properties and is extremely resistant to corrosion, especially from reducing acids.

Product Name: Titanium gr 2 pipe Standard: ASTM B861, ASTM B862, ASTM B338 Material: Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless/Welded Shape: Round

Product name: Titanium welding pipe for heat exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc. Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Application:Heat Exchanger, chemical industry etc. Technique:Welded Titanium seamless pipe for heat exchanger Titanium welded tube GR2 has α crystal structure. This alloy is widely used because of its good formability, moderate strength and excellent corrosion resistance. It has excellent corrosion resistance in strong oxidation and photoreduction environments, including chloride. Easy to weld, hot and cold processing and machining. These characteristics make it ideal for a wide range of applications, including Marine and Marine pipelines, reaction vessels and heat exchangers, Marine, automotive parts, medical and sports equipment in the aerospace, petrochemical, oil and gas and Marine industries. GR2 titanium welded pipe is made by crimping titanium or titanium alloy coil or wide plate welding into a tube. It has been widely used in electric power, seawater desalination, water treatment equipment, air conditioning equipment and other industries, but in the petrochemical industry, the use of titanium welded pipe is still in the promotion.

Product Name: Titanium seamless pipe for heat exchanger Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless Shape: Round Outer Diameter: 21.3mm-609.6mm etc. Wall Thickness: 1.24-30mm Length: Max 16000mm Surface: Bright Titanium seamless pipe for heat exchanger The grade 2 titanium tube consists of commercial pure titanium or Unalloyed titanium. The oxygen content of grade 2 is standard. ASTM b861 GR 2 pipes can be easily welded. It also has excellent strength and ductility. The natural strength of metal is used for applications requiring very high strength, and the corrosion resistance is used for long-term appliances. Although most use cases are in industrial standards, titanium grade 2 seamless pipes can also be used in aesthetic and home applications. Due to the cost of raw materials and production costs, the cost is very high. The content of titanium in commercial pure CP grade 2 titanium welded pipe exceeds 99%. It can be cold drawn into titanium seamless pipe or hot rolled into welded pipe. They are used in high temperature applications, such as titanium 2-stage exhaust pipes, which can maintain their shape due to their high thermal conductivity, low thermal expansion and high oxidation resistance at high temperatures.

Product name: 19mm Titanium pipe for heat exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:19.1mm Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled 19mm Titanium pipe for heat exchanger Commonly used heat exchange tube size (outer diameter x wall thickness) is mainly φ 19mmx2mm, φ 25mmx2mm.5mm and φ 38mmX2mm.5mm seamless tube and φ 25mmx2mm and φ 38mmx2mm.5mm seamless tube. Standard tube length includes 1.5, 2.0, 3.0, 4.5, 6.0, 9.0m, etc. The use of small diameter can increase the heat transfer area per unit volume, compact structure, reduce metal consumption, improve the heat transfer coefficient. It is expected that the heat exchange tube of the same diameter heat exchanger is changed from φ 25mm to φ 19mm, the heat exchange area can be increased by about 40%, saving more than 20% of metal.

Product name: 25.4mm Titanium Pipe for Heat Exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:25.4mm Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled 25.4mm Titanium Pipe for Heat Exchanger In case of strong acid, high pressure, high temperature, nuclear energy and other environments, titanium tube is widely used for titanium heat exchanger, in seafood breeding, sea water heat exchange, salt water heat exchange,marine engineering chemicalindustry, nuclear power project, sea water desalination, chemical containers, such as tubular heat exchangers, pressure vessels, boilers, condensers, central air conditioning, evaporators and other industries and fields.
