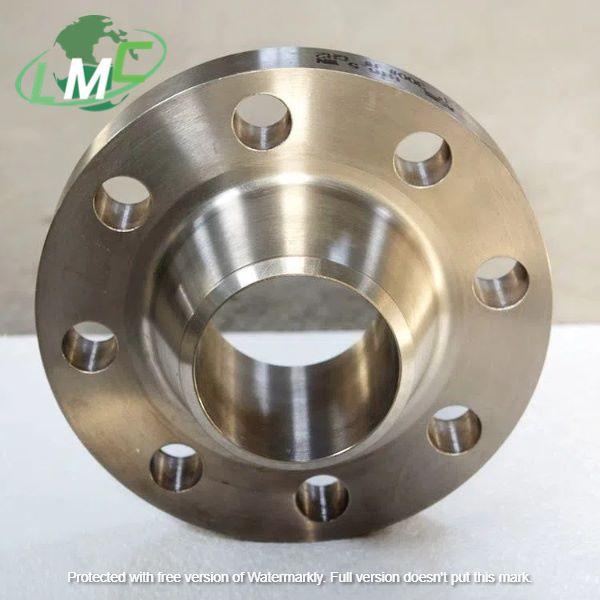

Product Name: Gr2 Titanium weld neck flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc.

Product Name:Titanium weld neck flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Titanium Weld Neck Flanges Titanium weld neck flanges are not easy to deform, have good sealing, and are widely used. They are suitable for pipelines with large fluctuations in pressure or temperature or high temperature, high pressure and low temperature pipelines. The advantage is that the price is low, and the nominal pressure does not exceed 2.5MPa. It is also used for transportation on pipelines with expensive, flammable and explosive media, and the nominal pressure is around PN16MPa.

Product Name: Titanium Weld Neck Flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Application: Chemical industry Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 3 Pressure: Class 300 Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Available Flange types a.Slip On Flange b.Welding Neck Flange c.Threaded Flange(Screwed Flange) d.Plain Flange e.Blind Flange f.Lap Joint Flange g.Wocket Welding Flange h. welded flange i. titanium large-diameter flange Specification Titanium Weld Neck Flange Class 300 Nom. Pipe Size Flange Dia. Flange Thick. Hub Dia. At Base Raised Face Dia. Hub Dia. At Weld Point No. of Holes Dia. Of Bolts Dia. Of Bolt Circle Bore Dia. Length Thru Hub 1/2 3-3/4 9/16 1-1/2 1-3/8 0.84 4 2-5/8 1/2 0.62 2-1/16 3/4 4-5/8 5/8 1-7/8 1-11/16 1.05 4 3-1/4 5/8 0.82 2-1/4 1 4-7/8 11/16 2-1/8 2 1.32 4 3-1/2 5/8 1.05 2-7/16 1-1/4 5-1/4 3/4 2-1/2 2-1/2 1.66 4 3-7/8 5/8 1.38 2-9/16 1-1/2 6-1/8 13/16 2-3/4 2-7/8 1.90 4 4-1/2 3/4 1.61 2-11/16 2 6-1/2 7/8 3-5/16 3-5/8 2.38 8 5 5/8 2.07 2-3/4 2-1/2 7-1/2 1 3-15/16 4-1/8 2.88 8 5-7/8 3/4 2.47 3 3 8-1/4 1-1/8 4-5/8 5 3.50 8 6-5/8 3/4 3.07 3-1/8 Our moulds for flange are very complete, so we can produce flanges in all standards, including EN1092-1, ASME B16.5, DIN and BS etc.

Product Name: Titanium Weld Neck Flange Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 3 Pressure: Class 300 Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Name Titanium flange,Titanium alloy flange Material Grade Gr1,Gr2,Gr5,Gr7,Gr12 Certificate EN10204/3.1 Standard EN1092-1 Size DN10-3600 Pressure PN0.6-PN100 Technique Forged and CNC Machined Type WNRF,SORF,BLIND,SW,PL Flange surface FF,RF,TG,RJ etc. Application Boiler pressure vessels,v chemical,petroleum,shipbuilding,pharmaceutical,metallurgy,machinery Advantage 1,Long servise lif 2,corrosion-resistant 3,High yeiled strength and tensilestrength Available Flange types a.Slip On Flange b.Welding Neck Flange c.Threaded Flange(Screwed Flange) d.Plain Flange e.Blind Flange f.Lap Joint Flange g.Wocket Welding Flange h. welded flange i. titanium large-diameter flange LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

DIN 2634 carbon steel flanges PN 25 are high-strength weld neck flanges manufactured according to the DIN 2634 standard. Specifically designed for use in high-pressure piping systems operating up to 25 bar (362 psi), these flanges offer excellent mechanical performance and are suitable for a wide range of industrial applications. Manufactured from quality carbon steel, they provide strong, durable, and cost-effective solutions for systems where corrosion resistance requirements are moderate but structural integrity is critical. Ladhani Metal Corporation is a recognized manufacturer and global supplier of carbon steel flanges, known for precision engineering, strict adherence to international standards, and advanced production capabilities. Each flange is subject to comprehensive testing and inspection to ensure reliability and consistent performance under demanding operating conditions. Pressure Rating: • PN 25 (25 bar / 362 psi): Suitable for medium to high-pressure applications where strength and impact resistance are essential. Flange Type: • Weld Neck Flanges Designed with a tapered hub to ensure smooth transition from flange to pipe, weld neck flanges are ideal for systems experiencing frequent thermal cycling, pressure fluctuations, and mechanical stress. • Flat Face (FF) Flanges Recommended for use with gaskets made from soft materials or when connecting to cast iron components, flat face flanges ensure even gasket compression and reliable sealing performance. Carbon Steel Grades and Typical Composition: Carbon Steel (ASTM A105 / C22.8 equivalent) – Forged Carbon Steel • Carbon (C): ≤ 0.35% • Manganese (Mn): 0.60 – 1.05% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.040% • Silicon (Si): 0.10 – 0.35% • Iron (Fe): Balance Applications: Commonly used in oil and gas, petrochemical, water transmission, and power generation industries, especially in applications where high mechanical strength and pressure handling are more critical than corrosion resistance. Applications of DIN 2634 Carbon Steel Flanges PN 25: • Oil and Gas Pipelines Widely used in upstream and downstream systems for fluid transport under high pressure. • Petrochemical and Refining Plants Efficiently handles high-pressure flow systems involving hydrocarbons and steam. • Power Plants and Boiler Systems Suited for high-pressure steam and water lines, offering excellent tensile strength and fatigue resistance. • Water and Wastewater Infrastructure Used in municipal and industrial pipelines requiring cost-effective, robust flange connections. • General Industrial Systems Applicable in a wide range of mechanical systems and processing plants handling non-corrosive or mildly corrosive media. Key Features: • Compliant with DIN 2634 pressure and dimensional standards • PN 25 rating ensures compatibility with high-pressure pipelines • High tensile and yield strength for demanding structural requirements • Weld neck design enhances resistance to vibration and thermal expansion • Cost-effective solution for pressure-bearing connections • Available in standard and custom sizes, surface finishes, and pressure ratings • Heat treatment and coating options available upon request Conclusion: DIN 2634 carbon steel flanges PN 25 from Ladhani Metal Corporation provide a robust and economical solution for high-pressure systems where mechanical performance is essential. Their strength, reliability, and adaptability make them a preferred choice across industries such as oil and gas, power generation, and water infrastructure. For technical specifications, custom configurations, or pricing, contact Ladhani Metal Corporation today.

DIN 2634 super duplex steel flanges PN 25 are high-performance weld neck flanges designed in accordance with the DIN 2634 standard. These flanges are engineered for high-pressure systems operating up to 25 bar (362 psi) and are manufactured from premium super duplex stainless steel grades. Known for their superior strength, excellent corrosion resistance, and enhanced resistance to stress corrosion cracking and pitting, super duplex flanges are ideally suited for demanding industrial environments. Their robust mechanical properties make them a reliable choice for aggressive service conditions and high-pressure applications. Ladhani Metal Corporation is a global leader in the manufacturing and supply of super duplex steel flanges. With advanced production facilities, precision engineering capabilities, and rigorous quality assurance practices, the company ensures that each flange meets the highest standards of safety, durability, and performance under extreme conditions. Pressure Rating: • PN 25 (25 bar / 362 psi): Designed for systems requiring high strength and exceptional corrosion resistance under elevated pressure conditions. Flange Type: • Weld Neck Flanges Featuring a tapered hub design, weld neck flanges deliver optimal stress distribution and secure, leak-free connections in systems exposed to thermal and mechanical loading. • Flat Face (FF) Flanges Recommended for use with softer gasket materials or systems incorporating cast iron components, flat face flanges provide uniform gasket compression and reliable sealing. Super Duplex Steel Grades and Typical Composition: Super Duplex Steel (UNS S32750 / S32760) – Ferritic-Austenitic Stainless Steel • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 5.0% • Nitrogen (N): 0.2 – 0.3% • Iron (Fe): Balance Applications: Widely used in environments where high strength, corrosion resistance, and resistance to chloride-induced stress corrosion cracking are essential, such as offshore platforms, chemical plants, and desalination facilities. Applications of DIN 2634 Super Duplex Steel Flanges PN 25: • Offshore and Subsea Installations Withstand chloride-rich marine environments, offering long-term durability and resistance to seawater corrosion. • Chemical and Petrochemical Processing Suitable for handling aggressive chemicals, acids, and solvents under high pressure and temperature conditions. • Desalination and Water Treatment Plants Perform reliably in saline and brine-rich environments with superior resistance to pitting and crevice corrosion. • Power Generation and Heat Exchangers Offer excellent performance in high-temperature, high-pressure applications requiring strength and corrosion protection. • Pulp and Paper Industry Operate effectively in harsh chemical environments including bleach and acidic processing streams. Key Features: • Manufactured to DIN 2634 specifications for dimensional accuracy and pressure handling • PN 25 pressure class supports high-performance applications • Superior resistance to localized corrosion including pitting and stress corrosion cracking • High strength-to-weight ratio and excellent mechanical properties • Weld neck design ensures structural integrity and resistance to fatigue • Available in both UNS S32750 and S32760 super duplex grades • Customizable in size, pressure class, and surface finish upon request Conclusion: DIN 2634 super duplex steel flanges PN 25 from Ladhani Metal Corporation are engineered to deliver top-tier performance in environments where mechanical strength and corrosion resistance are non-negotiable. Their robust construction and excellent durability make them ideal for marine, chemical, and industrial applications operating under high pressure. For detailed specifications, project consultations, or a custom quote, contact Ladhani Metal Corporation today.

DIN 2634 duplex steel flanges PN 25 are high-performance weld neck flanges manufactured in accordance with the DIN 2634 standard. Specifically designed for high-pressure applications up to 25 bar (362 psi), these flanges are made from premium duplex stainless steel grades, offering exceptional corrosion resistance, excellent mechanical strength, and superior resistance to stress corrosion cracking in harsh environments. Their robust construction makes them ideal for demanding industrial applications where reliability and durability are critical. Ladhani Metal Corporation is a trusted global manufacturer and supplier of duplex steel flanges, known for advanced manufacturing capabilities, precision machining, and strict adherence to international quality standards. Each flange undergoes thorough inspection and testing to ensure long-term reliability, safety, and resistance to extreme operating conditions. Pressure Rating: • PN 25 (25 bar / 362 psi): Designed for high-pressure systems requiring corrosion-resistant and mechanically robust flange connections. Flange Type: • Weld Neck Flanges Featuring an extended tapered hub, weld neck flanges provide excellent stress distribution at the base, ensuring strong and leak-proof joints in systems exposed to high pressure and thermal cycling. • Flat Face (FF) Flanges Ideal for use with softer gasket materials or in systems connecting to cast components, flat face flanges offer consistent and uniform gasket compression. Duplex Steel Grades and Typical Composition: Duplex Stainless Steel 2205 (UNS S32205 / S31803) • Chromium (Cr): 21 – 23% • Nickel (Ni): 4.5 – 6.5% • Molybdenum (Mo): 2.5 – 3.5% • Nitrogen (N): 0.14 – 0.20% • Iron (Fe): Balance Applications: Preferred in environments with chloride exposure, such as seawater, chemical processing, and pulp and paper industries, due to excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. Duplex Stainless Steel 2507 (UNS S32750) – Super Duplex • Chromium (Cr): 24 – 26% • Nickel (Ni): 6 – 8% • Molybdenum (Mo): 3.5 – 4.5% • Nitrogen (N): 0.24 – 0.32% • Iron (Fe): Balance Applications: Used in the most aggressive environments including offshore oil and gas, desalination plants, and chemical processing where enhanced corrosion resistance and high mechanical strength are critical. Applications of DIN 2634 Duplex Steel Flanges PN 25: • Offshore and Marine Systems Resists corrosion from seawater and aggressive chloride environments while maintaining strength under pressure. • Chemical and Petrochemical Processing Ideal for transporting corrosive chemicals such as acids, alkalis, and chlorides at elevated pressures. • Desalination Plants Performs exceptionally in saltwater treatment systems exposed to high pressure and corrosive media. • Oil and Gas Industry Used in pipelines and pressure vessels requiring resistance to chloride-induced stress corrosion cracking. • Pulp and Paper Industry Applied in aggressive bleaching and chemical processing environments. Key Features: • Manufactured in accordance with DIN 2634 dimensional and pressure requirements • PN 25 pressure rating supports high-pressure applications • Excellent corrosion resistance including pitting, crevice, and stress corrosion cracking resistance • Superior mechanical strength and toughness at elevated temperatures • Weld neck configuration ensures strong, vibration-resistant joints • Available in standard duplex and super duplex grades • Custom sizes, pressure classes, and surface finishes available upon request Conclusion: DIN 2634 duplex steel flanges PN 25 from Ladhani Metal Corporation are engineered for challenging environments where corrosion resistance, mechanical strength, and pressure integrity are critical. With superior durability and reliability, these duplex steel flanges are ideal for demanding applications in marine, chemical, oil and gas, and industrial systems. For technical consultations, specialized requirements, or pricing information, contact Ladhani Metal Corporation today.

DIN 2634 monel flanges PN 25 are high-performance weld neck flanges manufactured in accordance with the DIN 2634 standard. Specifically engineered for high-pressure applications up to 25 bar (362 psi), these flanges are made from premium Monel alloys, offering excellent corrosion resistance, high strength, and durability in harsh environments. Their robust construction makes them ideal for applications involving aggressive chemical media and seawater where conventional metal flanges may degrade. Ladhani Metal Corporation is a trusted global manufacturer and supplier of Monel flanges, known for advanced manufacturing capabilities, precision machining, and strict adherence to international quality standards. Each flange undergoes thorough inspection and testing to ensure long-term reliability, safety, and resistance to extreme operating conditions. Pressure Rating: • PN 25 (25 bar / 362 psi): Designed for high-pressure systems requiring corrosion-resistant and mechanically robust flange connections. Flange Type: • Weld Neck Flanges Featuring an extended tapered hub, weld neck flanges provide excellent stress distribution at the base, ensuring strong and leak-proof joints in systems exposed to high pressure and thermal cycling. • Flat Face (FF) Flanges Ideal for use with softer gasket materials or in systems connecting to cast components, flat face flanges offer consistent and uniform gasket compression. Monel Grades and Typical Composition: Monel 400 (UNS N04400) – Nickel-Copper Alloy • Nickel (Ni): 63% minimum • Copper (Cu): 28-34% • Iron (Fe): 2.5% maximum • Manganese (Mn): 2.0% maximum • Carbon (C): 0.30% maximum Applications: Preferred in seawater and saltwater service, chemical processing, and marine equipment where excellent corrosion resistance in oxidizing and reducing environments is required. Monel K500 (UNS N05500) – Nickel-Copper Alloy with Additional Strengthening Elements • Nickel (Ni): 63% minimum • Copper (Cu): 28-34% • Iron (Fe): 2.5% maximum • Manganese (Mn): 2.0% maximum • Aluminum (Al) and Titanium (Ti): Added for age hardening Applications: Used in high-strength marine and chemical environments requiring enhanced mechanical properties and corrosion resistance. Applications of DIN 2634 Monel Flanges PN 25: • Offshore and Marine Systems Resists corrosion from seawater, brine, and marine atmospheres while maintaining strength under pressure. • Chemical and Petrochemical Processing Ideal for transporting corrosive media such as acids, alkalis, and chloride solutions at elevated pressures. • Desalination Plants Performs reliably in saltwater treatment and high-pressure water processing systems. • Power Generation Used in systems requiring resistance to erosion and corrosion in high-temperature steam and cooling circuits. • Pharmaceutical and Food Processing Applied in hygienic environments requiring corrosion resistance and chemical inertness. Key Features: • Manufactured in accordance with DIN 2634 dimensional and pressure requirements • PN 25 pressure rating supports high-pressure applications • Excellent resistance to corrosion, erosion, and stress corrosion cracking • Weld neck configuration ensures strong, vibration-resistant joints • Available in Monel 400 and Monel K500 alloys • Custom sizes, pressure classes, and surface finishes available upon request Conclusion: DIN 2634 monel flanges PN 25 from Ladhani Metal Corporation are engineered for demanding conditions where corrosion resistance, mechanical strength, and pressure integrity are essential. These Monel flanges provide long-term durability and reliable performance for advanced applications in marine, chemical, power generation, and industrial systems. For technical consultations, specialized requirements, or pricing information, contact Ladhani Metal Corporation today.

DIN 2634 Inconel flanges PN 25 are high-performance weld neck flanges manufactured in accordance with the DIN 2634 standard. Specifically designed for high-pressure applications up to 25 bar (362 psi), these flanges are produced using premium Inconel alloys. Inconel is known for its exceptional resistance to oxidation, high-temperature strength, and ability to withstand corrosive and extreme environments, making these flanges suitable for the most demanding operational conditions. Their high performance and reliability make them ideal in environments where other materials may degrade or fail under stress. Ladhani Metal Corporation is a trusted global manufacturer and supplier of Inconel flanges, recognized for advanced manufacturing expertise, precision machining, and commitment to international quality standards. Every flange undergoes rigorous inspection and testing to guarantee safety, longevity, and consistent performance under extreme operating environments. Pressure Rating: • PN 25 (25 bar / 362 psi): Suitable for high-pressure systems that require superior corrosion resistance and mechanical strength. Flange Type: • Weld Neck Flanges Featuring a tapered neck for gradual stress transition, weld neck flanges are ideal for high-pressure and high-temperature systems, ensuring a strong and leak-resistant weld connection. • Flat Face (FF) Flanges Designed to be used with softer gasket materials or cast equipment, flat face flanges ensure even compression and secure sealing in moderate to high-pressure systems. Inconel Grades and Typical Composition: Inconel 600 (UNS N06600) – Nickel-Chromium Alloy • Nickel (Ni): 72.0 min • Chromium (Cr): 14.0 – 17.0% • Iron (Fe): 6.0 – 10.0% • Carbon (C): ≤ 0.15% • Manganese (Mn): ≤ 1.0% • Silicon (Si): ≤ 0.5% Applications: Commonly used in heat exchangers, furnace components, and chemical processing equipment due to excellent resistance to high-temperature oxidation and corrosion. Inconel 625 (UNS N06625) – Nickel-Chromium-Molybdenum Alloy • Nickel (Ni): 58.0 min • Chromium (Cr): 20.0 – 23.0% • Molybdenum (Mo): 8.0 – 10.0% • Niobium (Nb): 3.15 – 4.15% • Iron (Fe): ≤ 5.0% Applications: Widely used in offshore and marine engineering, aerospace, chemical processing, and power generation due to excellent fatigue strength and resistance to chloride pitting and crevice corrosion. Inconel 718 (UNS N07718) – Nickel-Chromium Alloy with Niobium and Molybdenum • Nickel (Ni): 50.0 – 55.0% • Chromium (Cr): 17.0 – 21.0% • Iron (Fe): Balance • Niobium + Tantalum (Nb + Ta): 4.75 – 5.50% • Molybdenum (Mo): 2.80 – 3.30% • Titanium (Ti): 0.65 – 1.15% • Aluminum (Al): 0.20 – 0.80% Applications: Preferred in aerospace, turbine engines, nuclear reactors, and cryogenic tanks due to its excellent creep resistance, high strength, and ability to retain properties across a wide temperature range from cryogenic to 700°C. Applications of DIN 2634 Inconel Flanges PN 25: • Offshore Oil and Gas Platforms Resistant to seawater, sour gas, and harsh chemicals, ensuring reliability in corrosive and high-pressure marine environments. • Chemical Processing and Heat Treatment Plants Offers resistance to aggressive acids, alkalis, and oxidizing agents, even at elevated temperatures. • Power Generation Facilities Used in turbine systems, heat recovery steam generators, and reactors due to its high-temperature strength and oxidation resistance. • Aerospace and Defense Components Performs reliably in aircraft and defense systems exposed to extreme pressure and temperature variations. • Waste Treatment and Pollution Control Ideal for systems handling incineration gases, flue gases, and chemical waste due to high corrosion resistance. Key Features: • Manufactured as per DIN 2634 standards for dimensional accuracy and pressure compliance • PN 25 pressure rating for robust and high-pressure service conditions • High resistance to heat, corrosion, and oxidation in challenging environments • Suitable for both high-temperature and cryogenic applications • Weld neck configuration offers optimal stress distribution and structural integrity • Available in Inconel 600, 625, and other grades upon request • Custom sizes, pressure ratings, and special surface finishes available Conclusion: DIN 2634 Inconel flanges PN 25 from Ladhani Metal Corporation are engineered to provide uncompromising performance in corrosive and high-temperature environments. With superior material properties and strict quality control, these Inconel flanges deliver long-term reliability for demanding industrial applications. Contact Ladhani Metal Corporation for detailed technical support, material selection guidance, or competitive pricing for your specific requirements.
