DIN 2630 titanium flanges PN 2.5 are low-pressure weld neck flanges manufactured in accordance with the DIN 2630 standard. Designed to handle pressure ratings up to 2.5 bar (36.25 psi), these flanges are ideal for applications that demand lightweight, corrosion-resistant, and high-performance materials in non-critical or low-pressure environments. Made from high-grade titanium alloys such as Grade 2 and Grade 5 (Ti-6Al-4V), these flanges offer outstanding resistance to corrosion, especially in seawater, chlorine-rich, and oxidizing environments. Ladhani Metal Corporation is a leading global manufacturer and supplier of titanium flanges, recognized for engineering excellence and quality assurance. Our DIN 2630 PN 2.5 titanium weld neck flanges are widely used in sectors including marine, desalination, medical equipment, aerospace, and low-pressure chemical processing. With a focus on longevity and material efficiency, Ladhani Metal Corporation delivers flanges that meet stringent international standards for performance and safety. Pressure Rating: • PN 2.5 (2.5 bar / 36.25 psi): Suitable for lightweight, low-pressure systems requiring exceptional corrosion resistance and long service life. Flange Type: • Weld Neck Flanges Designed with a long tapered hub that provides stress reinforcement and reduces turbulence at the pipe connection. Ideal for ensuring structural integrity in precision-engineered piping systems. • Flat Face (FF) Flanges Flat face design allows for even gasket compression and is ideal for mating with cast or softer materials in low-pressure setups. Titanium Grades and Full Composition: Titanium Grade 2 (UNS R50400) • Titanium (Ti): ≥ 98.9% • Iron (Fe): ≤ 0.30% • Oxygen (O): ≤ 0.25% • Carbon (C): ≤ 0.08% • Nitrogen (N): ≤ 0.03% • Hydrogen (H): ≤ 0.015% Applications: Unalloyed titanium with excellent corrosion resistance in oxidizing and mildly reducing environments. Common in marine piping, desalination plants, and chemical systems. Titanium Grade 5 (Ti-6Al-4V / UNS R56400) • Titanium (Ti): Balance • Aluminum (Al): 5.5 – 6.75% • Vanadium (V): 3.5 – 4.5% • Iron (Fe): ≤ 0.40% • Oxygen (O): ≤ 0.20% • Carbon (C): ≤ 0.08% • Nitrogen (N): ≤ 0.05% • Hydrogen (H): ≤ 0.015% Applications: High-strength alloy with superior corrosion resistance. Used in aerospace, offshore equipment, and high-performance medical devices. Applications of DIN 2630 Titanium Flanges PN 2.5: • Marine and Offshore Systems Ideal for saltwater environments and seawater cooling lines due to superior corrosion resistance. • Chemical and Pharmaceutical Equipment Used in low-pressure, high-purity chemical handling systems. • Aerospace and Defense Applied in lightweight structural components where corrosion resistance and strength-to-weight ratio are critical. • Medical and Biomedical Devices Used in non-pressurized piping for medical processing and cleanroom environments. Key Features: • Manufactured according to DIN 2630 standards • PN 2.5 pressure class for non-critical, low-pressure applications • Lightweight and strong titanium construction • Weld neck design for superior mechanical performance • Exceptional corrosion resistance in aggressive environments • Available in titanium Grade 2 and Grade 5 • Flat face option for uniform sealing in sensitive applications • Custom sizes, finishes, and material options available upon request Conclusion: DIN 2630 Titanium Flanges PN 2.5 from Ladhani Metal Corporation offer a premium solution for industries requiring superior corrosion resistance, lightweight performance, and precision-engineered flange components for low-pressure service. Whether for marine, chemical, or high-tech applications, these titanium weld neck flanges deliver long-term reliability and material integrity. Contact Ladhani Metal Corporation for customized specifications, technical support, or detailed pricing.

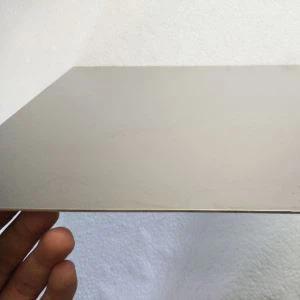

Product name:Titanium grade 12 plate Unit price:$15.5-$36.9/kg Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Product Introduction Titanium grade 12 plate Grades:Titanium alloy Grades 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM B265 / ASME SB265 Thickness: 0.02"-3.9"(0.5-100mm) Width: 19.5"-118" (500-3000mm) Length: 19.5"-236"(500*6000mm) Or as customers' requests ASTM No. Fe max O max N max C max H max Mo Ni Bal Grade 12 0.30 0.25 0.015 0.08 0.015 0.2-0.4 0.6-0.9 Ti ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 12 Unalloyed Ti ("Pure") 50A -CP2 70 485 50 345 18 Titanium plate applications titanium plate quality inspections

Product Name: Titanium racks for aluminum anodizing Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Type : Titanium racks / Titanium Jigs Dimenstion and shape : Customized, as customer's drawings Finishing : Polished Material : Pure Titanium(gr1 gr2) Condition : New Application : Electroplating, anodizing etc Color : Sliver.Grey Features : Anti-corrosion, good elasticity, smooth surface, dustproof, strong structure, good quality, fine surface We provide various titanium plating rack jigs. These ranges of jigs are available in different sizes to maximize customer satisfaction. Also, these jigs are provided at very affordable prices. Our technique can adapt jigs to the most suitable parts and materials, so that the product has higher durability and strength. Our production system reduces the entrainment of impurities and liquids between tanks and improves the passage of current, as well as its uniform distribution throughout the whole rack. The continuous availability of raw materials, laser cutting machines, folding and automatic welding machines makes our products the most competitive in the market and able to complete tasks within very tight deadlines. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name:Titanium grade 12 plate Unit price:$15.5-$36.9/kg Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Product Introduction Titanium grade 12 plate Grades:Titanium alloy Grades 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM B265 / ASME SB265 Thickness: 0.02"-3.9"(0.5-100mm) Width: 19.5"-118" (500-3000mm) Length: 19.5"-236"(500*6000mm) Or as customers' requests ASTM No. Fe max O max N max C max H max Mo Ni Bal Grade 12 0.30 0.25 0.015 0.08 0.015 0.2-0.4 0.6-0.9 Ti ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 12 Unalloyed Ti ("Pure") 50A -CP2 70 485 50 345 18

Product Name: Titanium Anode Basket Material: Gr1, Gr2 Size: Customized Surface: Sand Blasting, Acid Washing, Brush Coating etc. Titanium basket is made of titanium mesh and support mesh. It can be used in both gas and liquid environments. Under the action of oxidation, a protective film will form, so titanium basket has good corrosion resistance. Product Information Material: Gr1, Gr2 Size: Customized Surface: Sand Blasting, Acid Washing, Brush Coating etc. Shape: Rectangular, round and spiral etc. Application of Titanium Basket Electroplating Seawater filtration Water treatment Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Grade 2 titanium welding wire Standard: AWS A5.16 Material: Grade 2 (ERTi-2) Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Bright Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25 Features of our company's titanium welding wire: 　　1. Manufactured by a non-oxidized roll mold cold drawing process 　　2, the welding wire has uniform structure and fine grains 　　3, high dimensional accuracy, no defects, excellent follow-up processing performance 　　4, the composition of various elements in the material and the mechanical properties of the material can be effectively controlled

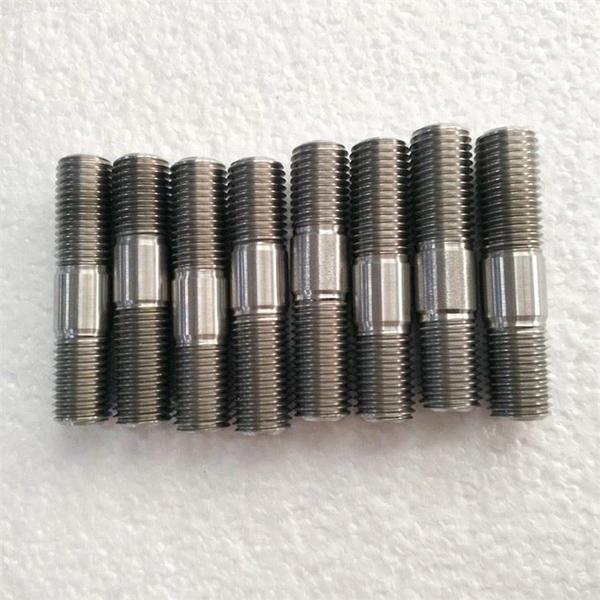

Product:Titanium stud m8 Material: Gr2 Gr5 Size: M3-M52*Length, or as customers' drawings Surface: Polished Technique: CNC Machined, Forged Titanium bolts are widely used in various industries such as automobiles,chemical industry. Different from welding and riveting, the biggest feature of bolts is that they can be easily removed even after tightening and can be reused by re-tightening Item name: Titanium Stud Bolt Material: GR2 GR5 Size: M3-M52 Pitch: 1.25/1.5mm Length: total length 5-300mm, the length of thread at both ends is based on your requirements Technique: CNC/Forged Surface: Polished Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Al V Bal Grade2 0.3 0.25 0.03 0.1 0.015 - - Ti Grade 5 0.3 0.2 0.05 0.08 0.015 5.5-6.75 3.5-4.5 Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 35A -CP1 58 400 40 275 20 Grade 5 Ti6Al4V 130 895 120 825 10

Product Name: Titanium Gr 2 flanges Standard: ASME B16.5 Material: Gr2 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Grade 2 titanium is the most commonly requested in the pipeline valve and fittings industry, with high strength and corrosion resistance. Titanium is generally used in applications that require high temperature and high pressure service but are lighter in weight. Some good examples are components in the aerospace industry (airframe frames) and state-of-the-art equipment in the military. Given its excellent corrosion resistance in marine and chloride applications, titanium flanges are also popular as offshore drilling components and heat exchanger components. When you need a metal with good overall formability and workability, please choose titanium. It has the capability of hot or cold forming while maintaining its excellent mechanical properties. For transportation to your work site, it is good to know that titanium is much lighter than regular steel (about 40-45% lighter). Although not as light as aluminum, our titanium flanges and fittings are easier to handle during welding and installation. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 64 440 46 320 18

Product Name: Titanium seamless pipe for heat exchanger Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless Shape: Round Outer Diameter: 21.3mm-609.6mm etc. Wall Thickness: 1.24-30mm Length: Max 16000mm Surface: Bright Titanium seamless pipe for heat exchanger The grade 2 titanium tube consists of commercial pure titanium or Unalloyed titanium. The oxygen content of grade 2 is standard. ASTM b861 GR 2 pipes can be easily welded. It also has excellent strength and ductility. The natural strength of metal is used for applications requiring very high strength, and the corrosion resistance is used for long-term appliances. Although most use cases are in industrial standards, titanium grade 2 seamless pipes can also be used in aesthetic and home applications. Due to the cost of raw materials and production costs, the cost is very high. The content of titanium in commercial pure CP grade 2 titanium welded pipe exceeds 99%. It can be cold drawn into titanium seamless pipe or hot rolled into welded pipe. They are used in high temperature applications, such as titanium 2-stage exhaust pipes, which can maintain their shape due to their high thermal conductivity, low thermal expansion and high oxidation resistance at high temperatures.
