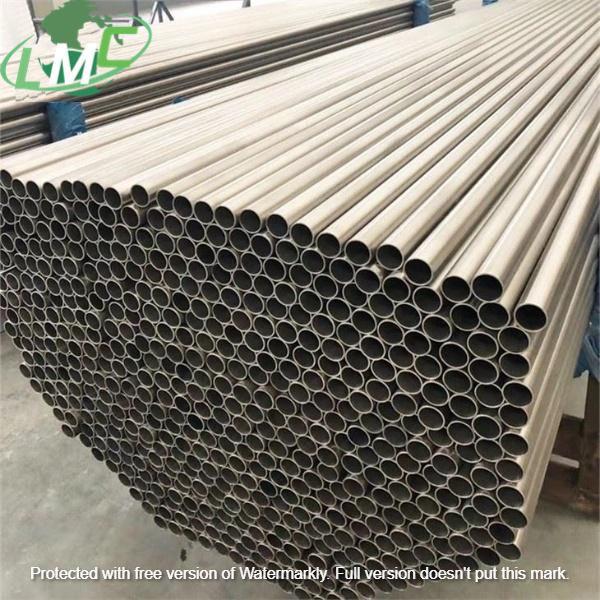

Product name: Titanium Tubes For Heat Exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc. Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Titanium Tubes For Heat Exchanger Titanium tubes are corrosion resistant in seawater and chlorine. It is alloyed with elements such as iron, vanadium, aluminum and molybdenum to produce strong and light alloys for industrial purposes such as chemical industry, seawater desalination plant, petrochemical, papermaking and pulp. The most common dimensions of titanium seamless or titanium welded tubes for heat exchangers and pressure vessels are od0.5 "(12.7mm), 0.63" (16mm), 0.75 "(19.05mm), 1" (25.4mm), 1.25 "(31.75mm), 1.5" (38.1mm), 1.78 "(45mm), 2" (50.8mm), etc., and wt0.02 "(0.5mm), 0.024" (0.6mm), 0.028 "(0.71mm), 0.035" (0.89mm) , 0.049 "(1.24mm), 0.11" (2.77mm), 0.125 "(3.17mm), etc. Product name Titanium tubes for heat exchanger，ASTM B338 titanium tube pipe,Seamless titanium tube,Welded titanium tubes,Titanium tube price per kg Grade Gr1 Gr2 Different types of Titanium heat exchanger tubes Seamless, Welded Standard ASME /ASTM B 338 Straightness of heat exchanger tubes 0.0015 x L. In conversion , 1 meter length OUTER DIAMETER (OD) 0.500 - 3.000 inch heat exchanger tubes manufacturer 12.7 - 76.2 mm WALL THICKNESS (WT) 0.035 - 0.220 inch 0.89 - 5.52 mm Lengths Titanium heat exchanger tubes are delivered in straight lengths up to 16.5 meters (54 ft). Titanium U-bent tubes are available on request. Manufacturing Method Seamless (Cold Drawn/Cold Rolling) Heat exchanger tubes Certified test reports ASTM / ASME A450 EN 10204: for EN 10297 nonspecified testing (only the mandatory tests), 2.2 specified testing – 3.1.B after agreement - 3.1.A, 3.1.C, 3.2 DIN 50049, - 2.2, 3.1. B Pipe Assemby Headers Pigtails Flanged Pipes Longitudinal finned Pipes and Tubes Finned Tubes Special Forgings Special designed parts acc. to drawing Welding together possible Grades of Seamless Titanium Heat Exchanger Tubes ASTM GRADE UNS NO. DIN/ EN MATERIAL CODE Grade 1 R50250 3.7025 Ti 1 Grade 2 R50400 3.7035 Ti 2 Grade 3 R50550 3.7055 Ti 3 Grade 7 R52400 3.7235 Ti 2 Pd Grade 9 R56320 3.7195 Ti Al 3 V 2,5 Grade 11 R52550 3.7225 Ti 1 Pd Grade 12 R53400 3.7105 Ti Ni 0,8 Mo 0,3

Porduct name : Titanium clad Tubesheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad tubesheet Product Name Titanium clad tubesheet Base Metal All types of steel and stainless steel ,sopper etc. Clad Metal Titanium GR2 Gr7 Gr9 Gr12 etc. Dimension Customized Standard ASTM Shape Round Certificates ISO9001, Mill Test Report, Certificate 3.1, EN, Ultrasonic Certificate Applied Equipment Pressure Vessels, Boilers, Containers Application Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical Exported Countries USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia etc. Explosive Welding Technical Advantage: →no limits of materials shape, thickness and area; →metallurgical bonding with high strength; →high performance of machining process; →improving the materials performance after bonding; →realizing multilayer materials clad;

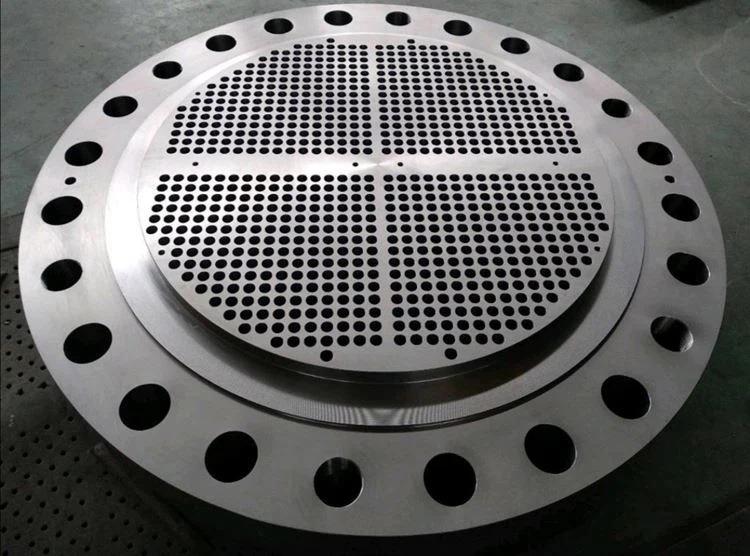

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet Product Information Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet for Heat Exchanger Product Information Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place. The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment. With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr2 Titanium Tubesheet Product Description In the process of titanium tubesheet inspection, the main inspection indicators are hole position, hole diameter tolerance, hole finish, presence or absence of burrs, and groove position. For double tubesheets, more attention should be paid to the location of the holes during the inspection process, and the degree of coordination of the holes is very important. Usually, it can be guaranteed with a CNC drilling machine. Compared with thick plates, the verticality of holes above 300mm is very important. These large-diameter thick plates require more sophisticated tools and equipment.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr1 Titanium Tubesheet Product Description The precision of titanium tubesheet processing, especially the tube hole spacing and tube diameter tolerance, verticality, and smoothness greatly affect the assembly and use performance of the chemical equipment listed above. With the enlargement of chemical equipment and power stations, titanium tubesheet diameter has become larger and larger, and titanium tubesheets with a diameter of 4m-5m are very common. The characteristics of the large-scale tubesheet are the large number of tube holes, denseness, small diameter, deepness, high precision and smoothness requirements

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr7 Titanium Tubesheet Product Description In the shell-and-tube heat exchanger, the heat exchange tube and the tubesheet are the only barrier between the tube side and the shell side of the heat exchanger. The connection structure and connection quality between the heat exchange tube and the tubesheet determine the quality of the heat exchanger Pros and cons and service life are a crucial link in the manufacturing process of heat exchangers. Most of the damage and failure of heat exchangers occur at the connection part between the heat exchange tube and the tubesheet. The quality of the connection joint also directly affects the safety and reliability of chemical equipment and equipment. Therefore, for the shell and tube heat exchanger, the connection process between the heat pipe and the tubesheet has become the most critical control link in the heat exchanger manufacturing quality assurance system. At present, in the heat exchanger manufacturing process, the connection between the heat exchange tube and the tubesheet mainly includes welding, expansion, expansion and welding, and gluing and expansion.

Product name: Gr2 titanium tubes 19mm Standard:ASTM B338 Material:Titanium Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc. Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 titanium tubes 19mm Titanium tube has been widely used in chemical industry, petroleum, petrochemical, vacuum salt, preparation, ocean engineering, electric power and other industries. Titanium is widely used in corrosive media due to its good corrosion resistance, such as ionic membrane caustic soda, propylene oxide and so on. Titanium materials have been widely used in equipment and pipelines. Product media are also used in formic acid, methane chloride and other projects to solve the problem of pipeline corrosion. Product Name Titanium tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc Size(mm) Diameter 5-914*Wall thcikness 0.5*10mm*L max 16000mm Section shape Round Certification ISO9001 Surface Treatment Pickling, polished, bright finish Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity Corrosion of titanium tubes is a serious destructive factor in industrial development. According to relevant media reports, the annual steel loss caused by corrosion is more than 10,000 tons, and the product transportation has damage and corrosive media, with dangerous factors. Therefore, the higher the requirements for titanium alloy pipe fittings. Titanium has the advantages of high strength, light weight, good heat transfer performance and corrosion resistance, and has been widely used in chemical industry. Titanium of these features make it a solution to the problem of chemical related engineering relative economic method, although the investment cost is higher than the general performance of titanium material, but titanium has been widely used in the field of chemical industry, based on life cycle analysis, can use it by reducing maintenance, shorten downtime, increase product quality and increase the product life to reduce the cost of production. Chemical Composition Grade N C H Fe O Al V Pa Mo Ni Ti Gr1 0.03 0.08 0.015 0.2 0.18 / / / / / bal Gr2 0.03 0.08 0.015 0.3 0.25 / / / / / bal Gr3 0.05 0.08 0.015 0.3 0.35 / / / / / bal Gr4 0.05 0.08 0.015 0.5 0.4 / / / / / Gr5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal Gr7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal Gr9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal Gr12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal

Product name: Gr2 Titanium Tubes 25.4mm Standard:ASTM B338 Material:Titanium Gr2 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium Tubes 25.4mm Titanium pipe/titanium alloy pipe has excellent strength, hardness, small density, light weight, high temperature resistance, low temperature resistance, good machining performance, excellent corrosion resistance, non-magnetic non-toxic, good heat exchange performance. It also has memory and superconductivity. Hydrogen storage performance is very outstanding, the products are widely used in: navigation, aerospace, vacuum salt, automotive industry, medical sports, paper and textile industry, electric power industry, metallurgy industry, chlor-alkali industry, chemical fertilizer industry, seawater desalination industry. 1.Shape: round tube, square tube, spiral tube, coil tube, 2. Standard: ASTM B337, ASTM B338, ASTM B861, ASTM B862 3. Srand: Titanium GR2 4. Specifications: ф (3-159) x (0.2-10.0) x L(500-9000) ф (30-1000) x (0.5-12.0) x L(500-15000) Extruded tube (M state) ф (45-219) x (5.0-30.0) x L 5. Production method: cold rolling, extrusion 6. Testing: ultrasonic testing, eddy current testing, water pressure testing, airtight testing Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa
