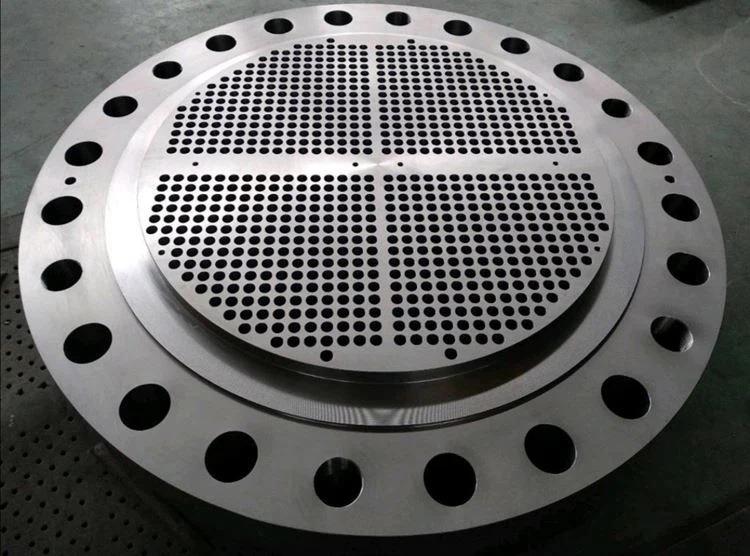

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet for Heat Exchanger Product Information Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place. The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment. With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr2 Titanium Tubesheet Product Description In the process of titanium tubesheet inspection, the main inspection indicators are hole position, hole diameter tolerance, hole finish, presence or absence of burrs, and groove position. For double tubesheets, more attention should be paid to the location of the holes during the inspection process, and the degree of coordination of the holes is very important. Usually, it can be guaranteed with a CNC drilling machine. Compared with thick plates, the verticality of holes above 300mm is very important. These large-diameter thick plates require more sophisticated tools and equipment.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr1 Titanium Tubesheet Product Description The precision of titanium tubesheet processing, especially the tube hole spacing and tube diameter tolerance, verticality, and smoothness greatly affect the assembly and use performance of the chemical equipment listed above. With the enlargement of chemical equipment and power stations, titanium tubesheet diameter has become larger and larger, and titanium tubesheets with a diameter of 4m-5m are very common. The characteristics of the large-scale tubesheet are the large number of tube holes, denseness, small diameter, deepness, high precision and smoothness requirements

Porduct name : Titanium Steel Composite Tube plate Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel composite tube plate Name Clad Metal Base Metal Specification Standard Application Titanium-Steel Cladding plate TA1, TA2, TA9, TA10 Q235, Q245R Q345R Coating metal thickness: 0.5~50mm Base material thickness: 0.5~500mm ASME, ASTM petrochemical, vacuum salt making, Chlor-alkali, food, fertilizer, hydrometallurgy, electroplate and etc. Main applications: Titanium clad steel plate tube sheet is mainly used in two aspects: heat exchanger tube sheet and processing container plate. The total thickness of the tube sheet is 75-100mm and the thickness of the coating is 12-15mm. The total thickness of the processing vessel plate is 19-25mm and the coating thickness is 2-3mm. Titanium-steel clad plate has a good application prospect in the manufacture of heat exchanger tube sheet, large diameter (1800 mm) seamless head and reactor. Titanium clad steel plate tube sheet is used more in the reactor and terephthalic acid plant equipment, as well as ethylene glycol, maleic acid and rust remover production equipment. Some reservoirs have operating temperatures up to 200℃, internal pressure of 9 MPa, equipment diameters of 700 mm, length of 1080 mm, and composite plate thickness of (2 + 15) mm.For petrochemical equipment operating at ordinary high pressures and temperatures, the lining must provide good heat conduction and must withstand heat cycles, pressure differences and other pressures. Therefore, loose lining or spot welding additional lining is not satisfactory, but the titanium-steel clad plate can meet the above requirements. Titanium clad steel plates tube sheets are used not only in pressure vessels, heat exchangers and tubesheets, but also in the following applications: A. containers for municipal sewage treatment, which contain larger chloride. B. chemical distillation tanks for high temperature applications. C. water storage containers and containers for nuclear waste disposal
