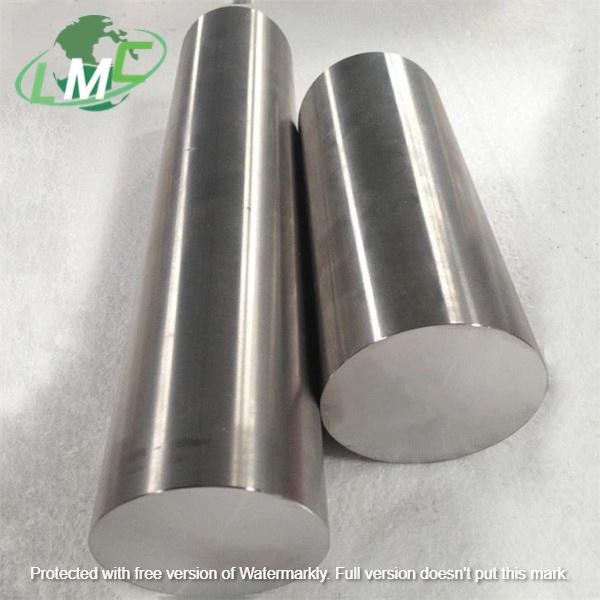

Product Name: Gr4 titanium bar Standard: ASTM B348 Material: Grade 4 Unit Price: $15usd/kg- $45usd/kg Shape: Round Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Introduction Gr4 titanium bar Standard: ASTM B348 Material: Grade 4 titanium Unit Price: $15usd/kg- $45usd/kg Shape: Round Diameter: 6-350mm Length: Max 6000mm Surface: Bright Condition: Annealed Grade 4 titanium bar Chemical compositions(weight%,<=) Ti Al V Fe C Remainder ------- ------- 0.50 0.08 N H O Other(each) Other(total) 0.05 0.015 0.40 0.10 0.40 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 580 485 15 25 Titanium Round Bar Dimensions Φ 2 Φ 3 Φ 3.5 Φ 4 Φ 5 Φ 6 Φ 7 Φ 8 Φ 9 Φ 10 Φ 12 Φ 13 Φ 14 Φ 15 Φ 16 Φ 18 Φ 20 Φ 22 Φ 25 Φ 26 Φ 30 Φ 32 Φ 35 Φ 40 Φ 45 Φ 50 Φ 55 Φ 60 Φ 65 Φ 70 Φ 75 Φ 80 Φ 85 Φ 90 Φ 95 Φ 100 Φ 105 Φ 110 Φ 120 Φ 130 Φ 140 Φ 150 Φ 160 Φ 170 Φ 180 Φ 190 Φ 200 Φ 210 Φ 220 Φ 230 Φ 240 Φ 250 Φ 260 Φ 270 Φ 280 Φ 290 Φ 300 More Dimensions Please Contact us

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 7 Titanium Round Bar Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: Annealed Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Chemical Composition Element Titanium Grade 7 Pd 0.12-0.25 Ti Bal Fe 0.30 max C 0.08 max N 0.05 max H 0.015 max O 0.2 max Mechanical Properties Element Titanium Grade 7 Density 4.51g/cm³ Melting Point 1668 ℃ Tensile Strength(Mpa) 370 Yield Strength(Mpa) 250 Elongation(%) 20 Reduction of area(%) 25

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Our machined titanium round bar is in accordance with ASTM B348. Such as Ti-6Al-4V, Ti-0.2PD grade 7, Ti-15V-3Cr-3Sn-3Al bar. Titanium is a synonym for titanium alloy products with high tensile strength, lightweight and excellent corrosion resistance. Our machined titanium round bar used in a variety of high-tech and high-performance applications. Chemical, aerospace, racing and automobile all benefit from the unique chemical and mechanical properties provided by titanium. We provide a comprehensive rod blanking service internally. We cut your titanium rod products to precise lengths or into manageable blanks. Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: Annealed Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright

Product name: Titanium Gr. 7 Round Bars Material grade: Grade 7 (Ti-0.2Pd) Standard : ASTM B348 Size: Dia 5--200mm * Max L6000mm Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished
