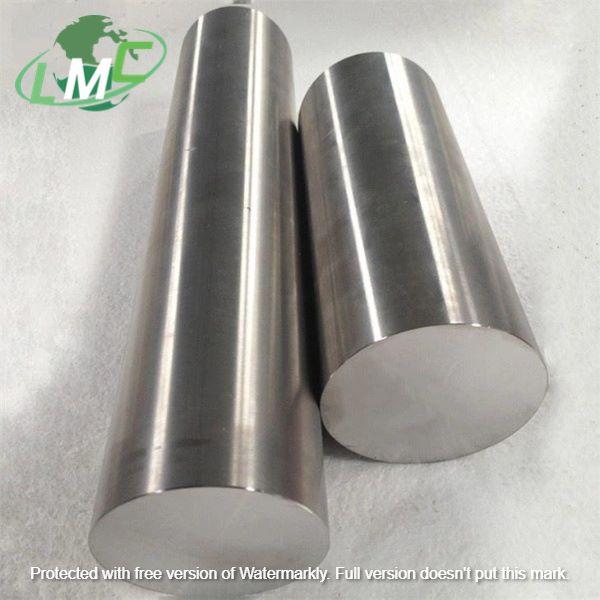

Titanium Rod
Product Name: Titanium rod grade 23
Standard: ASTM F136
Material: Gr23 (Gr5 ELI)
Unit Price: $30.5 usd/kg- $52.5 usd/kg
Application: Medical use
Shape: Round
Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc.
Length: 1000mm, 3000mm, 6000mm or as per your request
Surface: Bright
Product Introduction
Product name:Titanium rod grade 23
Material: GR23
Standard: ASTM F136
Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc.
Length: 1000mm, 3000mm, 6000mm or as per your request
Surface: Polishing,Bright
Third-Party Tests: BV, SGS, TUV etc.
Grade 23 is a higher purity version of Ti 6Al-4V. It can be made into coils, strands, wires or flat wires and is the first choice for any occasion that requires a combination of high strength, light weight, good corrosion resistance and high toughness. It has excellenct damage resistance superior to other alloys.
These advantages make Ti 6AL-4V ELI the final dental and medical titanium grade product. Due to its biocompatibility, good fatigue strength and lo mdulus, it can be used in biomedical applications such as implantable parts.
Grade 23 can also be used in detailed surgical procedures, such as:
• Orthopedic pins and screws
• Orthopedic cables
• Ligation needles
• Surgical staples
• Springs
• Orthodontic appliances
• Joint replacements
• Cryogenic containers
• Bone fixators
Mechanical Properties:
Grade
Tensile strength, MPa (min)
Yield strength, MPa (min)
Elongation, %(min)
Reduction of Area, %(min)
Gr23
828
759
10
15
Chemical Component (ASTM B348)
Grade
Ti
Al
V
N,
max
C,
max
H,
max
Fe,
max
O,
max
Residuals
Max each
Max total
Gr23
Main
5.5-6.5
3.5-4.5
0.03
0.08
0.0125
0.25
0.13
0.1
0.4
