Product Name: Titanium 6al4v plate Standard: ASTM B265 , AMS 4911 , ASTM F136 Material: Gr5 Unit Price: $19.5usd/kg-$48usd/kg Thickness: 0.3-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting There are several advantages to using titanium sheet metal: 1. High strength-to-weight ratio: Titanium is known for its high strength-to-weight ratio, which means that it is strong but lightweight. This makes it ideal for use in applications where weight is a concern, such as aerospace and sports equipment. 2. Corrosion resistance: Titanium is highly resistant to corrosion, making it suitable for use in harsh environments where other metals would quickly deteriorate. This makes it ideal for use in marine and chemical processing applications. 3. Biocompatibility: Titanium is biocompatible, meaning that it is not harmful to living tissue. This makes it ideal for use in medical implants and prosthetics. 4. High melting point: Titanium has a high melting point, making it suitable for use in high-temperature applications such as jet engines. 5. Ductility: Titanium is highly ductile, meaning that it can be easily formed into a variety of shapes and sizes without breaking. This makes it ideal for use in complex designs and applications. Applications: Widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, food, and used to complete vulcanization, nitration, hydrogenation, polymerization, condensation and other technical processes. Such as reverberator, reverberation kettle, differentiation pot, polymerization kettle. Titanium 6al4v plate Chemical compositions(weight%,<=) Ti Al V Fe C Remainder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 830 8-12 18-30 Titanium 6al4v plates in stock: Thickness: 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 20mm 25mm Size: 1000*2000mm 3000*6000mm The production process of titanium plate: 1. Hot forging:casting skills above the metal recrystallization temperature; 2. Hot rolling:the rolling process performed at a temperature higher than the recrystallization temperature; 3. Cold rolling:the rolling process where the plastic deformation temperature is lower than the recovery temperature; 4. Annealing: slowly heating the metal to a certain temperature, insisting on meeting the time, and then cooling at an appropriate speed a metal heat treatment technology; 5. Pickling: immersing the parts in an aqueous solution such as sulfuric acid to remove the oxide and other thin films on the metal surface. It is the pretreatment or process treatment of electroplating, enamel, rolling and other skills.

Product name:Titanium sheet metal Unit price:$14-$36.9/kg Material: Titanium grade 1 grade 2 grade 3 grade 4 Grade 5 (Ti6al4v),grade 7,grade 12 etc. Standard: ASTM/ASME B265 AMS 4911 ASTM F136 ASTM F67 etc. Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) Titanium has many obviously superior characteristics: small density (4.5kg/m3), high melting point (1660℃), strong corrosion resistance, high specific strength, good plasticity, but also through alloying and heat treatment methods to produce a variety of alloys with high mechanical properties, is an ideal aerospace engineering structural materials. Titanium sheet metal are commonly used in today's manufacturing industry, and the most commonly used grades are 2 and 5. Grade 2 titanium Grade 2 is commercial pure titanium used in most chemical processing plants and can be cold formed. Ultimate tensile strength of grade 2 plates and sheets up to 40,000 psi and above. Grade 5 titanium Class 5 is an aerospace class that does not allow cold molding and is therefore used more often when molding is not required. Grade 5 aerospace alloys have ultimate tensile strength of 120,000 psi and above. Usually the purpose of using Titanium sheet metal is to really approximate the final size of the part being manufactured. The material is processed to the nearest size of the required parts and the grain structure of the finished product is more uniform. Titanium plates are often used as insulation because titanium prevents heat from being transferred to the rest of the assembly. The titanium plate and titanium plate are bulletproof and provide good protection for the driver during the race. Application example: in addition to the use of industrial pure titanium manufacturing parts, a large number of titanium alloy is used. It is increasingly widely used in aerospace, aerospace, chemical, shipbuilding and other industrial sectors, manufacturing gas turbine components, the production of prosthetic devices and other biological materials

Porduct name : Titanium Clad Steel Tube plates Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Clad Steel Tube plates Titanium clad metal can reduce equipment costs exponentially and avoid many defects. The equipment made of titanium steel plate is well resistant to corrosion due to its inner titanium layer and also has strong strength due to its outer steel layer. Two layers of bonding, with good thermal conductivity, overcome thermal stress, thermal fatigue resistance, so that it can work in more severe conditions. Titanium steel clad tube sheet / plate is widely used in storage tanks, towers, heat exchangers and pipelines in petrochemical industry due to its good corrosion resistance and high temperature resistance, which improves the service life of equipment. Compared with the traditional welding method, the heat exchanger made of titanium steel composite tube plate and titanium tube has incomparable advantages. Product name Titanium Clad Steel Tube plates Size Customized Cladding metal: AISI 405,410,410S,429,430,304,309,316 ,321,06Cr13,06Cr13A1, 022Cr17Ti, 06Cr19Ni10, 06Cr18Ni11Ti etc. Base metal: Titanium Gr1 Gr2 Gr3 Gr7 Gr12 Production code ASTM B898, ASME SB898 Edge Treatment Waterjet cutting Applications Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc. Packing Standard export packing

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, Gr3,Gr4 GR5, GR7, GR12,GR23 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting ASTM B265 covers annealed titanium and titanium alloy strips, sheets and plates. ASTM B265 Ti and Ti-based alloy plates are widely used in equipment for high-temperature environment, including aircraft equipment, petroleum and petrochemical, biological materials, marine and chemical industries, such as: blades, storage tanks, targets, pipes and heat exchanger equipment. Product Titanium sheet Standard ASTM B265 Material GR1, GR2, GR3,GR4 GR5, GR7, GR12,GR23 Surface Pickling, Polishing, Sand blasting etc. Application Industry Size The size of standard sheet is usually Thickness × Width 1000mm × Length 2000mm. We can also cut it as you require. Type Sheet, plate, foil; Straight & roll Certificate Certificate of Origin, Material Test Certificate as per EN10204.3.1 and 10204.3.2 are all available

Product name:titanium plate 6al-4v Unit price:$21.5-$55.8/kg Material: Titanium Grade 5(Ti6Al4V) Standard: ASTM/ASME B265, ASTM/ASME B4911 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc

Product name: Titanium pipe coil/ titanium coil tube Grade: Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape: Coiled Tubes, "U" Shape,Or as customer’s drawing Titanium pipes and plates are rapidly gaining popularity in the industry due to their exceptional advantages. Firstly, titanium pipes and plates possess superior strength and durability, making them suitable for use in numerous projects where high-performance abilities are necessary. Additionally, these materials are lightweight, which makes them easy to handle and transport, reducing labor costs considerably. Moreover, titanium pipes and plates exhibit excellent corrosion resistance properties, even in the most corrosive environments. They are suitable for use in seawater applications, chemical processing plants, and other harsh conditions. With minimal maintenance, titanium pipes and plates can last for many years, saving the industry significant costs on replacement and repair. Finally, titanium pipes and plates have high-temperature resistance abilities, which make them ideal for various high-temperature applications, including exhaust systems, heat exchangers, and furnace components. Their high melting point and thermal stability make them a perfect choice for extreme temperatures. In conclusion, titanium pipes and plates offer a range of exceptional benefits such as strength, durability, lightweight, corrosion resistance, and high-temperature resistance, which make them the preferred choice for numerous industrial applications. Product name.:Titanium coil pipe,titanium coil tube,titanium tube coil,titanium coil tubing Type:Seamless, welded Technique: Cold Drawn Material: Titanium Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Surface Treatment:Polish Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape and dimension: As per the drawing ;as Per The Clients Usage:Pipeline Transport Section Shape:Round Origin:China Following is the material grade of Titanium Coiled Tubes that we could do: Ti CP - Grade 1 R50250 3.7025 Ti CP - Grade 2 R50400 3.7035 Ti CP - Grade 3 Ti-0.7Pd Grade 7 Ti 3Al2.5V Grade 9 R56320 3.7194 Ti 0.3Mo 0.8Ni Grade 12 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 Grade 3 0.05 0.08 0.015 0.30 0.35 Grade 7 0.03 0.08 0.015 0.30 0.25 / / 0.12-0.25 / / Bal Grade 9 0.05 0.08 0.015 0.25 0.12 2.0-3.5 1.5-3.0 Grade 12 0.03 0.08 0.015 0.25 0.15 / / / 0.2-0.4 0.6-0.9 Bal

Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Product Introduction Titaniu plates and titanium alloy plates are mainly used to manufacture various containers, reactors, heat exchangers, distillation towers, pipes, pumps and valves in the petrochemical machinery manufacturing industry. Titanium can be used as a titanium cathode and condenser in power stations, as well as environmental pollution control devices. The hardness of steel is higher than that of titanium plate, but the specific strength or tensile strength of titanium alloy is higher than that of high-quality steel. Titanium alloy has good heat resistance, low temperature toughness and fracture toughness, so it is mostly used as aircraft engine parts and rocket and missile structural parts. Titanium alloy can also be used as fuel and oxidant storage tanks and high-pressure vessels. There are already automatic rifles, mortar seat plates and recoilless gun launch tubes made of titanium alloy. Product Name: 8mm titanium plate Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard: ASTM B265 ASME SB 265 Surface: Pickling, Polishing, Sand Blasting Technique:Rolled, Forged Thickness: 0.5-60mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Status and specifications of titanium plates Grade Technique Status Thickness Gr1 Gr2 Gr3 Gr4 (pure titanium plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.3-4mm Gr5 Gr7 Gr12 etc. (Titanium alloy plate) Hot rolled Annealed 4.1-60mm Cold rolled Annealed 0.8-4.0mm

Product:Titanium stud m8 Material: Gr2 Gr5 Size: M3-M52*Length, or as customers' drawings Surface: Polished Technique: CNC Machined, Forged Titanium bolts are widely used in various industries such as automobiles,chemical industry. Different from welding and riveting, the biggest feature of bolts is that they can be easily removed even after tightening and can be reused by re-tightening Item name: Titanium Stud Bolt Material: GR2 GR5 Size: M3-M52 Pitch: 1.25/1.5mm Length: total length 5-300mm, the length of thread at both ends is based on your requirements Technique: CNC/Forged Surface: Polished Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Al V Bal Grade2 0.3 0.25 0.03 0.1 0.015 - - Ti Grade 5 0.3 0.2 0.05 0.08 0.015 5.5-6.75 3.5-4.5 Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 35A -CP1 58 400 40 275 20 Grade 5 Ti6Al4V 130 895 120 825 10

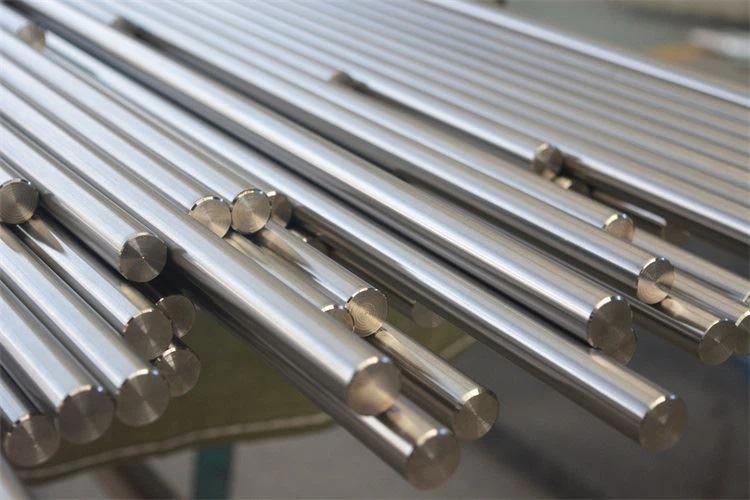

Product Name: AMS 4928 titanium bar Standard: AMS 4928 Material: Gr5 Unit Price: $21.5usd/kg- $46.5usd/kg Shape: Round Diameter: 6-350mm Length: Max 6000mm Surface: Bright Titanium bar is made of high quality sponge titanium ingot, with smooth surface, no peeling, crack, scratch, oil stain, pitting and bumping marks. It is usually used for processing parts, mechanical equipment, chemical equipment, medical and military industry, etc. AMS 4928 titanium bar ,its' composition similar to gr5 titanium (UNS R56400), it is titanium alloy bar (Ti6Al4V).This material have been used typically for parts requiering moderate strength with a maximum service temperature in the 750 to 900 ℉(399-510°) arrange depending on time at temperature where the product is used to be used in the annealed condition ,but usage is not limited to such applications.
