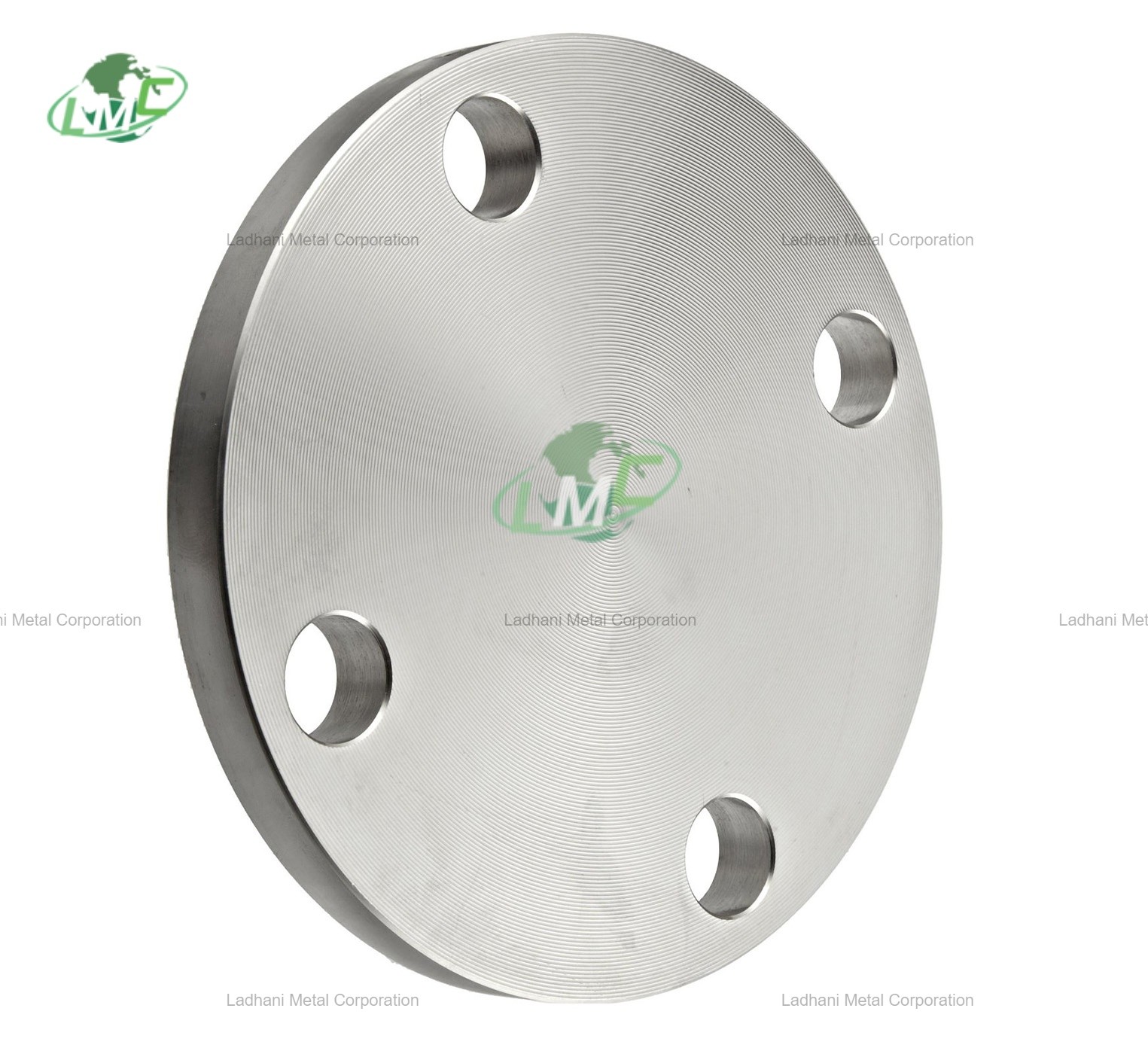

A DIN 2527 AISI 8630 blind flange is a specialized type of blind flange made from AISI 8630 alloy steel, designed according to the DIN 2527 German standard. Blind flanges are essential components in industrial piping systems, used to seal the end of a pipe, vessel, or valve to isolate it or prevent the flow of fluids. The AISI 8630 material used for this specific flange provides excellent strength, toughness, and wear resistance, making it ideal for applications in high-stress environments. Material: AISI 8630 Alloy Steel AISI 8630 is a low-alloy steel, enriched with nickel, chromium, and molybdenum for enhanced mechanical properties. It is known for its strength, toughness, and resistance to wear, making it suitable for heavy-duty applications, particularly in industries where components are subjected to high stress and pressure. Composition of AISI 8630: Carbon (C): 0.30% – 0.35% Provides strength and hardness. Chromium (Cr): 0.80% – 1.10% Improves hardness, wear resistance, and high-temperature strength. Molybdenum (Mo): 0.15% – 0.25% Enhances hardenability and resistance to wear. Nickel (Ni): 0.80% – 1.20% Adds toughness, especially at lower temperatures. Other elements: Small amounts of manganese (Mn), silicon (Si), and phosphorus (P), which improve the overall material quality and processing properties. Design and Dimensions (DIN 2527) Shape: The blind flange is a flat, circular plate with no central hole, designed to seal the open end of a pipe, valve, or vessel. Bolt Holes: The flange features evenly spaced bolt holes around the perimeter, which allow it to be securely attached to a matching flange or component. These holes align with the bolt pattern of the corresponding system components. Thickness: The thickness of the flange varies depending on the size and pressure rating, ensuring it can withstand internal pressure and provide a reliable seal. Pressure Rating: Pressure ratings are typically defined using classes such as PN 6, PN 10, PN 16, PN 25, etc., which represent the maximum pressure the flange can safely withstand without failure. Applications of DIN 2527 AISI 8630 Blind Flange Pipeline Sealing: The primary function of the blind flange is to seal the end of a pipeline, effectively preventing the passage of fluids, gases, or other materials. System Isolation: It is used to isolate sections of the pipeline for maintenance or repairs, allowing safe disconnection without compromising the integrity of the system. Pressure Containment: The high strength and durability of AISI 8630 make it suitable for applications where maintaining pressure within the system is critical, ensuring the flange can handle high-pressure environments. Types of Blind Flanges in DIN 2527 Blind flanges conforming to DIN 2527 can be found in different face types and sealing methods, including: Raised Face (RF): The flange surface has a slight raised area around the bolt circle, improving the seal when mated with a gasket. Flat Face (FF): The surface is level with the flange body and typically used with softer gaskets to create a seal. Ring Type Joint (RTJ): This type has a groove to accommodate a metal ring gasket, providing a secure seal in high-pressure applications. Conclusion A DIN 2527 AISI 8630 blind flange is a high-strength, durable sealing component designed for high-pressure and high-stress environments. Made from AISI 8630 alloy steel, it offers excellent mechanical properties such as strength, toughness, and wear resistance, making it ideal for use in industrial systems that require reliable seals under heavy loads and elevated temperatures.

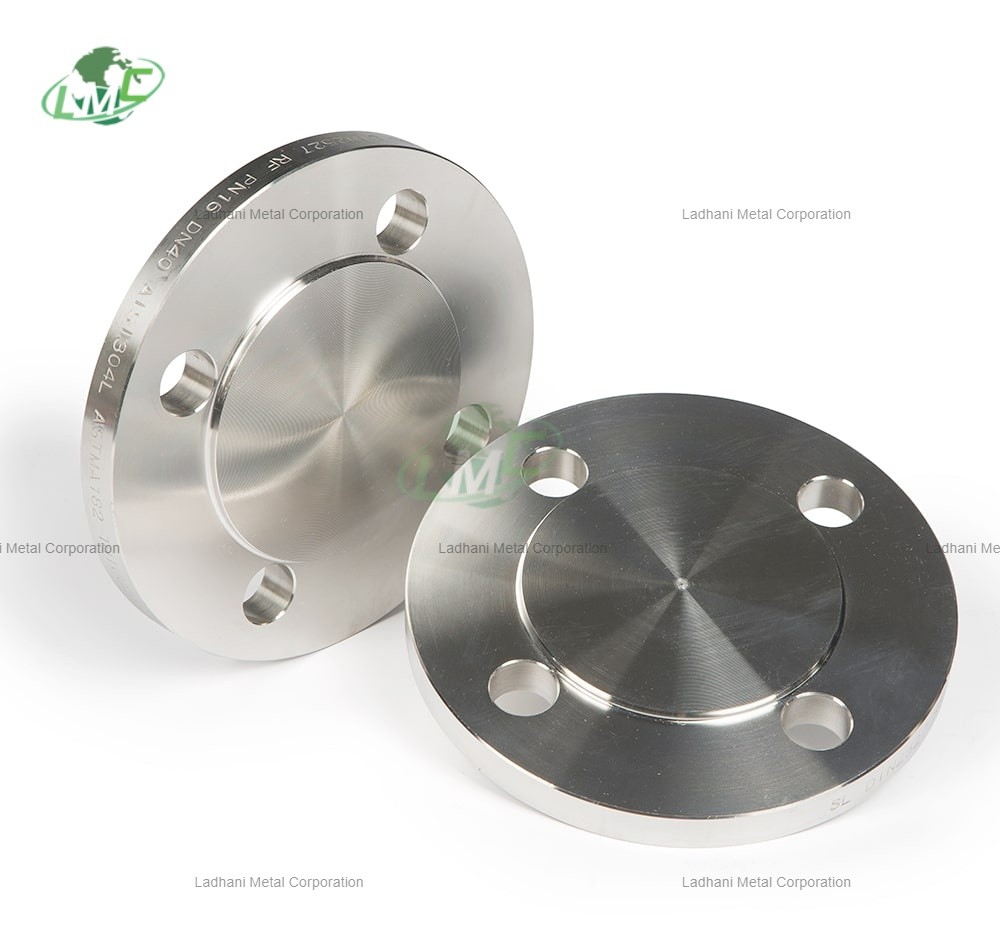

DIN 2527 is a German standard for flanges, and it specifies the design, dimensions, and tolerances for blind flanges made of stainless steel 304. These flanges are commonly used in piping systems to seal the end of a pipe, creating a closed-off section. Here’s a detailed description: DIN 2527 Stainless Steel 304 Blind Flanges Material: Stainless Steel 304: This is an austenitic grade of stainless steel known for its excellent corrosion resistance, particularly against atmospheric, chemical, and other harsh environments. Stainless steel 304 is also known for its good weldability, formability, and strength, making it an ideal material for flanges used in a variety of industries, including chemical, food processing, and construction. Design and Dimensions: Shape: Blind flanges are flat, circular plates with no center hole, designed to seal the end of a pipeline or vessel. Bolt Holes: These flanges are designed to match the corresponding pipe flange with holes to align with the bolts that will attach them to other flanged components. The bolt holes are usually equally spaced around the perimeter. Thickness: The thickness of DIN 2527 blind flanges varies depending on the pressure rating and the size of the flange. This thickness is essential for the flange to withstand internal pressure and provide a secure seal. Pressure Rating: These flanges are rated according to pressure classes such as PN 6, PN 10, PN 16, PN 25, etc. The rating determines the maximum pressure the flange can safely handle without failure. Applications: Pipeline Sealing: Primarily used to seal the open end of a pipeline or system to prevent leaks and maintain pressure in a closed system. System Isolation: Used when isolating a section of the system for maintenance or modification, as they allow for the easy disconnection of parts. Pressure Containment: In applications where maintaining pressure is essential, a DIN 2527 blind flange provides a tight seal that can withstand varying levels of internal pressure. Features: Corrosion Resistance: As the flange is made of stainless steel 304, it offers excellent resistance to corrosion, even in moderately acidic or alkaline environments. Temperature Resistance: Stainless steel 304 can withstand high temperatures, making it suitable for use in elevated temperature environments. Durability: Stainless steel 304 has excellent strength and durability, ensuring a long service life with minimal wear or corrosion. Types of Blind Flanges in DIN 2527: Raised Face: The face of the flange is slightly raised to create a better seal when mated with the gasket. Flat Face: The face is level with the rest of the flange surface and is generally used with softer gaskets to create the seal. Ring Type Joint (RTJ): Some blind flanges may also come with a grooved surface designed for use with metallic gaskets that provide a more secure, high-pressure seal. These DIN 2527 stainless steel 304 blind flanges are essential components in many piping systems, offering a reliable, durable, and efficient way to seal and isolate sections of the pipeline.

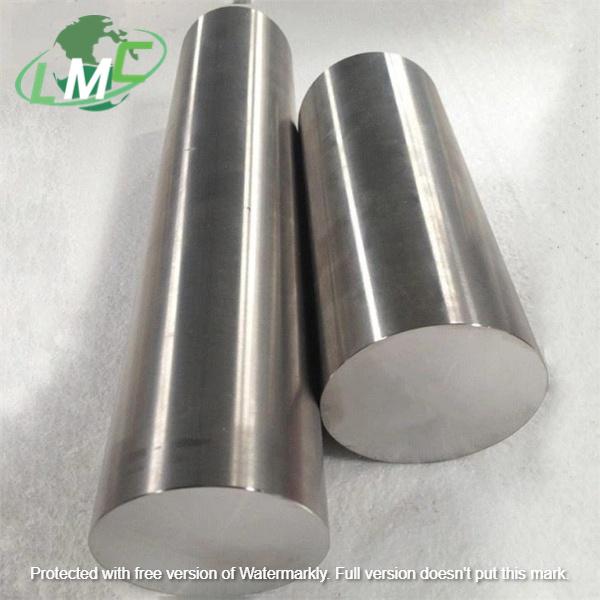

Product name: Titanium bar ams 4928 Standard : AMS 4928 Size: Dia 5--200mm * Max L6000mm Applications :Aerospace etc. Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished Description AMS 4928 is the avaition standard titanium bar with material similar to GR5 (Ti6Al4V). This standard titanium rod is much highe quality requirements than ordinary industrial titanium rod. The maximum size can be 3000*6000mm. We can manufacture titanium bar by the standard strictly. In the same time,ensure good surface, meeting the standard of high quality aviation titanium plate, and meet the applications requirements of customers. Standard AMS 4928 Material GR5 (Ti6Al4V) Diameter 5--200mm Length Max L6000mm,as customers' requests MOQ 50KGS Stock We have more than 80 Ton normal size titanium and titanium alloy bar in stock Delivery time If goods in stock, 5-7 days, if need production, 15-20 days Raw material We make sure the raw material is high quality titanium sponge, We refuse to add any waste Certifictae supply the 3.1MTC and Third-party inspection（SGS,TUV,BV etc.）

Product name: Gr.5 titanium alloy bar Material: Ti6al4v (grade 5) Standard : ASTM B348 AMS 4928 ASTM F136 Size: Dia 5--200mm * Max L6000mm Grade 5 titanium rod belongs to α - β alloy, which is the most widely used titanium alloy material. GR5 titanium has good mechanical properties and hardness. Its density is the same with pure titanium: 4.51g/cm3, and its corrosion resistance is as good as that of pure titanium. Widely used in aerospace industry, marine industry, power generation, oil and natural gas, etc. The diameter of titanium rod ranges from 5mm to 500mm, and the length from 50mm to 6000mm. The size can also be customized according to the needs of customers. In addition to the round titanium rod, we also improved other shapes, such as flat titanium rod, square titanium rod and hexagonal titanium rod.

Product name: 25mm Titanium Bar Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard : ASTM B348,ASTM B381, ASTM F136, ASTM F67,AMS 4928 Size: Dia 5--200mm * Max L6000mm Applications :Industry, aviation, military etc. Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished MOQ : 10kgs Feature : low density, special strong strength, excellent corrosive resistance 25mm gr5 Titanium Bar Titanium bar has many advantages: 1.Titanium Bright Bar has a low thermal expansion, which puts it at 1/3rd that of aluminium. 2.Titanium Alloy Round Rod is light in weight, which would put the specific gravity of this metal at about 1.7 times that of aluminium. and about 60% of specific gravity of steel. 3.Titanium Alloy Hexagon Bars tend to be non-magnetic in nature. 4.The heat conductivity of Titanium Alloy Square Bar is low, and is nearly the same as grade 18-8 stainless steel. Similarly, the electric conductivity of the alloy is low and the electric conductivity of titanium Cold Finished Bar about 3% of copper. 5.Titanium Polished Bar has high flexibility i.e. its Longitudinal elastic modulus. Which means that the flexibility of ASTM B348 Ti Alloy Hex Bar is one half of iron or stainless steel and it is the same as copper. Product name 25mm Titanium Bar,grade 2 titanium bar , grade 5 titanium bar ,grade 7 titanium bar,titanium bar price per kg Material Titanium, pure titanium Standard ASTM B348, ASTM F136, ASTM F67, ASTM F136, ISO-5832-2(3), AMS4928 etc. Titanium Grade Round Bar Sizes Minimum diameter: 0.040 inch or 1.00 mm Maximum diameter: 14.000 inch or 400.00 mm Type Ti square bar, Ti round bar, Ti hexagonal bar, Ti flat bar, Titanium Alloy Bars, Ti Billets, Forgings, and Forging Stock Condition R/M /Y ASTM B348 Ti Alloy Hex Bar size 2-100mm A/F Titanium Alloy Flat bar size Thickness: 2 -100mm Width: 10 to 500mm Pure Titanium Square bar size 4 to 100mm AMS Specificaton of Titanium Round Bar ASTM B348 (Grade 5), ASTM B348 (Grade 2), ASTM B348 (Grade 4), ASTM B348 (Grade 23), ASTM F67 (Grade 2), ASTM F67 (Grade 4), ASTM F136, ASTM F1472, MIL-T-9047 (6AL-4V), MIL-T-9047 (6AL-4V ELI), MIL-T-9047 (6AL-6V-2SN), MIL-T-9047 (CP-70 GR.4), AMS 6935, AMS 6936, AMS-T-9047 (6AL-4V), AMS-T-9047 (6AL-4V ELI), AMS-T-9047 (6AL-6V-2SN), AMS-T-9047 (CP-70 GR.4), DMS 1570, DMS 1583, AMS 4971, AMS 4921, AMS 4928, AMS 4930, AMS 4965, AMS 4967, AMS 4978, AMS 4979, AMS 6930, AMS 6931 and More. Titanium Angle bar size (in mm) 3*20*20~12*100*100 ASTM B348 Titanium Section 3.0 to 12.0mm thickness Titanium ASTM B348 Channel Bar (in mm) 80 x 40 to 150 x 75 section; 5.0 to 6.0 thickness Pure Titanium Hollow Bar (in mm) 32 OD x 16 ID to 250 OD x 200 ID) Titanium Alloy Billet Size 1/2" to 495mm Diameter ASTM B348 Ti Alloy Rectangles Size 33 x 30mm to 295 x 1066mm ASTM B348 Ti Alloy Round Bar Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black ASTM B348 Ti Round Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline Titanium Round Bar Uses chemical industry, Industrial, medical industry, military industry etc Titanium round bar Condition Hardened & tempered, annealed ASTM B348 Ti Alloy Bar Technique Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod Titanium Alloy Round Bar Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements Alloy Titanium Bar Processing Bar cutting to 650mm Standard Specification : ASTM B348 / ASME SB348 UNS grade Products Grade 1 - UNS R50250Grade 2 - UNS R50400Grade 5 - UNS R56400 Grade 7 - UNS R52400 Grade 9 - UNS R56320 Grade 12 - UNS R53400 Titanium Round Bar Titanium Rod Titanium Hex Bar Titanium Flat Bar Titanium Rods Titanium Square Bar Type SIZES (mm) SIZES (Inches) ISO Tolerance Titanium Alloy Cold Drawn and Polish Round Bar 3.00 – 75.00 1/8" – 3.00" h8-h9-h10-h11 Titanium Cold Drawn and Ground Bar 10.00 – 75.00 5/6" – 2.50" h8-h9-h10-h11 ASTM B348 Ti Alloy Peeled and Polished Round Bar 40.00 – 150.00 1.50" – 6.00" h11, h11-DIN 1013 Titanium Alloy Peeled and Ground Bar 20.00 – 50.00 3/4″ – 2.00" h9-h10-h11 Titanium Alloy Bars Standard lengths of 2000 mm up to 6010 mm. Cut to size on request (tolerance +2/-0 mm).

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet for Heat Exchanger Product Information Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place. The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment. With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

Product name: 19mm Titanium pipe for heat exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:19.1mm Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled 19mm Titanium pipe for heat exchanger Commonly used heat exchange tube size (outer diameter x wall thickness) is mainly φ 19mmx2mm, φ 25mmx2mm.5mm and φ 38mmX2mm.5mm seamless tube and φ 25mmx2mm and φ 38mmx2mm.5mm seamless tube. Standard tube length includes 1.5, 2.0, 3.0, 4.5, 6.0, 9.0m, etc. The use of small diameter can increase the heat transfer area per unit volume, compact structure, reduce metal consumption, improve the heat transfer coefficient. It is expected that the heat exchange tube of the same diameter heat exchanger is changed from φ 25mm to φ 19mm, the heat exchange area can be increased by about 40%, saving more than 20% of metal.

Product Name: Titanium U-tube heat exchanger Material:Gr1 Gr2 Gr7 Gr12 titanium Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Titanium U-tube heat exchanger U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts. Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions. Name: Titanium U-tube heat exchanger Material: Gr1 Gr2 Gr7 Gr12 titanium Structure: tube box, barrel, head, heat exchange tube, etc Advantages: simple structure, low cost Disadvantages: High rejection rate Application: Suitable for high temperature and high pressure corrosive fluid Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300

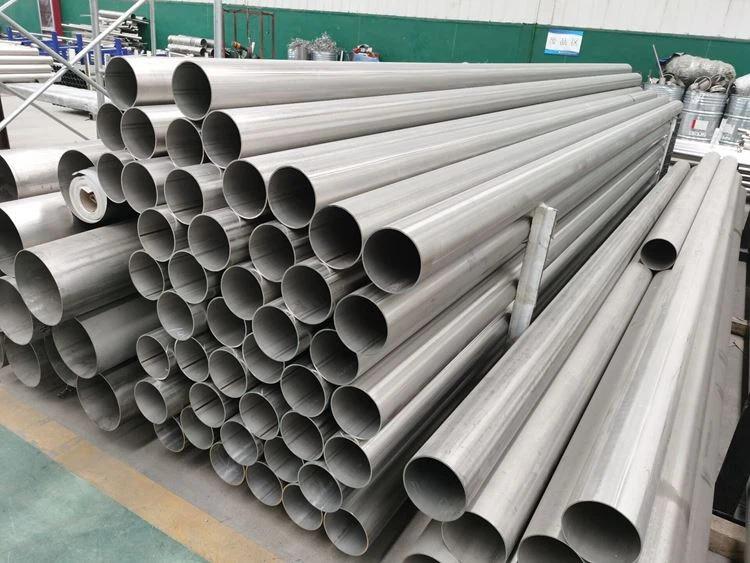

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Wall thickness tolerance: +/- 10% Length tolerance: +3.2mm Surface: Bright Although the investment cost of titanium welded tube is higher than that of common fluid transportation pipelines, its cost is lower than that of titanium seamless tubes. Based on the analysis of the service life and maintenance cycle of titanium welded tubes, the investment cost of titanium welded tubes can be compensated in use. , The use of titanium welded tubes in piping systems can reduce production costs by reducing the number of regular maintenance, reducing downtime, improving product quality, and increasing pipeline life. Advantages of titanium welded tube over titanium seamless tube 1. The mechanical properties of titanium welded tube and titanium seamless tube are basically the same. 2. The appearance and quality of titanium welded tube are better than titanium seamless tube 3. The cost and environmental protection advantages of titanium welded tubes are outstanding Common Sizes OD WT L 12.7 1.0 4000 15.9 0.5 6000 15.9 0.7 3000 19.1 0.7 6000 19.1 0.7 7000 19.1 1.2 4000 19.1 1.4 5500 19.1 1.4 6000 19.1 1.4 4000 19.1 1.5 4000 21.7 3.0 4000 25.4 0.5 6000 25.4 1.0 4000 25.4 1.2 4000 25.4 2.0 4000 27.2 2.0 4000 31.75 1.2 6000 34.0 2.0 4000
