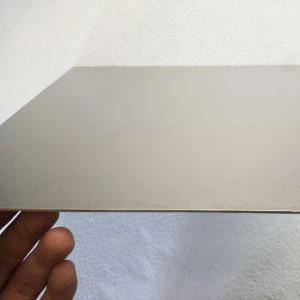

Product name:titanium plate 6al-4v Unit price:$21.5-$55.8/kg Material: Titanium Grade 5(Ti6Al4V) Standard: ASTM/ASME B265, ASTM/ASME B4911 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg- $30usd/kg Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 2 Pure Titanium Rod Product Information Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23 Russian Grade: BT1-00,BT1-0,BT1-2 Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Diameter: 3-350mm Length: up to 6000mm Surface: Polished, Pickled Features: Polished surface with no defects, no cracks and no pitting. Tolerance Diameter(mm) h7 h8 h9 h10 h11 h12 Tolerance precision (um) 3~6 12 18 30 48 75 120 6~10 15 22 36 58 90 150 10~18 18 27 43 70 110 180 "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) Advantages 1. Equipment: We have Trimming machines, milling machines, annealing furnaces, shearing machines, bending machines, straightening machines, sandblasting machines, punching machines and forging hammers etc. 2. Product: We have sufficient inventory and accept customized product. We can also provide you with samples. 3. Quality: We have exported our titanium rod to many countries, including the US, Italy, Korea, Ukraine and Chile etc. The quality of our products is widely recognized. Quality Certificate is available. Third-party testing is also accepted, like TUV, SGS, BV etc. 4. Price: As a leading manufacturer of titanium products for more than 16 years, we know the market very well. We can provide you with competitive prices. 5. Payment: Flexible payment terms. TT, LC, Western Union, Paypal etc. are all acceptable. You can choose any convenient way. 6. Packaging: Usually plywood box for export, ensuring that the goods will not get damaged during the shipment. 7. Shipment: Various shipping methods. EXW, FOB, CIF etc. are all ok for us. 8. Service: Professional team. We have set up a service department.

Porduct name : Titanium Tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Tube sheet The titanium tube plate/Titanium clad steel tube plates is a round sheet drilled with circular throught holes. The titanium steel composite plate shall be slightly larger than the outer diameter of the pipe. It is widely used in the field of heat exchanger and plays the role of fixing pipeline and sealing medium in heat exchanger.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet Product Information Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tube Plate for Heat Exchanger Product Description Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet. Grade: GR1, GR2, GR5, GR7, GR12 etc. OD: 150-2500mm Thickness: 30-250mm Physical Properties

Product name: Titanium heating coil Spiral Pipe Standards: ASTM B338 Grades: Gr1, Gr2 Dimention:OD 6-108mm*WT1-5mm*L Technique:Rolled Titanium heating coil Spiral Pipe Titanium tube coil is widely used in Evaporator, Condenser, Refrigeration compressor, Heat exchanger tube,Heating tube. titanium coil is also used to produce titanium white, glycine, nitrate amino phenol chemical industry, pesticide intermediates, pesticides, fuel, cyanuric acid, dichloro cyanuric acid, acetone cyanuric acid, etc. Name:ASME B338 Grade 2 Titanium coil tube for heater for condenser Material:Gr2 Titanium Standard:ASME B338 OD:12.7mm-50mm Wall thickness:0.55mm----3.0mm(normal use) Length:0.55mm----3.0mm(normal use) Applications: Coiling pipe; petroleum pipeline, Fluid Transportation Piping, Water tank, boiler, heat exchanger unit, Heat exchanger; Condenser, Sea farming; electroplating equipment etc. Quality control : Seamless Tube: Ultrasonic or eddy current inspection. Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr2 Titanium Tubesheet Product Description In the process of titanium tubesheet inspection, the main inspection indicators are hole position, hole diameter tolerance, hole finish, presence or absence of burrs, and groove position. For double tubesheets, more attention should be paid to the location of the holes during the inspection process, and the degree of coordination of the holes is very important. Usually, it can be guaranteed with a CNC drilling machine. Compared with thick plates, the verticality of holes above 300mm is very important. These large-diameter thick plates require more sophisticated tools and equipment.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr1 Titanium Tubesheet Product Description The precision of titanium tubesheet processing, especially the tube hole spacing and tube diameter tolerance, verticality, and smoothness greatly affect the assembly and use performance of the chemical equipment listed above. With the enlargement of chemical equipment and power stations, titanium tubesheet diameter has become larger and larger, and titanium tubesheets with a diameter of 4m-5m are very common. The characteristics of the large-scale tubesheet are the large number of tube holes, denseness, small diameter, deepness, high precision and smoothness requirements

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr7 Titanium Tubesheet Product Description In the shell-and-tube heat exchanger, the heat exchange tube and the tubesheet are the only barrier between the tube side and the shell side of the heat exchanger. The connection structure and connection quality between the heat exchange tube and the tubesheet determine the quality of the heat exchanger Pros and cons and service life are a crucial link in the manufacturing process of heat exchangers. Most of the damage and failure of heat exchangers occur at the connection part between the heat exchange tube and the tubesheet. The quality of the connection joint also directly affects the safety and reliability of chemical equipment and equipment. Therefore, for the shell and tube heat exchanger, the connection process between the heat pipe and the tubesheet has become the most critical control link in the heat exchanger manufacturing quality assurance system. At present, in the heat exchanger manufacturing process, the connection between the heat exchange tube and the tubesheet mainly includes welding, expansion, expansion and welding, and gluing and expansion.
