DIN 2628 Super Duplex steel flanges PN 250 are high-performance weld neck flanges engineered to meet the stringent requirements of the DIN 2628 standard. Designed for use in high-pressure systems up to 250 bar (3625 psi), these flanges are manufactured from Super Duplex stainless steel—an advanced alloy known for its exceptional strength and superior resistance to aggressive corrosion, particularly in chloride-rich and marine environments. Super Duplex flanges combine high mechanical integrity with excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for demanding and safety-critical applications. Ladhani Metal Corporation is a globally recognized manufacturer and exporter of premium Super Duplex flanges. Our DIN 2628 PN 250 Super Duplex weld neck flanges are trusted by industries such as offshore oil and gas, desalination, chemical processing, and marine engineering for their unmatched durability and reliability. Each flange is precision-engineered to deliver optimal performance under extreme pressure, temperature, and corrosive conditions. Pressure Rating: • PN 250 (250 bar / 3625 psi): Suitable for high-pressure systems requiring maximum sealing integrity, superior strength, and corrosion resistance. Flange Type: • Weld Neck Flanges Feature a tapered hub that minimizes stress concentration at the weld point. Designed for high-load applications with frequent thermal cycling. • Flat Face (FF) Flanges Flat face design ensures uniform gasket compression and improved safety when mating with cast or brittle components. Super Duplex Steel Grade and Composition: Super Duplex 2507 (UNS S32750) • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 5.0% • Nitrogen (N): 0.24 – 0.32% • Iron (Fe): Balance • Carbon (C): ≤ 0.03% • Manganese (Mn): ≤ 1.2% • Silicon (Si): ≤ 0.8% Applications: Exceptional resistance to chloride-induced corrosion, pitting, and erosion. Extensively used in offshore platforms, subsea piping, desalination plants, and chemical process systems exposed to severe environments. Applications of DIN 2628 Super Duplex Flanges PN 250: • Offshore Oil and Gas Used in subsea equipment, manifolds, and risers where high mechanical strength and resistance to saltwater and sour gas are critical. • Desalination and Water Treatment Ideal for high-chloride environments such as reverse osmosis systems and thermal desalination plants. • Chemical and Petrochemical Processing Reliable in handling aggressive chemicals, acids, and alkalis in reactors, storage tanks, and high-pressure pipelines. • Marine Engineering Performs well in seawater-exposed structures, including ballast systems, hull penetrations, and fire water systems. • Pulp and Paper Industry Resistant to bleaching agents and corrosive media used in pulp processing and chemical recovery systems. Key Features: • Manufactured to DIN 2628 specifications • PN 250 pressure class suitable for critical pressure-retaining applications • Weld neck configuration provides high structural support and fatigue resistance • Flat face variant for secure sealing in flange assemblies involving cast components • Made from Super Duplex 2507 for exceptional corrosion resistance and strength • Excellent performance in chloride-rich, high-temperature, and high-pressure environments • High resistance to erosion, fatigue, and stress corrosion cracking • Available in customized dimensions, surface finishes, and pressure ratings Conclusion: DIN 2628 Super Duplex Steel Flanges PN 250 from Ladhani Metal Corporation are engineered for the most demanding industrial environments where high pressure, corrosive media, and structural reliability are paramount. Offering the superior properties of Super Duplex 2507, these flanges deliver consistent performance and long-term durability in offshore, chemical, and marine applications. Contact Ladhani Metal Corporation for comprehensive technical data, custom configurations, or a tailored quotation to meet your specific application requirements.

DIN 2627 Duplex Steel flanges PN 400 are high-integrity blind flanges engineered for ultra-high-pressure systems where enhanced corrosion resistance, mechanical strength, and stress corrosion cracking resistance are crucial. These flanges are manufactured in compliance with the DIN 2627 standard and are used to seal the ends of piping systems operating under extreme conditions involving high pressure, temperature fluctuations, and aggressive media such as chlorides or acidic compounds. The PN 400 rating (400 bar / 5800 psi) ensures these flanges are suitable for the most demanding environments. Made from Duplex and Super Duplex stainless steels—such as Duplex 2205 (UNS S31803/S32205) and Super Duplex 2507 (UNS S32750)—they offer a unique combination of austenitic and ferritic microstructures, providing exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. Pressure Rating: • PN 400 (400 bar / 5800 psi): Designed for use in high-pressure systems where superior strength and corrosion resistance are required. Flange Type: • Blind Flanges Flat, solid flanges without a bore, used to seal off pipeline ends or nozzles for isolation, pressure testing, or future expansion. • Flat Face (FF) Flanges Feature a flat sealing surface suitable for use with full-face gaskets and flat-faced mating components to ensure uniform sealing under high-pressure conditions. Duplex Steel Grades and Composition: Duplex 2205 (UNS S31803 / S32205) • Chromium (Cr): 21 – 23% • Nickel (Ni): 4.5 – 6.5% • Molybdenum (Mo): 2.5 – 3.5% • Nitrogen (N): 0.08 – 0.2% • Iron (Fe): Balance Applications: High strength and excellent resistance to chloride-induced stress corrosion and pitting. Commonly used in chemical tanks, pipelines, and pressure vessels. Applications of DIN 2627 Duplex Steel Flanges PN 400: • Offshore and Subsea Oil & Gas Installations Withstand high pressure, chloride-rich environments, and dynamic loading in risers, manifolds, and subsea pipelines. • Desalination Plants and Seawater Systems Exceptional resistance to chloride-induced corrosion makes them ideal for seawater intake and brine discharge lines. • Chemical and Petrochemical Plants Used in corrosive process lines involving acids, solvents, and high-temperature hydrocarbons. • Pulp and Paper Industry Ideal for chemical recovery systems and chlorine dioxide bleaching where both corrosion and strength are essential. • Heat Exchangers and Pressure Vessels High strength and thermal fatigue resistance under cyclic temperature and pressure changes. • Power Generation and Nuclear Systems Effective in high-pressure steam and cooling systems where corrosion resistance and mechanical integrity are mandatory. Key Features: • Compliant with DIN 2627 specifications • PN 400 pressure rating for ultra-high-pressure applications • Blind flange configuration ensures secure system isolation • Flat face design supports full-face gasket usage for optimal sealing • Available in Duplex 2205 and Super Duplex 2507 • Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking • High mechanical strength with good weldability and fatigue resistance • Used across offshore, petrochemical, desalination, and energy sectors • Custom dimensions, materials, and finishes available upon request Conclusion: DIN 2627 Duplex Steel Flanges PN 400 from Ladhani Metal Corporation deliver unmatched reliability and performance in the harshest operating conditions. Whether used in high-pressure offshore pipelines or corrosive chemical systems, these flanges offer long-term sealing, structural integrity, and corrosion resistance. Reach out to Ladhani Metal Corporation for technical assistance, material selection, or customized Duplex flange solutions tailored to your operational demands.

DIN 2627 Inconel flanges PN 400 are premium-grade blind flanges engineered for ultra-high-pressure applications requiring exceptional corrosion resistance, heat resistance, and mechanical strength. Manufactured in accordance with the DIN 2627 standard, these flanges are designed to seal off the ends of piping systems, especially in extreme environments involving high temperatures, aggressive chemicals, or seawater exposure. The PN 400 rating (400 bar / 5800 psi) ensures performance under intense pressure conditions. Produced using high-performance nickel-based alloys such as Inconel 600, Inconel 625, and Inconel 718, these flanges are used extensively in aerospace, chemical processing, offshore oil and gas, marine, and power generation industries. Ladhani Metal Corporation is a leading global manufacturer and exporter of Inconel flanges, supplying components that conform to international standards for material integrity, pressure containment, and corrosion resistance. Pressure Rating: • PN 400 (400 bar / 5800 psi): Suitable for high-pressure piping systems in critical applications where maximum sealing and durability are essential. Flange Type: • Blind Flanges Solid, non-bored flanges used to isolate piping systems or terminate flow. Ideal for pressure testing, maintenance, and future pipeline expansions. • Flat Face (FF) Flanges Designed with a flat sealing surface for use with full-face gaskets and flat mating components, ensuring even load distribution and effective sealing. Inconel Grades and Composition: Inconel 600 (UNS N06600) • Nickel (Ni): ≥ 72% • Chromium (Cr): 14 – 17% • Iron (Fe): 6 – 10% • Manganese (Mn): ≤ 1% • Silicon (Si): ≤ 0.5% • Carbon (C): ≤ 0.15% • Sulfur (S): ≤ 0.015% Applications: Excellent resistance to oxidation, carburization, and chloride-ion stress corrosion cracking. Used in furnace components, heat exchangers, and food processing equipment. Inconel 625 (UNS N06625) • Nickel (Ni): ≥ 58% • Chromium (Cr): 20 – 23% • Molybdenum (Mo): 8 – 10% • Niobium + Tantalum (Nb + Ta): 3.15 – 4.15% • Iron (Fe): ≤ 5% • Carbon (C): ≤ 0.10% • Manganese (Mn): ≤ 0.5% • Silicon (Si): ≤ 0.5% Applications: Outstanding corrosion and fatigue resistance in seawater and chemical environments. Common in marine, aerospace, and offshore industries. Inconel 718 (UNS N07718) • Nickel (Ni): 50 – 55% • Chromium (Cr): 17 – 21% • Iron (Fe): Balance • Niobium + Tantalum (Nb + Ta): 4.75 – 5.5% • Molybdenum (Mo): 2.8 – 3.3% • Titanium (Ti): 0.65 – 1.15% • Aluminum (Al): 0.2 – 0.8% Applications: High strength and oxidation resistance up to 700°C. Used in jet engines, gas turbines, and high-pressure valves. Applications of DIN 2627 Inconel Flanges PN 400: • Offshore Oil and Gas Platforms Withstands high-pressure, high-salinity, and corrosive environments in subsea pipelines and risers. • Chemical Processing Plants Ideal for systems handling oxidizers, acids, solvents, and reactive compounds at high temperatures and pressures. • Aerospace and Jet Propulsion Used in fuel systems, hydraulic lines, and turbine enclosures where extreme heat and stress are common. • Nuclear and Power Generation Suited for high-pressure reactor lines and heat exchanger systems exposed to radiation, heat, and corrosive media. • Desalination and Seawater Systems Highly resistant to chloride-induced pitting and crevice corrosion. • High-Temperature and Reactive Media Systems Perfect for isolating systems exposed to thermal cycling and chemical attack. Key Features: • Manufactured to DIN 2627 standards • Rated for PN 400 ultra-high-pressure systems • Blind flange design for sealing pipe ends or testing access • Flat face design for even gasket compression and sealing • Available in Inconel 600, 625, and 718 • Excellent resistance to oxidation, acids, chlorides, and high heat • High mechanical strength and fatigue resistance • Used in critical industries including aerospace, marine, oil and gas, and chemical processing • Custom sizes, alloys, pressure ratings, and surface finishes available on request Conclusion: DIN 2627 Inconel Flanges PN 400 from Ladhani Metal Corporation offer exceptional performance and reliability in the most demanding service conditions. Whether your system involves corrosive chemicals, high-pressure steam, or marine exposure, these blind flanges deliver secure sealing, longevity, and safety. Contact Ladhani Metal Corporation for material selection, technical support, or custom solutions tailored to your high-performance application.

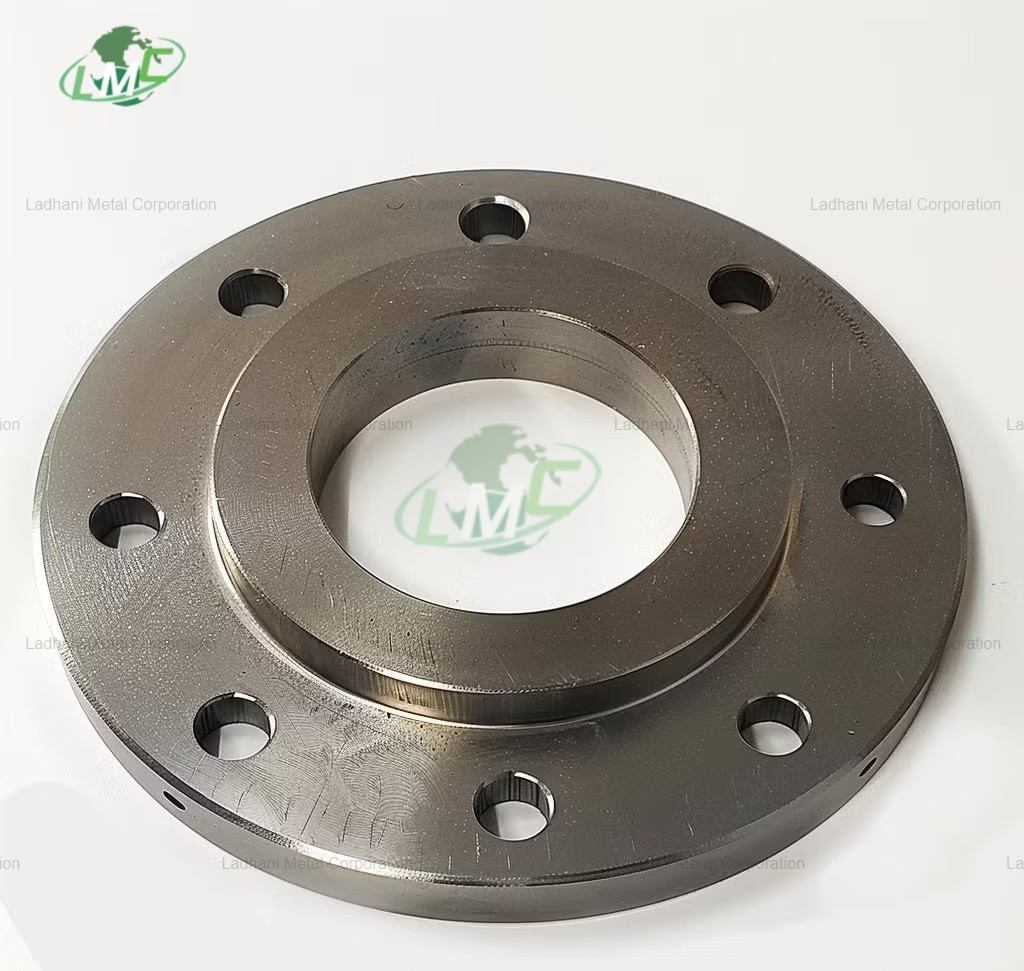

DIN 2576 Super Duplex Flanges PN 10 are high-performance, slip-on flanges manufactured from super duplex stainless steel, designed for piping systems operating under low to medium pressures. Produced in accordance with the DIN 2576 standard, these flanges offer exceptional mechanical strength combined with superior corrosion resistance, making them ideal for highly aggressive and chloride-laden environments. The slip-on design facilitates easy placement over the pipe and enables secure welding, ensuring precise alignment and a reliable seal across various industrial applications. Ladhani Metal Corporation is a trusted manufacturer and global supplier of super duplex steel flanges, providing products that meet stringent international standards in terms of dimensions, metallurgy, and performance. DIN 2576 super duplex flanges are especially valued in industries where resistance to pitting, crevice corrosion, and stress corrosion cracking is critical, including marine, chemical, and wastewater systems. Pressure Rating: • PN 10 (10 bar / 145 psi): Designed for moderate-pressure systems demanding long-term durability in corrosive environments. Flange Types: • Slip-On Flanges These flanges slide over the pipe and are welded on both sides, offering ease of installation and secure mechanical performance. • Flat Face (FF) Flanges Designed for use with flat gaskets and mating surfaces, these flanges are ideal for applications involving non-metallic or cast components. Super Duplex Stainless Steel Grades and Composition: Super Duplex 2507 (UNS S32750) Composition: • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 5.0% • Nitrogen (N): 0.24 – 0.32% • Iron (Fe): Balance Applications: Super Duplex 2507 delivers superior yield strength and corrosion resistance, particularly in extreme environments. It is commonly used in subsea equipment, chemical containment, high-pressure systems, and offshore platforms exposed to seawater and chlorides. Applications of DIN 2576 Super Duplex Flanges: • Offshore and Marine Engineering Well-suited for seawater cooling systems, risers, and structural elements exposed to marine conditions. • Chemical and Petrochemical Industries Ideal for conveying highly corrosive fluids, acids, and chlorides in reactors and pipelines. • Water Treatment and Desalination Applied in reverse osmosis systems, brine piping, and high-salinity water circuits requiring enhanced corrosion resistance. • Pulp and Paper Industry Offers protection against aggressive bleaching agents and chemical fluids under pressurized conditions. • Oil and Gas Used in critical systems like separators, manifolds, and sour gas applications. • Structural and Pressure Vessel Fabrication Preferred for tanks and pressure vessels operating under corrosive and mechanical stress. Key Features: • Fully compliant with DIN 2576 standard specifications • PN 10 pressure rating for use in moderate-pressure applications • Superior resistance to chloride-induced pitting, crevice corrosion, and stress corrosion cracking • High mechanical strength reduces material thickness and overall system weight • Manufactured using Super Duplex 2507 and other super duplex alloys • Slip-on design ensures straightforward alignment and welding • Flat face variants suitable for a wide range of gaskets and connection types • Widely used across marine, chemical, oil and gas, and water treatment sectors • Custom sizes, face configurations, and finishes available on request Conclusion: DIN 2576 Super Duplex Flanges PN 10 by Ladhani Metal Corporation offer exceptional strength and corrosion resistance for highly demanding industrial environments. Available in Super Duplex 2507 and other super duplex grades, these flanges ensure reliable performance in systems facing high salinity, pressure, and temperature. For technical guidance, grade selection, or customized project solutions, reach out to Ladhani Metal Corporation today.

DIN 2573 Super Duplex Flanges PN 6 are high-performance, low-pressure flanges engineered from Super Duplex stainless steels, specifically designed for highly corrosive and mechanically demanding environments. These flanges conform to DIN 2573 standards and offer a superior combination of corrosion resistance and tensile strength, making them suitable for critical applications exposed to aggressive chemicals, seawater, and high-pressure fluids. With enhanced resistance to pitting, crevice corrosion, and stress corrosion cracking, Super Duplex flanges are the material of choice for industries requiring durability under extreme service conditions. Ladhani Metal Corporation is a dependable manufacturer and global supplier of Super Duplex flanges, delivering components that meet international quality and performance standards. The DIN 2573 flat flange design ensures ease of installation and reliable sealing in low-pressure systems, even when operating in harsh chemical or marine environments. Pressure Rating: • PN 6 (6 bar / 87 psi): Designed for low-pressure systems where both exceptional corrosion resistance and superior mechanical strength are critical for long-term reliability and safety. Flange Types: • Plate Flanges Flat disc-type flanges used to join piping systems with bolted connections and gasket seals, ensuring tight, leak-free joints in low-pressure operations. • Flat Face (FF) Flanges Provide even load distribution across the sealing surface, ideal for applications involving non-metallic or cast components where flat gaskets are used. • Slip-On Flanges These flanges slip over the pipe and are welded on both the inside and outside, offering simple alignment and reduced fabrication cost for moderate-stress systems. • Custom-Machined Flanges Engineered to specific client requirements, available in a range of Super Duplex grades, with optional face types, dimensions, and surface finishes. Super Duplex Grades and Composition: Super Duplex 2507 (UNS S32750) Composition: • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 5.0% • Nitrogen (N): 0.24 – 0.32% • Iron (Fe): Balance Applications: Super Duplex 2507 is used in highly corrosive applications requiring high strength and fatigue resistance. Common industries include offshore oil and gas, marine systems, desalination plants, and chemical processing where exposure to chloride-rich and high-pressure environments is prevalent. Super Duplex 32760 (UNS S32760) Composition: • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 6.0 – 8.0% • Molybdenum (Mo): 3.0 – 4.0% • Tungsten (W): 0.5 – 1.0% • Copper (Cu): 0.5 – 1.0% • Nitrogen (N): 0.2 – 0.3% • Iron (Fe): Balance Applications: This grade is widely used in oil and gas platforms, subsea pipelines, pressure vessels, and pump components, offering excellent corrosion resistance under fluctuating pressures and temperatures, particularly in seawater and acidic environments. Applications of DIN 2573 Super Duplex Flanges: • Offshore and Subsea Engineering: Ideal for pipelines, risers, and manifolds exposed to saltwater, high pressure, and dynamic stresses. • Chemical Processing Plants: Used in systems handling aggressive chemical media like chlorides, sulfides, and acids, where high corrosion resistance is required. • Oil and Gas Industry: Common in wellhead systems, separators, and refinery units where high mechanical strength and resistance to sulfide stress corrosion are essential. • Power Generation: Used in high-pressure steam systems, flue gas scrubbers, and cooling water systems for their strength and corrosion resistance at elevated temperatures. Key Features: • Compliant with DIN 2573 standard for low-pressure flange systems • Superior resistance to pitting, crevice corrosion, and chloride stress corrosion cracking • Excellent mechanical strength, fatigue resistance, and weldability • Available in Super Duplex 2507, 32760, and other high-alloy grades • Long-lasting performance in aggressive and marine service conditions • Custom sizes, face types, and surface finishes available upon request • Ideal for offshore, oil and gas, power, and chemical process industries Conclusion: DIN 2573 Super Duplex Flanges PN 6 from Ladhani Metal Corporation combine superior corrosion resistance with high mechanical integrity, providing a dependable solution for critical systems operating in aggressive and corrosive environments. Designed in accordance with international standards and backed by expert manufacturing, these flanges offer long-term, leak-free performance in demanding industrial sectors. For customized flange solutions, material selection, or technical assistance, reach out to Ladhani Metal Corporation today. 📞 Contact Ladhani Metal Corporation Website: https://www.ladhanimetal.in/ https://www.ladhanimetal.com/ Email: info@ladhanimetals.com Request a Quote: Custom dimensions, materials, and finishes available upon request.

DIN 2569 Super Duplex Steel Flanges PN 100 are precision-engineered welding neck flanges manufactured from corrosion-resistant super duplex stainless steel, specifically designed to withstand extreme mechanical stress and harsh environments. Built to DIN 2569 standards, these flanges offer superior strength, pitting resistance, and durability, making them ideal for use in offshore, marine, chemical, petrochemical, and water treatment industries. Ladhani Metal Corporation is a reputable manufacturer and exporter of super duplex steel flanges, delivering products that comply with international quality standards. The welding neck design ensures high-integrity, leak-proof connections—perfect for applications with fluctuating pressure, high temperatures, and aggressive media. Pressure Rating: • PN 100 (100 bar / 1450 psi): Specifically designed for high-pressure systems requiring robust sealing performance, excellent corrosion resistance, and structural strength in corrosive and high-stress environments. Flange Types: • Welding Neck Flanges Provide a tapered hub for stress distribution, ideal for high-pressure and corrosive piping systems. • Raised Face (RF) Flanges Facilitates effective gasket compression and sealing under elevated pressure and temperature. • Flat Face (FF) Flanges Used for connections with flat-faced components or non-metallic sealing materials. • Forged Welding Neck Flanges Offer enhanced strength, dimensional precision, and pressure resistance. • Custom-Machined Flanges Available in a wide range of sizes, pressure classes, and super duplex steel grades to meet specific project requirements. Super Duplex Steel Grade and Composition: 1. ASTM A182 F53 (UNS S32750) Composition: • Chromium (Cr): 24.0–26.0% • Nickel (Ni): 6.0–8.0% • Molybdenum (Mo): 3.0–5.0% • Nitrogen (N): 0.24–0.32% • Manganese (Mn): ≤ 1.20% • Carbon (C): ≤ 0.030% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.020% Applications: Ideal for use in highly corrosive conditions such as offshore platforms, subsea piping, desalination systems, pressure vessels, and high-pressure chemical reactors. Provides excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. Applications of DIN 2569 Super Duplex Steel Flanges: • Oil and Gas Pipelines: Used in high-pressure, high-corrosion subsea and offshore piping systems. • Offshore and Marine Engineering: Installed in seawater cooling lines, risers, and ballast systems for maximum corrosion resistance. • Petrochemical and Refinery Units: Applied in reactors, columns, and corrosive process piping exposed to high stress and aggressive chemicals. • Water Treatment and Desalination: Used in brine systems, RO pipelines, and chemical dosing lines requiring high strength and pitting resistance. • Pulp and Paper Industry: Employed in bleach plants and digester lines handling chlorinated compounds under pressure. Key Features: • Manufactured to DIN 2569 standard • Available in PN 100 pressure rating • High strength and corrosion resistance • Superior pitting and stress corrosion cracking resistance • Excellent performance in marine and chemical environments • Designed for permanent, high-pressure pipe connections • Supplied with test certificates, quality assurance documents, and full material traceability • Can be surface-treated with pickling, passivation, or shot blasting Conclusion: DIN 2569 Super Duplex Steel Flanges PN 100 from Ladhani Metal Corporation offer premium strength, safety, and corrosion resistance for demanding environments. Suitable for a wide range of critical applications, these flanges are available in custom sizes and pressure classes. For technical details, orders, or consultation, contact Ladhani Metal Corporation today.

Ladhani Metal Corporation is a well-established manufacturer and exporter of DIN 2561 duplex flanges, specifically engineered for optimal performance in low-pressure piping systems. The DIN 2561 standard specifies weld neck flanges with a nominal pressure rating of PN6, and we offer extended pressure ratings including PN10, PN16, PN25, and PN40 based on customer specifications. Our duplex flanges are manufactured using duplex stainless steel, combining the best properties of both austenitic and ferritic steel. This unique composition ensures excellent corrosion resistance, high strength, and resistance to stress corrosion cracking in aggressive environments. These flanges are ideal for critical applications in industries such as chemical processing, petrochemical, marine, and offshore oil and gas sectors. Flange types: • Weld neck flanges: Suitable for high-integrity, high-stress piping systems • Raised face (RF): Designed to improve gasket performance and create leak-proof sealing • Flat face (FF): Ideal where mating surfaces are brittle or non-metallic Grades, chemical composition, and applications: Duplex Stainless Steel 2205 (UNS S32205) Chemical composition: Chromium (Cr): 22.0 – 23.0% Nickel (Ni): 4.5 – 6.0% Molybdenum (Mo): 3.0 – 3.5% Iron (Fe): Balance Manganese (Mn): ≤ 2.0% Silicon (Si): ≤ 1.0% Carbon (C): ≤ 0.03% Nitrogen (N): 0.14 – 0.2% Phosphorus (P): ≤ 0.035% Sulfur (S): ≤ 0.02% Applications: Duplex Stainless Steel 2205 is ideal for applications requiring high strength and excellent resistance to pitting and crevice corrosion, especially in environments with chloride exposure. Duplex Stainless Steel 2507 (UNS S32750) Chemical composition: Chromium (Cr): 24.0 – 26.0% Nickel (Ni): 6.0 – 8.0% Molybdenum (Mo): 3.0 – 5.0% Iron (Fe): Balance Manganese (Mn): ≤ 2.0% Silicon (Si): ≤ 1.0% Carbon (C): ≤ 0.03% Nitrogen (N): 0.24 – 0.32% Phosphorus (P): ≤ 0.03% Sulfur (S): ≤ 0.02% Applications: Duplex Stainless Steel 2507 is designed for extremely harsh environments requiring superior resistance to both chloride stress corrosion cracking and general corrosion. Key features: • Manufactured as per DIN 2561 standard • High dimensional accuracy and surface finish • Custom sizes, face types, and drilling options available Applications: • Marine & Offshore Industries: Duplex flanges, with their excellent resistance to corrosion and stress corrosion cracking, are ideal for use in seawater applications, including subsea pipelines, offshore platforms, and desalination plants. • Chemical Processing: Duplex flanges are well-suited for high-stress and corrosive chemical environments, making them ideal for reactors, pressure vessels, and piping systems in the chemical and petrochemical industries. • Oil & Gas: The high strength and corrosion resistance of duplex flanges make them perfect for demanding offshore and subsea applications, such as pipelines, manifolds, and risers. DIN 2561 duplex flanges from Ladhani Metal Corporation are an ideal choice for industries requiring superior performance, resistance to corrosion, and high strength in challenging environments. Meeting international standards and manufactured with precision, our duplex flanges are the preferred solution for a wide range of applications in various sectors. For technical details, pricing, or bulk inquiries, contact Ladhani Metal Corporation.

DIN 2545 Monel flanges, provided by Ladhani Metal Corporation, are designed to offer exceptional strength and outstanding resistance to corrosion, particularly in harsh environments. Monel alloys, primarily composed of nickel and copper, are known for their ability to withstand the corrosive effects of seawater, acids, and alkalis. These flanges are ideal for high-performance applications in industries such as marine, chemical processing, and oil and gas. With a pressure rating of PN 40, these flanges are capable of handling pressures up to 40 bar, ensuring reliable, leak-free connections in high-pressure systems. Types of DIN 2545 Monel Flanges: Flat Face Flanges (FF) – These flanges have a flat sealing surface that provides uniform distribution of sealing pressure, making them suitable for low-pressure systems or where precise sealing is required. Raised Face Flanges (RF) – Raised face flanges feature a raised area around the bolt holes to provide higher sealing pressure, ideal for high-pressure environments. Ring-Type Joint (RTJ) Flanges – These flanges are designed with a groove to accommodate a metal sealing ring, suitable for applications that require resistance to high pressure and high temperatures. Grades and Chemical Composition: Monel 400 (UNS N04400) Chemical Composition: Ni: 63%, Cu: 28-34%, Fe: 2.5%, Mn: 2%, C: 0.3%, Si: 0.5% Monel 400 is a nickel-copper alloy known for its excellent resistance to corrosion, particularly in seawater and chemical environments. It offers good mechanical properties at both subzero and elevated temperatures. This alloy is commonly used in marine applications, chemical processing, and heat exchangers. Monel K500 (UNS N05500) Chemical Composition: Ni: 63%, Cu: 27%, Al: 2.3-3.15%, Ti: 0.35-0.85%, Fe: 2.5%, C: 0.3%, Mn: 1.5% Monel K500 is an age-hardenable nickel-copper alloy that provides additional strength and hardness compared to Monel 400. It offers outstanding corrosion resistance, particularly in seawater and high-stress environments, making it suitable for use in marine, oil and gas, and aerospace applications. PN 40 Pressure Rating: The "PN" rating refers to the flange's pressure capacity. PN 40 indicates that the flange is rated for pressures up to 40 bar, making it ideal for high-pressure systems where secure and durable connections are essential. Applications: 1. Marine and Offshore Applications: Seawater Systems: Monel is highly resistant to seawater corrosion, making it ideal for use in marine applications, such as seawater cooling systems, pumps, valves, and heat exchangers on ships and offshore platforms. Offshore Pipelines and Risers: Monel flanges are commonly used in subsea pipelines and risers due to their resistance to corrosion from saltwater and high-pressure conditions found in offshore oil and gas operations. 2. Chemical Processing Industry: Acidic Environments: Monel flanges offer superior resistance to various acidic solutions, making them ideal for use in chemical processing plants, especially where sulfuric acid, hydrochloric acid, and other corrosive chemicals are present. Piping Systems: Used in pipelines and reactors that transport corrosive chemicals, Monel flanges ensure long-term reliability and strength in harsh environments. 3. Oil and Gas Industry: Petrochemical Refineries: Monel flanges are used in refining operations, including in heat exchangers, pumps, and piping systems that handle hydrocarbon fluids, ensuring resistance to both pressure and corrosion. Subsea Equipment: Monel is also used in subsea exploration and production equipment due to its ability to withstand harsh marine environments and high-pressure systems. Conclusion : Ladhani Metal Corporation ensures that all Monel flanges meet stringent quality standards and are manufactured to exact specifications, ensuring durability and reliability in even the most challenging environments. Each flange undergoes comprehensive testing to guarantee long-lasting performance and safe operation in high-pressure applications. #din2545 #din2545flanges #din2545monelflanges #flanges #flangessupplierinmumbai

DIN 2545 Inconel flanges are engineered for superior strength, excellent resistance to high temperatures, and remarkable corrosion resistance in extreme environments. Ladhani Metal Corporation provides these high-quality flanges made from Inconel alloys, known for their ability to endure elevated temperatures, oxidation, and corrosive conditions. These flanges are ideal for industries where performance under high-temperature stress and resistance to harsh environments are essential, such as aerospace, chemical processing, power generation, and marine. Types of DIN 2545 Inconel Flanges: Flat Face Flanges (FF) – These flanges have a flat surface that facilitates uniform distribution of the sealing force, making them ideal for low-pressure systems or when a secure seal is required. Raised Face Flanges (RF) – Raised face flanges feature a raised area around the bolt holes, providing enhanced sealing pressure, making them suitable for high-pressure environments. Ring-Type Joint (RTJ) Flanges – Designed with a groove for a metal sealing ring, these flanges are ideal for applications requiring resistance to high pressure and high temperatures. Grades and Chemical Composition: Inconel 600 (UNS N06600) Chemical Composition: Ni: 72%, Cr: 14-17%, Fe: balance, Mn: 1%, Si: 0.5%, C: 0.15% Inconel 600 is known for its excellent resistance to oxidation and corrosion at elevated temperatures. It is widely used in applications like furnace components, chemical processing, and nuclear reactors, offering high strength and good workability. Inconel 625 (UNS N06625) Chemical Composition: Ni: 58%, Cr: 20-23%, Mo: 8-10%, Fe: 5%, Nb: 3.15-4.15%, Ti: 0.4-1% Inconel 625 is a nickel-based alloy that offers superior resistance to high-temperature oxidation and corrosion. It provides exceptional resistance to pitting and crevice corrosion, making it ideal for applications in aerospace, marine, and chemical industries, where high temperatures and corrosive environments are common. Inconel 718 (UNS N07718) Chemical Composition: Ni: 50-55%, Cr: 17-21%, Fe: 0-5%, Mo: 2.8-3.3%, Nb+Ta: 4.75-5.5%, Ti: 0.65-1.15%, Al: 0.2-0.8% Inconel 718 is a high-strength, corrosion-resistant alloy widely used in high-temperature applications. It is designed for use in extreme conditions, offering excellent resistance to oxidation, sulfidation, and high-temperature environments. PN 40 Pressure Rating: The "PN" rating indicates the flange's pressure capacity. PN 40 refers to flanges that are designed to withstand pressures up to 40 bar, making them suitable for high-pressure systems where secure, leak-free connections are essential. Applications: Aerospace Industry: Jet Engines and Turbomachinery: Inconel flanges are commonly used in aerospace applications, including jet engines and turbine systems, where components are exposed to extremely high temperatures and pressures. They provide excellent resistance to heat and corrosion in high-stress environments. Exhaust Systems: Inconel's ability to withstand high temperatures makes it ideal for use in exhaust systems of aircraft engines. 2. Power Generation Industry: Gas Turbines: Inconel flanges are used in gas turbines in power plants, particularly in components that operate at high temperatures, such as turbine blades, combustors, and other critical parts. Nuclear Power Plants: Inconel is used in the construction of components for nuclear reactors, where heat and radiation resistance are crucial. It is used in piping, valves, and other systems exposed to high-temperature nuclear environments. 3. Chemical Processing and Petrochemical Industries: High-Temperature Reactors: Inconel flanges are used in reactors, heat exchangers, and other equipment in the chemical industry that handle aggressive, high-temperature chemical reactions, including those with sulfuric acid, chlorine, and other corrosive substances. Petrochemical Refineries: Inconel is used in systems where high temperatures and reactive chemicals are present, offering superior performance in handling corrosive materials such as acids and hydrocarbons. 4. Oil and Gas Industry: Offshore Platforms: Inconel flanges are widely used in offshore oil and gas platforms, particularly in subsea pipelines, risers, and pressure vessels, where high resistance to both high pressure and corrosion (especially from seawater) is necessary. Wellhead Equipment: Inconel flanges are also used in downhole equipment and wellhead connections that need to resist high-pressure environments and exposure to extreme temperatures. Ladhani Metal Corporation ensures that each Inconel flange is produced to the highest standards of quality and precision, adhering to international specifications. Every flange undergoes thorough testing to meet the required durability and performance standards, providing reliable solutions for critical applications in the most challenging environments. #din2545 #din2545flanges #din2545inconelflanges #flanges #flangessupplier
