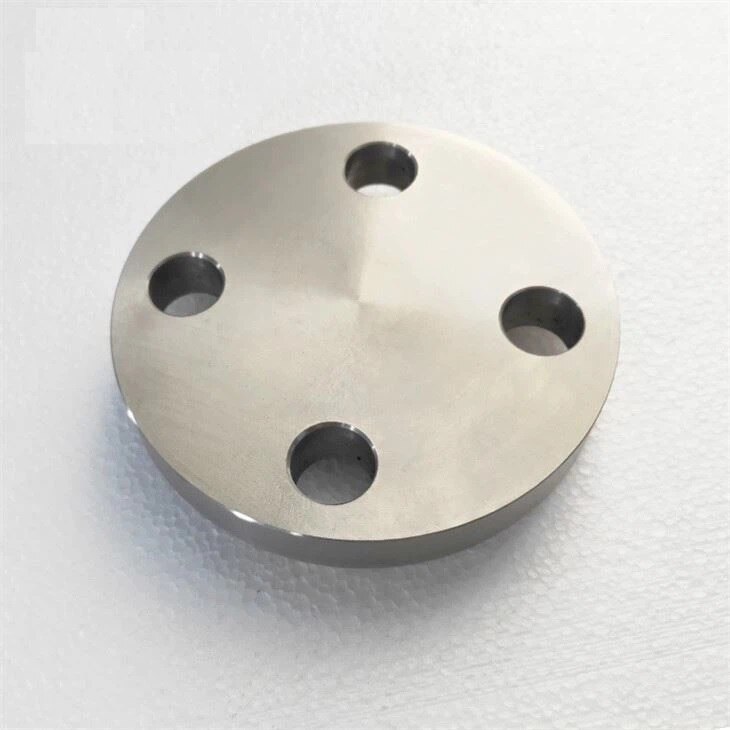

Titanium blind flanges Material: GR1 GR2 GR7 GR11 GR12(F2 F7 F11 F12) Standard:ANSI B16.5,ANSI B16.47A, ANSI B16.47 Size:1/2"~80" Class 150 class 300 class 600 class 900 class 1500 Technique:Forged, CNC machined

Tungsten-Copper Alloy Bars/Rods are composite materials consisting of a blend of tungsten (W) and copper (Cu), offering a unique combination of the distinct properties of both metals. These alloys are typically used in applications that require both high density, heat resistance, and good electrical or thermal conductivity. The tungsten-copper composite is particularly valued in industries where high performance is required under extreme conditions, such as aerospace, electronics, and manufacturing. Characteristics: · High Density: Tungsten copper alloys have a density that lies between pure tungsten and pure copper, making them dense and stable for applications requiring mass and weight. · Thermal Conductivity: These alloys offer superior thermal conductivity compared to pure tungsten, thanks to the copper content. This makes them ideal for heat dissipation in high-temperature environments. · Electrical Conductivity: Copper provides high electrical conductivity, so tungsten-copper alloys are often used in electrical and electronic applications where heat resistance and electrical performance are both crucial. · Strength and Hardness: Tungsten copper alloys retain much of the high-strength and heat-resistant properties of tungsten, but with improved machinability and ductility due to the copper content. The specific hardness and strength depend on the proportion of tungsten, with higher tungsten content leading to greater hardness and heat resistance. · Thermal Expansion: The addition of copper modifies the alloy's coefficient of thermal expansion, giving it better dimensional stability compared to pure tungsten, which is important in applications where precision and tight tolerances are required. Applications: · Electrical and Electronic Components: Tungsten copper alloys are widely used in the electronics industry for electrical contacts, electrical conductors, commutators, and electrode materials for arc welding. They are also used in heat sinks and power transmission components where efficient heat dissipation is essential. · Aerospace and Defense: Due to their high-density and heat-resistance properties, these alloys are used in aerospace components, including rocket nozzles, heat shields, and circuit breakers in extreme conditions. The thermal stability makes them effective in environments with significant temperature fluctuations. · Manufacturing: Tungsten copper alloy rods are used in the production of high-performance tooling, such as die-casting dies, molds, and cutting tools, where both strength and heat management are critical. · Welding and Soldering: In high-current electrical applications, these alloys are also used for welding electrodes and soldering tips, where both electrical conductivity and heat resistance are required.

Product name: Titanium pipe coil/ titanium coil tube Grade: Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape: Coiled Tubes, "U" Shape,Or as customer’s drawing Titanium pipes and plates are rapidly gaining popularity in the industry due to their exceptional advantages. Firstly, titanium pipes and plates possess superior strength and durability, making them suitable for use in numerous projects where high-performance abilities are necessary. Additionally, these materials are lightweight, which makes them easy to handle and transport, reducing labor costs considerably. Moreover, titanium pipes and plates exhibit excellent corrosion resistance properties, even in the most corrosive environments. They are suitable for use in seawater applications, chemical processing plants, and other harsh conditions. With minimal maintenance, titanium pipes and plates can last for many years, saving the industry significant costs on replacement and repair. Finally, titanium pipes and plates have high-temperature resistance abilities, which make them ideal for various high-temperature applications, including exhaust systems, heat exchangers, and furnace components. Their high melting point and thermal stability make them a perfect choice for extreme temperatures. In conclusion, titanium pipes and plates offer a range of exceptional benefits such as strength, durability, lightweight, corrosion resistance, and high-temperature resistance, which make them the preferred choice for numerous industrial applications. Product name.:Titanium coil pipe,titanium coil tube,titanium tube coil,titanium coil tubing Type:Seamless, welded Technique: Cold Drawn Material: Titanium Gr1, Gr2,Gr3 ,Gr7,Gr9,Gr12 Standard: ASTM B338/ASME B338 Surface Treatment:Polish Dimention: OD 3-88.9mm*WT0.5-5mm*L Shape and dimension: As per the drawing ;as Per The Clients Usage:Pipeline Transport Section Shape:Round Origin:China Following is the material grade of Titanium Coiled Tubes that we could do: Ti CP - Grade 1 R50250 3.7025 Ti CP - Grade 2 R50400 3.7035 Ti CP - Grade 3 Ti-0.7Pd Grade 7 Ti 3Al2.5V Grade 9 R56320 3.7194 Ti 0.3Mo 0.8Ni Grade 12 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 Grade 3 0.05 0.08 0.015 0.30 0.35 Grade 7 0.03 0.08 0.015 0.30 0.25 / / 0.12-0.25 / / Bal Grade 9 0.05 0.08 0.015 0.25 0.12 2.0-3.5 1.5-3.0 Grade 12 0.03 0.08 0.015 0.25 0.15 / / / 0.2-0.4 0.6-0.9 Bal

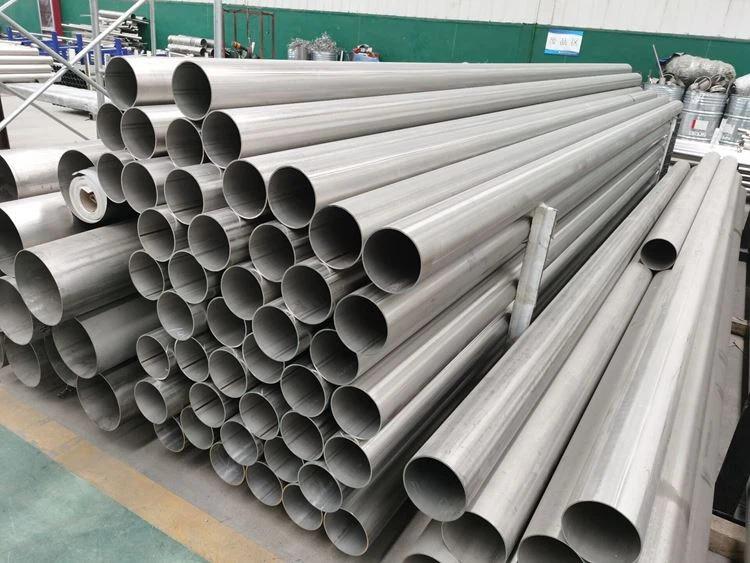

Product Name: Titanium Pipe Standard: ASTM B861, ASTM B862 Material: Gr7 Type: Welded/Seamless Shape: Round Outer Diameter: 3-114mm or as customized Wall Thickness: 0.5-7mm or as customized Length: Max 12000mm Surface: Bright Product Information of Grade 7 Titanium Pipe Material: Gr7 Standard: ASTM B861, ASTM B862 OD: 3-114mm or as customized WT: 0.5-7mm or as customized Length: Max 12m Type: Welded/Seamless Surface: Polishing, Pickling Grade 7 Titanium Grade 7 titanium has physical and mechanical properties equivalent to Grade 2 titanium (CP3). It has excellent welding and fabrication properties and is extremely resistant to corrosion, especially from reducing acids.

Product Name: Gr12 titanium pipe Standard: astm b861 Material: Gr12 Unit Price: $ 80-85usd/kg Type: Seamless Shape: Round Outer Diameter: 1/2"-24". Wall Thickness: 1-10mm Length: Max 6000mm Surface: Bright Product Introduction ASTM B861 Gr12 titanium tube Gr12 Titanium (Ti-0.3Mo-0.8Ni) Titanium alloy is a corrosion-resistant titanium alloy, a near-alpha alloy developed to improve the crevice corrosion performance of pure titanium. The alloy is strengthened, and it has good crevice corrosion resistance to high temperature, low pH chloride or weakly reducing acid, and its corrosion resistance is significantly better than pure titanium and close to Gr9 alloy. Gr12 alloy also has good process plasticity and welding performance, and has been widely used in the chemical industry. The alloy can be used in the annealed state. Used:chemical industry Wall thickness:1.0mm to 10.0mm Length:6000mm Outside Diameters:21.3mm to 609.6mm Wall thickness tolerance: +/- 12.5% Length tolerance: +5mm Chemical requirements N C H Fe O Al V Pd Mo Ni Ti Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal Tensile requirements Grade Tensile strength(min) Yield strength(min) Elongation(%) ksi M Pa ksi M Pa 12 70 438 50 345 18

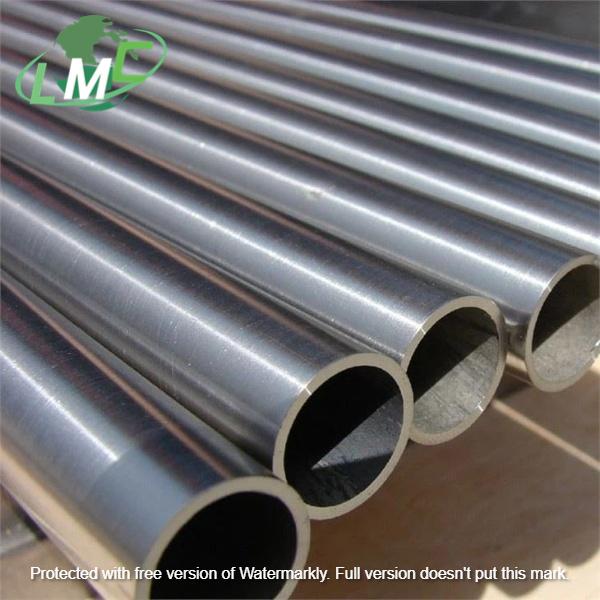

Product Name: Titanium gr 2 pipe Standard: ASTM B861, ASTM B862, ASTM B338 Material: Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless/Welded Shape: Round

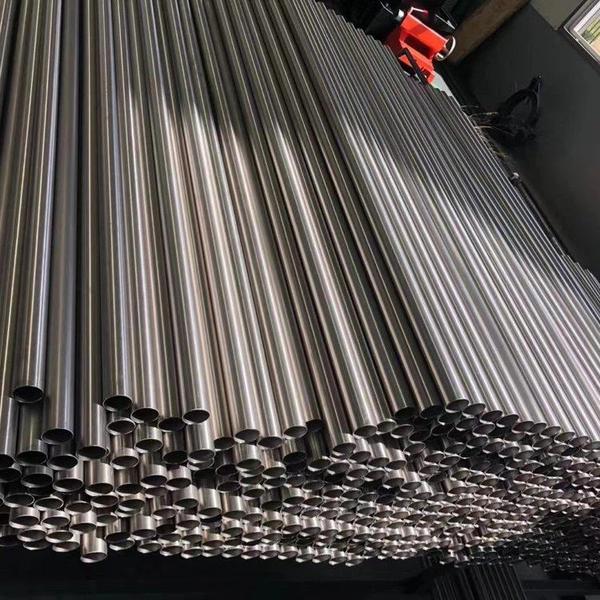

Product name: Titanium welding pipe for heat exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc. Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Application:Heat Exchanger, chemical industry etc. Technique:Welded Titanium seamless pipe for heat exchanger Titanium welded tube GR2 has α crystal structure. This alloy is widely used because of its good formability, moderate strength and excellent corrosion resistance. It has excellent corrosion resistance in strong oxidation and photoreduction environments, including chloride. Easy to weld, hot and cold processing and machining. These characteristics make it ideal for a wide range of applications, including Marine and Marine pipelines, reaction vessels and heat exchangers, Marine, automotive parts, medical and sports equipment in the aerospace, petrochemical, oil and gas and Marine industries. GR2 titanium welded pipe is made by crimping titanium or titanium alloy coil or wide plate welding into a tube. It has been widely used in electric power, seawater desalination, water treatment equipment, air conditioning equipment and other industries, but in the petrochemical industry, the use of titanium welded pipe is still in the promotion.

Product Name: Titanium seamless pipe for heat exchanger Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless Shape: Round Outer Diameter: 21.3mm-609.6mm etc. Wall Thickness: 1.24-30mm Length: Max 16000mm Surface: Bright Titanium seamless pipe for heat exchanger The grade 2 titanium tube consists of commercial pure titanium or Unalloyed titanium. The oxygen content of grade 2 is standard. ASTM b861 GR 2 pipes can be easily welded. It also has excellent strength and ductility. The natural strength of metal is used for applications requiring very high strength, and the corrosion resistance is used for long-term appliances. Although most use cases are in industrial standards, titanium grade 2 seamless pipes can also be used in aesthetic and home applications. Due to the cost of raw materials and production costs, the cost is very high. The content of titanium in commercial pure CP grade 2 titanium welded pipe exceeds 99%. It can be cold drawn into titanium seamless pipe or hot rolled into welded pipe. They are used in high temperature applications, such as titanium 2-stage exhaust pipes, which can maintain their shape due to their high thermal conductivity, low thermal expansion and high oxidation resistance at high temperatures.

Product name: 19mm Titanium pipe for heat exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:19.1mm Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled 19mm Titanium pipe for heat exchanger Commonly used heat exchange tube size (outer diameter x wall thickness) is mainly φ 19mmx2mm, φ 25mmx2mm.5mm and φ 38mmX2mm.5mm seamless tube and φ 25mmx2mm and φ 38mmx2mm.5mm seamless tube. Standard tube length includes 1.5, 2.0, 3.0, 4.5, 6.0, 9.0m, etc. The use of small diameter can increase the heat transfer area per unit volume, compact structure, reduce metal consumption, improve the heat transfer coefficient. It is expected that the heat exchange tube of the same diameter heat exchanger is changed from φ 25mm to φ 19mm, the heat exchange area can be increased by about 40%, saving more than 20% of metal.
