DIN 2569 Carbon Steel Flanges PN 100 are precision-engineered welding neck flanges manufactured from high-strength carbon steel, designed to perform reliably in high-pressure and high-temperature industrial environments. Built to DIN 2569 standards, these flanges offer excellent mechanical strength, structural integrity, and thermal performance, making them ideal for use in industries such as oil and gas, power generation, petrochemical, construction, and general engineering. Ladhani Metal Corporation is a reputable manufacturer and exporter of carbon steel flanges, providing products that conform to stringent global standards. The welding neck design allows for permanent and high-integrity pipe connections, making these flanges particularly suitable for applications subject to pressure fluctuations, vibration, and thermal cycling. Pressure Rating: • PN 100 (100 bar / 1450 psi): Specifically designed for high-pressure systems that require reliable sealing, robust mechanical strength, and thermal endurance in demanding industrial conditions. Flange Types: • Welding Neck Flanges Provide a tapered hub for stress distribution, ideal for high-pressure piping systems. • Raised Face (RF) Flanges Facilitates efficient gasket compression and sealing under elevated pressure and temperature. • Flat Face (FF) Flanges Used for connections with flat-faced components or non-metallic sealing materials. • Forged Welding Neck Flanges Offer enhanced strength, dimensional accuracy, and pressure resistance. • Custom-Machined Flanges Available in a wide range of sizes, pressure classes, and carbon steel grades to meet specific project needs. Carbon Steel Grades and Composition: 1. ASTM A105 (Forged Carbon Steel) Composition: • Carbon (C): 0.35% max • Manganese (Mn): 0.60–1.05% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.040% • Silicon (Si): 0.10–0.35% Applications: Commonly used in pressure systems, valves, and flanges for oil and gas and general-purpose industrial applications where temperature and pressure are moderate to high. 2. ASTM A350 LF2 (Low Temperature Carbon Steel) Composition: • Carbon (C): ≤ 0.30% • Manganese (Mn): 0.60–1.35% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.040% • Silicon (Si): 0.15–0.30% Applications: Ideal for low-temperature service, particularly in cryogenic or arctic environments in oil refineries, LNG plants, and chemical processing. 3. ASTM A516 Grade 70 (Pressure Vessel Quality Carbon Steel) Composition: • Carbon (C): ≤ 0.30% • Manganese (Mn): 0.85–1.20% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.035% Applications: Used in boilers, pressure vessels, and heat exchangers where toughness and resistance to high-pressure and high-temperature conditions are essential. Applications of DIN 2569 Carbon Steel Flanges: • Oil and Gas Pipelines: Used for transporting crude oil, natural gas, and petroleum products under pressure. • Power Plants: Installed in steam lines, turbines, and heat recovery systems due to their thermal and mechanical reliability. • Petrochemical and Refinery Units: Applied in high-pressure processing systems and reactors. • Construction and Infrastructure: Used in water supply systems, fire protection networks, and structural piping. • HVAC and Mechanical Engineering: Employed in heating, ventilation, and air conditioning networks. Key Features: • Manufactured to DIN 2569 standard • Available in PN 100 pressure rating • High mechanical strength and impact resistance • Excellent weldability and structural integrity • Designed for permanent, high-pressure pipe connections • Supplied with test certificates, quality assurance documents, and traceability • Can be surface-treated with anti-corrosion coatings, galvanizing, or black painting Conclusion: DIN 2569 Carbon Steel Flanges PN 100 from Ladhani Metal Corporation are engineered to meet the demands of high-pressure industrial systems with strength, reliability, and cost-efficiency. Suitable for a wide range of applications across various sectors, these flanges are available in customizable sizes and material grades. For detailed specifications, bulk inquiries, or technical assistance, contact Ladhani Metal Corporation today

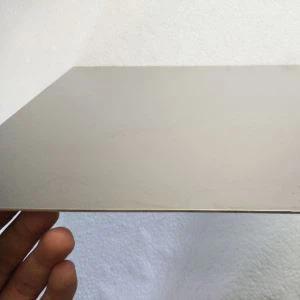

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, Gr3,Gr4 GR5, GR7, GR12,GR23 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting ASTM B265 covers annealed titanium and titanium alloy strips, sheets and plates. ASTM B265 Ti and Ti-based alloy plates are widely used in equipment for high-temperature environment, including aircraft equipment, petroleum and petrochemical, biological materials, marine and chemical industries, such as: blades, storage tanks, targets, pipes and heat exchanger equipment. Product Titanium sheet Standard ASTM B265 Material GR1, GR2, GR3,GR4 GR5, GR7, GR12,GR23 Surface Pickling, Polishing, Sand blasting etc. Application Industry Size The size of standard sheet is usually Thickness × Width 1000mm × Length 2000mm. We can also cut it as you require. Type Sheet, plate, foil; Straight & roll Certificate Certificate of Origin, Material Test Certificate as per EN10204.3.1 and 10204.3.2 are all available

Product name: 35mm titanium bar Material: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23 Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Size: Dia 5mm-300mm (0.2"-12"), Length 50mm-6000mm (2.0"-236") Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished Titanium bars are mainly used in mechanical equipment, electroplating equipment, chemical equipment, petroleum coking zinc production equipment, medical, various precision parts and other industries. According to titanium rod wear-resisting, corrosion resistance, high temperature resistance, non-magnetic and other characteristics, is often used as the main parts of equipment, shaft body, fastener, stirring shaft, etc., due to the non-toxic, pollution-free and other characteristics, made titanium rod filter element and widely used. In addition, titanium bar is characterized by high strength, good toughness, low elastic modulus and compatibility with human body, which is unmatched by other metal bars. It has been widely used in the medical industry. Product 35mm Titanium bar Size Dia.: 5mm-300mm (0.2"-12"), , Length: 50mm-6000mm (2.0"-236") Material Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, etc. Standard ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Surface Polished, bright Shape Round Product Size(mm) Condition Grade Specification Titanium bars/ rods Dia30*400*L<=5000mm Forged bars Gr.1, Gr.2, Gr.4 ,Gr.5, Gr.7, Gr.9, Gr.12, Gr.23, etc. ASTM B348, ASTM F136,ASTM F67, AMS 4928, etc. Dia8-*460*L<=4000mm Rolled bars

Product Name: Titanium 6al4v plate Standard: ASTM B265 , AMS 4911 , ASTM F136 Material: Gr5 Unit Price: $19.5usd/kg-$48usd/kg Thickness: 0.3-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting There are several advantages to using titanium sheet metal: 1. High strength-to-weight ratio: Titanium is known for its high strength-to-weight ratio, which means that it is strong but lightweight. This makes it ideal for use in applications where weight is a concern, such as aerospace and sports equipment. 2. Corrosion resistance: Titanium is highly resistant to corrosion, making it suitable for use in harsh environments where other metals would quickly deteriorate. This makes it ideal for use in marine and chemical processing applications. 3. Biocompatibility: Titanium is biocompatible, meaning that it is not harmful to living tissue. This makes it ideal for use in medical implants and prosthetics. 4. High melting point: Titanium has a high melting point, making it suitable for use in high-temperature applications such as jet engines. 5. Ductility: Titanium is highly ductile, meaning that it can be easily formed into a variety of shapes and sizes without breaking. This makes it ideal for use in complex designs and applications. Applications: Widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, food, and used to complete vulcanization, nitration, hydrogenation, polymerization, condensation and other technical processes. Such as reverberator, reverberation kettle, differentiation pot, polymerization kettle. Titanium 6al4v plate Chemical compositions(weight%,<=) Ti Al V Fe C Remainder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 830 8-12 18-30 Titanium 6al4v plates in stock: Thickness: 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 20mm 25mm Size: 1000*2000mm 3000*6000mm The production process of titanium plate: 1. Hot forging:casting skills above the metal recrystallization temperature; 2. Hot rolling:the rolling process performed at a temperature higher than the recrystallization temperature; 3. Cold rolling:the rolling process where the plastic deformation temperature is lower than the recovery temperature; 4. Annealing: slowly heating the metal to a certain temperature, insisting on meeting the time, and then cooling at an appropriate speed a metal heat treatment technology; 5. Pickling: immersing the parts in an aqueous solution such as sulfuric acid to remove the oxide and other thin films on the metal surface. It is the pretreatment or process treatment of electroplating, enamel, rolling and other skills.

Product name:Titanium sheet Grades: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Standard: ASTM B265/ASME B265 AMS 4911 ASTM F67 ASTM F136 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate There is Grade 1, Grade 2, Grade 3, Grade4, Grade5, Grade 7, Grade 12 titanium plates in stock. Titanium plate is widely used in various fields, including metallurgy, electronics, medical, chemical, petroleum, medicine, aerospace, etc.. We offer competitive prices online, available incutting size as customers' requets. 1, Specifications Thickness range: 0.5mm-200mm Titanium coil plate/titanium coil strip: 0.1mm-0.5mm thick *1m/1.2m/1.5m wide. Standard plate: 0.5mm-20mm thick *1m*2m. Cold rolled plate: 1mm-4mm*1m*2m hot rolled plate: above 4mm thick wide and thick plate: above 5mm *2m*6m is a common specification, and specific specifications can also be customized according to customer requirements. 2, Material TA1 (Grade 1), TA2 (Grade 2), TA9 (Grade 7), TA10 (Grade 12), TA18 TC4 (Grade 5), TC6 and TC11 3.Standard dimension in stock: 1000 mm Width * 2000 mm Length 1500 mm Width* 6000 mm Length 2000 mm Width* 6000 mm Length 4,Surface:Pickled, polished, sand-blasted

Product name:Grade 12 Titanium plate Unit price:$15.5-$36.9/kg Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) GR12 is a titanium alloy containing molybdenum and nickel (Ti-0.3Mo-0.8Ni).Grade 12 titanium plate is high quality and weldability. It is a titanium alloy that has always been very durable, even at high temperatures. In addition, Grade 12 titanium plates have excellent corrosion resistance in reducing and oxidizing environments, and their heat resistance is better than that of pure titanium. Grade 12 titanium sheets generally have few scratches and are not easy to scratch. Product name:Grade 12 Titanium plate Material: Titanium Grade 12 (Ti-0.3Mo-0.8Ni) Standard: ASTM/ASME B265 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc Technique : Rolled Status: Annealed(M) MTC: EN10204.3.1 certificate Applications : Petroleum ,chemical industry, Marine, medical Package:Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case. Grade 12 Titanium Plate Equivalent Grades: STANDARD WERKSTOFF NO. UNS Titanium Grade 12 3.7105 R53400 Titanium ASTM B265 Gr 12 Plate Chemical Composition: Fe O C H N Mo Ni ≤0.30 ≤0.18 ≤0.08 ≤0.015 ≤0.03 0.2 - 0.4 0.6 - 0.9 Titanium Grade 12 Plate Mechanical Properties: Material Tensile Strength min Yield Strength Elongation in 2" (%) ksi Mpa Max Min ksi Mpa Ksi Mpa Titanium CP Grade12Annealed Sheet 70 483 50 345 - - 18

Product name:Titanium Shell and Tube Heat Exchangers Materials: stainless stainll Shell/gr2 titanium shell + Gr2 Pure Titanium Tube Special Use: Cooling, Evaporator Net Weight: Customizable Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc. Titanium Shell and Tube Heat Exchangers Shell and tube heat exchanger, It is an inter wall heat exchanger with the wall of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials)It is composed of tube plate, shell, tube bundle and other parts. and can be used under high temperature and high pressure. It is the most widely used type at present -this is mainly due to their versatility. Applicable Industry: it plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler. Titanium Shell and Tube Heat Exchangers 17 Dimension(L*W*H) Customized Set Tempreture Customized Transport Package Wooden Packing Takeover Diameter Customized Liquid Flow Customized Plate Material Titanium/Stainless steel etc. Plate Thickness Heat exchange tube Customized A heat exchanger system facilitates the transfer of heat energy from one system to another. You can use them for both heating and cooling processes. Although you can make heat exchangers from different metals, these systems are made from titanium metal. Unlike the other predecessors, titanium heat exchangers are totally immune to corrosion. However, to work at full efficiency the device requires more surface area and a higher fluid flow rate. In most cases, you will find coil patterns. This is because they maximize the surface area of the tubes.

Product Name: Shell And Tube Type Gr2 Titanium tube Heat Exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Gr2 Titanium tube Heat Exchanger Titanium heat exchanger is a kind of heat exchanger made of titanium tube, which transfers part of the heat of hot fluid to cold fluid. It has many advantages of industrial pure titanium. It is a common equipment in many industrial departments such as chemical industry, petroleum, electric power, food and so on. Product Name Industrial Titanium tube heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Competitive Advantage 1.ISO9001:2008 2.Timely delivery rate is 99.8%,sometimes in advance. 3.Excellent after sale service. 4.Rapid enquiry reply, within 2 hours. 5.Fair payment term 6.Proffessional technical adviser 7.Material certificate 8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process, surface treatment, inspectation and testing).

Product name: Titanium heating coil Spiral Pipe Standards: ASTM B338 Grades: Gr1, Gr2 Dimention:OD 6-108mm*WT1-5mm*L Technique:Rolled Titanium heating coil Spiral Pipe Titanium tube coil is widely used in Evaporator, Condenser, Refrigeration compressor, Heat exchanger tube,Heating tube. titanium coil is also used to produce titanium white, glycine, nitrate amino phenol chemical industry, pesticide intermediates, pesticides, fuel, cyanuric acid, dichloro cyanuric acid, acetone cyanuric acid, etc. Name:ASME B338 Grade 2 Titanium coil tube for heater for condenser Material:Gr2 Titanium Standard:ASME B338 OD:12.7mm-50mm Wall thickness:0.55mm----3.0mm(normal use) Length:0.55mm----3.0mm(normal use) Applications: Coiling pipe; petroleum pipeline, Fluid Transportation Piping, Water tank, boiler, heat exchanger unit, Heat exchanger; Condenser, Sea farming; electroplating equipment etc. Quality control : Seamless Tube: Ultrasonic or eddy current inspection. Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
