Product name:Titanium Shell and Tube Heat Exchangers Materials: stainless stainll Shell/gr2 titanium shell + Gr2 Pure Titanium Tube Special Use: Cooling, Evaporator Net Weight: Customizable Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc. Titanium Shell and Tube Heat Exchangers Shell and tube heat exchanger, It is an inter wall heat exchanger with the wall of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials)It is composed of tube plate, shell, tube bundle and other parts. and can be used under high temperature and high pressure. It is the most widely used type at present -this is mainly due to their versatility. Applicable Industry: it plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler. Titanium Shell and Tube Heat Exchangers 17 Dimension(L*W*H) Customized Set Tempreture Customized Transport Package Wooden Packing Takeover Diameter Customized Liquid Flow Customized Plate Material Titanium/Stainless steel etc. Plate Thickness Heat exchange tube Customized A heat exchanger system facilitates the transfer of heat energy from one system to another. You can use them for both heating and cooling processes. Although you can make heat exchangers from different metals, these systems are made from titanium metal. Unlike the other predecessors, titanium heat exchangers are totally immune to corrosion. However, to work at full efficiency the device requires more surface area and a higher fluid flow rate. In most cases, you will find coil patterns. This is because they maximize the surface area of the tubes.

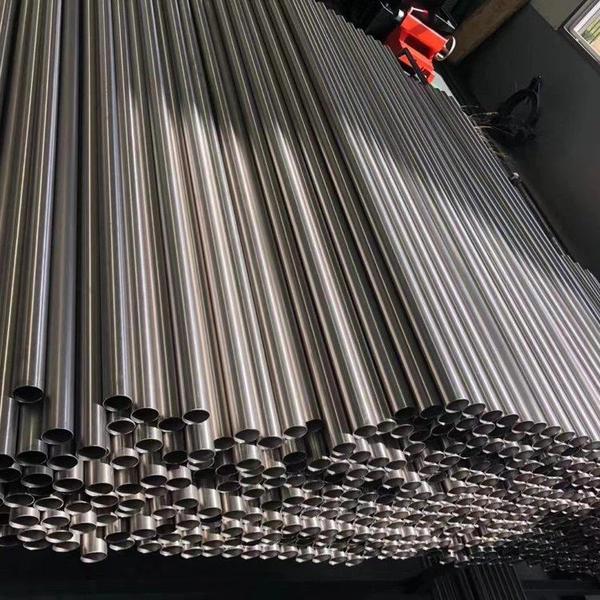

Product name: Titanium Tubes For Heat Exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc. Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Titanium Tubes For Heat Exchanger Titanium tubes are corrosion resistant in seawater and chlorine. It is alloyed with elements such as iron, vanadium, aluminum and molybdenum to produce strong and light alloys for industrial purposes such as chemical industry, seawater desalination plant, petrochemical, papermaking and pulp. The most common dimensions of titanium seamless or titanium welded tubes for heat exchangers and pressure vessels are od0.5 "(12.7mm), 0.63" (16mm), 0.75 "(19.05mm), 1" (25.4mm), 1.25 "(31.75mm), 1.5" (38.1mm), 1.78 "(45mm), 2" (50.8mm), etc., and wt0.02 "(0.5mm), 0.024" (0.6mm), 0.028 "(0.71mm), 0.035" (0.89mm) , 0.049 "(1.24mm), 0.11" (2.77mm), 0.125 "(3.17mm), etc. Product name Titanium tubes for heat exchanger，ASTM B338 titanium tube pipe,Seamless titanium tube,Welded titanium tubes,Titanium tube price per kg Grade Gr1 Gr2 Different types of Titanium heat exchanger tubes Seamless, Welded Standard ASME /ASTM B 338 Straightness of heat exchanger tubes 0.0015 x L. In conversion , 1 meter length OUTER DIAMETER (OD) 0.500 - 3.000 inch heat exchanger tubes manufacturer 12.7 - 76.2 mm WALL THICKNESS (WT) 0.035 - 0.220 inch 0.89 - 5.52 mm Lengths Titanium heat exchanger tubes are delivered in straight lengths up to 16.5 meters (54 ft). Titanium U-bent tubes are available on request. Manufacturing Method Seamless (Cold Drawn/Cold Rolling) Heat exchanger tubes Certified test reports ASTM / ASME A450 EN 10204: for EN 10297 nonspecified testing (only the mandatory tests), 2.2 specified testing – 3.1.B after agreement - 3.1.A, 3.1.C, 3.2 DIN 50049, - 2.2, 3.1. B Pipe Assemby Headers Pigtails Flanged Pipes Longitudinal finned Pipes and Tubes Finned Tubes Special Forgings Special designed parts acc. to drawing Welding together possible Grades of Seamless Titanium Heat Exchanger Tubes ASTM GRADE UNS NO. DIN/ EN MATERIAL CODE Grade 1 R50250 3.7025 Ti 1 Grade 2 R50400 3.7035 Ti 2 Grade 3 R50550 3.7055 Ti 3 Grade 7 R52400 3.7235 Ti 2 Pd Grade 9 R56320 3.7195 Ti Al 3 V 2,5 Grade 11 R52550 3.7225 Ti 1 Pd Grade 12 R53400 3.7105 Ti Ni 0,8 Mo 0,3

Product name: Titanium welding pipe for heat exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc. Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Application:Heat Exchanger, chemical industry etc. Technique:Welded Titanium seamless pipe for heat exchanger Titanium welded tube GR2 has α crystal structure. This alloy is widely used because of its good formability, moderate strength and excellent corrosion resistance. It has excellent corrosion resistance in strong oxidation and photoreduction environments, including chloride. Easy to weld, hot and cold processing and machining. These characteristics make it ideal for a wide range of applications, including Marine and Marine pipelines, reaction vessels and heat exchangers, Marine, automotive parts, medical and sports equipment in the aerospace, petrochemical, oil and gas and Marine industries. GR2 titanium welded pipe is made by crimping titanium or titanium alloy coil or wide plate welding into a tube. It has been widely used in electric power, seawater desalination, water treatment equipment, air conditioning equipment and other industries, but in the petrochemical industry, the use of titanium welded pipe is still in the promotion.

Product Name: Titanium seamless pipe for heat exchanger Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Seamless Shape: Round Outer Diameter: 21.3mm-609.6mm etc. Wall Thickness: 1.24-30mm Length: Max 16000mm Surface: Bright Titanium seamless pipe for heat exchanger The grade 2 titanium tube consists of commercial pure titanium or Unalloyed titanium. The oxygen content of grade 2 is standard. ASTM b861 GR 2 pipes can be easily welded. It also has excellent strength and ductility. The natural strength of metal is used for applications requiring very high strength, and the corrosion resistance is used for long-term appliances. Although most use cases are in industrial standards, titanium grade 2 seamless pipes can also be used in aesthetic and home applications. Due to the cost of raw materials and production costs, the cost is very high. The content of titanium in commercial pure CP grade 2 titanium welded pipe exceeds 99%. It can be cold drawn into titanium seamless pipe or hot rolled into welded pipe. They are used in high temperature applications, such as titanium 2-stage exhaust pipes, which can maintain their shape due to their high thermal conductivity, low thermal expansion and high oxidation resistance at high temperatures.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet for Heat Exchanger Product Information Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place. The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment. With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tube Plate for Heat Exchanger Product Description Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet. Grade: GR1, GR2, GR5, GR7, GR12 etc. OD: 150-2500mm Thickness: 30-250mm Physical Properties

Product name: 19mm Titanium pipe for heat exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:19.1mm Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled 19mm Titanium pipe for heat exchanger Commonly used heat exchange tube size (outer diameter x wall thickness) is mainly φ 19mmx2mm, φ 25mmx2mm.5mm and φ 38mmX2mm.5mm seamless tube and φ 25mmx2mm and φ 38mmx2mm.5mm seamless tube. Standard tube length includes 1.5, 2.0, 3.0, 4.5, 6.0, 9.0m, etc. The use of small diameter can increase the heat transfer area per unit volume, compact structure, reduce metal consumption, improve the heat transfer coefficient. It is expected that the heat exchange tube of the same diameter heat exchanger is changed from φ 25mm to φ 19mm, the heat exchange area can be increased by about 40%, saving more than 20% of metal.

Product name: 25.4mm Titanium Pipe for Heat Exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:25.4mm Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled 25.4mm Titanium Pipe for Heat Exchanger In case of strong acid, high pressure, high temperature, nuclear energy and other environments, titanium tube is widely used for titanium heat exchanger, in seafood breeding, sea water heat exchange, salt water heat exchange,marine engineering chemicalindustry, nuclear power project, sea water desalination, chemical containers, such as tubular heat exchangers, pressure vessels, boilers, condensers, central air conditioning, evaporators and other industries and fields.

Product Name: Shell And Tube Type Gr2 Titanium tube Heat Exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Gr2 Titanium tube Heat Exchanger Titanium heat exchanger is a kind of heat exchanger made of titanium tube, which transfers part of the heat of hot fluid to cold fluid. It has many advantages of industrial pure titanium. It is a common equipment in many industrial departments such as chemical industry, petroleum, electric power, food and so on. Product Name Industrial Titanium tube heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Competitive Advantage 1.ISO9001:2008 2.Timely delivery rate is 99.8%,sometimes in advance. 3.Excellent after sale service. 4.Rapid enquiry reply, within 2 hours. 5.Fair payment term 6.Proffessional technical adviser 7.Material certificate 8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process, surface treatment, inspectation and testing).
