Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Gr7 Unit Price: $222.5usd/kg-$285.7usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Gr7 titanium sheet is high palladium content, and it is very resistant to corrosion. For example, titanium grade 7 is resistant to salt water and is also suitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impacts. plate usually used for Pressure vessel, fastener, frame, Aerospace vehicle, Chemical industry, ocean engineering etc. Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Grade 7 (Ti-0.2Pd) Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Quality inspections: Flaw detection, eddy current test, etc Grade Chemicai composition(WT%) (Ti) (Fe) (C) (N) (H) (O) (Pd) (Al) (Sn) Others Each Total Gr7 Ti-0.2Pd Remainder ≤0.30 ≤0.08 ≤0.03 ≤0.015 ≤0.25 0.12～0.25 / / ≤0.1 ≤0.4

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr7 Titanium Dish Head Product Information According to the different geometric shapes, titanium dish head can be divided into spherical, elliptical, dish, spherical crown, cone and flat cover, etc., among which spherical, elliptical, dish, spherical crown heads are collectively called convex heads . Titanium dish head is used in various container equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Gr7 Titanium Tubesheet Product Description In the shell-and-tube heat exchanger, the heat exchange tube and the tubesheet are the only barrier between the tube side and the shell side of the heat exchanger. The connection structure and connection quality between the heat exchange tube and the tubesheet determine the quality of the heat exchanger Pros and cons and service life are a crucial link in the manufacturing process of heat exchangers. Most of the damage and failure of heat exchangers occur at the connection part between the heat exchange tube and the tubesheet. The quality of the connection joint also directly affects the safety and reliability of chemical equipment and equipment. Therefore, for the shell and tube heat exchanger, the connection process between the heat pipe and the tubesheet has become the most critical control link in the heat exchanger manufacturing quality assurance system. At present, in the heat exchanger manufacturing process, the connection between the heat exchange tube and the tubesheet mainly includes welding, expansion, expansion and welding, and gluing and expansion.

Product name: Gr7 Titanium Elbow 90 degree Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363 Material grade: Grade 7 OD: 1/2"-36" Wall thickness: 1.0-18mm Type: Seamless ,welded Surface: Pickled, polished,sand-blasting Gr7 Titanium Elbow 90 degree Titanium elbow in pipeline, elbow is a pipe fitting that changes the direction of pipeline. According to the angle, there are three commonly used angles: 45 ° and 90 ° 180 °. In addition, according to the needs of the project, it also includes 60 ° and other abnormal angle elbows. The materials of elbows include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics. The connection methods with pipes include: direct welding (more commonly used) flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc. Product Titanium elbow Application pipe connection Material Gr7 titanium alloy Standard ANSI B16.5,JIS B2220,DIN2627-2628,ASME OD 1/2"-36" Wall Thickness Sch 5s - Sch 160 Certificate TUV, ISO9001 Materials Titanium Grade 7 Quality control PMI,100% ULTRASONIC TEST etc Grade 7 (Ti-0.2Pd) titanium Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing

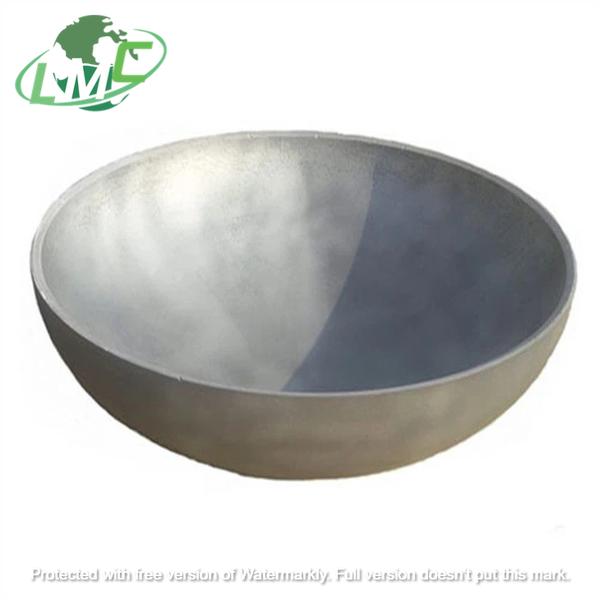

Product name:Gr7 Titanium dished Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr7 Titanium Hemispherical Head Dish-shaped head refers to the head composed of three parts: partial spherical shell, circular arc prayer side and good side (cylinder short treatment). Due to the abrupt change of radius of curvature at the junction between spherical shell and flanged edge, flanged edge and straight edge, the edge stress is much larger than the film stress caused by inner ash, and its mechanical properties are worse than that of spherical and elliptic head. Because of the shallow disc head, the requirements of stamping equipment and mold are low, so it is more convenient to manufacture. Rarely used in force vessels, only where pressure is low and a reduced head depth is required or where a die is lacking. The disc-shaped head is a continuous surface. The radius of curvature of the warp has a sudden change at the junction of three parts. As the curvature changes, there is bending stress. The result of the superposition of the bending stress and the tensile stress makes the stress in this part stand out from the other parts. Compared with the oval head, the stress distribution is not as uniform, but the machining is easier, so it is not ideal in engineering use. But when the mold processing of oval head is difficult, disc head is used instead. Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified. Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA Thickness: 2mm-300mm Material: Titanium, titanium alloy Material grade:Grade 7 Application: mainly for pressure vessels and boilers in diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military. Grade 7 (Ti-0.2Pd) titanium Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

Product name:Titanium grade 7 welding wire Standard : AWS a5.16 , ASME SFA 5.16 Grade : GR7 (ErTi-7,Ti-0.2Pd ) Diameter : 1.0mm 1.2mm 1.6mm 2.0mm 2.4mm 3.2mm etc. Shape : Coil,spool,straight. Surface : Pickling surface/bright surface Application :Welding Description Gr7 Titanium Welding Wire Product Gr7 titanium welding wire/ gr7 titanium tig wire Size Straight: Dia.: 1.0mm-5.0mm (0.04"-0.02", tolerance: +/-0.05mm, +/-0.002") 3000mm (118") max length Coiled: Dia.: 0.5mm-5.0mm (0.02", tolerance: +/-0.05mm, +/-0.002") Spool diameter: around 300mm (12") Material Grade 7 titanium Standard AWS 5.16, etc. Surface Black, Pickled, Polished (for dia. >1mm) Shape Straight or Coiled Grade 7 (Ti-0.2Pd) titanium wire Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Grade 7 titanium alloy is an alloy made of pure titanium by adding a small amount of noble metal Pd, which has excellent corrosion resistance to acidic media. The alloy has good processing, forming and welding properties, but contains precious metal Pd and is relatively expensive.

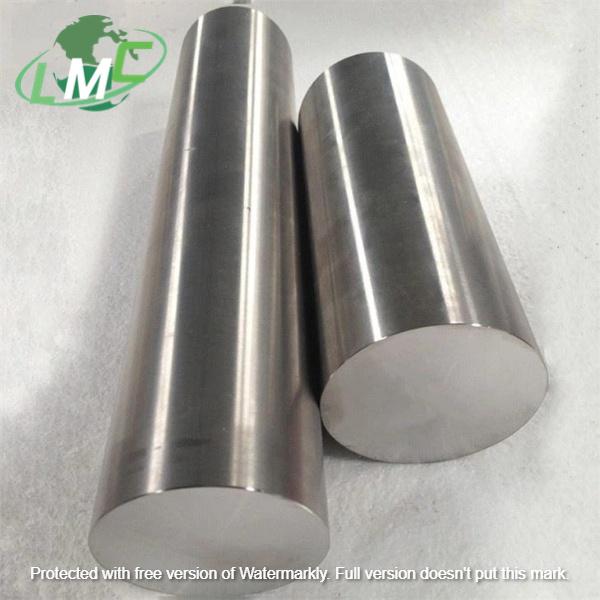

Product name: Ti-0.2Pd Gr7 Titanium alloy bar Material grade: Grade 7 (Ti-0.2Pd) Standard : ASTM B348 Size: Dia 5--200mm * Max L6000mm MOQ:10kgs Factory Area:3000 ㎡ Company staff:48 Foreign trade team service staff:20 China's professional titanium bar manufacturer Applications :Industrial Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished MOQ : 10kgs Unit price:$238.5-$349.2/kg Feature : low density, special strong strength, excellent corrosive resistance gr7 titanium bar titanium bar h tolerance
