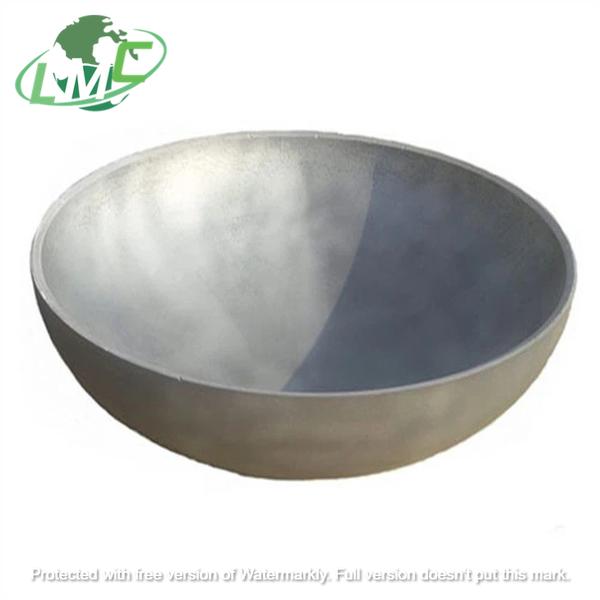

Product name:Gr7 Titanium dished Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr7 Titanium Hemispherical Head Dish-shaped head refers to the head composed of three parts: partial spherical shell, circular arc prayer side and good side (cylinder short treatment). Due to the abrupt change of radius of curvature at the junction between spherical shell and flanged edge, flanged edge and straight edge, the edge stress is much larger than the film stress caused by inner ash, and its mechanical properties are worse than that of spherical and elliptic head. Because of the shallow disc head, the requirements of stamping equipment and mold are low, so it is more convenient to manufacture. Rarely used in force vessels, only where pressure is low and a reduced head depth is required or where a die is lacking. The disc-shaped head is a continuous surface. The radius of curvature of the warp has a sudden change at the junction of three parts. As the curvature changes, there is bending stress. The result of the superposition of the bending stress and the tensile stress makes the stress in this part stand out from the other parts. Compared with the oval head, the stress distribution is not as uniform, but the machining is easier, so it is not ideal in engineering use. But when the mold processing of oval head is difficult, disc head is used instead. Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified. Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA Thickness: 2mm-300mm Material: Titanium, titanium alloy Material grade:Grade 7 Application: mainly for pressure vessels and boilers in diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military. Grade 7 (Ti-0.2Pd) titanium Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing Product Information Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Standard: ASTM / ASME SB381 Shape: Round or according to your requirements Technique: Forged, CNC Machined Available Sizes: Diameter:50-200mm*Height 2-140mm Diameter:200-400mm*Height 25-150mm Diameter:400-600*Height 30-110mm Tolerance Diameter or Thickness Allowable Deviation(mm) Hot forged disc Titanium disc is forged, as the standard of ASTM B381 >7~15 —— >15~25 —— >25~40 0, +0.5 >40~60 0, +0.5 >60~90 0, +0.5 >90~120 0, +0.8 >120~160 0, +1.0 >160~200 0, +1.2 >200~230 0, +1.5 Deviation of length(mm): L<500, +1max; L>500, +2max

Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Gr7 Unit Price: $222.5usd/kg-$285.7usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Gr7 titanium sheet is high palladium content, and it is very resistant to corrosion. For example, titanium grade 7 is resistant to salt water and is also suitable for handling chlorides media. In addition, Titanium Grade 7 is resistant to erosion or impacts. plate usually used for Pressure vessel, fastener, frame, Aerospace vehicle, Chemical industry, ocean engineering etc. Product Name: Gr7 Titanium sheet Standard: ASTM B265 Material: Grade 7 (Ti-0.2Pd) Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Quality inspections: Flaw detection, eddy current test, etc Grade Chemicai composition(WT%) (Ti) (Fe) (C) (N) (H) (O) (Pd) (Al) (Sn) Others Each Total Gr7 Ti-0.2Pd Remainder ≤0.30 ≤0.08 ≤0.03 ≤0.015 ≤0.25 0.12～0.25 / / ≤0.1 ≤0.4

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Hemispherical heads Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting product used for plugging at the end of the pipe. There are many forms. The head is a part of the container and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical, disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head. Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc. Products Processing Standard Grade Size Titanium Elliptical & Spherical Heads According to ASME VIII-I Standard or DIN28013 GR1, GR2, GR7, GR12, etc. Process: Cold forming and hot forming Inspection: 100% Ultrasonic Test and PT test after forming. (As per requirement.) Applications Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. (Titanium dish head )DIN28013: D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s 300 4-10 3.5 78 1,0 1550 5-15 483 403 22.5 350 4-10 5.6 91 1.3 1600 5-15 532 416 23.9 400 4-10 8.3 104 1,7 1650 5-15 585 429 25,4 450 4-10 11.8 117 2,1 1700 5-15 640 442 27.0 500 4-10 16.1 130 2.6 1750 5-15 700 455 28.5 550 3-12 21,6 143 3,1 1800 5-15 760 468 30 600 3-12 28,0 156 3.6 1850 5-15 825 481 31.5 650 3-12 36.0 169 4,2 1900 5-15 890 494 33 700 3-12 44,5 182 4,8 1950 5-15 965 507 36 750 3-12 54.5 195 5,5 2000 6-15 1040 520 37 800 3-13 66.5 203 6.2 2050 6-15 1120 533 38.5 850 3-13 79,5 221 7,0 2100 6-15 1200 546 40.5 900 3-13 94 234 乙8 2150 6-15 1290 559 42,5 950 3-13 111 247 8.6 2200 6-15 1380 572 44.5 1000 4-16 130 260 9.5 2250 6-15 1480 685 46.5 1050 4-13 150 273 10,4 2300 6-15 1580 598 46 5 1100 4-13 173 286 11,1 2350 6-15 1690 611 51 1150 4-13 198 299 12.5 2400 6-15 1800 624 53 1200 4-13 225 312 13.6 2450 6-15 1910 637 55 1250 4-13 254 325 14,7 2500 6-15 2030 660 57

Product name:Gr2 Titanium Hemispherical Heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr2 Titanium Hemispherical heads The dish head refers to the element used to close the end of the container so that the internal and external media are isolated, also known as hemispherical heads/dish end/ Elliptical Dish End. The head of a cylindrical container is usually a revolving case. According to the shape of the head surface, it can be divided into convex shape, conical shape, flat shape and combination shape. Convex heads refer to heads with convex outer surface shape, such as hemispherical, oval, disc and unflanged spherical heads. Some gas cylinders use convex inward combined bottom head, which can not only ensure strength, but also meet the needs of safe use. A head is a part of a container that is welded to the cylinder. (As shown below) According to different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc and spherical crown heads are collectively referred to as convex heads. In the welding is divided into butt welding head, socket welding head. Used for all kinds of container equipment, such as storage tank, heat exchanger, tower, reactor, boiler and separation equipment, etc.

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr7 Titanium Dish Head Product Information According to the different geometric shapes, titanium dish head can be divided into spherical, elliptical, dish, spherical crown, cone and flat cover, etc., among which spherical, elliptical, dish, spherical crown heads are collectively called convex heads . Titanium dish head is used in various container equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc.

Product name: Gr7 Titanium Elbow 90 degree Standard: ANSI / ASME B16.9 ,ANSI / ASME B16.9 B363 Material grade: Grade 7 OD: 1/2"-36" Wall thickness: 1.0-18mm Type: Seamless ,welded Surface: Pickled, polished,sand-blasting Gr7 Titanium Elbow 90 degree Titanium elbow in pipeline, elbow is a pipe fitting that changes the direction of pipeline. According to the angle, there are three commonly used angles: 45 ° and 90 ° 180 °. In addition, according to the needs of the project, it also includes 60 ° and other abnormal angle elbows. The materials of elbows include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics. The connection methods with pipes include: direct welding (more commonly used) flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc. Product Titanium elbow Application pipe connection Material Gr7 titanium alloy Standard ANSI B16.5,JIS B2220,DIN2627-2628,ASME OD 1/2"-36" Wall Thickness Sch 5s - Sch 160 Certificate TUV, ISO9001 Materials Titanium Grade 7 Quality control PMI,100% ULTRASONIC TEST etc Grade 7 (Ti-0.2Pd) titanium Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25

Standard: ASTM / ASME SB381 Material: Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 Shape: Round or according to your requirements Technique: Forged, CNC Machined Quality Control: Ultrasonic Testing

Product name:Gr2 titanium dome dish heads Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr2 titanium dome dish heads A dish head is a part of a container that is welded to the cylinder. According to the different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, vertebral shell and cap. The sphere, the ellipse,disc head is also referred to as convex head. In the welding way is divided into butt welding head, socket welding head, used for all kinds of container equipment, such as storage tanks, heat exchanger, tower, reactor, boiler and separation equipment. Materials are carbon steel, stainless steel, alloy steel, aluminum, titanium, copper, nickel and nickel alloy etc Dish head is an indispensable and important part of pressure vessel equipment in petrochemical, atomic energy and food and pharmaceutical industries. Standard: ASME VIII-I, DIN28013 Thickness:5-100mm Size: Customized Material: GR1, GR2, GR7, GR12 High temperature resistant:100-1000°℃ Resistance to high pressure:0.25-100kg Application:Pressure vessel equipment Grade Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Σb (Mpa) σr0.2 (Mpa) No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 240 140 Grade 2 0.3 0.25 0.03 0.1 0.015 20 400 275 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 400 275 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 18 460 300
