Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Features of Gr1 titanium pipe: 1. Gr1 titanium pipe has plasticity. The elongation rate of the high-purity titanium pipe can reach 50-60%, and the reduction of area can reach 70-80%. Although the strength of high-purity titanium pipe is low, the pure industrial titanium contains a small amount of impurities and the addition of alloying elements can significantly strengthen its mechanical properties, making its strength comparable to high strength. This means that as long as the industrial pure titanium pipe contains a small amount of interstitial impurities and other metal impurities, it can make it have both high strength and appropriate plasticity. 2. The specific strength (strength to weight ratio) of industrial pure titanium pipe is very high in metal structural materials. Its strength is equivalent to steel, but its weight is only 57% of steel. 3. Gr1 titanium pipe has strong heat resistance, and can still maintain good strength and stability in the atmosphere at 500°C. 4. Titanium pipe also has good low temperature resistance. Even at the ultra-low temperature of -250℃, it still has high impact strength and can withstand high pressure and vibration. 5. Strong corrosion resistance, this is because it has a particularly large affinity for oxygen, and can form a dense oxide film on its surface, which can protect titanium from corrosion by the medium. Therefore, titanium has good stability in acidic, alkaline, neutral salt solutions and oxidizing media, and has better corrosion resistance than existing stainless steel and other non-ferrous metals. Chemical Composition (Wt%) ASTMNo. Femax O max Nmax Cmax Hmax Pd Al Bal Grade1 0.2 0.18 0.03 0.1 0.015 - - Ti Physical Properties(Min) ASTMGrade AlloyComposition TensileStrength YieldStrength Elongation min % ksi Mpa ksi Mpa Grade 1 UnalloyedTi("Pure")35A-CP1 35 240 20 138 24

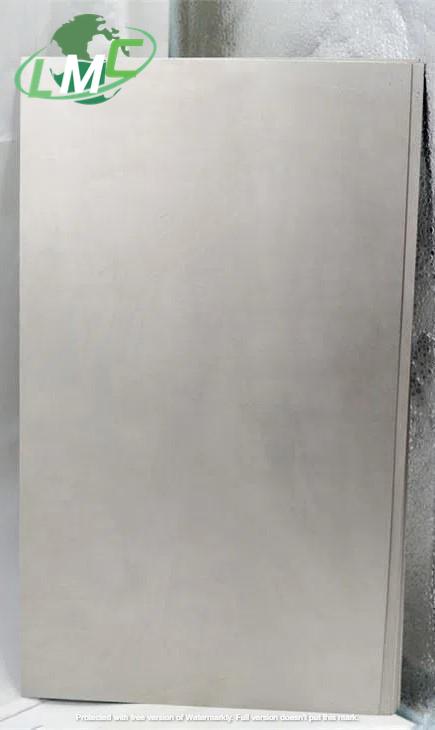

Porduct name : Titanium Explosive Clad Steel Plate / Sheet Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Explosive Clad Steel Plate / Sheet Tube plate in different working environment have different application material, general tube plate use Q345R container board, this is, of course, in the absence of corrosive medium under the condition of flow and pressure, and in some high pressure high temperature corrosion environment we will recommend that users use stainless steel when tubesheet machining, 16 mn or titanium alloy wear resistant material. EXPLOSIVE CLAD PLATES : Description Clad material Base Material Size(mm) Standard Application Titanium Steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) 516GR-70 A216 A210-C (1-10/5-120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chemical, chloral-alkali, food, fertilizer, wet metallurgy, Electroplating, Vacuum Salting Making Titanium Stainless steel clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) SUS410 SUS304 (1-6/5120)thk ×(≤2000)width ×(≤8000)length ASTMB-898 Petrochemical, chloral-alkali, aerospace, aviation, low temperature, food, light industry, medicine Titanium Aluminum clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) L, Ly, LF (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-898 aerospace, cookware, chemical, industry, ship, special brazing filler Titanium Copper clad plate GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) T1, T2, T3, T4 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length ASTMB-432 Power plant, electrolysis, cook ware, wet metallurgy Titanium Nickel clad material GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni) N2, N4, N6 (1-10/5-50)thk ×(≤2000)width ×(≤8000)length Reference to ASTMB-898 Metallurgy Fe max O max N max C max H max Pd Al V Mo Ni Elong'n Rp 0.2 Rm No wt% wt% wt% wt% wt% wt% wt% wt% wt% wt% % MPa MPa Grade 1 0.2 0.18 0.03 0.1 0.015 24 170-310 240 Grade 2 0.3 0.25 0.03 0.1 0.015 20 275-450 345-480 Grade 3 0.25 0.3 0.05 0.1 0.015 18 360-480 480-700 Grade 4 0.5 0.4 0.05 0.1 0.015 15 500-530 600-680 Grade 5 0.4 0.2 0.05 0.1 0.015 5.5-6.7 10 800-1100 890-1400 Grade 6 0.1 16 780-820 820-860 Grade 7 0.3 0.25 0.03 0.1 0.015 0,12-0,25 20 275-450** 345 Grade 9 0.25 0.15 0.02 0.05 0.015 2,5-3,05 15 550 650 Grade 11 0.2 0.18 0.03 0.1 0.015 0.12-0.25 24 170-310** 240 Grade 12 0.3 0.25 0.03 0.1 0.015 0.3 0.8 25 414-460 499-600

Product name: Titanium forging ring Standard: ASME SB381 / ASTM B381 Grade: Titanium GR1,GR2,GR5,GR7,GR9,GR12 Size: OD200-1300mm * ID100-900mm *Height35*250mm Application: Electroplating,Chemical engineering & Petrochemical technology etc. MOQ:1PC Factory Area:3000 ㎡ Company staff:48 Foreign trade team service staff:20 China's professional titanium forging manufacturer Product name: forged titanium ring Standard: ASME SB381 / ASTM B381 Grade: GR1,GR2,GR5,GR7,GR9,GR12 Application: Chemical industry etc. 1.Common Dimensions: Outside Diameter: 200~400 400~700 700~900 900~1300mm Inside Diameter: 100~300 150~500 300~700 400~900mm Height: 20~150 30~250 35~300 50~400mm 2.Mechanical Properties: ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation % ksi Mpa ksi Mpa Gr1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 24 Gr2 Unalloyed Ti ("Pure") 50A -CP2 50 345 40 275 20 Gr5 Ti 6Al 4V 130 895 120 828 10E Gr7 T-50A 0.15Pd 50 345 40 275 20 Gr9 Ti 3Al 2.5V 90 620 70 483 15F Gr12 Ti-0.3Mo-0.8Ni 70 485 50 345 18 3.Application for titanium ring for industry using 1)Aeronautic 2)Medical 3)Chemical engineering & Petrochemical technology 4)Electrolysis 5)Electroplating

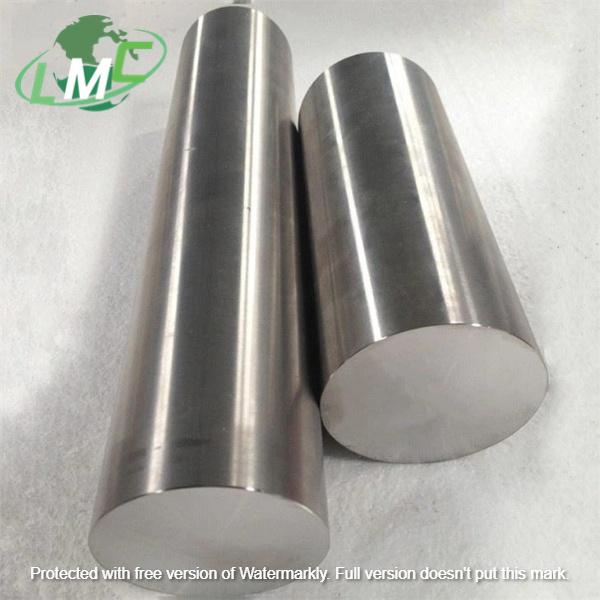

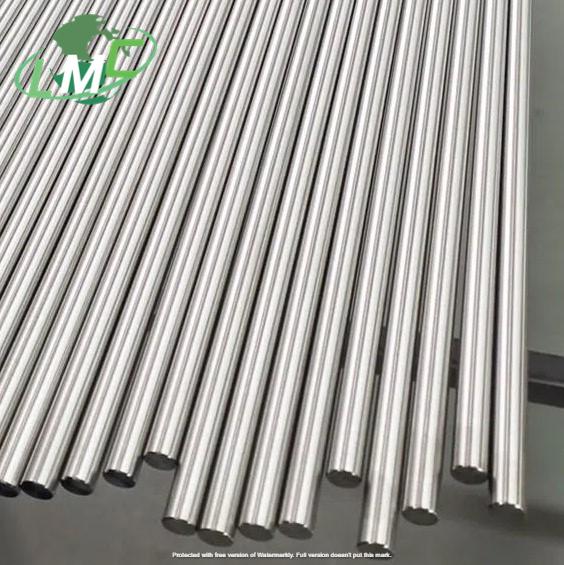

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Titanium Bars Grade 1 Product Information: Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc. Russian Grade: BT1-100,BT1-0,BT6 etc. Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: R/M/Y Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

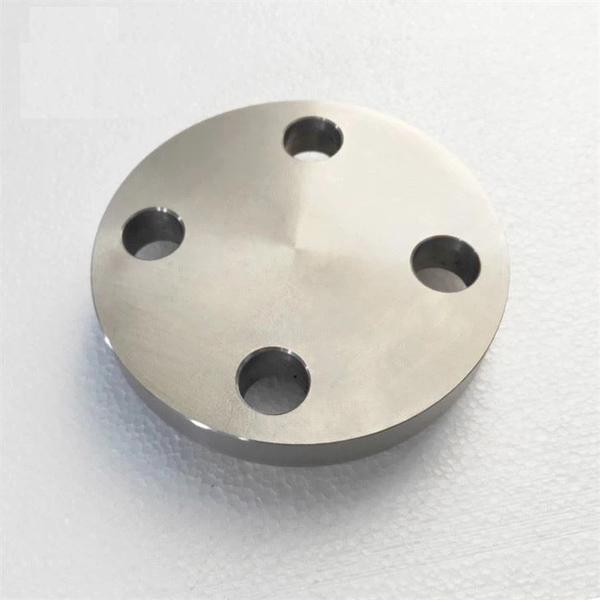

Product Name: Gr2 Titanium blind Flange Standard: ANSI B16.5 / ASTM B16.5 ,JIS B2220, DIN2627-2628,ASME,GB/T 9116 Material: Gr2 Unit Price: $15usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) Pressure: 150#-2500# (PN6-PN250) Surface: CNC machined polished Technique: Forged and CNC Machined

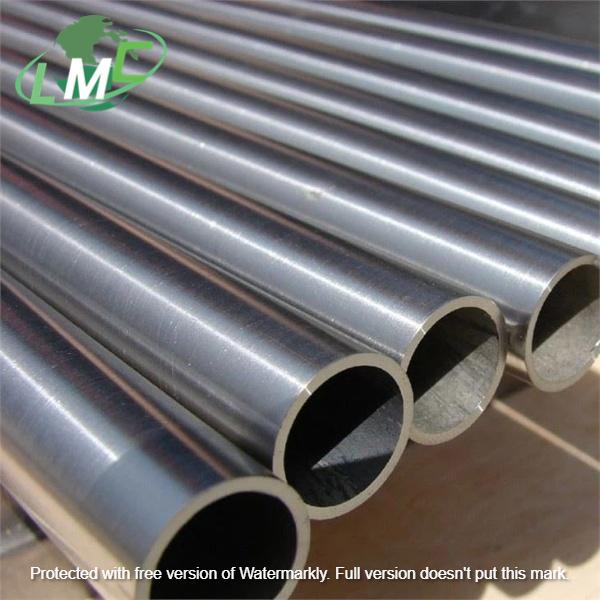

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Wall thickness tolerance: +/- 10% Length tolerance: +3.2mm Surface: Bright Although the investment cost of titanium welded tube is higher than that of common fluid transportation pipelines, its cost is lower than that of titanium seamless tubes. Based on the analysis of the service life and maintenance cycle of titanium welded tubes, the investment cost of titanium welded tubes can be compensated in use. , The use of titanium welded tubes in piping systems can reduce production costs by reducing the number of regular maintenance, reducing downtime, improving product quality, and increasing pipeline life. Advantages of titanium welded tube over titanium seamless tube 1. The mechanical properties of titanium welded tube and titanium seamless tube are basically the same. 2. The appearance and quality of titanium welded tube are better than titanium seamless tube 3. The cost and environmental protection advantages of titanium welded tubes are outstanding Common Sizes OD WT L 12.7 1.0 4000 15.9 0.5 6000 15.9 0.7 3000 19.1 0.7 6000 19.1 0.7 7000 19.1 1.2 4000 19.1 1.4 5500 19.1 1.4 6000 19.1 1.4 4000 19.1 1.5 4000 21.7 3.0 4000 25.4 0.5 6000 25.4 1.0 4000 25.4 1.2 4000 25.4 2.0 4000 27.2 2.0 4000 31.75 1.2 6000 34.0 2.0 4000

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium pipe is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium pipes as standard pipes for their units

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright MOQ:100kgs Gr1 Gr2 industrial pure titanium pipe mechanical properties and physical properties are similar to stainless steel pipe. It is good plasticity, easy processing molding,easy stamping, good welding performance. In the atmosphere and seawate ,titanium is with good corrosion resistance.The oxidation resistance is also stronger than stainless steel, but low heat resistance. It is mainly used for stamping parts and corrosion-resistant parts with little force but high plasticity, such as aircraft skeleton, ship pipelines, valves, heat exchangers, distillation towers, cold zone devices, compressor valves and so on. High plasticity parts is required to use Gr1 titanium, and the most widely used is Gr2 for other parts.Gr2 Titanium seamless fube for heat exchanger is based on the standard of ASTM B338,with strict quality and testing requirements. The titanium tubes manufactured by our factory can meet the standards and can be well used in the heat exchanger industry. Detailed Information Material: Gr1, Gr2 Standard: ASTM B338 Size: OD9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc., WT0.5-3.0mm , L Max 12000mm Wall thickness tolerance: +/- 10% Length tolerance: +3.2mm Type: Welded/Seamless Surface: Polishing, Pickling Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Gr2 Titanium blind Flange Standard: ANSI B16.5 / ASTM B16.5 ,JIS B2220, DIN2627-2628,ASME,GB/T 9116 Material: Gr2 Unit Price: $15usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) Pressure: 150#-2500# (PN6-PN250) Surface: CNC machined polished Technique: Forged and CNC Machined
