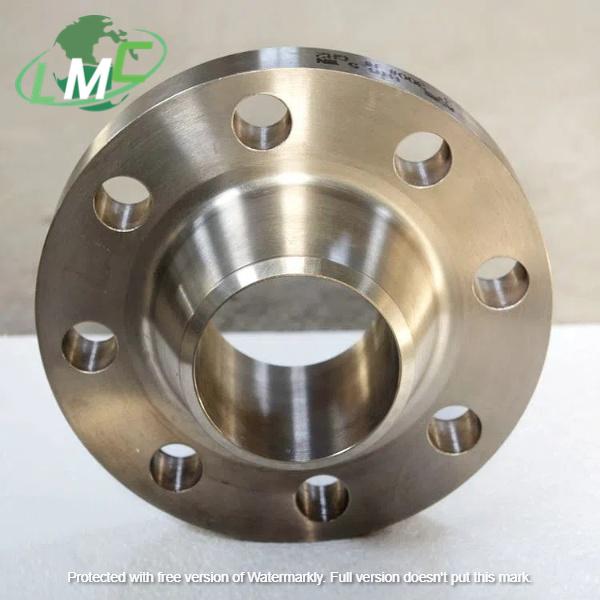

Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. WN Titanium Flanges The titanium flange is a part made of pure titanium or titanium alloy, which connects the pipe to the pipe, and to the end of the pipe. Product Name: WN Titanium Flanges Standard: ANSI / ASME B16.5 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Surface: Polished Technique: Forged and CNC Machined Inspection: UT% PT% Certificate: ISO9001, TUV etc. Differences between Weld neck titanium flange and slip on titanium flange 1. Different welding forms: The welding form of neck flat welded titanium flange pipe and titanium flange is fillet welding, while the welding form of the neck butt welded flange and pipe is girth welding; 2. Different materials: the material of the necked flat welding flange is made of ordinary titanium plate with a thickness that meets the requirements, while the material of the necked butt welding flange is mostly machined from titanium forgings; 3. the nominal pressure is different: the nominal pressure of the necked flat welding flange is: 0.6---4.0MPa, and the nominal pressure of the necked butt welding flange is: 1--25MPa; 4. Another point is that the welding seam between the necked butt-welded flange and the connection pipe belongs to type B seam, and the welding seam between the necked flat-welded flange and the connection pipe belongs to type C seam. And the non-destructive testing after welding is different; 5. The necked flat welding flange and the necked butt welding flange cannot be replaced at will. From a manufacturing perspective, the necked flat welding flange (SO is the abbreviation of Slip On) has a large inner diameter, which means that the weight is light and the cost is low. Neck butt welding flanges (WN is the abbreviation of Welding Neck) with a nominal diameter greater than 250mm need to be tested, and SO flanges do not need to be tested, so the cost is low.

Product name: 25mm Titanium Bar Material: Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr12 etc. Standard : ASTM B348,ASTM B381, ASTM F136, ASTM F67,AMS 4928 Size: Dia 5--200mm * Max L6000mm Applications :Industry, aviation, military etc. Supply status: Annealed Package: Carton or plywood case. Quality and Test : EN10204.3.1 certificate Surface:CNC machined polished MOQ : 10kgs Feature : low density, special strong strength, excellent corrosive resistance 25mm gr5 Titanium Bar Titanium bar has many advantages: 1.Titanium Bright Bar has a low thermal expansion, which puts it at 1/3rd that of aluminium. 2.Titanium Alloy Round Rod is light in weight, which would put the specific gravity of this metal at about 1.7 times that of aluminium. and about 60% of specific gravity of steel. 3.Titanium Alloy Hexagon Bars tend to be non-magnetic in nature. 4.The heat conductivity of Titanium Alloy Square Bar is low, and is nearly the same as grade 18-8 stainless steel. Similarly, the electric conductivity of the alloy is low and the electric conductivity of titanium Cold Finished Bar about 3% of copper. 5.Titanium Polished Bar has high flexibility i.e. its Longitudinal elastic modulus. Which means that the flexibility of ASTM B348 Ti Alloy Hex Bar is one half of iron or stainless steel and it is the same as copper. Product name 25mm Titanium Bar,grade 2 titanium bar , grade 5 titanium bar ,grade 7 titanium bar,titanium bar price per kg Material Titanium, pure titanium Standard ASTM B348, ASTM F136, ASTM F67, ASTM F136, ISO-5832-2(3), AMS4928 etc. Titanium Grade Round Bar Sizes Minimum diameter: 0.040 inch or 1.00 mm Maximum diameter: 14.000 inch or 400.00 mm Type Ti square bar, Ti round bar, Ti hexagonal bar, Ti flat bar, Titanium Alloy Bars, Ti Billets, Forgings, and Forging Stock Condition R/M /Y ASTM B348 Ti Alloy Hex Bar size 2-100mm A/F Titanium Alloy Flat bar size Thickness: 2 -100mm Width: 10 to 500mm Pure Titanium Square bar size 4 to 100mm AMS Specificaton of Titanium Round Bar ASTM B348 (Grade 5), ASTM B348 (Grade 2), ASTM B348 (Grade 4), ASTM B348 (Grade 23), ASTM F67 (Grade 2), ASTM F67 (Grade 4), ASTM F136, ASTM F1472, MIL-T-9047 (6AL-4V), MIL-T-9047 (6AL-4V ELI), MIL-T-9047 (6AL-6V-2SN), MIL-T-9047 (CP-70 GR.4), AMS 6935, AMS 6936, AMS-T-9047 (6AL-4V), AMS-T-9047 (6AL-4V ELI), AMS-T-9047 (6AL-6V-2SN), AMS-T-9047 (CP-70 GR.4), DMS 1570, DMS 1583, AMS 4971, AMS 4921, AMS 4928, AMS 4930, AMS 4965, AMS 4967, AMS 4978, AMS 4979, AMS 6930, AMS 6931 and More. Titanium Angle bar size (in mm) 3*20*20~12*100*100 ASTM B348 Titanium Section 3.0 to 12.0mm thickness Titanium ASTM B348 Channel Bar (in mm) 80 x 40 to 150 x 75 section; 5.0 to 6.0 thickness Pure Titanium Hollow Bar (in mm) 32 OD x 16 ID to 250 OD x 200 ID) Titanium Alloy Billet Size 1/2" to 495mm Diameter ASTM B348 Ti Alloy Rectangles Size 33 x 30mm to 295 x 1066mm ASTM B348 Ti Alloy Round Bar Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black ASTM B348 Ti Round Bar Surface Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline Titanium Round Bar Uses chemical industry, Industrial, medical industry, military industry etc Titanium round bar Condition Hardened & tempered, annealed ASTM B348 Ti Alloy Bar Technique Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod Titanium Alloy Round Bar Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements Alloy Titanium Bar Processing Bar cutting to 650mm Standard Specification : ASTM B348 / ASME SB348 UNS grade Products Grade 1 - UNS R50250Grade 2 - UNS R50400Grade 5 - UNS R56400 Grade 7 - UNS R52400 Grade 9 - UNS R56320 Grade 12 - UNS R53400 Titanium Round Bar Titanium Rod Titanium Hex Bar Titanium Flat Bar Titanium Rods Titanium Square Bar Type SIZES (mm) SIZES (Inches) ISO Tolerance Titanium Alloy Cold Drawn and Polish Round Bar 3.00 – 75.00 1/8" – 3.00" h8-h9-h10-h11 Titanium Cold Drawn and Ground Bar 10.00 – 75.00 5/6" – 2.50" h8-h9-h10-h11 ASTM B348 Ti Alloy Peeled and Polished Round Bar 40.00 – 150.00 1.50" – 6.00" h11, h11-DIN 1013 Titanium Alloy Peeled and Ground Bar 20.00 – 50.00 3/4″ – 2.00" h9-h10-h11 Titanium Alloy Bars Standard lengths of 2000 mm up to 6010 mm. Cut to size on request (tolerance +2/-0 mm).

Product name: Titanium Tubes For Heat Exchanger Standard:ASTM B338 Material:Grade 1 Grade 2 titanium Diameter:15mm 19.1mm 25.4mm 33.4mm 38.1mm 45mm etc. Wall thickness:1.0mm / 1.2mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Titanium Tubes For Heat Exchanger Titanium tubes are corrosion resistant in seawater and chlorine. It is alloyed with elements such as iron, vanadium, aluminum and molybdenum to produce strong and light alloys for industrial purposes such as chemical industry, seawater desalination plant, petrochemical, papermaking and pulp. The most common dimensions of titanium seamless or titanium welded tubes for heat exchangers and pressure vessels are od0.5 "(12.7mm), 0.63" (16mm), 0.75 "(19.05mm), 1" (25.4mm), 1.25 "(31.75mm), 1.5" (38.1mm), 1.78 "(45mm), 2" (50.8mm), etc., and wt0.02 "(0.5mm), 0.024" (0.6mm), 0.028 "(0.71mm), 0.035" (0.89mm) , 0.049 "(1.24mm), 0.11" (2.77mm), 0.125 "(3.17mm), etc. Product name Titanium tubes for heat exchanger，ASTM B338 titanium tube pipe,Seamless titanium tube,Welded titanium tubes,Titanium tube price per kg Grade Gr1 Gr2 Different types of Titanium heat exchanger tubes Seamless, Welded Standard ASME /ASTM B 338 Straightness of heat exchanger tubes 0.0015 x L. In conversion , 1 meter length OUTER DIAMETER (OD) 0.500 - 3.000 inch heat exchanger tubes manufacturer 12.7 - 76.2 mm WALL THICKNESS (WT) 0.035 - 0.220 inch 0.89 - 5.52 mm Lengths Titanium heat exchanger tubes are delivered in straight lengths up to 16.5 meters (54 ft). Titanium U-bent tubes are available on request. Manufacturing Method Seamless (Cold Drawn/Cold Rolling) Heat exchanger tubes Certified test reports ASTM / ASME A450 EN 10204: for EN 10297 nonspecified testing (only the mandatory tests), 2.2 specified testing – 3.1.B after agreement - 3.1.A, 3.1.C, 3.2 DIN 50049, - 2.2, 3.1. B Pipe Assemby Headers Pigtails Flanged Pipes Longitudinal finned Pipes and Tubes Finned Tubes Special Forgings Special designed parts acc. to drawing Welding together possible Grades of Seamless Titanium Heat Exchanger Tubes ASTM GRADE UNS NO. DIN/ EN MATERIAL CODE Grade 1 R50250 3.7025 Ti 1 Grade 2 R50400 3.7035 Ti 2 Grade 3 R50550 3.7055 Ti 3 Grade 7 R52400 3.7235 Ti 2 Pd Grade 9 R56320 3.7195 Ti Al 3 V 2,5 Grade 11 R52550 3.7225 Ti 1 Pd Grade 12 R53400 3.7105 Ti Ni 0,8 Mo 0,3
