Pure Tungsten Sheets/Plates are flat, solid pieces of pure tungsten metal, typically produced in various thicknesses and sizes to meet specific industrial needs. Tungsten, with its exceptional properties, is highly valued in industries where extreme conditions of temperature, pressure, or corrosion resistance are prevalent. Key Characteristics of Pure Tungsten Sheets/Plates: Material Composition: 99.95% Pure Tungsten (W): These sheets or plates are composed entirely of tungsten, with minimal or no impurities, ensuring the full range of tungsten's beneficial properties. High Density:Tungsten has a very high density of around 19.25 g/cm³, making it one of the heaviest metals. This density is beneficial for applications requiring mass and weight in compact forms. Extremely High Melting Point:With a melting point of 3,422°C (6,192°F), tungsten is the highest-melting metal, making it ideal for applications in extreme temperatures such as aerospace and high-temperature manufacturing. Strength and Durability:Pure tungsten is incredibly strong and durable, with tensile strength that can reach up to 1510 MPa. It is highly resistant to wear, deformation, and damage under stress, even in extreme conditions. Corrosion and Oxidation Resistance:Tungsten exhibits excellent resistance to corrosion, oxidation, and other forms of environmental degradation, even at high temperatures, which makes it ideal for long-lasting, reliable use in harsh conditions. Applications of Pure Tungsten Sheets/Plates: Aerospace and Defense: Tungsten plates are used in aerospace components such as rocket nozzles, satellite shielding, and spacecraft parts, due to their ability to withstand extreme heat and pressure.Armor-piercing projectiles and military-grade materials also benefit from tungsten's high density and strength. High-Temperature Applications: Tungsten sheets are commonly used in high-temperature furnaces and other industrial heating equipment where temperatures may exceed normal metal capabilities, such as in hot zones of steel manufacturing or semiconductor production.

ungsten-Copper Sheet is a composite material that combines the exceptional properties of both tungsten (W) and copper (Cu), offering a unique blend of high density, heat resistance, electrical conductivity, and machinability. This alloy is used in applications that require both the extreme heat resistance and strength of tungsten, combined with the excellent thermal and electrical conductivity of copper. Properties: · Density: Tungsten-copper sheets are dense, with a specific gravity that lies between that of pure tungsten and pure copper. The density depends on the ratio of tungsten to copper, but it remains significantly higher than most common metals. This makes them useful for applications that require weight and stability in compact forms. · Color and Appearance: Tungsten copper sheets typically have a metallic, steel-gray or brownish color, with a smooth surface that may be finished through machining, polishing, or grinding processes. The copper content can give the surface a slightly reddish hue depending on the ratio. · Thickness and Dimensions: Tungsten-copper sheets are available in various thicknesses, ranging from thin foils to thicker sheets, and can be custom-manufactured to meet specific size requirements. The sheets can be precision-cut or machined to fit specific designs. Applications of Tungsten-Copper Sheet: · Electrical and Electronics: Electrical Contacts and Commutators: Tungsten-copper sheets are used in electrical components that require both high conductivity and high resistance to wear and heat, such as electrical contacts in high-voltage switches and commutators. · Aerospace and Defense: Heat Shields: Due to their high-temperature stability and excellent heat dissipation properties, tungsten-copper sheets are used in aerospace applications like heat shields and rocket nozzles. · Nuclear Industry: Tungsten-copper sheets are used in nuclear reactors for radiation shielding and high-temperature applications where both mechanical strength and heat management are essential.

A tungsten-copper disc is a circular, flat-shaped component made from a composite material that blends the high density and strength of tungsten (W) with the excellent thermal and electrical conductivity of copper (Cu). This alloy is designed to provide a combination of the properties required in high-performance applications, especially where both heat resistance and conductivity are essential. Tungsten-copper discs are commonly used in industries like aerospace, electronics, manufacturing, and medical technologies. Properties: · Density: Tungsten-copper discs have a high density, which lies between the densities of pure tungsten and pure copper. This makes the material suitable for applications requiring high mass or weight, such as counterweights or radiation shielding. · Color and Appearance: Tungsten-copper discs typically have a metallic gray or brownish color, which reflects the tungsten content, while the copper content may give a reddish hue to the surface. The surface can be smooth or finished depending on the manufacturing and machining processes. · Thickness and Diameter: Tungsten-copper discs can be manufactured in a wide range of diameters and thicknesses. Custom sizes can be created to meet specific design and performance requirements. Applications of Tungsten-Copper Disc: · Electrical Contacts: Tungsten-copper discs are used in electrical contacts for high-voltage circuits, commutators, and other components that need to handle high current while effectively managing heat. · Heat Sinks: The high thermal conductivity of tungsten-copper alloys makes these discs ideal for heat dissipation in electronic devices and power electronics that generate large amounts of heat. · Radiation Shielding: Tungsten-copper discs are often used in radiation shielding applications, such as in X-ray machines or CT scanners, where both the high density (for radiation shielding) and heat dissipation properties are essential. · Heat Shields and Components: The high density and heat resistance make tungsten-copper discs ideal for aerospace applications, such as rocket nozzles, heat shields, and re-entry vehicle components.

Product Name: Titanium racks for aluminum anodizing Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Type : Titanium racks / Titanium Jigs Dimenstion and shape : Customized, as customer's drawings Finishing : Polished Material : Pure Titanium(gr1 gr2) Condition : New Application : Electroplating, anodizing etc Color : Sliver.Grey Features : Anti-corrosion, good elasticity, smooth surface, dustproof, strong structure, good quality, fine surface We provide various titanium plating rack jigs. These ranges of jigs are available in different sizes to maximize customer satisfaction. Also, these jigs are provided at very affordable prices. Our technique can adapt jigs to the most suitable parts and materials, so that the product has higher durability and strength. Our production system reduces the entrainment of impurities and liquids between tanks and improves the passage of current, as well as its uniform distribution throughout the whole rack. The continuous availability of raw materials, laser cutting machines, folding and automatic welding machines makes our products the most competitive in the market and able to complete tasks within very tight deadlines. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

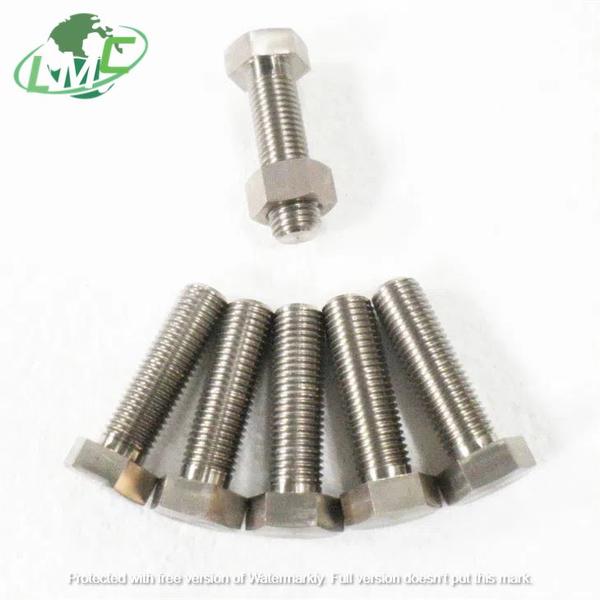

Product name:Titanium Hex Bolts And Nuts Standard: DIN127 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Size: M2-M52 Surface: Polished Technique: CNC Machined, Forged Titanium is highly stable in various concentrations of nitric acid and chromic acid, and it is also very resistant to corrosion in alkaline solutions and most organic acids and compounds.The bolts made of GR2 pure titanium are corrosion resistant and light in weight, which is suitable for application in chemical industry.Titanium hex bolts are produced in strictly accordance with DIN933 standard, and the smallest spot specifications from M3 are available in stock. Item Name DIN933 Titanium hex head bolts and nuts Material Pure Titanium Grade Gr1 Gr2 Gr5 Gr7 Gr12 Standard DIN933 DIN 934 Surface Treatment Forged or CNC machined Color Ti natural Applications Chemical Industry Certificate ISO 9001:2015, EN 10204/3.1 Features 1. Not easy to rust; 2. Resistance to acid and alkali corrosion; 3. Light weight; 4. Has a long service life, widely used in aerospace, electroplating, chemical industry, machinery, etc. Gr2 Titanium Bolts Nuts Hex Type M6 M8 M10 High Stability Anti Alkali Corrosion 0 Physical properties of different grade titanium bolts: Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

Product Name: titanium welding wire Standard: AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing Titanium welding wire is usually used for Aerospace industry, shipbuilding industry, metallurgical industry, pharmaceutical industry, sports equipment, daily necessities and other fields. We have a plenty of titanium welding wire in stock, and can send goods in 5-7 days. Welcome to contact us in any time! Material grade: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 (ERTi-1, ERTi-2, ERTi-3, ERTi-4, ERTi-5,ERTi-7,ERTi-12 Standard: AWS A5.16 Specification: Coil wire：Diameter 1.0, 1.2, 1.6mm Circle wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0mm Straight wire：Diameter 1.2, 1.6, 2.0, 2.4, 3.0, 4.0, 5.0, 6.0mm Length: 1000mm, or as customers' requets Surface treatment: pickling, polishing Surface quality: high precision, good finish, no oxidation color, no cracks, peeling, thorns, scars and inclusions. Slight local scratches, abrasions, spots and pits;do not exceed the allowable tolerance of the wire diameter are allowed. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Grade 5 130 895 120 828 10 Grade 7 50 345 40 275 20 Grade 12 70 483 50 345 18

Product Name: Shell And Tube Type Gr2 Titanium tube Heat Exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc Gr2 Titanium tube Heat Exchanger Titanium heat exchanger is a kind of heat exchanger made of titanium tube, which transfers part of the heat of hot fluid to cold fluid. It has many advantages of industrial pure titanium. It is a common equipment in many industrial departments such as chemical industry, petroleum, electric power, food and so on. Product Name Industrial Titanium tube heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Competitive Advantage 1.ISO9001:2008 2.Timely delivery rate is 99.8%,sometimes in advance. 3.Excellent after sale service. 4.Rapid enquiry reply, within 2 hours. 5.Fair payment term 6.Proffessional technical adviser 7.Material certificate 8.Quality is strictly according to ASTM,DIN,UNS,GB/T standard(manufacturing process, surface treatment, inspectation and testing).

Product Name: Titanium floating head heat exchanger Material:Titanium Gr2 Structure: Tube heat exchanger Types: Straight tubes, U-tube, kettle, coils etc. Size: Customized Tests: X ray, DP, UT, MT, PMI, helium leak etc. Titanium Tubular heat exchanger One tubeplate of the heat exchanger is connected to the shell with a flange, and the other tubeplate is not connected to the shell, so that the tube is free to expand when heated or cooled. But this tube-plate is connected with a top cover called a floating head. "So this heat exchanger is called a floating head heat exchanger. The advantages are: tube bundle can be pulled out for cleaning; The expansion of the tube bundle is not constrained by the shell, so when both heat transfer when the temperature difference between tube bundle and shell is large, the temperature difference stress will not occur. Its disadvantage is complex structure , high cost. Product Name Titanium floating head heat exchanger Material Titanium Color Original Color Standard GB150 & ASME Stamp Grade Titanium Gr2 Brade Rock Thread Coarse, fine Used Chemical Fluid Vessel Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

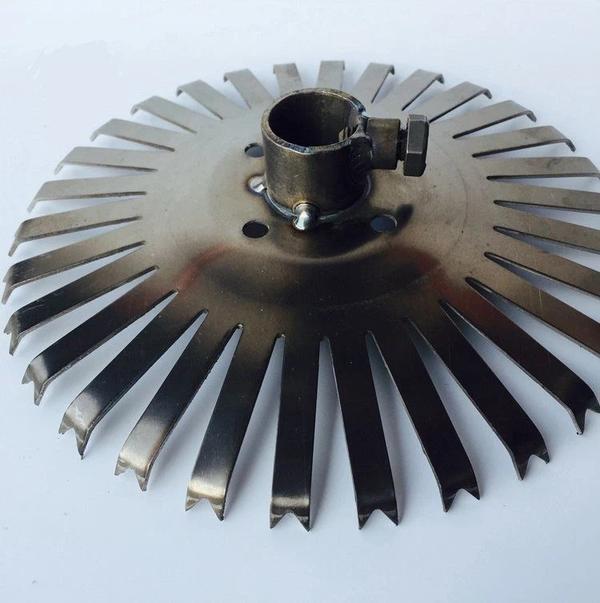

Product Name: Titanium anode disc racks Material: Grade 2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Description Titanium anode disc racks Minimum Order Quantity 10 Piece Usage/Application Anodising Plants Material Gr2 Titanium Shape Disc Brand Cusomised Size ti suit anodising bath Corrosion Resistance Yes Color Silver Grey Power Source Rectifier Rust Proof Yes Ti Content 99.6% Grade Titanium gr.2 Features Most suitable for sulphuric and chromic acid anodising I Deal In New Only Design Customised Brand/Make Uniforce Country of Origin Made in India Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Titanium Anode Disc Racks Disc titanium racks are designed to maximum part loading to improve our customers’ production volume. Our design ensures the clamps can be adapted to the most suitable parts and materials, giving the product greater durability and strength. Our disc racks the fingers are radially arranged and the discs are mounted in a central spine. The fingers are usually in various shapes to suit the component to be anodised. Sometimes, titanium wires are used.
