Product Name: Titanium Gr 5 flanges Standard: ASME B16.5 Material: Gr5 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Titanium Gr 5 Flanges Product name: Titanium flange,titanium wn flange,titanium blind flange, titanium so flange, titanium alloy flange, titanium flange in stock,ANSI B16.5 titanium flange Material: Gr5 Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) . Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB. Sealing Surface: RF, FF, TG, RJ etc. Technique: Forged and CNC Machined Inspection: UT% , PT% Certificate: ISO9001, TUV etc. Chemical composition (Wt%) Grade Ti C Fe H N O Al V Ti Grade5 90 min – 0.25 max – – 0.2 max 6 min 4 min Physical Properties (Min) Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Titanium jigs for plating Any project to anodize requires a reliable hanger/jig/rack, first to prevent it from falling to the bottom of the anodizing tank, and second to allow the current to be safely transferred from the jig to the workpiece. Anodic oxidation clamps are usually made of aluminum or titanium. Aluminum fixtures must of course be anodized and must be chemically stripped. Continuous anodizing and stripping can result in short service life, so there is no need to strip titanium after the anodizing process. Item Name: titanium jig for coating Size:Customized size is welcomed Material: Titanium Gr1, Gr2 Application,Electroplating industry Surface:Sand Blasting, Acid Washing Parameter:Current density≤2000A/M2 Temperature:<65°C PH: 0.1~14 Max content of Fluoride ion is 200PPM Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Grade 7 Titanium Tubes Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled High thermal strength The use temperature is several hundred degrees higher than aluminum alloy, can still maintain the required strength at moderate temperature, can work for a long time at 450500 temperature these two titanium alloys still have high specific strength in the range of 150500, and aluminum alloy at 150 than the strength decreased significantly. Titanium alloys operate at temperatures up to 500, while aluminum alloys operate below 200. Good resistance to corrosion The corrosion resistance of titanium alloy is much better than that of stainless steel when working in humid atmosphere and seawater medium. Resistance to pitting corrosion, acid corrosion, stress corrosion is particularly strong; Excellent corrosion resistance to alkali, chloride, chlorine organic articles, nitric acid, sulfuric acid and so on. But titanium has poor corrosion resistance to reducing oxygen and chromite medium. Good low temperature performance Titanium alloy can keep its mechanical properties at low temperature and ultra low temperature. Titanium alloys with good low temperature performance and very low gap elements, such as TA7, can maintain certain plasticity at -253. Therefore, titanium alloy is also an important low temperature structural material. LADHANI METAL CORPORATION, MUMBAI, INDIA Company Information Ladhani Metal Corporation. We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales. In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India. What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want! FOR MORE DETAIL CONTACT US AT :- ladhanimetal@gmail.com ladhanimetals@gmail.com www.ladhanimetal.in www.ladhanimetal.com LADHANI METAL CORPORATION, MUMABAI, INDIA, AVAILABLE AT FOLLOWING LOCATION:- Adilabad, Agartala, Agra, Ahmedabad, Ahmednagar, Ajmer, Akola , Aligarh , Alipore , Allahabad , Alleppey , Almora , Alwar , Alwaye , Amalapuram , Amaravati , Ambala , Amreli , Amritsar , Anakapalle , Anand , Anantapur , Andhra Pradesh , Anna Road , Arakkonam , Arunachal Pradesh , Asansol , Aska , Assam , Aurangabad , Azamgarh , Bagalkot , Bahraich , Balaghat , Balangir , Balasore , Ballia , Banasanktha , Banda , Bangalore , Bankura , Barabanki , Barabazaar , Baramulla , Barasat , Bardoli , Bareilly , Barmer , Bastar , Basti , Beawar , Beed , Begusarai , Belgaum , Bellary , Berhampur , Bhadrak , Bhagalpur , Bharatpur , Bharuch , Bhatinda , Bhavnagar , Bhilwara , Bhimavaram , Bhiwani , Bhojpur , Bhopal , Bhubaneswar , Bhusaval , Bidar , Bihar , Bijapur , Bijnor , Bikaner , Bilaspur , Birbhum , Budaun , Bulandshahar , Buldana , Burdwan , Cachar , Calcutta , Calicut , Cannanore , Chamba , Chamoli , Chandigarh , Chandrapur , Changanacherry , Channapatna , Chattisgarh , Chengalpattu , Chennai , Chhatarpur , Chhindwara , Chikmagalur , Chikodi , Chitradurga , Chittoor , Chittorgarh , Churu , Coimbatore , Contai , Cooch Behar , Cuddalore , Cuddapah , Cuttack , Darbhanga , Darjeeling , Darrang , Dehra Gopipur , Dehradun , Delhi , Delhi , Deoria , Dhanbad , Dharamsala , Dharmanagar , Dharmapuri , Dharwad , Dhenkanal , Dholpur , Dhule , Dibrugarh , Dinajpur , Dindigul , divisionname , Dungarpur , Durg , Eluru , Ernakulam , Erode , Etah , Etawah , Faizabad , Faridabad , Faridkot , Fatehgarh , Fatehpur , Ferozpur , Gadag , Gandhinagar , Gaya , Ghaziabad , Ghazipur , Giridih , Goa , Goalpara , Gokak , Gonda , Gondal , Gorakhpur , Gudivada , Gudur , Gujarat , Gulbarga , Guna , Guntur , Gurdaspur , Gurgaon , Guwahati , Gwalior , Hamirpur , Hanamkonda , Hardoi , Haryana , Hassan , Haveri , Hazaribagh , Himachal Pradesh , Hindupur , Hissar , Hooghly , Hoshangabad , Hoshiarpur , Howrah , Hyderabad , Idukki , Indore , Irinjalakuda , Jabalpur , Jaipur , Jalandhar , Jalgaon , Jalpaiguri , Jammu , Jammu kashmir , Jamnagar , Jaunpur , Jhansi , Jharkhand , Jhunjhunu , Jodhpur , Junagadh , Kakinada , Kalahandi , Kanchipuram , Kanniyakumari , Kanpur , Kapurthala , Karaikudi , Karimnagar , Karnal , Karnataka , Karur , Karwar , Kasaragod , Keonjhar , Kerala , Khammam , Khandwa , Kheda , Kheri , Kodagu , Kolar , Kolhapur , Kolkata , Koraput , Kota , Kottayam , Kovilpatti , Krishnagiri , Kumbakonam , Kurnool , Kurukshetra , Kutch , Lakshadweep , Leh , Lucknow , Ludhiana , Machilipatnam , Madhubani , Madhya Pradesh , Madurai , Mahabubnagar , Maharashtra , Mahesana , Mainpuri , Malda , Malegaon , Mandi , Mandsaur , Mandya , Mangalore , Manipur , Manjeri , Mathura , Mavelikara , Mayiladuthurai , Mayurbhanj , Medak , Meerut , Meghalaya , Midnapore , Mirzapur , Mizoram , Monghyr , Moradabad , Morena , Mumbai , Murshidabad , Muzaffarnagar , Muzaffarpur , Mysore , Nadia , Nagaland , Nagaon , Nagapattinam , Nagaur , Nagpur , Nainital , Nalanda , Nalbari , Nalgonda , Namakkal , Nanded , Nandyal , Nanjangud , Narasaraopet , Nasik , Navsari , Nawadha , Nellore , New Delhi , New Mumbai , Nilgiris , Nizamabad , North Eastern , Odisha , Osmanabad , Ottapalam , Palamau , Palghat , Pali , Panchmahals , Pandharpur , Parvathipuram , Patan , Pathanamthitta , Patiala , Patna , Pattukottai , Pauri , Peddapalli , Pharbhani , Phulbani , Pithoragarh , Pollachi , Pondicherry , Porbandar , Prakasam , Pratapgarh , Proddatur , Pudukkottai , Pune , Punjab , Puri , Purnea , Purulia , Puttur , Quilon , Rae Bareilly , Raichur , Raigad , Raigarh , Raipur , Rajahmundry , Rajasthan , Rajkot , Rajouri , Ramanathapuram , Rampur Bushahr , Ranchi , Ratlam , Ratnagiri , Rewa , Rohtak , Rohtas , Sabarkantha , Sagar , Saharanpur , Saharsa , Salem , Samastipur , Sambalpur , Sangareddy , Sangli , Sangrur , Santhal Parganas , Saran , Satara , Sawaimadhopur , Secunderabad , Sehore , Shahdol , Shahjahanpur , Shimla , Shimoga , Shrirampur , Sibsagar , Sikar , Sikkim , Sindhudurg , Singhbhum , Sirohi , Sirsi , Sitamarhi , Sitapur , Sivaganga , Siwan , Solan , Solapur , Sonepat , Sriganganagar , Srikakulam , Srinagar , Srirangam , Sultanpur , Sundargarh , Surat , Surendranagar , Suryapet , Tadepalligudem , Tambaram , Tamilnadu , Tamluk , Tehri , Tenali , Thalassery , Thane , Thanjavur , Theni , Tinsukia , Tiruchirapalli , Tirunelveli , Tirupati , Tirupattur , Tirupur , Tirur , Tiruvalla , Tiruvannamalai , Tonk , Trichur , Trivandrum , Tumkur , Tuticorin , Udaipur , Udhampur , Udupi , Ujjain , Una , Uttar Pradesh , Uttarakhand , Vadakara , Vadodara , Vaishali , Valsad , Varanasi , Vellore , Vidisha , Vijayawada , Virudhunagar , Visakhapatnam , Vizianagaram , Vriddhachalam , Wanaparthy , Warangal , Wardha , West Bengal , Yeotmal , Bangalore , Hyderabad , Chennai , Kolkata , Jaipur , Indore , Thane , Pimpri-Chinchwad , Nashik , Kalyan-Dombivli , Vasai-Virar , Varanasi , Navi Mumbai , Hubli–Dharwad , Tiruchirappalli , Tiruppur , Salem , Mira-Bhayandar , Bhiwandi , Amravati , Noida , Jamshedpur , Bhilai , Cuttack , Firozabad , Kochi , Durgapur , Rourkela , Loni , Siliguri , Ulhasnagar , Sangli-Miraj & Kupwad , Ambattur , Thiruvananthapuram , Davanagere , Kozhikode , Maheshtala , Rajpur Sonarpur , Bokaro , South Dumdum , Gopalpur , Bhatpara , Panihati , Latur , Korba , Kollam , Avadi , Kadapa , Kamarhati , Rampur , Thrissur , Bardhaman , Kulti , Parbhani , Ozhukarai , Bihar Sharif , Panipat , Bally , Aizawl , Dewas , Ichalkaranji , Bathinda , Jalna , Kirari Suleman Nagar , Purnia , Satna , Mau , Sonipat , Farrukhabad , Imphal , Hapur , Arrah , Ambarnath , North Dumdum , New Delhi , Gandhidham , Baranagar , Tiruvottiyur , Thoothukudi , Ramagundam , Silchar , Haridwar , Vijayanagaram , Nagercoil , Sri Ganganagar , Karawal Nagar , Mango , Bulandshahr , Uluberia , Katni , Sambhal , Singrauli , Nadiad , Naihati , Yamunanagar , Bidhannagar , Pallavaram , Munger , Panchkula , Burhanpur , Raurkela Industrial Township , Kharagpur , Hospet , Nangloi Jat , Ongole , Deoghar , Chapra , Haldia , Amroha , Bhind , Bhalswa Jahangir Pur , Madhyamgram , Berhampore , Morbi , Raebareli , Khora, Ghaziabad , Bhusawal , Orai , Phusro , Mehsana , Raiganj , Sirsa , Danapur , Serampore , Sultan Pur Majra , Panvel , Shivpuri , Surendranagar Dudhrej , Unnao , Chinsurah , Alappuzha , Adoni , Katihar , Mahbubnagar , Jorhat , Sasaram , Hajipur , Bongaigaon , Dehri , Madanapalle , Bettiah , Ramgarh , Guntakal , Motihari , Dharmavaram , Medininagar , Phagwara , Hosur , Miryalaguda , Tadipatri , Kishanganj , Jamalpur , Kavali , Buxar , Tezpur , Jehanabad , Gangtok , Assam , Bihar , Chattisgarh , Delhi , Gujarat , Haryana , Himachal Pradesh , Jammu kashmir , Jharkhand , Karnataka , Kerala , Madhya Pradesh , Maharashtra , Odisha , Punjab , Rajasthan , Tamilnadu , Uttar Pradesh , Uttarakhand , west Bengal WE EXPORT TO FOLLOWING COUTRIES Switzerland , Afghanistan , Albania , Algeria , Angola , AntiguaandBarbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bhutan , Bolivia , BosniaandHerzegovina , Botswana , Brazil , Brunei , Bulgaria , BurkinaFaso , Burundi , CaboVerde , Cambodia , Cameroon , Canada , CentralAfricanRepublic , Chad , Chile , China , Colombia , Comoros , Congo , CostaRica , Côted'Ivoire , Croatia , Cyprus , CzechRepublic , Denmark , Djibouti , Dominica , DominicanRepublic , Ecuador , Egypt , ElSalvador , EquatorialGuinea , Eritrea , Eswatini , Ethiopia , Fiji , Finland , France , Gabon , Georgia , Germany , Ghana , Greece , Grenada , Guatemala , Guinea , Guinea-Bissau , Guyana , Haiti , Honduras , HongKong , Hungary , Iceland , Indonesia , Iran , Iraq , Ireland , Israel , Italy , Jamaica , Japan , Jordan , Kazakhstan , Kenya , Kiribati , Kosovo , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Lithuania , Luxembourg , Macau , Madagascar , Malawi , Malaysia , Maldives , Mali , Malta , MarshallIslands , Mauritania , Mauritius , Mexico , Micronesia,FederatedStatesof , Moldova , Mongolia , Montenegro , Morocco , Mozambique , Myanmar , Namibia , Nauru , Netherlands , NewZealand , Nicaragua , Niger , Nigeria , NorthMacedonia , Norway , Oman , Palau , Panama , PapuaNewGuinea , Paraguay , Peru , Philippines , Poland , Portugal , PuertoRico , Qatar , Romania , Russia , Rwanda , SaintKittsandNevis , SaintLucia , SaintVincentandtheGrenadines , Samoa , SanMarino , SãoToméandPríncipe , SaudiArabia , Senegal , Serbia , Seychelles , SierraLeone , Singapore , Slovakia , Slovenia , SolomonIslands , SouthAfrica , SouthKorea , SouthSudan , Spain , SriLanka , Sudan , Suriname , Sweden , Taiwan , Tajikistan , Tanzania , Thailand , TheBahamas , TheGambia , Timor-Leste , Togo , Tonga , TrinidadandTobago , Tunisia , Turkey , Turkmenistan , Tuvalu , Uganda , Ukraine , UnitedArabEmirates , UnitedKingdom , UnitedStates , Uruguay , Uzbekistan , Vanuatu , Venezuela , Vietnam , Yemen , Zambia , Zimbabwe , Estonia , Nepal

Product name:Titanium Shell and Tube Heat Exchangers Materials: stainless stainll Shell/gr2 titanium shell + Gr2 Pure Titanium Tube Special Use: Cooling, Evaporator Net Weight: Customizable Application: High temperature and pressure corrode fluids,seawater,saltwater,brine water etc. Titanium Shell and Tube Heat Exchangers Shell and tube heat exchanger, It is an inter wall heat exchanger with the wall of the tube bundle enclosed in the shell as the heat transfer surface. This kind of heat exchanger is simple in structure and reliable in operation. It can be made of various structural materials (mainly metal materials)It is composed of tube plate, shell, tube bundle and other parts. and can be used under high temperature and high pressure. It is the most widely used type at present -this is mainly due to their versatility. Applicable Industry: it plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler. Titanium Shell and Tube Heat Exchangers 17 Dimension(L*W*H) Customized Set Tempreture Customized Transport Package Wooden Packing Takeover Diameter Customized Liquid Flow Customized Plate Material Titanium/Stainless steel etc. Plate Thickness Heat exchange tube Customized A heat exchanger system facilitates the transfer of heat energy from one system to another. You can use them for both heating and cooling processes. Although you can make heat exchangers from different metals, these systems are made from titanium metal. Unlike the other predecessors, titanium heat exchangers are totally immune to corrosion. However, to work at full efficiency the device requires more surface area and a higher fluid flow rate. In most cases, you will find coil patterns. This is because they maximize the surface area of the tubes.

Product Name: titanium grade 2 elbows Standard: ASME B16.9 Material: Titanium Gr2 Unit Price: $10usd/pc-$200usd/pc Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Description Titanium grade 2 elbows An elbow is a pipe fitting used at the turn of a pipe. Among all the pipe fittings used in the pipeline system, the proportion is the largest, about 80%. Generally, different forming processes are selected for elbows with different materials or wall thickness. PRODUCT TYPE Long radious elbow(LR elbow), short radious elbow(SR elbow), seamless elbow, butt welding elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow),stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg) SIZE NPS1/2”-120”(DN15-3000) WALL THICKNESS SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP……. MATERIAL Titanium Gr2 STANDARD ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 etc… We can also produce according to drawing by customers. SURFACE TREATMENT Pickled PACKING plywood cases, pallets, nylon bags or according to the customers' requirements TRADE TERM FOB, CNF&CFR, CIF APPLICATION Chemical industry, petroleum industry, construction industry, power industry, gas industry, shipbuilding ,domestic installation and other CERTIFICATES ISO-9001:2015 ORIGIN Baoji, Shaanxi, China Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

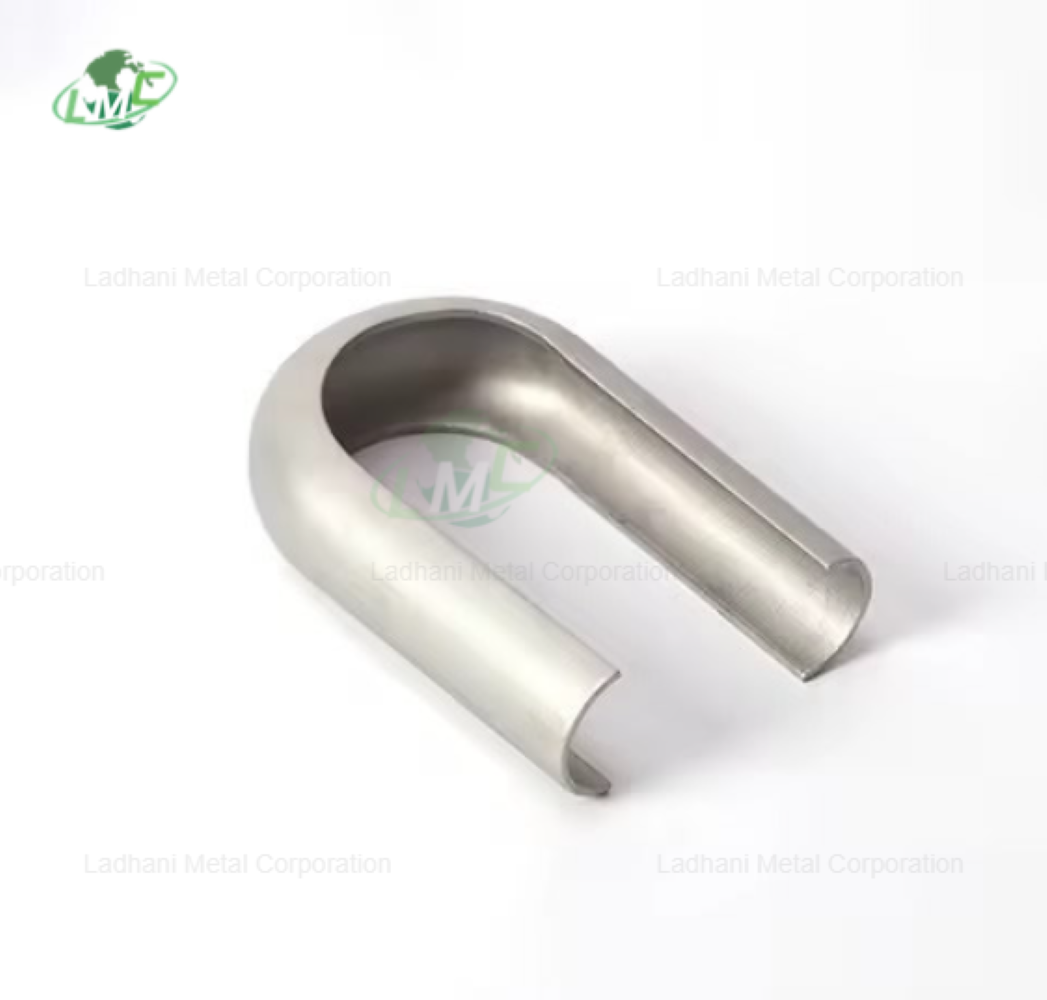

Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are precision-engineered protective sleeves designed to prevent wear, oxidation, and erosion of boiler and heat exchanger tubes. These shields enhance the durability and reliability of tubing systems exposed to high temperatures, flue gases, and mechanical abrasion. Their half-round structure allows easy installation and targeted protection without disrupting the tube layout. SS 310S U Type Half Round Tube Shield The SS 310S U Type Half Round Tube Shield is specifically designed for protecting curved (U-bend) and adjoining straight sections of tubes in boilers, superheaters, and heat exchangers. Made from SS 310S, a low-carbon variation of stainless steel 310, this shield offers superior resistance to high-temperature oxidation and intergranular corrosion, especially in welded structures. The U-shaped profile ensures a snug fit over return bends, where thermal fatigue and erosion are most severe. Shields are available in both inner and outer U configurations to provide full protection. • Outer U Type Half Round Tube Shield – Covers the external curvature of U-bend tubes, shielding against heat, slag, and gas erosion. • Inner U Type Half Round Tube Shield – Protects the internal arc of the bend from turbulence, hot spots, and corrosive attack. Ladhani Metal Corporation is a reputed manufacturer and exporter of SS 310S U Type Half Round Tube Shields, offering reliable tube protection solutions tailored to industry-specific needs. Chemical Composition of SS 310S – Low Carbon Austenitic Stainless Steel • Carbon (C): ≤ 0.08% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.50% • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 19.0 – 22.0% • Iron (Fe): Balance Applications: Well-suited for high-temperature operations involving welding or thermal cycling where resistance to oxidation and intergranular corrosion is critical. Uses • U-bend protection in superheater and reheater coil loops • Furnace coil shielding in petrochemical and refining systems • High-temperature tube bend coverage in WHRBs and HRSGs • Erosion protection for tube bends in steam reformers and reactors • Surface preservation in boilers, incinerators, and cement kilns Features • High-temperature performance – Made from SS 310S, offering excellent resistance to oxidation, scaling, and thermal corrosion in environments up to 1100°C. • Low carbon advantage – Reduced carbon content minimizes the risk of intergranular corrosion after welding, ideal for high-temperature welded structures. • Complete U-bend protection – Available in inner and outer U-type configurations to shield both sides of the tube bend from erosion and heat damage. • Accurate fitment – Custom-formed to the exact tube radius and diameter for a snug, secure fit that resists vibration and thermal stress. • Durable under thermal cycling – Maintains shape and mechanical strength under repeated heating and cooling, reducing the chance of failure. • Multiple finish options – Supplied in pickled, passivated, or bright annealed finishes to enhance surface resistance and service life. • Easy installation – Designed for simple on-site clamping, welding, or banding without disassembling existing tube arrangements. • Fully customizable – Available in various thicknesses, lengths, and radii to match specific boiler, exchanger, or furnace system requirements. Applications • thermal power plants – Used to protect U-bend tubes in superheaters and reheaters. Ensures resistance to scaling, oxidation, and high flue gas temperatures. • petrochemical refineries – Shields return bends in reformers and heat exchangers. Maintains performance under carburizing and oxidizing conditions. • waste heat recovery systems (WHRBs) – Guards curved tubes against ash, slag, and gas turbulence. Increases tube life in high-temperature waste gas environments. • chemical and fertilizer plants – Used in high-temperature reactors and ammonia processing lines. Prevents tube damage from corrosive gases and thermal fatigue. • HRSGs and boilers – Installed on coil bends in steam generator systems. Enhances system reliability under rapid heating and cooling cycles. Conclusion The SS 310S U Type Half Round Tube Shield by Ladhani Metal Corporation is engineered for long-term performance in high-temperature, corrosive, and welded environments. With its low carbon content and excellent resistance to oxidation, it is ideal for protecting curved tube sections in critical systems. Designed for easy installation and custom fit, these shields extend the service life of boiler and exchanger tubes while minimizing maintenance. As a trusted manufacturer and exporter, Ladhani Metal Corporation delivers tube protection solutions tailored to your application. For specifications, material selection, or custom inquiries, please contact Ladhani Metal Corporation.

Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are precision-engineered protective components designed to safeguard boiler and heat exchanger tubes from thermal fatigue, oxidation, and mechanical erosion. These shields improve system reliability and extend tube service life in harsh industrial environments. The half-round form enables simple installation and effective protection of exposed tube surfaces. SS 310 U Type Half Round Tube Shield The SS 310 U Type Half Round Tube Shield is a high-temperature protective sleeve designed to cover U-bend and straight sections of tubes in boilers, superheaters, and heat exchangers. Made from stainless steel grade 310, it offers outstanding resistance to oxidation, carburization, and thermal stress at elevated temperatures. The U-type design ensures complete protection of return bends, where tube degradation is most common. Available in both inner and outer U configurations, these shields are custom-bent to match tube radius and diameter. • Outer U Type Half Round Tube Shield – Protects the external arc of the U-bend from radiant heat, slag buildup, and erosion. • Inner U Type Half Round Tube Shield – Shields the internal curve of the bend from gas turbulence, scaling, and corrosion. Ladhani Metal Corporation is a leading manufacturer and exporter of SS 310 U Type Half Round Tube Shields, offering durable and tailored solutions for global heat transfer systems. Chemical Composition of SS 310 – High Temperature Austenitic Stainless Steel • Carbon (C): ≤ 0.25% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.50% • Chromium (Cr): 24.0 – 26.0% • Nickel (Ni): 19.0 – 22.0% • Iron (Fe): Balance Applications: Preferred in high-temperature operations where oxidation resistance, heat stability, and carburization resistance are essential. Uses • U-bend protection in superheater and reheater coils • Shielding curved tubes in furnace coils and process heat exchangers • Prevention of high-temperature erosion in WHRB and HRSG systems • Surface protection in reformers and chemical reactors • Safeguarding heat transfer tubes in incinerators and kilns Features • Made from high-quality SS 310, the shield offers superior resistance to oxidation, scaling, and high-temperature corrosion, making it suitable for continuous exposure up to 1100°C. • The inner and outer U-type configurations provide complete protection for both sides of curved tube bends, ensuring uniform shielding in the most erosion-prone areas. • Precision-formed to match the tube’s bend radius and diameter, ensuring a tight, vibration-free fit that enhances durability and minimizes tube wall exposure. • Retains mechanical strength and dimensional stability under cyclic thermal loading, preventing deformation, cracking, or failure in high-heat environments. • Offered in various finishes such as pickled, passivated, or bright annealed to suit different service conditions and enhance surface corrosion resistance. • Easily installed using welding, clamping, or banding methods without requiring tube removal, enabling quick field installation and minimal system downtime. • Fully customizable in terms of thickness, length, and radius, allowing seamless integration with existing boiler, furnace, or heat exchanger systems. Applications • thermal power plants – Protects U-bend coils in superheaters and reheaters. Resists scale formation and creep at high flue gas temperatures. • petrochemical refineries – Shields curved exchanger tubes in reformers and heaters. Maintains integrity under carburizing and oxidizing atmospheres. • waste heat recovery systems (WHRBs) – Guards return bends against ash and slag attack. Enhances tube durability in high-flow, abrasive environments. • chemical and fertilizer plants – Used in U-tube reactors and ammonia converters. Prevents corrosion and surface damage under cyclic thermal loads. • HRSGs and boilers – Applied to curved tube sections in heat recovery units. Ensures stability under rapid heating and cooling cycles. Conclusion The SS 310 U Type Half Round Tube Shield by Ladhani Metal Corporation offers superior protection for curved tube sections operating in high-temperature and corrosive service conditions. Its exceptional resistance to oxidation and carburization makes it ideal for thermal, chemical, and energy-intensive industries. Manufactured with precision, these shields are available in custom sizes and finishes, ensuring a tight fit and long-term durability. For reliable and cost-effective tube protection, Ladhani Metal Corporation provides trusted solutions tailored to your operational demands. For design assistance, material selection, or quotation inquiries, please contact Ladhani Metal Corporation.

Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are precision-formed protective sleeves designed to guard heat exchanger and boiler tubes from high-temperature corrosion, erosion, and mechanical wear. These shields are used extensively across thermal power, petrochemical, and process industries to improve tube longevity and reduce maintenance costs. Their half-round design allows easy installation without dismantling the tube system. SS 304L U Type Half Round Tube Shield The SS 304L U Type Half Round Tube Shield is designed to protect both straight and curved (U-bend) tube sections in heat exchangers, superheaters, and boilers. Made from low-carbon stainless steel 304L, this shield provides excellent corrosion resistance and is particularly suitable for applications where post-weld heat treatment is not feasible. Its U-shaped profile ensures secure coverage of return bends, which are often the most vulnerable to thermal stress and flue gas attack. This shield is available in both inner and outer configurations to ensure full tube coverage. This shield is available in two key configurations to provide complete protection around the bend radius: • Outer U Type Half Round Tube Shield – Covers the external curvature of U-bend tubes exposed to radiant heat, slag, and gas flow. • Inner U Type Half Round Tube Shield – Protects the internal arc of bends from turbulence, scaling, and localized heat buildup. Ladhani Metal Corporation is a trusted manufacturer and exporter of SS 304L U Type Half Round Tube Shields, delivering durable and customized protection solutions for global industrial applications. Chemical Composition of SS 304L – Austenitic Stainless Steel • Carbon (C): ≤ 0.035% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 18.0 – 20.0% • Nickel (Ni): 8.0 – 12.0% • Iron (Fe): Balance Applications: Ideal for high-temperature and corrosive environments where low carbon content is preferred to minimize carbide precipitation during welding. Uses • U-bend tube shielding in superheaters and heat exchangers • Return bend protection in boilers and WHRBs • Shielding of curved coils in steam reforming and process plants • Corrosion prevention in waste-to-energy and flue gas-exposed systems • Surface protection in ammonia plants, HRSGs, and incinerators Features • corrosion resistant – SS 304L offers excellent resistance to oxidation, scaling, and chemical attack in high-temperature environments • low carbon content – minimizes risk of carbide precipitation during welding, improving post-weld corrosion resistance • precise fit – custom-formed to match U-bend radius for secure installation and effective shielding • high durability – retains mechanical strength under thermal cycling and flue gas exposure • easy installation – designed for quick on-site mounting via clamping, welding, or banding • versatile finish – available in pickled, passivated, or bright annealed surface treatments • customizable – produced in various lengths, thicknesses, and diameters as per customer requirements Applications • Thermal power plants – Protects U-bend tubes in superheaters, reheaters, and economizers. Prevents oxidation, scaling, and thermal damage from flue gases. • Petrochemical refineries – Shields curved furnace and exchanger tubes. Resists heat, carburizing gases, and corrosive media. • Waste heat recovery systems (WHRBs) – Guards return bends from ash erosion and gas turbulence. Enhances tube life in incinerators, engines, and kilns. • Chemical and fertilizer plants – Used on U-bends in reactors and reformers. Prevents stress corrosion and thermal fatigue. • HRSGs and boilers – Installed on return coils exposed to high-temperature flue gases. Ensures reliable operation under cyclic heating conditions. Conclusion The SS 304L U Type Half Round Tube Shield by Ladhani Metal Corporation provides comprehensive and long-lasting protection for U-bend tube sections operating in aggressive thermal and corrosive environments. Manufactured with high-precision forming and superior materials, these shields offer reliable coverage, excellent weldability, and extended service life. As a leading manufacturer and exporter, Ladhani Metal Corporation offers customized shielding solutions that match your project’s specifications and environmental demands. For detailed specifications, technical support, or to request a quotation, please contact Ladhani Metal Corporation.

Half Round Tube Shield Half Round Tube Shields by Ladhani Metal Corporation are specially designed components used to protect boiler and heat exchanger tubes from erosion, wear, and high-temperature damage. Manufactured with precision and expertise, these shields enhance tube life, reduce maintenance requirements, and support efficient operation in high-performance industrial systems. The half-round design enables quick installation and provides effective coverage for vulnerable tube surfaces. SS 304 U Type Half Round Tube Shield The SS 304 U Type Half Round Tube Shield is a specially fabricated, semi-circular tube protection device designed to fit around both the curved (U-bend) and straight sections of heat exchanger and boiler tubes. Constructed from premium-grade stainless steel 304, it offers exceptional resistance to corrosion, oxidation, and mechanical wear. Its U-shaped configuration ensures continuous protection along the bend radius, where erosion, thermal stress, and ash impingement are most intense. This shield is available in both inner and outer configurations to ensure full tube coverage. • Outer U Type Half Round Tube Shield – Shields the external curve of U-bend tubes from flame impingement, heat radiation, and gas flow abrasion. • Inner U Type Half Round Tube Shield – Protects the internal arc of the U-bend from turbulence, corrosion, and localized thermal impact. Ladhani Metal Corporation is a leading manufacturer and exporter of SS 304 U Type Half Round Tube Shields, offering high-quality and custom-engineered solutions to meet the demanding requirements of global industries. Chemical Composition of SS 304 – Austenitic Stainless Steel • Carbon (C): ≤ 0.08% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 18.0 – 20.0% • Nickel (Ni): 8.0 – 10.5% • Iron (Fe): Balance Applications: Ideal for use in thermal power systems, steam generation units, and petrochemical processing where tube bends are subject to extreme heat, corrosion, or flow-related erosion. Uses • Protection of U-bend sections in superheaters, reheaters, and economizers • Shielding of return bends in heat exchangers exposed to flue gas or high-velocity media • Enhancement of tube durability in HRSG systems and boilers • Erosion prevention in waste heat recovery boilers and furnace zones • Corrosion mitigation in chemical process plant U-tube bundles Features • Material: Manufactured from high-grade SS 304 for superior heat and corrosion resistance • Configuration: Inner and outer U-type shields available for full bend coverage • Design: Formed precisely to match U-bend tube radius for secure, vibration-free fitment • Finish: Bright annealed, pickled, or passivated finishes available (custom finishes on request) • Durability: High mechanical strength and long service life under thermal cycling • Customization: Available in various lengths, thicknesses, and diameters as per project requirements • Easy Installation: Designed for clamping, welding, or banding with minimal tube interference Applications • Thermal power stations and utility boilers • Waste-to-energy systems and HRSGs • Petrochemical refineries and furnace systems • Chemical processing and ammonia plants • Steam-based heat recovery units • Pulp and paper mills with superheater tube networks Conclusion The SS 304 U Type Half Round Tube Shield by Ladhani Metal Corporation offers a reliable and efficient solution for protecting U-bend tube sections in demanding high-temperature and corrosive environments. As a trusted manufacturer and exporter, Ladhani Metal Corporation delivers products that combine durability, precision, and performance. Designed for longevity and ease of installation, these shields help extend tube life and reduce unplanned maintenance. Custom-built to your specifications, our tube shields are a dependable solution for critical tube protection. For technical specifications, customized sizes, or quotation requests, please contact Ladhani Metal Corporation.
