Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Polished Titanium vs Aluminum Anodizing is another name for electroplating. It means using another metal to coat or design another. Aluminum is used because it is cheap and can do the work at hand, but titanium is better because it can refuse to have to strip off films formed after every process. Aluminum is cheap when you compare it to titanium. However, when you crosscheck the amount of money saved during the process and its persistence and durability, you will find that the high cost is negligible. Anodizing is a key subject that requires caution, expertise, and experience. Our advice is, in most cases, preferably titanium. Product Information of Titanium Anodizing Fixtures Material: Gr1 Gr2 Dimension: Customized, as customer's requests Surface:Pickled, polished Applications: Electroplating, Anodizing

Product Name: Titanium racks for aluminum anodizing Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Type : Titanium racks / Titanium Jigs Dimenstion and shape : Customized, as customer's drawings Finishing : Polished Material : Pure Titanium(gr1 gr2) Condition : New Application : Electroplating, anodizing etc Color : Sliver.Grey Features : Anti-corrosion, good elasticity, smooth surface, dustproof, strong structure, good quality, fine surface We provide various titanium plating rack jigs. These ranges of jigs are available in different sizes to maximize customer satisfaction. Also, these jigs are provided at very affordable prices. Our technique can adapt jigs to the most suitable parts and materials, so that the product has higher durability and strength. Our production system reduces the entrainment of impurities and liquids between tanks and improves the passage of current, as well as its uniform distribution throughout the whole rack. The continuous availability of raw materials, laser cutting machines, folding and automatic welding machines makes our products the most competitive in the market and able to complete tasks within very tight deadlines. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name:Titanium wire Standard: ASMT B863,AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing,sand-blasting Anodizing with titanium wire has many advantages. Firstly, titanium wire is resistant to corrosion and has excellent mechanical properties, making it an ideal choice for anodizing applications. Secondly, the uniform thickness and high-quality oxide layer produced by anodizing with titanium wire ensures excellent surface finish and durability for the treated metal part. Thirdly, titanium wire is cost-effective and readily available, making it a popular choice for anodizing applications. Fourthly, anodizing with titanium wire is an environmentally friendly process as it does not involve any hazardous chemicals or by-products. Overall, anodizing with titanium wire offers numerous benefits, making it a preferred choice among manufacturers and industries for enhancing the appearance, durability, and performance of their products. Product Name: Titanium wire Standard: ASTM B863 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing,sand-blasting Titanium wire manufacture is devided into two technique: Cold drawing and hot drawing. Dimension Tolerance of titanium wire: Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm 2.0-6.0mm Tolerance +/- 0.025 +/-0.04 +/-0.05 +/-0.10 Length 200-500mm 500-1000mm 1000-2000mm &2000mm Tolerance +/-1.0 +/-1.5 +/-2.0 +/-2.5

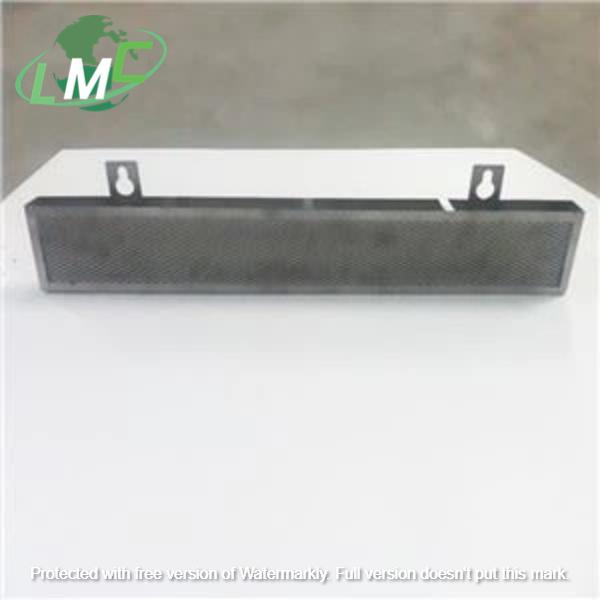

Product Name: Titanium Anode Basket Material: Gr1, Gr2 Size: Customized Application: Anodizing Electroplating Plating Shape: Rectangular, round and spiral etc. Product Information Titanium basket is made of high quality Gr2 industrial pure titanium. The purity of titanium is 99.7%, and it has strong corrosion resistance. It is suitable for loading anode materials in various electroplating tanks. It adopts precision welding technology, and the welding joints are tightly combined and firm. Material: Gr1, Gr2 Size: Customized Application: Electroplating, anodizing, plating etc. Surface: Sand Blasting, Acid Washing, Brush Coating etc. Shape: Rectangular, round and spiral etc. MOQ: 10pcs Precautions The month of titanium basket should be slightly higher than the liquid level to prevent anode slag from flowing out. The lower end of the titanium basket should be 100~150mm higher than the part to avoid excessive current concentration of the lower part, causing scorching.

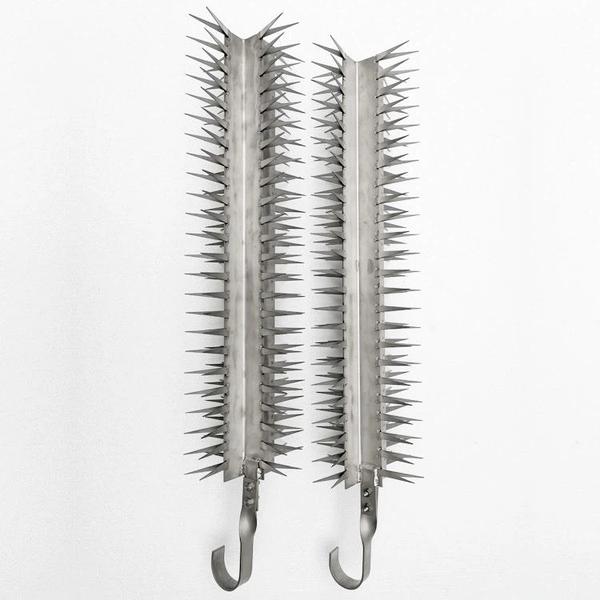

Product Name: Titanium Anodizing Rack jigs Material: Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished Titanium Anodizing Rack jigs Titanium rack/jig, used for electroplating process, for electroplating products and introducing current into the product frame. Electroplating rack/jig can be divided into many types according to product shape, electroplating process requirements, electroplating process and equipment size. With years of experience and expertise, we are able to customize different style titanium racks to meet customer specific parts, while always providing fast turnaround.

Product Name: Titanium Finger Jigs Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished We can provide various customized titanium hangers made of high-quality pure titanium (GR1, Gr2). The titanium jigs/racks produced by our factory has good elasticity and strong corrosion resistance. It adopts precision welding technology, and the welded junction is closely and firmly combined. We can recommend to customers according to the products we have made before, also can produce them according to customers' drawings! Product Name:Titanium Jig Rack For Anodizing Material: Pure titanium Gr1, Gr2 Size: Customized Surface: Polished Number of hanging teeth:customized Application: Electroplating, anodizing etc. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

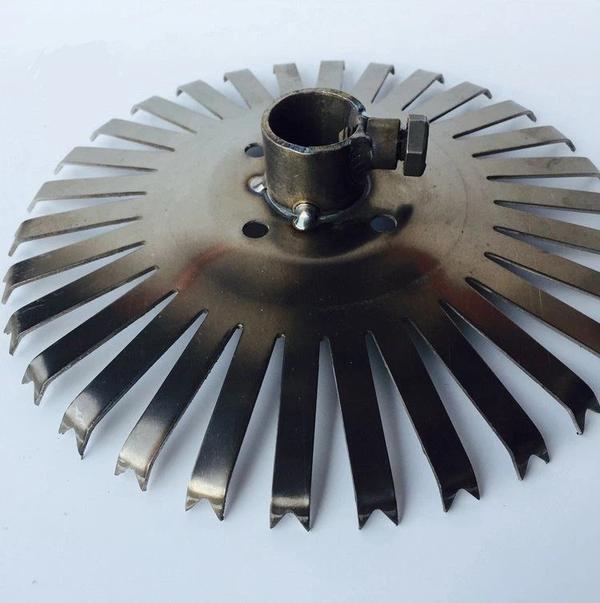

Product Name: Titanium dished disk for anodizing Material: Grade 2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished These circles are made of good quality pure titanium. Combining 1 ″ titanium shaft and copper hook, maximize the required time, part of the rack, and maximize the space. Titanium can be reused, with long service life and strong corrosion resistance, making it a better choice than any aluminum shelf. It can also better connect parts, even anodize, and even absorb dyes. The discs are 220mm,250mm or 270mm diameters and mounted on a 1"(25mm) shaft. There are different shape discs,such as spine disc,split finger disc,dished disc etc. It is recommended that you clean and / or degrease this product before using it. 1. Material: pure titanium (Gr2) 2. MOQ: 10 pieces 3. Specification: customized 4. Application: anodizing, heating parts 5. Production and processing: stamping and welding Features of Titanium Dished Disk For Anodizing: a. We use acid resistant titanium material, and the hook of the contact part of the conductive rod is made of the best red copper material. b. The current can pass freely without overheating and burning components due to too small section and too large resistance. c. The contact area with parts is small, and the contact parts will not produce local overheating and part combustion. d. For parts that cannot be hitched in general, in order to ensure product quality and improve production efficiency, special hitching fixtures can be designed and manufactured according to the shape of parts. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa

Product Name: Titanium anodizing jigs Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished What is a titanium anodizing jigs/titanium jig/titanium rack? Titanium installation in electroplating production is mainly conducted, supported and fixed parts, pendants and electrode connections, so that the current is more evenly transmitted to the parts for electroplating. In some cases, the uniform distribution of the coating can also be compensated by a suspension because the solution properties limit it. Item Anodizing Tianium jig/rack Size Customsed size Material Titanium Size(mm)in Bulk Stock 20/30/50 teeth Can be customized Grade Gr1 Gr2 Performance Corrosion-resisant Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) of Titanium Anodizing Jigs ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Titanium Fixture Material: Gr1, Gr2 Application: Electroplating, anodizing, water treatment etc. Size: Customized Surface: Polished Product Information of Titanium Rack for Anodizing Material: Gr2 Size: Customized Advantages of Titanium Rack For Anodizing: Clamps of our racks are stronger than that of the racks you used before. Customized product is welcomed no matter how complex it is. Cost-effective Excellent strength to weight ratio Excellent corrosion resistance Easy to load & unload Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
