DIN 2634 monel flanges PN 25 are high-performance weld neck flanges manufactured in accordance with the DIN 2634 standard. Specifically engineered for high-pressure applications up to 25 bar (362 psi), these flanges are made from premium Monel alloys, offering excellent corrosion resistance, high strength, and durability in harsh environments. Their robust construction makes them ideal for applications involving aggressive chemical media and seawater where conventional metal flanges may degrade. Ladhani Metal Corporation is a trusted global manufacturer and supplier of Monel flanges, known for advanced manufacturing capabilities, precision machining, and strict adherence to international quality standards. Each flange undergoes thorough inspection and testing to ensure long-term reliability, safety, and resistance to extreme operating conditions. Pressure Rating: • PN 25 (25 bar / 362 psi): Designed for high-pressure systems requiring corrosion-resistant and mechanically robust flange connections. Flange Type: • Weld Neck Flanges Featuring an extended tapered hub, weld neck flanges provide excellent stress distribution at the base, ensuring strong and leak-proof joints in systems exposed to high pressure and thermal cycling. • Flat Face (FF) Flanges Ideal for use with softer gasket materials or in systems connecting to cast components, flat face flanges offer consistent and uniform gasket compression. Monel Grades and Typical Composition: Monel 400 (UNS N04400) – Nickel-Copper Alloy • Nickel (Ni): 63% minimum • Copper (Cu): 28-34% • Iron (Fe): 2.5% maximum • Manganese (Mn): 2.0% maximum • Carbon (C): 0.30% maximum Applications: Preferred in seawater and saltwater service, chemical processing, and marine equipment where excellent corrosion resistance in oxidizing and reducing environments is required. Monel K500 (UNS N05500) – Nickel-Copper Alloy with Additional Strengthening Elements • Nickel (Ni): 63% minimum • Copper (Cu): 28-34% • Iron (Fe): 2.5% maximum • Manganese (Mn): 2.0% maximum • Aluminum (Al) and Titanium (Ti): Added for age hardening Applications: Used in high-strength marine and chemical environments requiring enhanced mechanical properties and corrosion resistance. Applications of DIN 2634 Monel Flanges PN 25: • Offshore and Marine Systems Resists corrosion from seawater, brine, and marine atmospheres while maintaining strength under pressure. • Chemical and Petrochemical Processing Ideal for transporting corrosive media such as acids, alkalis, and chloride solutions at elevated pressures. • Desalination Plants Performs reliably in saltwater treatment and high-pressure water processing systems. • Power Generation Used in systems requiring resistance to erosion and corrosion in high-temperature steam and cooling circuits. • Pharmaceutical and Food Processing Applied in hygienic environments requiring corrosion resistance and chemical inertness. Key Features: • Manufactured in accordance with DIN 2634 dimensional and pressure requirements • PN 25 pressure rating supports high-pressure applications • Excellent resistance to corrosion, erosion, and stress corrosion cracking • Weld neck configuration ensures strong, vibration-resistant joints • Available in Monel 400 and Monel K500 alloys • Custom sizes, pressure classes, and surface finishes available upon request Conclusion: DIN 2634 monel flanges PN 25 from Ladhani Metal Corporation are engineered for demanding conditions where corrosion resistance, mechanical strength, and pressure integrity are essential. These Monel flanges provide long-term durability and reliable performance for advanced applications in marine, chemical, power generation, and industrial systems. For technical consultations, specialized requirements, or pricing information, contact Ladhani Metal Corporation today.

DIN 2632 Monel flanges PN 10 are high-performance weld neck flanges manufactured to meet the DIN 2632 standard, specifically designed for medium-pressure applications up to 10 bar (145 psi). These flanges are made from Monel, a nickel-copper alloy known for its outstanding corrosion resistance, particularly in marine and chemical environments. With excellent mechanical strength and superior durability in highly aggressive conditions, DIN 2632 Monel flanges provide a reliable solution where standard materials may fail. Ladhani Metal Corporation is a leading global manufacturer and supplier of Monel flanges, delivering consistent quality, dimensional accuracy, and full compliance with international standards. Each flange is meticulously tested to ensure optimum performance under demanding industrial conditions. Pressure Rating: • PN 10 (10 bar / 145 psi): Suitable for medium-pressure piping systems requiring high corrosion resistance and mechanical stability. Flange Type: • Weld Neck Flanges Designed with a long tapered hub that ensures precise pipe alignment and reduces localized stress at the flange connection. Ideal for high-integrity, high-strength joints. • Flat Face (FF) Flanges Flat face configuration ensures uniform gasket compression, making them ideal for systems using soft gaskets or connecting to cast components. Monel Grades and Composition: Monel 400 • Nickel (Ni): Minimum 63% • Copper (Cu): 28–34% • Iron (Fe): 2.0–2.5% • Manganese (Mn): ≤ 2.0% • Silicon (Si): ≤ 0.5% • Carbon (C): ≤ 0.3% Applications: Monel 400 is widely used in chemical and marine environments due to its excellent resistance to seawater, acids, and alkalis. It is commonly used in heat exchangers, seawater piping, pumps, and valves handling corrosive media. Monel K500 • Nickel (Ni): 63% minimum • Copper (Cu): 27–33% • Aluminum (Al): 2.3–3.15% • Titanium (Ti): 0.35–0.85% • Iron (Fe): ≤ 2.0% • Carbon (C): ≤ 0.25% Applications: Monel K500 combines the corrosion resistance of Monel 400 with greater strength and hardness due to age-hardening. It is used in marine shafts, chemical processing equipment, oil and gas tools, and high-strength fasteners. Applications of DIN 2632 Monel Flanges PN 10: • Marine and Offshore Ideal for seawater handling systems, shipbuilding, desalination units, and offshore platforms exposed to highly corrosive saltwater environments. • Chemical and Petrochemical Industry Used in pipelines and vessels transporting sulfuric acid, hydrofluoric acid, alkalis, and other aggressive substances. • Oil and Gas Industry Suitable for sour gas environments, offshore rigs, and subsea applications where corrosion and stress resistance are critical. • Power Generation Applied in cooling systems, condensers, and process equipment subjected to brine, steam, and corrosive gases. Key Features: • Fabricated to DIN 2632 specifications • PN 10 pressure rating for medium-pressure service • Weld neck and flat face designs available • Manufactured using Monel 400 and Monel K500 for corrosion-intensive applications • Exceptional resistance to seawater, acids, and alkalis • High strength and toughness even at elevated temperatures • Ideal for marine, chemical, and oil & gas industries • Custom dimensions, finishes, and alloy compositions available upon request Conclusion: DIN 2632 Monel Flanges PN 10 from Ladhani Metal Corporation are engineered to provide superior corrosion resistance, mechanical strength, and long-term reliability in medium-pressure industrial systems. With Monel grades 400 and K500, these flanges are well-suited for harsh environments in the marine, chemical, petrochemical, and offshore sectors. For detailed specifications, custom requirements, or pricing information, contact Ladhani Metal Corporation today.

DIN 2576 Monel Flanges PN 10 are high-integrity, slip-on flanges manufactured from corrosion-resistant nickel-copper alloys, specifically designed for demanding low to medium-pressure applications. Compliant with the DIN 2576 standard, these flanges provide exceptional resistance to seawater, acids, alkalis, and corrosive chemicals, making them ideal for highly corrosive industrial environments. The slip-on design allows the flange to be positioned over the pipe and welded in place, ensuring precise alignment and long-term mechanical stability. Ladhani Metal Corporation is a trusted manufacturer and international supplier of Monel flanges, producing components that meet rigorous dimensional, metallurgical, and quality standards. DIN 2576 Monel flanges are widely used in marine, chemical, and oil and gas industries, where material durability and corrosion resistance are critical. Pressure Rating: • PN 10 (10 bar / 145 psi): Designed for systems requiring stable operation under moderate pressures in fluid and gas transport environments. Flange Types: • Slip-On Flanges Facilitate easy assembly by slipping over the pipe and welding on both sides to ensure a leak-proof and secure joint. • Flat Face (FF) Flanges Designed for use with flat gaskets and mating surfaces, offering even pressure distribution and sealing performance, particularly with brittle or non-metallic materials. Monel Grades and Composition: Monel 400 (UNS N04400) Composition: • Nickel (Ni): ≥ 63.0% • Copper (Cu): 28.0 – 34.0% • Iron (Fe), Manganese (Mn), Silicon (Si), Carbon (C): Trace amounts Applications: Monel 400 is well-known for its outstanding resistance to seawater, hydrofluoric acid, sulfuric acid, and alkalis. It is widely used in marine engineering, chemical processing, and heat exchangers. Monel K500 (UNS N05500) Composition: • Nickel (Ni): ≥ 63.0% • Copper (Cu): ~30.0% • Aluminum (Al): 2.3 – 3.15% • Titanium (Ti): 0.35 – 0.85% Applications: Monel K500 offers the same corrosion resistance as Monel 400 but with significantly higher strength and hardness due to age-hardening. It is ideal for high-stress applications such as pump shafts, valve components, and marine fasteners. Applications of DIN 2576 Monel Flanges: • Marine and Offshore Engineering Ideal for seawater exposure, ballast systems, and structural applications in shipbuilding and offshore platforms. • Chemical and Petrochemical Processing Used in piping systems exposed to strong acids, caustics, and other corrosive agents. • Oil and Gas Industry Suitable for sour gas (H₂S) environments, offshore drilling equipment, and refining systems. • Heat Exchangers and Condensers Monel's thermal conductivity and corrosion resistance make it suitable for tube sheets and connecting flanges. • Power Generation Applied in cooling systems, boiler feedwater lines, and other aggressive service environments. • Aerospace and Defense Used in fuel and hydraulic systems where resistance to corrosion and stress cracking is required. Key Features: • Manufactured according to DIN 2576 specification • PN 10 pressure rating for low to medium-pressure fluid systems • Exceptional resistance to seawater, acids, alkalis, and chlorides • Available in Monel 400 and Monel K500 grades • Slip-on design enables easy installation and welding • Flat face versions for compatibility with flat gaskets and brittle materials • Excellent mechanical properties and corrosion resistance • Custom dimensions, finishes, and face types available upon request Conclusion: DIN 2576 Monel Flanges PN 10 from Ladhani Metal Corporation deliver high corrosion resistance and mechanical strength for aggressive environments where conventional materials fail. With availability in Monel 400 and K500 grades, these flanges are suitable for marine, oil & gas, and chemical applications. For technical support, project consultation, or custom orders, contact Ladhani Metal Corporation today.

The DIN 2558 Monel Flange PN 6 is a precision-engineered piping component manufactured to meet DIN (Deutsches Institut für Normung) specifications. Made from high-performance Monel alloys—nickel-copper-based materials known for their outstanding resistance to corrosion, particularly in marine and chemical environments—these flanges offer exceptional durability and reliability in some of the most demanding industrial applications. Supplied by Ladhani Metal Corporation, these flanges are designed to provide a leak-free, long-lasting solution in medium-pressure systems. Monel flanges are widely used in industries such as marine engineering, chemical processing, hydrocarbon refining, heat exchangers, and offshore oil and gas production. Types: Weld Neck Flange – Offers a high-strength welded connection ideal for high-pressure and high-temperature systems. Slip-On Flange – Easy to install and align, welded on both sides for secure sealing. Blind Flange – Closes off the end of a pipeline or vessel, ensuring no fluid passes through. Threaded Flange – Allows for non-welded assembly, suitable for low-pressure piping systems. Socket Weld Flange – Designed for small-diameter, high-pressure applications requiring a smooth bore and strong weld. Grades & Chemical Composition: Monel 400 (UNS N04400): Nickel (Ni): ≥ 63.0% Copper (Cu): 28.0 – 34.0% Iron (Fe): ≤ 2.5% Manganese (Mn): ≤ 2.0% Carbon (C): ≤ 0.30% Silicon (Si): ≤ 0.50% Key Features: Excellent resistance to seawater, steam, salt, and caustic solutions; strong mechanical properties across a wide temperature range. Monel K500 (UNS N05500): Nickel (Ni): ≥ 63.0% Copper (Cu): 27.0 – 33.0% Aluminum (Al): 2.3 – 3.15% Titanium (Ti): 0.35 – 0.85% Iron (Fe): ≤ 2.0% Key Features: Combines the corrosion resistance of Monel 400 with higher strength and hardness due to age hardening; excellent resistance to sour gas and seawater environments. PN 6 Rating: The PN 6 rating signifies a nominal pressure class of 6 bar (87 psi), making these flanges ideal for medium-pressure systems where corrosion resistance is paramount, particularly in chloride-rich or alkaline environments. Features: Outstanding Corrosion Resistance: Especially effective in marine, saltwater, and chemical processing environments. High Strength and Toughness: Maintains structural integrity under mechanical stress and thermal fluctuations. Long Service Life: Designed for durability in aggressive media, reducing maintenance and replacement costs. Excellent Weldability: Compatible with standard welding techniques, allowing easy integration into piping systems. Versatile Industrial Use: Suitable for offshore platforms, shipbuilding, desalination, chemical plants, and heat exchangers. Leak-Proof Sealing: Precision manufacturing ensures tight connections that prevent leaks and system inefficiencies. Ladhani Metal Corporation ensures each DIN 2558 Monel Flange is manufactured with stringent quality control and tested for compliance with international standards. These flanges offer a reliable, corrosion-resistant solution for medium-pressure industrial systems operating in highly aggressive environments. #din2558 #din2558flanges #din2558monelflanges #monelflanges #flanges

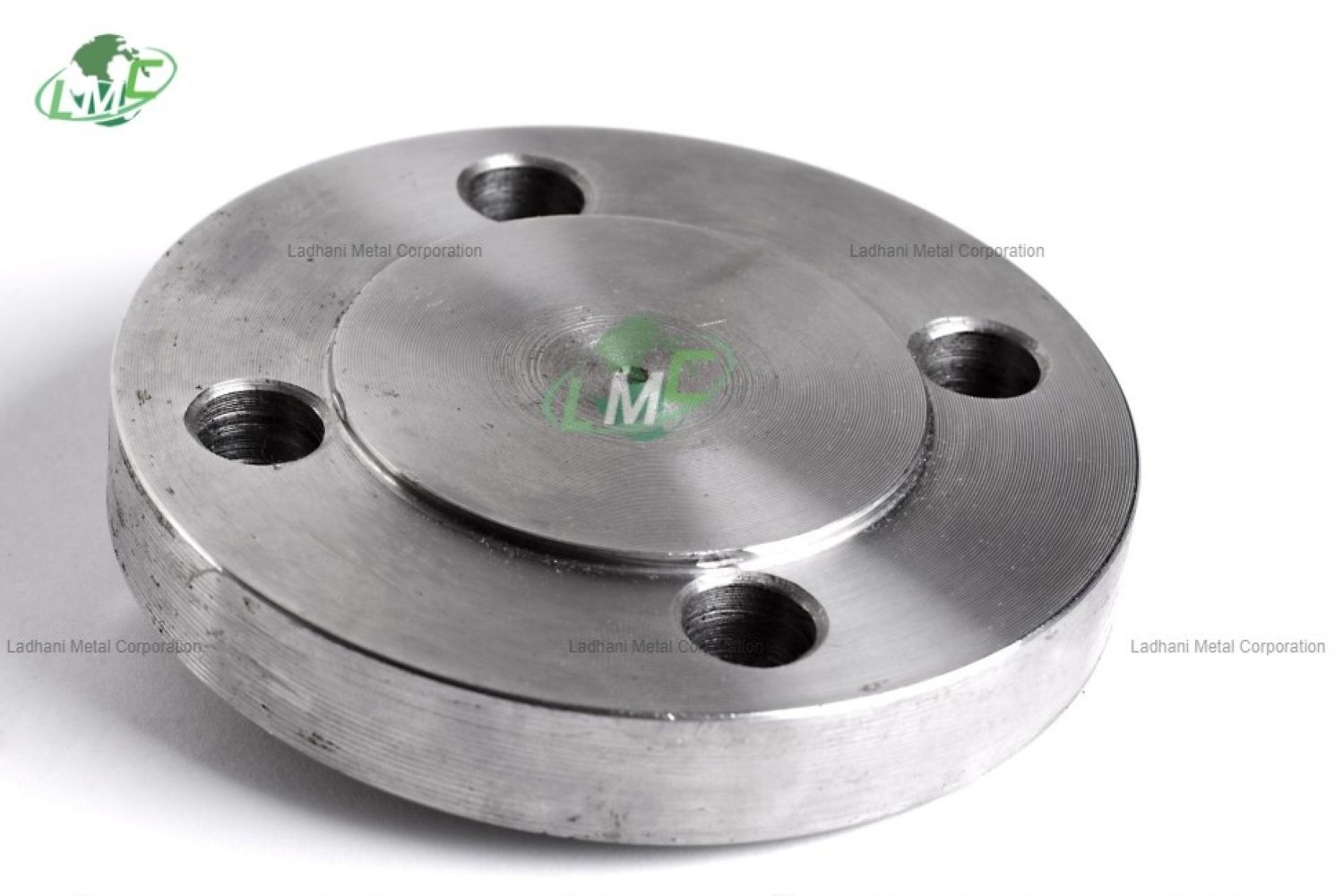

DIN 2527 Mild Steel Blind Flanges are specialized components designed to seal the ends of pipes or vessels in industrial piping systems where no further connection is required. These flanges, made from mild steel, are used in a wide range of applications due to the material's strength, cost-effectiveness, and ease of fabrication. The DIN 2527 standard ensures that these flanges meet the highest specifications for dimensional accuracy, pressure tolerance, and mechanical strength, making them ideal for general-purpose sealing in various industries. Material Composition of Mild Steel (MS) Flanges: Mild steel, or low-carbon steel, is commonly used for manufacturing DIN 2527 blind flanges. The composition of mild steel typically includes: Carbon (C): 0.05% to 0.25% – Provides strength while ensuring ductility and ease of welding. Manganese (Mn): 0.30% to 0.90% – Enhances strength and hardenability. Silicon (Si): 0.10% to 0.60% – Contributes to deoxidation and strength. Phosphorus (P): Up to 0.04% – Low phosphorus content ensures better toughness. Sulfur (S): Up to 0.05% – Low sulfur content to avoid brittleness. Iron (Fe): The remaining composition – Mild steel is primarily iron. This composition provides a cost-effective material with good weldability, formability, and mechanical properties for most non-corrosive applications. Key Features of DIN 2527 Mild Steel Blind Flanges: Temperature and Pressure Resistance: Operating Temperature: While mild steel doesn't handle extreme temperatures as well as superalloys like Inconel, it is suitable for moderate temperature environments where temperatures do not exceed around 300°C (572°F). Pressure Tolerance: DIN 2527 mild steel blind flanges are available in standard pressure ratings, such as PN6, PN10, PN16, and higher pressure classes depending on the application. These pressure ratings ensure the flanges are safe and durable under normal industrial pressures. Dimensional Accuracy and Pressure Class: The DIN 2527 standard ensures precise dimensional accuracy of mild steel blind flanges, making them easy to install in piping systems. These flanges are available in various sizes and thicknesses, with flanges designed to meet specific pressure classes such as PN6, PN10, PN16, PN25, and PN40, depending on the application. Design and Types of DIN 2527 Mild Steel Blind Flanges: Standard Blind Flange (Type A): A solid, circular flange ideal for general applications where no further connection is required. It provides a simple and reliable seal for pipeline isolation. Flat-Faced Blind Flange: Features a flat sealing surface, suitable for low-pressure systems or applications with minimal sealing requirements. It is typically used in systems where the flange is bolted directly to a flat mating surface. Raised Face Blind Flange: Has a raised surface to improve sealing performance under higher pressure applications. This type ensures a tighter seal and is ideal for medium-to-high-pressure systems. Ring-Type Joint (RTJ) Blind Flange: Designed for high-pressure systems, it has a groove that holds an RTJ gasket. This design ensures a high-pressure seal and is often used in critical applications where pressure integrity is essential. Long Weld Neck Blind Flange: Features an extended neck for welding to the pipe, offering additional strength and stability. It is used in high-pressure or stressed systems that require the flange to be securely welded to the pipeline. Nominal Diameter: Available in a wide range of nominal diameters (e.g., DN10, DN50, DN150, DN600, DN1000), to accommodate different pipe sizes and system requirements.

Ladhani Metal Corporation offers SS 316 Half Round Tube Shields designed to provide robust protection for reheater (R/H) tubes in boilers, power plants, and industrial steam systems. Reheater tubes carry steam through the reheater section of the boiler, where the steam is reheated after partial expansion in the high-pressure turbine to enhance efficiency and reduce moisture formation. Manufactured from molybdenum-bearing austenitic stainless steel grade SS 316, these shields deliver superior resistance to pitting, crevice corrosion, and high-temperature oxidation, making them ideal for aggressive and chloride-containing environments. Function of R/H Tubes • Carry steam through the reheater section of the boiler • Exposed to very high temperatures (often > 540°C) and erosion from flue gases • Often protected with Half Round Tube Shields in high-velocity and abrasive gas flow zones Ladhani Metal Corporation manufactures, supplies, and exports SS 316 Half Round Tube Shields in various lengths, diameters, and thicknesses, meeting both domestic and international quality standards. SS 316 Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.08% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 16.00 – 18.00% • Nickel (Ni): 10.00 – 14.00% • Molybdenum (Mo): 2.00 – 3.00% • Iron (Fe): Balance Uses • Protects reheater tubes from erosion, oxidation, and chloride-induced corrosion • Shields R/H tubes in high-velocity flue gas and particle-laden zones • Extends service life of steam system components under aggressive operating conditions • Suitable for utility boilers, WHRBs, HRSGs, and process heaters Features • Excellent corrosion resistance – Performs well in chloride-rich and oxidizing environments • High thermal stability – Maintains mechanical strength at elevated temperatures • Molybdenum alloyed – Enhanced resistance to pitting and crevice corrosion • Precision-engineered fit – Designed to match exact tube curvature for maximum coverage Applications • Power generation boilers – Long-term reheater tube protection in severe conditions • Waste heat recovery systems – Guards against erosion from high-velocity particles • Industrial steam plants – Reliable under variable thermal cycles • Petrochemical and marine-based steam systems – Suitable for saline and chloride-heavy atmospheres Conclusion The SS 316 Half Round Tube Shield for Reheater (R/H) Tubes by Ladhani Metal Corporation offers high-performance protection against erosion, oxidation, and corrosive damage in extreme operating environments. Designed for precision fit and durability, these shields reduce maintenance downtime and extend equipment lifespan. Available in a wide range of export-ready specifications, they are trusted by industries worldwide. For technical details and supply inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #HalfRoundReheaterShield #ReheaterTubeShield #BoilerReheaterProtection #PowerPlantTubeShield #BoilerErosionShield #SteamBoilerTubeShield #HighTempTubeShield #BoilerWearProtection

Ladhani Metal Corporation offers SS 310S Half Round Tube Shields specifically designed to protect reheater (R/H) tubes in boilers, power plants, and industrial steam systems. Reheater tubes carry steam through the reheater section of the boiler, where the steam is reheated after partial expansion in the high-pressure turbine to improve efficiency and prevent moisture formation. Manufactured from low-carbon austenitic stainless steel grade SS 310S, these shields provide exceptional resistance to oxidation, scaling, and carburization at elevated temperatures while minimizing the risk of sensitization during welding. Function of R/H Tubes • Carry steam through the reheater section of the boiler • Exposed to very high temperatures (often > 540°C) and erosion from flue gases • Often protected with Half Round Tube Shields in high-velocity and abrasive gas flow zones Ladhani Metal Corporation manufactures, supplies, and exports SS 310S Half Round Tube Shields in multiple lengths, diameters, and thicknesses, serving both domestic and international markets. SS 310S Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.08% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.50% • Chromium (Cr): 24.00 – 26.00% • Nickel (Ni): 19.00 – 22.00% • Iron (Fe): Balance Applications: Suitable for reheater sections in thermal power plants, waste heat recovery boilers (WHRBs), and heat recovery steam generators (HRSGs) exposed to severe oxidation, scaling, and high-velocity erosive flue gas conditions. Uses • Protects reheater tubes from erosion, oxidation, and soot blower damage • Shields R/H tubes in high-temperature, high-velocity flue gas zones • Extends operational life of steam circuit components under extreme conditions • Applicable in utility boilers, WHRBs, HRSGs, and petrochemical heaters Features • Excellent high-temperature oxidation resistance – Performs continuously up to 1100°C • Superior scaling resistance – Maintains integrity under cyclic heating and cooling • Low-carbon content – Minimizes sensitization and carbide precipitation during welding • Precision-engineered fit – Matches exact tube curvature for optimal coverage Applications • Power generation boilers – Long-term reheater tube protection under severe service • Waste heat recovery systems – Guards against high-velocity particle erosion • Industrial steam plants – Reliable in fluctuating thermal cycles • Petrochemical furnaces – Effective in aggressive reheating environments Conclusion The SS 310S Half Round Tube Shield for Reheater (R/H) Tubes by Ladhani Metal Corporation offers long-lasting, high-temperature, and oxidation-resistant protection for tubes in extreme operating conditions. Designed for a precise fit and superior durability, these shields reduce wear, extend equipment life, and are available in a wide range of export-ready specifications. For technical details and supply inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #HalfRoundReheaterShield #ReheaterTubeShield #BoilerReheaterProtection #PowerPlantTubeShield #BoilerErosionShield #SteamBoilerTubeShield #HighTempTubeShield

Ladhani Metal Corporation offers SS 304L Half Round Tube Shields specifically designed to protect reheater (R/H) tubes in boilers, power plants, and industrial steam systems. Reheater tubes carry steam through the reheater section of the boiler, where the steam is reheated after partial expansion in the high-pressure turbine to improve efficiency and prevent moisture formation. Manufactured from low-carbon austenitic stainless steel grade SS 304L, these shields provide excellent corrosion resistance, high-temperature oxidation resistance, and superior weldability, reducing the risk of carbide precipitation during welding. Function of R/H Tubes • Carry steam through the reheater section of the boiler • Exposed to very high temperatures (often > 540°C) and erosion from flue gases • Often protected with Half Round Tube Shields in areas where flue gas velocity and ash particles cause wear Ladhani Metal Corporation manufactures, supplies, and exports SS 304L Half Round Tube Shields in various lengths, diameters, and thicknesses, catering to both domestic and international markets. SS 304L Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.03% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 18.00 – 20.00% • Nickel (Ni): 8.00 – 12.00% • Iron (Fe): Balance Applications: Suitable for reheater sections in thermal power plants, waste heat recovery boilers (WHRBs), and heat recovery steam generators (HRSGs) operating in oxidizing and moderately corrosive service environments. Uses • Protects reheater tubes from erosion, oxidation, and soot blower damage • Shields R/H tubes in high-velocity flue gas zones • Extends service life of steam circuit components in high-temperature operations • Applicable in utility boilers, WHRBs, HRSGs, and industrial steam plants Features • Superior corrosion resistance – Ideal for oxidizing boiler atmospheres • High thermal stability – Maintains mechanical integrity at elevated temperatures • Low-carbon content – Minimizes sensitization risk during welding • Precision-engineered fit – Matches exact tube curvature for maximum coverage Applications • Power generation boilers – Protection for reheater tubes under extreme thermal conditions • Waste heat recovery systems – Guards R/H tubes against particle erosion • Industrial steam plants – Reliable in fluctuating temperature cycles • Petrochemical and process heaters – Suitable for high-efficiency reheating sections Conclusion The SS 304L Half Round Tube Shield for Reheater (R/H) Tubes by Ladhani Metal Corporation offers long-lasting, corrosion-resistant protection for tubes operating under extreme temperature and erosive conditions. Designed for precision fit and durability, these shields reduce maintenance needs and extend equipment life, with availability in a wide range of export-ready specifications. For technical details and supply inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #HalfRoundReheaterShield #ReheaterTubeShield #BoilerReheaterProtection #PowerPlantTubeShield #BoilerErosionShield #SteamBoilerTubeShield #HighTempTubeShield

Ladhani Metal Corporation offers SS 304 Half Round Tube Shields designed for reheater (R/H) tubes in boilers and power plant steam systems. Reheater tubes carry steam through the reheater section of the boiler, where it is reheated after partial expansion in the high-pressure turbine to increase efficiency and prevent condensation. Manufactured from austenitic stainless steel grade SS 304, these shields offer excellent corrosion resistance, high-temperature oxidation resistance, and mechanical strength. Precision-formed to match the tube surface, they ensure secure coverage and reliable performance. Function of R/H Tubes • Carry steam through the reheater section of the boiler • Exposed to very high temperatures (often > 540°C) and erosion from flue gases • Often protected with Half Round Tube Shields in areas where flue gas velocity and ash particles cause wear Ladhani Metal Corporation manufactures, supplies, and exports SS 304 Half Round Tube Shields in various lengths, diameters, and thicknesses for both domestic and international markets. SS 304 Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.08% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 18.00 – 20.00% • Nickel (Ni): 8.00 – 10.50% • Iron (Fe): Balance Uses • Shields reheater tubes from erosion, oxidation, and soot blower damage • Protects tubes in boiler reheater sections exposed to abrasive flue gases • Extends operational life of R/H tubes in high-temperature steam circuits • Suitable for utility boilers, WHRBs, and HRSG systems Features • Excellent corrosion and oxidation resistance – Ensures durability in flue gas environments • Thermal stability – Retains strength at reheater operating temperatures • Precision fit – Designed for accurate coverage of reheater tube surfaces • Long service life – Reduces wear and maintenance downtime • Multiple installation options – Welded, clamped, or banded securely Applications • Power generation boilers – Protects reheater sections from high-temperature wear • Waste heat recovery systems – Guards R/H tubes in oxidizing gas flows • Industrial steam plants – Reliable under thermal cycling • Petrochemical and process industries – Suitable for furnace steam reheating Conclusion The SS 304 Half Round Tube Shield for Reheater (R/H) Tubes by Ladhani Metal Corporation is engineered for robust protection against erosion, oxidation, and thermal wear in demanding boiler reheater environments. With excellent corrosion resistance and mechanical performance, these shields extend tube life, reduce maintenance, and are available in export-ready custom specifications. For detailed technical data and supply options, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #HalfRoundReheaterShield #ReheaterTubeShield #BoilerReheaterProtection #PowerPlantTubeShield #BoilerErosionShield #SteamBoilerTubeShield #HighTempTubeShield #BoilerWearProtection #IndustrialBoilerShield #HeatExchangerTubeShield
