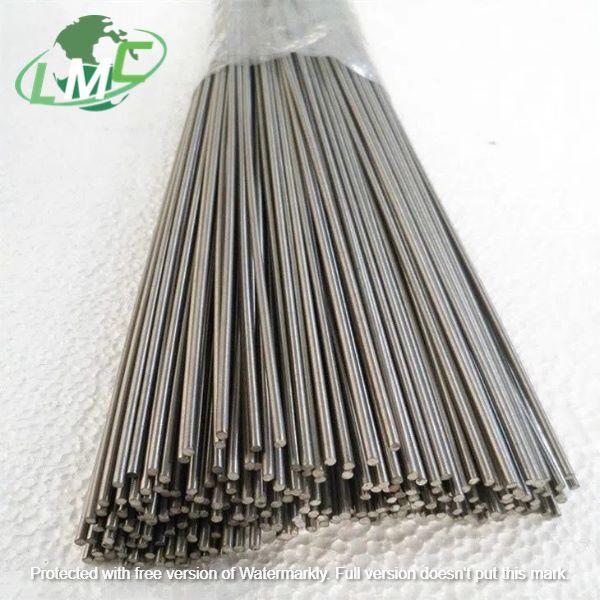

Product Name:Titanium wire Standard: ASMT B863,AWS A5.16 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Unit Price: $21.5usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing,sand-blasting Anodizing with titanium wire has many advantages. Firstly, titanium wire is resistant to corrosion and has excellent mechanical properties, making it an ideal choice for anodizing applications. Secondly, the uniform thickness and high-quality oxide layer produced by anodizing with titanium wire ensures excellent surface finish and durability for the treated metal part. Thirdly, titanium wire is cost-effective and readily available, making it a popular choice for anodizing applications. Fourthly, anodizing with titanium wire is an environmentally friendly process as it does not involve any hazardous chemicals or by-products. Overall, anodizing with titanium wire offers numerous benefits, making it a preferred choice among manufacturers and industries for enhancing the appearance, durability, and performance of their products. Product Name: Titanium wire Standard: ASTM B863 Material: Gr1, Gr2 ,Gr3, Gr4,Gr5, Gr7,Gr12 Shape: Straight, Spool, Coil Diameter: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc. Surface: Pickling,polishing,sand-blasting Titanium wire manufacture is devided into two technique: Cold drawing and hot drawing. Dimension Tolerance of titanium wire: Diameter 0.1-0.3mm 0.3-0.8mm 0.8-2.0mm 2.0-6.0mm Tolerance +/- 0.025 +/-0.04 +/-0.05 +/-0.10 Length 200-500mm 500-1000mm 1000-2000mm &2000mm Tolerance +/-1.0 +/-1.5 +/-2.0 +/-2.5

Product Name: Titanium Gr 5 flanges Standard: ASME B16.5 Material: Gr5 Unit Price: $25usd/pc-$85usd/pc Sealing Surface: RF, FF, TG, RJ etc. Size: NPS 1/2 - NPS 24(DN 10 - 2000) Pressure: 150#-2500# Titanium Gr 5 Flanges Product name: Titanium flange,titanium wn flange,titanium blind flange, titanium so flange, titanium alloy flange, titanium flange in stock,ANSI B16.5 titanium flange Material: Gr5 Standard: ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628 Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) . Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB. Sealing Surface: RF, FF, TG, RJ etc. Technique: Forged and CNC Machined Inspection: UT% , PT% Certificate: ISO9001, TUV etc. Chemical composition (Wt%) Grade Ti C Fe H N O Al V Ti Grade5 90 min – 0.25 max – – 0.2 max 6 min 4 min Physical Properties (Min) Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Porduct name : Titanium clad Tubesheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium clad tubesheet Product Name Titanium clad tubesheet Base Metal All types of steel and stainless steel ,sopper etc. Clad Metal Titanium GR2 Gr7 Gr9 Gr12 etc. Dimension Customized Standard ASTM Shape Round Certificates ISO9001, Mill Test Report, Certificate 3.1, EN, Ultrasonic Certificate Applied Equipment Pressure Vessels, Boilers, Containers Application Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical Exported Countries USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia etc. Explosive Welding Technical Advantage: →no limits of materials shape, thickness and area; →metallurgical bonding with high strength; →high performance of machining process; →improving the materials performance after bonding; →realizing multilayer materials clad;

Porduct name : Titanium Tube sheet Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium Tube sheet The titanium tube plate/Titanium clad steel tube plates is a round sheet drilled with circular throught holes. The titanium steel composite plate shall be slightly larger than the outer diameter of the pipe. It is widely used in the field of heat exchanger and plays the role of fixing pipeline and sealing medium in heat exchanger.

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tubesheet Product Information Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.

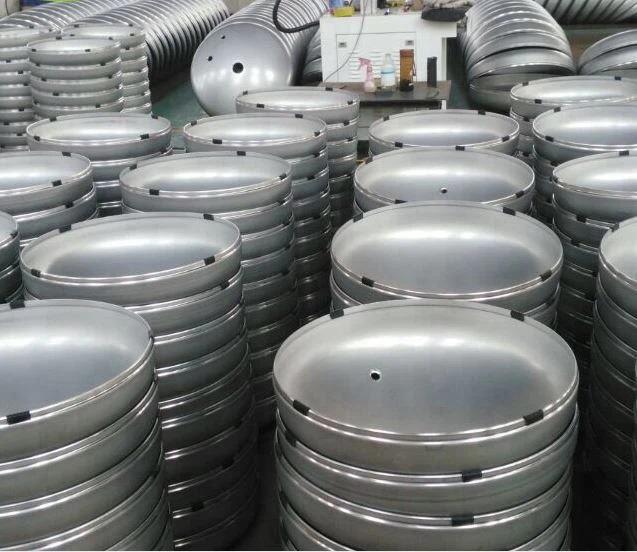

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Titanium Hemispherical heads Titanium Spherical Heads ,aso called Titanium dish head,Titanium Elliptical Heads.It is a kind of boiler part in pressure vessel. It is usually used at both ends of pressure vessels. Then there is a welding pipe fitting product used for plugging at the end of the pipe. There are many forms. The head is a part of the container and is welded to the barrel. According to the different geometric shapes, it can be divided into spherical, elliptical, disc, spherical crown, cone shell and cover, among which spherical, elliptical, disc and spherical crown head are collectively referred to as convex head. In the welding is divided into butt welding head, socket welding head. Used in various vessels and equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc. Products Processing Standard Grade Size Titanium Elliptical & Spherical Heads According to ASME VIII-I Standard or DIN28013 GR1, GR2, GR7, GR12, etc. Process: Cold forming and hot forming Inspection: 100% Ultrasonic Test and PT test after forming. (As per requirement.) Applications Mainly for pressure vessels and boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military. (Titanium dish head )DIN28013: D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s D (mm) s min/max (mm) Volumen (L) h1 (mm) kg pr mm s 300 4-10 3.5 78 1,0 1550 5-15 483 403 22.5 350 4-10 5.6 91 1.3 1600 5-15 532 416 23.9 400 4-10 8.3 104 1,7 1650 5-15 585 429 25,4 450 4-10 11.8 117 2,1 1700 5-15 640 442 27.0 500 4-10 16.1 130 2.6 1750 5-15 700 455 28.5 550 3-12 21,6 143 3,1 1800 5-15 760 468 30 600 3-12 28,0 156 3.6 1850 5-15 825 481 31.5 650 3-12 36.0 169 4,2 1900 5-15 890 494 33 700 3-12 44,5 182 4,8 1950 5-15 965 507 36 750 3-12 54.5 195 5,5 2000 6-15 1040 520 37 800 3-13 66.5 203 6.2 2050 6-15 1120 533 38.5 850 3-13 79,5 221 7,0 2100 6-15 1200 546 40.5 900 3-13 94 234 乙8 2150 6-15 1290 559 42,5 950 3-13 111 247 8.6 2200 6-15 1380 572 44.5 1000 4-16 130 260 9.5 2250 6-15 1480 685 46.5 1050 4-13 150 273 10,4 2300 6-15 1580 598 46 5 1100 4-13 173 286 11,1 2350 6-15 1690 611 51 1150 4-13 198 299 12.5 2400 6-15 1800 624 53 1200 4-13 225 312 13.6 2450 6-15 1910 637 55 1250 4-13 254 325 14,7 2500 6-15 2030 660 57

Material: Gr1, Gr2, Gr5, Gr7, Gr12 etc. OD: 150-2500mm Thickness: 30-250mm Production Methods: Forging,annealing and machining Packing: Plywood box Titanium Tube Plate for Heat Exchanger Product Description Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet. Grade: GR1, GR2, GR5, GR7, GR12 etc. OD: 150-2500mm Thickness: 30-250mm Physical Properties

Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR5, GR7, GR12 Size: Customized Gr2 Titanium Dish Head Product Information Titanium dish head is the end cap on the pressure vessel and is a main pressure-bearing part of the pressure vessel. The role played is the sealing effect. First, the upper and lower bottoms of the tank-shaped pressure vessel are made, and the second is that the pipe is at the end and is not going to extend forward. Then a titanium dish head is used to seal the pipe in the form of welding. There are blind plates and caps that are similar to the functions of titanium dish head, but those two products can be disassembled. After titanium dish head is welded, it cannot be disassembled. So the quality of titanium dish head is directly related to the long-term safe and reliable operation of the pressure vessel. Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc. Grade: GR1, GR2, GR5, GR7, GR12 OD: 300-2500mm Thickness: 2-300mm Production Process: Cold Forming, Hot Forming Surface Treatment: Sand Blasting, Pickling, Coating etc. Applications: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc

Product name: Titanium heating coil Spiral Pipe Standards: ASTM B338 Grades: Gr1, Gr2 Dimention:OD 6-108mm*WT1-5mm*L Technique:Rolled Titanium heating coil Spiral Pipe Titanium tube coil is widely used in Evaporator, Condenser, Refrigeration compressor, Heat exchanger tube,Heating tube. titanium coil is also used to produce titanium white, glycine, nitrate amino phenol chemical industry, pesticide intermediates, pesticides, fuel, cyanuric acid, dichloro cyanuric acid, acetone cyanuric acid, etc. Name:ASME B338 Grade 2 Titanium coil tube for heater for condenser Material:Gr2 Titanium Standard:ASME B338 OD:12.7mm-50mm Wall thickness:0.55mm----3.0mm(normal use) Length:0.55mm----3.0mm(normal use) Applications: Coiling pipe; petroleum pipeline, Fluid Transportation Piping, Water tank, boiler, heat exchanger unit, Heat exchanger; Condenser, Sea farming; electroplating equipment etc. Quality control : Seamless Tube: Ultrasonic or eddy current inspection. Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
