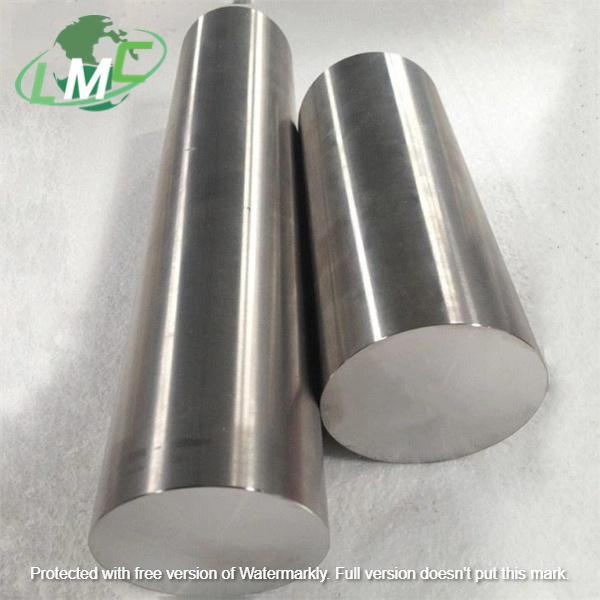

Product name: 4mm titanium bar Material: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23 Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Size: Dia 5mm-300mm (0.2"-12"), Length 50mm-6000mm (2.0"-236")

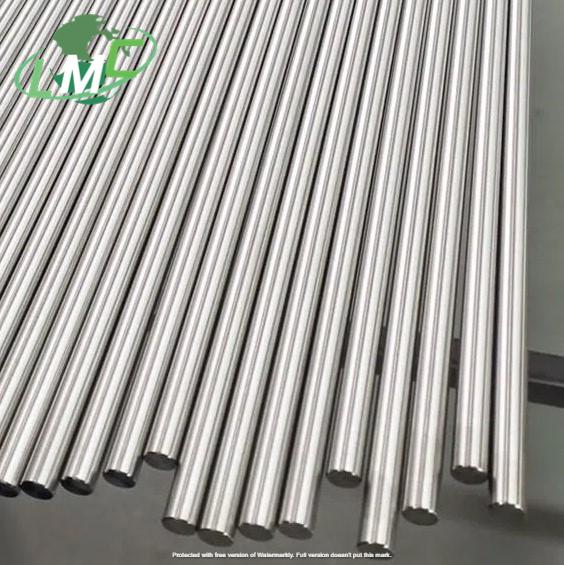

Product Name: Titanium rod grade 23 Standard: ASTM F136 Material: Gr23 (Gr5 ELI) Unit Price: $30.5 usd/kg- $52.5 usd/kg Application: Medical use Shape: Round Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Bright

Product name: 35mm titanium bar Material: Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23 Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928, etc. Size: Dia 5mm-300mm (0.2"-12"), Length 50mm-6000mm (2.0"-236") Applications :Industrial

Product Name: titanium plate 4mm Standard: ASTM B265 Material: Gr1 Gr2 Gr5 Gr7 Gr12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting

Product Name: Titanium rod grade 23 Standard: ASTM F136 Material: Gr23 (Gr5 ELI) Unit Price: $30.5 usd/kg- $52.5 usd/kg Application: Medical use Shape: Round Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Bright Product Introduction Product name:Titanium rod grade 23 Material: GR23 Standard: ASTM F136 Diameter: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm etc. Length: 1000mm, 3000mm, 6000mm or as per your request Surface: Polishing,Bright Third-Party Tests: BV, SGS, TUV etc. Grade 23 is a higher purity version of Ti 6Al-4V. It can be made into coils, strands, wires or flat wires and is the first choice for any occasion that requires a combination of high strength, light weight, good corrosion resistance and high toughness. It has excellenct damage resistance superior to other alloys. These advantages make Ti 6AL-4V ELI the final dental and medical titanium grade product. Due to its biocompatibility, good fatigue strength and lo mdulus, it can be used in biomedical applications such as implantable parts. Grade 23 can also be used in detailed surgical procedures, such as: • Orthopedic pins and screws • Orthopedic cables • Ligation needles • Surgical staples • Springs • Orthodontic appliances • Joint replacements • Cryogenic containers • Bone fixators Mechanical Properties: Grade Tensile strength, MPa (min) Yield strength, MPa (min) Elongation, %(min) Reduction of Area, %(min) Gr23 828 759 10 15 Chemical Component (ASTM B348) Grade Ti Al V N, max C, max H, max Fe, max O, max Residuals Max each Max total Gr23 Main 5.5-6.5 3.5-4.5 0.03 0.08 0.0125 0.25 0.13 0.1 0.4

Product Name: Titanium 6al4v plate Standard: ASTM B265 , AMS 4911 , ASTM F136 Material: Gr5 Unit Price: $19.5usd/kg-$48usd/kg Thickness: 0.3-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting There are several advantages to using titanium sheet metal: 1. High strength-to-weight ratio: Titanium is known for its high strength-to-weight ratio, which means that it is strong but lightweight. This makes it ideal for use in applications where weight is a concern, such as aerospace and sports equipment. 2. Corrosion resistance: Titanium is highly resistant to corrosion, making it suitable for use in harsh environments where other metals would quickly deteriorate. This makes it ideal for use in marine and chemical processing applications. 3. Biocompatibility: Titanium is biocompatible, meaning that it is not harmful to living tissue. This makes it ideal for use in medical implants and prosthetics. 4. High melting point: Titanium has a high melting point, making it suitable for use in high-temperature applications such as jet engines. 5. Ductility: Titanium is highly ductile, meaning that it can be easily formed into a variety of shapes and sizes without breaking. This makes it ideal for use in complex designs and applications. Applications: Widely used in petroleum, chemical, rubber, pesticides, dyes, medicine, food, and used to complete vulcanization, nitration, hydrogenation, polymerization, condensation and other technical processes. Such as reverberator, reverberation kettle, differentiation pot, polymerization kettle. Titanium 6al4v plate Chemical compositions(weight%,<=) Ti Al V Fe C Remainder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 830 8-12 18-30 Titanium 6al4v plates in stock: Thickness: 1mm 2mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 20mm 25mm Size: 1000*2000mm 3000*6000mm The production process of titanium plate: 1. Hot forging:casting skills above the metal recrystallization temperature; 2. Hot rolling:the rolling process performed at a temperature higher than the recrystallization temperature; 3. Cold rolling:the rolling process where the plastic deformation temperature is lower than the recovery temperature; 4. Annealing: slowly heating the metal to a certain temperature, insisting on meeting the time, and then cooling at an appropriate speed a metal heat treatment technology; 5. Pickling: immersing the parts in an aqueous solution such as sulfuric acid to remove the oxide and other thin films on the metal surface. It is the pretreatment or process treatment of electroplating, enamel, rolling and other skills.

Product name:Titanium sheet Grades: Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr12, Gr23 Standard: ASTM B265/ASME B265 AMS 4911 ASTM F67 ASTM F136 Dimension： Thickness*Width:200-3000mm*Length:500-6000mm Supply status: Annealed(M) Package: Carton or plywood case. MTC: EN10204.3.1 certificate There is Grade 1, Grade 2, Grade 3, Grade4, Grade5, Grade 7, Grade 12 titanium plates in stock. Titanium plate is widely used in various fields, including metallurgy, electronics, medical, chemical, petroleum, medicine, aerospace, etc.. We offer competitive prices online, available incutting size as customers' requets. 1, Specifications Thickness range: 0.5mm-200mm Titanium coil plate/titanium coil strip: 0.1mm-0.5mm thick *1m/1.2m/1.5m wide. Standard plate: 0.5mm-20mm thick *1m*2m. Cold rolled plate: 1mm-4mm*1m*2m hot rolled plate: above 4mm thick wide and thick plate: above 5mm *2m*6m is a common specification, and specific specifications can also be customized according to customer requirements. 2, Material TA1 (Grade 1), TA2 (Grade 2), TA9 (Grade 7), TA10 (Grade 12), TA18 TC4 (Grade 5), TC6 and TC11 3.Standard dimension in stock: 1000 mm Width * 2000 mm Length 1500 mm Width* 6000 mm Length 2000 mm Width* 6000 mm Length 4,Surface:Pickled, polished, sand-blasted

Product Name: Titanium bars grade 4 Standard: ASTM B348 Material: Grade 4 Unit Price: $15usd/kg- $45usd/kg Shape: Round Diameter: 6-350mm Length: Max 6000mm Surface: Bright Condition: Annealed Description Titanium bars grade 4 Material:titanium gr4 Standard:ASTM B348 Diameter:3mm 4mm 5mm 6mm 8mm 10mm 12mm ...36mm 38mm 40mm 42mm 45mm 50mm ...max 350mm Length:500mm 1000mm 1500mm 2000mm 2500mm 3000mm...max 6000mm Condition:Rolled, forged Surface:Bright Application:Chemical, industry ect. gr4 titanium bartitanium bar in stock

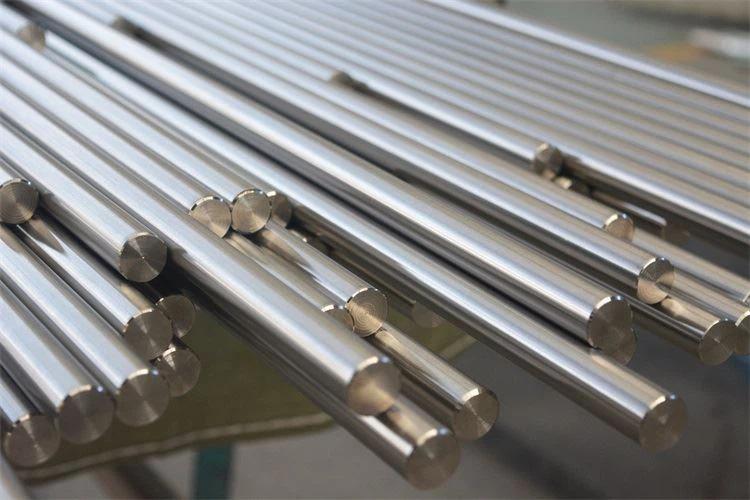

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Pure titanium bar in stock,grade 2 titaium bar, grade 1 titanium bar, grade 3 titanium bar, grade 4 titanium bar;China titanium bar factory,Titanium bar manufacturer,Titanium bar price. Grade: GR1, GR2, GR3, GR4 Standard: ASTM B348, ASTM F67 Shape: Round, Square, Flat, Hex Diameter: 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm ...Max 500mm Length: Max 6000mm , Can be cut as customer's request length. Tolerance: As standard, or as per your requirements Surface: Polished Condition: R/M/Y Application:Chemical, industry,medical etc. Physical Properties Tensile Strength(min) Yeild Strength(min) Elongation(%) ksi MPa ksi MPa Grade 1 35 240 20 138 24 Grade2 50 345 40 275 20 Grade 3 65 450 55 380 18 Grade 4 80 550 70 483 15 Chemical composition N C H Fe O Al V Pd Mo Ni Ti Grade 1 0.03 0.08 0.015 0.20 0.18 / / / / / Bal Grade 2 0.03 0.08 0.015 0.30 0.25 / / / / / Bal Grade 3 0.05 0.08 0.015 0.30 0.35 / / / / / Bal Grade 4 0.05 0.08 0.015 0.50 0.40 / / / / / /
