Introduction
ASTM

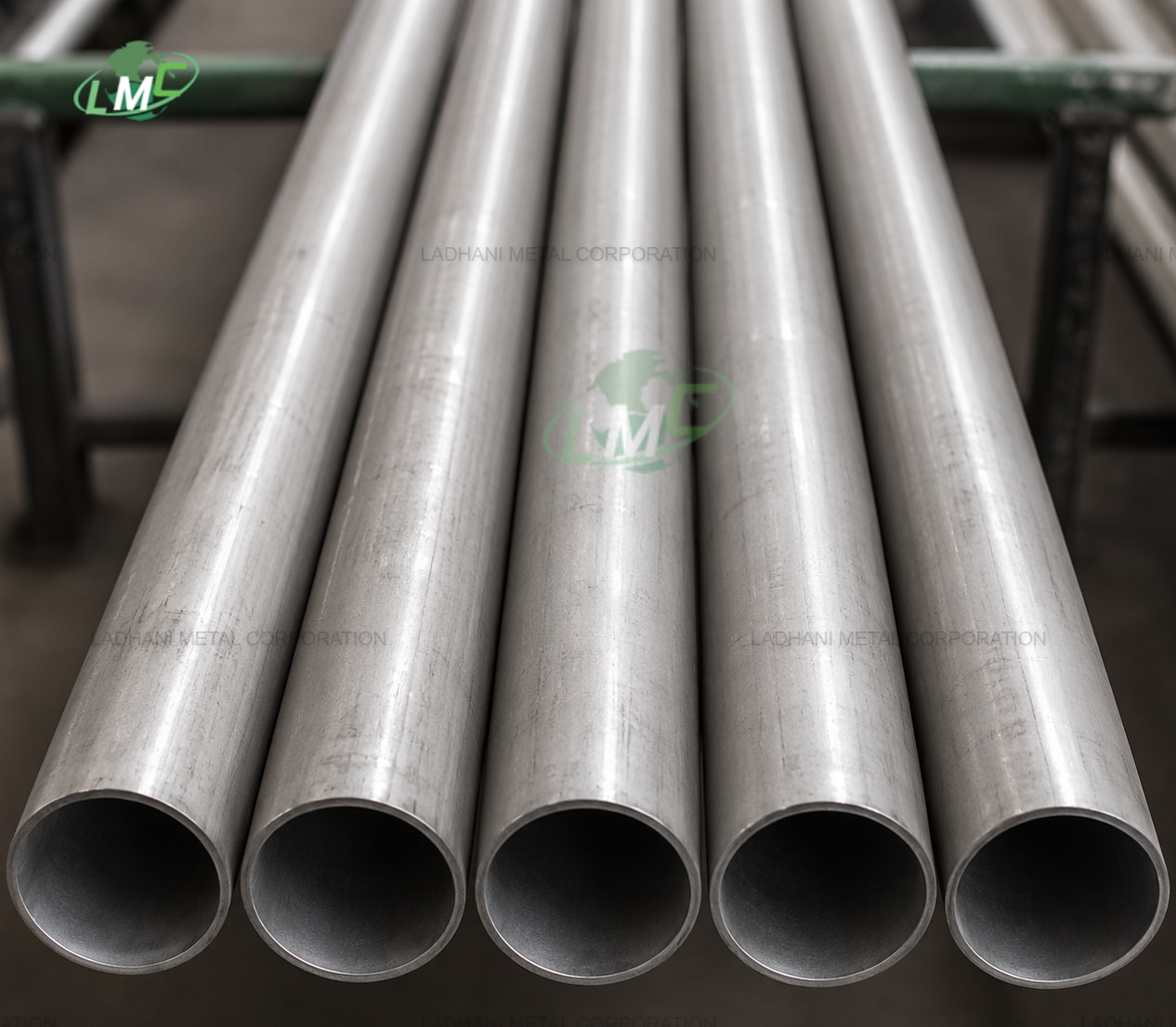

A556 / A556M covers seamless cold-drawn carbon steel feedwater heater tubes
intended for use in surface condensers, feedwater heaters, heat exchangers, and
similar heat transfer equipment. These tubes are manufactured to provide
excellent dimensional accuracy, superior surface finish, good mechanical
properties, and reliable performance under elevated pressure and temperature
conditions.
ASTM
A556 carbon steel tubes are widely used in power generation plants, thermal
power stations, petrochemical facilities, refineries, process industries, and
industrial heat exchanger systems. The cold-drawn manufacturing process ensures
enhanced mechanical strength, improved surface quality, and precise dimensional
tolerances.
Ladhani
Metal Corporation is a manufacturer, supplier, and exporter of ASTM A556 /
A556M carbon steel tubes, supplying premium-quality seamless tubes for heat
transfer and feedwater heating applications worldwide.
Applicable Standard
Standard
Specification: ASTM A556 / A556M
Organization:
ASTM International
Title:
Standard Specification for Seamless Cold-Drawn Carbon Steel Feedwater Heater
Tubes
This
specification covers seamless cold-drawn carbon steel tubes intended for
feedwater heaters, condensers, and heat exchanger service.
Forms of Supply
ASTM
A556 carbon steel tubes are supplied in the following forms:
- Seamless
tubes
- Cold-drawn
tubes
- Feedwater
heater tubes
- Heat
exchanger tubes
- Condenser
tubes
- Boiler
auxiliary tubes
- Straight
length tubes
- U-bend
tubes
- Cut-to-length
tubes
- Custom
fabricated tubes
- Tube
bundles
- Precision
tubes
Grades Covered
Under ASTM A556
- Grade
A2
- Grade
B2
- Grade
C2
Supply Condition
- Cold
drawn
- Annealed
- Stress
relieved
- Normalized
- Bright
annealed
- Heat-treated
condition
Surface Finish
- Cold
drawn finish
- Bright
finish
- Smooth
finish
- Clean
finish
- Pickled
finish
- Oiled
finish
Standard Sizes
Outside
Diameter: 12.7 mm to 76.2 mm
Wall
Thickness: 0.9 mm to 8.0 mm
Length:
Up to 24 meters
U-Bend
Radius: As per customer requirements
Custom
dimensions are available according to project specifications.
Chemical
Composition of ASTM A556 Carbon Steel Tubes (%)
|
Element |
Grade A2 |
Grade B2 |
Grade C2 |
|
Carbon, max (%) |
0.18 |
0.27 |
0.30 |
|
Manganese (%) |
0.27–0.63 |
0.29–0.93 |
0.29–1.06 |
|
Phosphorus, max
(%) |
0.035 |
0.035 |
0.035 |
|
Sulfur, max (%) |
0.035 |
0.035 |
0.035 |
|
Silicon, min (%) |
— |
0.10 |
0.10 |
Tensile
Requirements
|
Property |
Grade A2 |
Grade B2 |
Grade C2 |
|
Tensile Strength,
min, ksi [MPa] |
47 [320] |
60 [410] |
70 [480] |
|
Yield Strength,
min, ksi [MPa] |
26 [180] |
37 [260] |
40 [280] |
|
Elongation in 2
in. [50 mm], min, % (Longitudinal) |
35 |
30 |
30 |
Key Features of
ASTM A556 Carbon Steel Tubes
- Excellent
heat transfer characteristics
- Superior
dimensional accuracy
- Good
mechanical strength
- Excellent
pressure resistance
- Smooth
internal and external surfaces
- Reliable
performance in heat exchanger service
- Good
machinability
- Excellent
fabrication characteristics
- Long
service life
- Cost-effective
solution for thermal systems
Applications of
ASTM A556 Carbon Steel Tubes
Power Generation Industry
- Feedwater
heaters
- Surface
condensers
- Thermal
power plants
- Auxiliary
boiler systems
Heat Exchanger Industry
- Shell
and tube heat exchangers
- Cooling
systems
- Industrial
heat recovery units
- Process
heat exchangers
Petrochemical Industry
- Refinery
heat exchangers
- Process
heating equipment
- Condensation
systems
- Thermal
processing units
Oil and Gas Industry
- Heat
recovery systems
- Process
equipment
- Condensers
- Industrial
cooling systems
Industrial Manufacturing
- Heat
transfer equipment
- Thermal
processing systems
- Industrial
condensers
- Utility
equipment
Fabrication and
Welding
ASTM
A556 tubes offer excellent fabrication characteristics.
- Suitable
for tube bending operations
- Excellent
U-bending performance
- Good
machinability
- Easy
expansion into tube sheets
- Suitable
for fabrication and assembly
- Good
welding characteristics where required
The
seamless construction ensures reliability in critical heat transfer
applications.
Heat Treatment
ASTM
A556 tubes may be supplied in various heat-treated conditions.
- Annealing
improves ductility
- Stress
relieving reduces residual stresses
- Normalizing
refines grain structure
- Heat
treatment enhances mechanical properties
- Controlled
processing ensures uniform performance
Advantages of ASTM
A556 Carbon Steel Tubes
- Excellent
thermal conductivity
- Reliable
heat transfer performance
- High
dimensional precision
- Good
strength and durability
- Suitable
for high-pressure service
- Long
operational life
- Easy
fabrication and installation
- Cost-effective
maintenance
- Excellent
availability
- Proven
performance in power plants
Conclusion
ASTM
A556 / A556M Grade A2, Grade B2, and Grade C2 carbon steel tubes are premium
seamless cold-drawn tubes developed for feedwater heaters, condensers, and heat
exchanger applications. Their excellent dimensional accuracy, reliable
mechanical properties, superior heat transfer performance, and long service
life make them ideal for power generation, petrochemical, refinery, and
industrial heat transfer systems.
Ladhani Metal Corporation supplies
ASTM A556 / A556M carbon steel tubes in various grades, sizes, and customized
dimensions, providing dependable solutions for feedwater heating, condensation,
and heat exchanger applications worldwide.
