Product name: Alloy Titanium Ring Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 etc. Standard: ASME SB381 / ASTM B381,AMS 4928 Technique:Forged Size: OD200-1500mm * ID100-1200mm *Height20*600mm Application:Chemical indutry Product name: Alloy Titanium Ring Grade: Titanium Gr1 Gr2 Gr3 Gr4 Gr5 Gr7 Gr9 Gr12 etc. Standard: ASME SB381 / ASTM B381,AMS 4928 Technique:Forged Size: OD200-1500mm * ID100-1200mm *Height20*600mm Application:Chemical indutry

Product Name: Gr4 titanium bar Standard: ASTM B348 Material: Grade 4 Unit Price: $15usd/kg- $45usd/kg Shape: Round Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Introduction Gr4 titanium bar Standard: ASTM B348 Material: Grade 4 titanium Unit Price: $15usd/kg- $45usd/kg Shape: Round Diameter: 6-350mm Length: Max 6000mm Surface: Bright Condition: Annealed Grade 4 titanium bar Chemical compositions(weight%,<=) Ti Al V Fe C Remainder ------- ------- 0.50 0.08 N H O Other(each) Other(total) 0.05 0.015 0.40 0.10 0.40 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 580 485 15 25 Titanium Round Bar Dimensions Φ 2 Φ 3 Φ 3.5 Φ 4 Φ 5 Φ 6 Φ 7 Φ 8 Φ 9 Φ 10 Φ 12 Φ 13 Φ 14 Φ 15 Φ 16 Φ 18 Φ 20 Φ 22 Φ 25 Φ 26 Φ 30 Φ 32 Φ 35 Φ 40 Φ 45 Φ 50 Φ 55 Φ 60 Φ 65 Φ 70 Φ 75 Φ 80 Φ 85 Φ 90 Φ 95 Φ 100 Φ 105 Φ 110 Φ 120 Φ 130 Φ 140 Φ 150 Φ 160 Φ 170 Φ 180 Φ 190 Φ 200 Φ 210 Φ 220 Φ 230 Φ 240 Φ 250 Φ 260 Φ 270 Φ 280 Φ 290 Φ 300 More Dimensions Please Contact us

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Product Information Titanium pipe is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium pipes as standard pipes for their units

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright Features of Gr1 titanium pipe: 1. Gr1 titanium pipe has plasticity. The elongation rate of the high-purity titanium pipe can reach 50-60%, and the reduction of area can reach 70-80%. Although the strength of high-purity titanium pipe is low, the pure industrial titanium contains a small amount of impurities and the addition of alloying elements can significantly strengthen its mechanical properties, making its strength comparable to high strength. This means that as long as the industrial pure titanium pipe contains a small amount of interstitial impurities and other metal impurities, it can make it have both high strength and appropriate plasticity. 2. The specific strength (strength to weight ratio) of industrial pure titanium pipe is very high in metal structural materials. Its strength is equivalent to steel, but its weight is only 57% of steel. 3. Gr1 titanium pipe has strong heat resistance, and can still maintain good strength and stability in the atmosphere at 500°C. 4. Titanium pipe also has good low temperature resistance. Even at the ultra-low temperature of -250℃, it still has high impact strength and can withstand high pressure and vibration. 5. Strong corrosion resistance, this is because it has a particularly large affinity for oxygen, and can form a dense oxide film on its surface, which can protect titanium from corrosion by the medium. Therefore, titanium has good stability in acidic, alkaline, neutral salt solutions and oxidizing media, and has better corrosion resistance than existing stainless steel and other non-ferrous metals. Chemical Composition (Wt%) ASTMNo. Femax O max Nmax Cmax Hmax Pd Al Bal Grade1 0.2 0.18 0.03 0.1 0.015 - - Ti Physical Properties(Min) ASTMGrade AlloyComposition TensileStrength YieldStrength Elongation min % ksi Mpa ksi Mpa Grade 1 UnalloyedTi("Pure")35A-CP1 35 240 20 138 24

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright

Porduct name : Titanium Steel Composite Tube plate Material: Titanium +steel,Titanium+stainless steel etc. Size &Standard: As per client drawing Production Method: Forging,annealing and machining Advantage: Excellent corrosion resistance ability Packing: Plywood case Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc. Titanium steel composite tube plate Name Clad Metal Base Metal Specification Standard Application Titanium-Steel Cladding plate TA1, TA2, TA9, TA10 Q235, Q245R Q345R Coating metal thickness: 0.5~50mm Base material thickness: 0.5~500mm ASME, ASTM petrochemical, vacuum salt making, Chlor-alkali, food, fertilizer, hydrometallurgy, electroplate and etc. Main applications: Titanium clad steel plate tube sheet is mainly used in two aspects: heat exchanger tube sheet and processing container plate. The total thickness of the tube sheet is 75-100mm and the thickness of the coating is 12-15mm. The total thickness of the processing vessel plate is 19-25mm and the coating thickness is 2-3mm. Titanium-steel clad plate has a good application prospect in the manufacture of heat exchanger tube sheet, large diameter (1800 mm) seamless head and reactor. Titanium clad steel plate tube sheet is used more in the reactor and terephthalic acid plant equipment, as well as ethylene glycol, maleic acid and rust remover production equipment. Some reservoirs have operating temperatures up to 200℃, internal pressure of 9 MPa, equipment diameters of 700 mm, length of 1080 mm, and composite plate thickness of (2 + 15) mm.For petrochemical equipment operating at ordinary high pressures and temperatures, the lining must provide good heat conduction and must withstand heat cycles, pressure differences and other pressures. Therefore, loose lining or spot welding additional lining is not satisfactory, but the titanium-steel clad plate can meet the above requirements. Titanium clad steel plates tube sheets are used not only in pressure vessels, heat exchangers and tubesheets, but also in the following applications: A. containers for municipal sewage treatment, which contain larger chloride. B. chemical distillation tanks for high temperature applications. C. water storage containers and containers for nuclear waste disposal

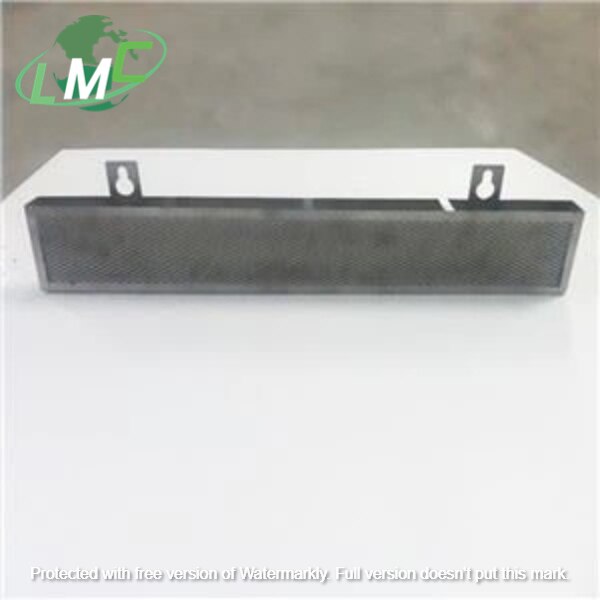

Product Name: Titanium Anode Basket Material: Gr1, Gr2 Size: Customized Application: Anodizing Electroplating Plating Shape: Rectangular, round and spiral etc. Product Information Titanium basket is made of high quality Gr2 industrial pure titanium. The purity of titanium is 99.7%, and it has strong corrosion resistance. It is suitable for loading anode materials in various electroplating tanks. It adopts precision welding technology, and the welding joints are tightly combined and firm. Material: Gr1, Gr2 Size: Customized Application: Electroplating, anodizing, plating etc. Surface: Sand Blasting, Acid Washing, Brush Coating etc. Shape: Rectangular, round and spiral etc. MOQ: 10pcs Precautions The month of titanium basket should be slightly higher than the liquid level to prevent anode slag from flowing out. The lower end of the titanium basket should be 100~150mm higher than the part to avoid excessive current concentration of the lower part, causing scorching.

Product Name: Titanium Anode Basket Material: Gr1, Gr2 Size: Customized Application: Anodizing Electroplating Plating Shape: Rectangular, round and spiral etc Characteristics 1. Used in the electroplating industry, it can effectively control the ratio of anode to cathode; 2. The anode has good solubility and produces less anode mud; 3. It is convenient to load or supplement anode materials; 4. The anode material is fully used, saving energy consumption; 5. Titanium basket has the characteristics of acid resistance, alkali resistance, corrosion resistance, high temperature resistance and high strength; 6. Titanium basket uses a mesh drawn from industrial pure titanium plates, which has high tensile strength and durability. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

LADHANI METAL CORPORATION To meet diversified needs of our esteemed clients all over the world, we are offering a vast range of Duplex Bright Bar. This steel round bar is manufactured according to the market standards by utilizing high quality material & modern techniques. Our steel round bar is well tested on several parameters so as to dispatch a defect free range. The offered steel round bar is made accessible in various specifications to meet the requirements of our customers. Features: Dimensional accuracy Elegant design Corrosion resistance Specifications: Range: 5 mm Dia to 500 mm Dia Grade: 202, 202Q, 304, 304L, 302, 303, 310, 316, 316L, 409, 309, 420, 440 Duplex & Super Duplex Application: Machined components pump shafts, valves, fasteners, machine tools, dairy equipments, surgical & medical parts, threaded bars, studs, bolts, pins, hinges and handles.
