Standard: ASTM B863 Material: Gr2 Unit Price: $25usd/kg-$60usd/kg Shape: Straight, Spool, Coil Diameter: 0.1-7.0mm Surface: Bright Titanium wire has low density but high strength-to-weight ratio. In addition, it is non-toxic, non-magnetic and corrosion resistant. All these unique properties make titanium wire widely used in titanium woven and knitted mesh, electroplating, titanium fastener forming, welding, medical equipment manufacturing, spectacle frames, jewelry design and many other key industries. Generally, users pay more attention to the chemical elements or impurities of titanium welding wire. For other applications, customer concerns will include surface condition, tolerance precision, tempering (hardness), continuous coil weight/dimensions, tensile strength/yield strength, etc. Our engineers will find you the most suitable solution for your specific job here. Product name Titanium Wire Grade Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23, Ti-15V-3Al-3Cr-3Sn (Ti-15333), Nitinol (Ni-Ti) Size 0.1-7.0mm Shape Straight, Spool, Coil Surface Polishing, Pickling Standard ASTM B863 (for general industry) AWS A5.16 (for welding) ASTM F67, F136 (for medical) Customized specification Certificates EN 10204 3.1 Third parts inspection - SGS, TUV, BV etc.

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Our machined titanium round bar is in accordance with ASTM B348. Such as Ti-6Al-4V, Ti-0.2PD grade 7, Ti-15V-3Cr-3Sn-3Al bar. Titanium is a synonym for titanium alloy products with high tensile strength, lightweight and excellent corrosion resistance. Our machined titanium round bar used in a variety of high-tech and high-performance applications. Chemical, aerospace, racing and automobile all benefit from the unique chemical and mechanical properties provided by titanium. We provide a comprehensive rod blanking service internally. We cut your titanium rod products to precise lengths or into manageable blanks. Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR7, GR12, GR23, TC11, TC21 Russian Grade: BT1-00,BT1-0,BT1-2, BT9, BT22 Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: Annealed Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking.

Product Name: Titanium bars grade 4 Standard: ASTM B348 Material: Grade 4 Unit Price: $15usd/kg- $45usd/kg Shape: Round Diameter: 6-350mm Length: Max 6000mm Surface: Bright Condition: Annealed Description Titanium bars grade 4 Material:titanium gr4 Standard:ASTM B348 Diameter:3mm 4mm 5mm 6mm 8mm 10mm 12mm ...36mm 38mm 40mm 42mm 45mm 50mm ...max 350mm Length:500mm 1000mm 1500mm 2000mm 2500mm 3000mm...max 6000mm Condition:Rolled, forged Surface:Bright Application:Chemical, industry ect. gr4 titanium bartitanium bar in stock

Product name:Titanium sheet metal Unit price:$14-$36.9/kg Material: Titanium grade 1 grade 2 grade 3 grade 4 Grade 5 (Ti6al4v),grade 7,grade 12 etc. Standard: ASTM/ASME B265 AMS 4911 ASTM F136 ASTM F67 etc. Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) Titanium has many obviously superior characteristics: small density (4.5kg/m3), high melting point (1660℃), strong corrosion resistance, high specific strength, good plasticity, but also through alloying and heat treatment methods to produce a variety of alloys with high mechanical properties, is an ideal aerospace engineering structural materials. Titanium sheet metal are commonly used in today's manufacturing industry, and the most commonly used grades are 2 and 5. Grade 2 titanium Grade 2 is commercial pure titanium used in most chemical processing plants and can be cold formed. Ultimate tensile strength of grade 2 plates and sheets up to 40,000 psi and above. Grade 5 titanium Class 5 is an aerospace class that does not allow cold molding and is therefore used more often when molding is not required. Grade 5 aerospace alloys have ultimate tensile strength of 120,000 psi and above. Usually the purpose of using Titanium sheet metal is to really approximate the final size of the part being manufactured. The material is processed to the nearest size of the required parts and the grain structure of the finished product is more uniform. Titanium plates are often used as insulation because titanium prevents heat from being transferred to the rest of the assembly. The titanium plate and titanium plate are bulletproof and provide good protection for the driver during the race. Application example: in addition to the use of industrial pure titanium manufacturing parts, a large number of titanium alloy is used. It is increasingly widely used in aerospace, aerospace, chemical, shipbuilding and other industrial sectors, manufacturing gas turbine components, the production of prosthetic devices and other biological materials

Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Grade 7 Titanium Tubes Product name: Grade 7 titanium tubes Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Dimension and Tolerance of titanium tube Outside diameter, in.(mm) Diameter tolerance, in.(mm) Permissible variations , wall thinckness, t, % in.(mm) <1 (25.4) ±0.004( ± 0.012) ±10 1-1½(25.4-38.1) ±0.005( ±0.127 ) ±10 1½-2(38.1-50.8) ±0.006( ± 0.152) ±10 2-2½(50.8-63.5) ±0.007( ± 0.178) ±10 2½-3½(63.5-88.9) ±0.010( ± 0.254) ±10 Grade 7 (Ti-0.2Pd) titanium tube Chemical compositions(weight%,<=) Pd Al V Fe C 0.12-0.25 ---- ---- 0.30 0.08 N H O Other(total) Ti 0.05 0.015 0.2 0.4 Remainder Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 370 250 20 25 The density of titanium alloy is generally about 4.51g/ cubic centimeter, only 60 of steel, the strength of pure titanium is close to the strength of ordinary steel, some high strength titanium alloy exceeds the strength of many alloy structural steel. Therefore, the specific strength (strength/density) of titanium alloy is much higher than that of other metal structural materials, as shown in Table 7-1. It can produce components with high unit strength, good rigidity and light weight. At present, titanium alloy is used for engine components, skeleton, skin, fasteners and landing gear. High thermal strength The use temperature is several hundred degrees higher than aluminum alloy, can still maintain the required strength at moderate temperature, can work for a long time at 450500 temperature these two titanium alloys still have high specific strength in the range of 150500, and aluminum alloy at 150 than the strength decreased significantly. Titanium alloys operate at temperatures up to 500, while aluminum alloys operate below 200. Good resistance to corrosion The corrosion resistance of titanium alloy is much better than that of stainless steel when working in humid atmosphere and seawater medium. Resistance to pitting corrosion, acid corrosion, stress corrosion is particularly strong; Excellent corrosion resistance to alkali, chloride, chlorine organic articles, nitric acid, sulfuric acid and so on. But titanium has poor corrosion resistance to reducing oxygen and chromite medium. Good low temperature performance Titanium alloy can keep its mechanical properties at low temperature and ultra low temperature. Titanium alloys with good low temperature performance and very low gap elements, such as TA7, can maintain certain plasticity at -253. Therefore, titanium alloy is also an important low temperature structural material.

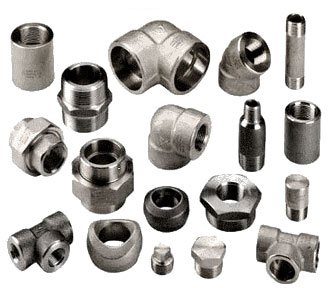

Product Name: titanium grade 2 elbows Standard: ASME B16.9 Material: Titanium Gr2 Unit Price: $10usd/pc-$200usd/pc Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded Description Titanium grade 2 elbows An elbow is a pipe fitting used at the turn of a pipe. Among all the pipe fittings used in the pipeline system, the proportion is the largest, about 80%. Generally, different forming processes are selected for elbows with different materials or wall thickness. PRODUCT TYPE Long radious elbow(LR elbow), short radious elbow(SR elbow), seamless elbow, butt welding elbow, carbon steel elbow(CS elbow), mild steel elbow(MS elbow), alloy steel elbow(AS elbow),stainless steel elbow(SS elbow), ( 15deg, 30deg, 45deg, 90deg, 180deg) SIZE NPS1/2”-120”(DN15-3000) WALL THICKNESS SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP……. MATERIAL Titanium Gr2 STANDARD ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 etc… We can also produce according to drawing by customers. SURFACE TREATMENT Pickled PACKING plywood cases, pallets, nylon bags or according to the customers' requirements TRADE TERM FOB, CNF&CFR, CIF APPLICATION Chemical industry, petroleum industry, construction industry, power industry, gas industry, shipbuilding ,domestic installation and other CERTIFICATES ISO-9001:2015 ORIGIN Baoji, Shaanxi, China Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Titanium Bar Standard: ASTM B348 Material: GR1, GR2, GR5, GR7, GR12 Shape: Round, Square, Flat, Hex Diameter: 6-350mm Length: Max 6000mm Surface: Bright Product Information Standard: ASTM B348, AMS 4928, ASTM F67,ASTM F136 Grade: GR1, GR2, GR4, GR5, GR5 ELI, GR7, GR12, GR23, TC11, TC21, Ti-15333, Ti-662 etc. Russian Grade: BT1-100,BT1-0,BT6 etc. Shape: Round, Square, Flat, Hex Diameter: 3-350mm Length: up to 6000mm, random length is also ok and the price is lower Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per your requirements Surface: Polishing, Pickling Condition: R/M/Y Features: 1. Not any defects free from cracks no pitting. 2. Two ends flatting making sure length tolerance and good looking. Applications: water treatment, desalination, power generation, marine, aerospace, chemical processing, engine components, autometic parts, medical industry, sports equipment etc. Dia （mm） Weight per meter （kg） Dia （mm） Weight per meter （kg） Dia （mm） Weight per meter （kg） Dia （mm） Weight per meter （kg） 6 0.13 30 3.19 54 10.33 78 21.55 7 0.17 31 3.40 55 10.71 79 22.11 8 0.23 32 3.63 56 11.11 80 22.67 9 0.29 33 3.86 57 11.51 81 23.24 10 0.35 34 4.09 58 11.92 82 23.82 11 0.43 35 4.34 59 12.33 83 24.40 12 0.51 36 4.59 60 12.75 84 24.99 13 0.60 37 4.85 61 13.18 85 25.59 14 0.69 38 5.11 62 13.62 86 26.20 15 0.80 39 5.39 63 14.06 87 26.81 16 0.91 40 5.67 64 14.51 88 27.43 17 1.02 41 5.95 65 14.96 89 28.06 18 1.15 42 6.25 66 15.43 90 28.69 19 1.28 43 6.55 67 15.90 91 29.33 20 1.42 44 6.86 68 16.38 92 29.98 21 1.56 45 7.17 69 16.86 93 30.63 22 1.71 46 7.49 70 17.36 94 31.30 23 1.87 47 7.82 71 17.86 95 31.97 24 2.04 48 8.16 72 18.36 96 32.64 25 2.21 49 8.50 73 18.88 97 33.33 26 2.39 50 8.86 74 19.40 98 34.02 27 2.58 51 9.21 75 19.92 99 34.72 28 2.78 52 9.58 76 20.46 100 35.42 29 2.98 53 9.95 77 21.00

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting MOQ:50kgs Product Information Baoji Lihua is a world-renowned manufacturer of Grade 5 Titanium Sheets, providing high quality Grade 5 Titanium Sheets to customers worldwide. Grade 5 Titanium is the most commonly used titanium grade of all titanium alloy sheets due to its ability to withstand extreme temperatures, good corrosion resistance and thermal stability. Material: GR1, GR2, GR4, GR5, GR7, GR12 Russia Grade: BT1-100,BT1-0,BT6 etc. Standard: ASTM B265 Thickness: 0.5-100mm The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require. Surface: Pickling, Polishing, Sand blasting etc. Type: Sheet, plate, foil; Straight & roll State: R/Y/M Chemical compositions(weight%,<=) Ti Al V Fe C Reminder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 825 10 25

Product Name: Titanium Pipe Standard: ASTM B338 Material: Gr1, Gr2 Unit Price: $25usd/kg-$40usd/kg Type: Welded/Seamless Shape: Round Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc. Wall Thickness: 0.5-3.0mm Length: Max 12000mm Surface: Bright MOQ:100kgs Gr1 Gr2 industrial pure titanium pipe mechanical properties and physical properties are similar to stainless steel pipe. It is good plasticity, easy processing molding,easy stamping, good welding performance. In the atmosphere and seawate ,titanium is with good corrosion resistance.The oxidation resistance is also stronger than stainless steel, but low heat resistance. It is mainly used for stamping parts and corrosion-resistant parts with little force but high plasticity, such as aircraft skeleton, ship pipelines, valves, heat exchangers, distillation towers, cold zone devices, compressor valves and so on. High plasticity parts is required to use Gr1 titanium, and the most widely used is Gr2 for other parts.Gr2 Titanium seamless fube for heat exchanger is based on the standard of ASTM B338,with strict quality and testing requirements. The titanium tubes manufactured by our factory can meet the standards and can be well used in the heat exchanger industry. Detailed Information Material: Gr1, Gr2 Standard: ASTM B338 Size: OD9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc., WT0.5-3.0mm , L Max 12000mm Wall thickness tolerance: +/- 10% Length tolerance: +3.2mm Type: Welded/Seamless Surface: Polishing, Pickling Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
