Product name: Gr2 Titanium Welded pipe Standard:ASTM B338 ASTM B862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube With the progress of titanium welded pipe welding and heat treatment technology, the titanium thin wall welded pipe widely used single or multiple gun gun TIG/PAW from fusion welding, after welding using on-line heat treatment process, through optimizing welding, annealing process, make the parent metal, weld and heat affected zone microstructure close, basically eliminate the welding stress at the same time, make the weld microstructure of homogenization. By comparison, it is found that the weld composition of the titanium welded pipe is basically the same as that of the base metal, and the mechanical properties and anti-corrosion properties of the weld are the same as those of the base metal. Widely used in petrochemical industry, exhaust pipe industry, machinery industry and so on. Product Name Titanium welded tube/tubes/pipe/pipes/tubing Standard ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B862/ASME SB862 Material Gr1, Gr2, Gr7, Gr12, etc. Length ≤16000mm Size(mm) Diameter 10-914mm Section shape Round Certification ISO9001:2015 Surface Treatment pickling, polished, bright finish etc. Feature 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity In order to study the application technology of ultra-thin wall titanium welded pipe in the distillation seawater desalination, experts have studied and analyzed the heat exchange performance, mechanical performance, corrosion performance, preventing microbial adhesion and precipitation of non-condensible gas of ultra-thin wall titanium welded pipe, and compared with copper pipe, stainless steel pipe. The results show that the ultra-thin wall titanium welded pipe is the core component of distillation seawater desalination equipment, its wall thickness has been used in batches of 0.4mm, or even thinner, the product has excellent heat exchange performance, mechanical properties, corrosion resistance, is the preferred material of distillation seawater desalination heat exchange tube.

Product name: ASTM B338 titanium Seamless Tubes for Condensers Standard:ASTM B338 ASTM B861 ASTM B862 Material:Titanium Gr7 Diameter:5-914mm Wall thickness:0.5-50mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled ASTM B338 titanium Seamless Tubes for Condensers ASTM B338 Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers ASTM B338 covers 28 grades of seamless and welded titanium alloy tubes for surface condensers, evaporators, and heat exchangers. Standard ASTM B338, ASME SB338 Regular Grade Grade 1 Grade 2 Outer Diameter 12.7mm 15mm 17mm 19mm 25.4mm 31mm etc. Wall thickness 0.9mm/1.0mm/1.2mm/1.5mm Length 3000 - 6000mm or other economical lengths Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF Form Straight titanium Pipe, Coiled titanium tube Type Seamless, ERW, EFW, Welded, Fabricated End Plain End, Beveled End, Treaded Marking Standard, Grade, OD, Thickness, Length, Heat No. (Or as per customer's request.) Application Oil Tube, Gas Tube, Fluid Tube, Boiler and Heat exchanger Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. Test Certificate Mill Test Certificate EN 10204/3.1,TPI Report, EN10204/3.2 Precautions for titanium pipe processing: During the deformation process, titanium pipe will gradually reduce wall and diameter with the rotation and feeding of the rolling mill. The pipe size required by the process can be obtained only after 5 ~ 10 rolling and finishing in one rolling pass. The cold rolling pipe mill can carry out large diameter reduction and wall reduction, but the dimensional accuracy is low after rolling, and the pipe end is prone to cracking, uneven concave convex and other phenomena. The cracking phenomenon can be solved mainly by grinding and leveling before pipe blank processing; For the uneven pipe end, similar to the "fish mouth" phenomenon, flat head treatment is required in the subsequent processing process, otherwise it will cause the plug stuffy accident. Therefore, this paper analyzes from the aspects of process, tooling and equipment, in order to find out the causes of uneven concave convex of pipe end and take effective measures to solve it. Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Permissible Variations in Thickness of Cold Rolled Titanium Plate Thickness(mm) Permissible thickness tolerance(mm) (3.71 to 4.76), excl 0.36 3.33 to 3.68 0.31 2.92 to 3.30 0.25 2.51 to 2.90 0.23 2.13 to 2.49 0.2 1.85 to 2.11 0.18 1.50 to 1.83 0.15 1.04 to 1.47 0.13 0.69 to 1.02 0.1 0.43 to 0.66 0.08 0.20 to 0.41 0.05 0.15 to 0.18 0.04 0.13 0.03 Permissible Variations in Width and Length of Cold Rolled Titanium Plate Specified width.in.(mm) for Thickness under3/16 in Permissible Variations in width,in.(mm) 24 to 48（610 to 1220）excl 48(1220) and over 1/16(+1.60),-0 1/8(+3.20),-0 Specified length ft(m) Permissible Variations in length,in.(mm) Up to 10(3) Over 10 to 20(3 to 6) 1/4(+6.35),-0 1/2(+12.7),-0

Product name: Gr2 Titanium welded Tube Standard:ASTM B338 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled Gr2 Titanium welded Tube Titanium welded pipe is produced by automatic continuous production line, using titanium strip coil with uniform wall thickness through cold bending forming, welding, online heat treatment, sizing straightening, non-destructive testing and air tightness test and other procedures. From sponge titanium to welded pipe, the material utilization rate is usually about 80%, if the titanium strip coil as the raw material, its material utilization rate is more than 95%. With the rapid development of titanium industry and mature welding technology, the titanium tube welding will also greatly enhance production efficiency, quality stability, consistency, and the production efficiency will be higher, can according to customer request length cut into the required length, short delivery time, high material utilization, cost per unit is seamless tube will be lower. Product name: Gr2 Titanium welded Tube Standard:ASTM B338 ASTMB 862 Material: GR1 GR2 GR7 GR12 Diameter:10-914mm Wall thickness:0.5-10mm Length:Max 16000mm Surface:Pickling surface/Polished Type:Seamless, welded Application:Heat Exchanger, chemical industry etc. Technique:Rolled MOQ:100kgs Titanium welded pipe production process: titanium with open book - shearing butt - looping the loading - titanium belt cleaning - type pipe forming and welding to eddy current flaw detection, the predetermined diameter - online annealing - pure sizing/straightening to eddy current flaw detection, laser caliper - online printing - scale cutting and ultrasonic testing to fine scale/flat head, air tightness test to the finished product inspection, packaging warehousing.

Product Name: Titanium seamless elbows Standard: ASME B16.9 Material: Gr1, Gr2, Gr7, Gr12 Unit Price: $10usd/pc-$200usd/pc Outer Diameter: 1/2"-48" Wall Thickness: Sch5s-Sch160s Technique: Seamless/Welded In a piping system, an elbow is a fitting that changes the direction of the pipe run. According to the angle, there are three most commonly used elbows: 45 ° and 90 ° 180 °, and other abnormal angle elbows such as 60 ° are also included according to the needs of the project. The connection methods with the pipe include: direct welding (the most commonly used method) flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc. according to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow, etc. Other names: 90 degree elbow, right angle bend, etc.

Product Name: Titanium Plate Standard: ASTM B265 Material: GR1, GR2, GR5, GR7, GR12 Unit Price: $15usd/kg-$48usd/kg Thickness: 0.5-100mm Length: 500-6000mm Or As You Require Width: 500-1000mm Or As You Require Surface: Pickling, Polishing, Sand Blasting Permissible Variations in Thickness of Cold Rolled Titanium Plate Thickness(mm) Permissible thickness tolerance(mm) (3.71 to 4.76), excl 0.36 3.33 to 3.68 0.31 2.92 to 3.30 0.25 2.51 to 2.90 0.23 2.13 to 2.49 0.2 1.85 to 2.11 0.18 1.50 to 1.83 0.15 1.04 to 1.47 0.13 0.69 to 1.02 0.1 0.43 to 0.66 0.08 0.20 to 0.41 0.05 0.15 to 0.18 0.04 0.13 0.03 Permissible Variations in Width and Length of Cold Rolled Titanium Plate Specified width.in.(mm) for Thickness under3/16 in Permissible Variations in width,in.(mm) 24 to 48（610 to 1220）excl 48(1220) and over 1/16(+1.60),-0 1/8(+3.20),-0 Specified length ft(m) Permissible Variations in length,in.(mm) Up to 10(3) Over 10 to 20(3 to 6) 1/4(+6.35),-0 1/2(+12.7),-0

Product name:Titanium Sheet Unit price:$15.5-$36.9/kg Material: Titanium Grade 5 (Ti6al4v) Standard: ASTM/ASME B265 AMS 4911 ASTM F136 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc br>Technique : Rolled Status: Annealed(M) MTC: EN10204.3.1 certificate MOQ : 10kgs Applications : Petroleum ,chemical industry, Marine, medical Package:Standard export packaging, inside foam film and pearl cotton protection, outside fumigation-free plywood case. Customized size welcome. Hot rolled titanium plate Titanium plate gr5 Grade 5 titanium plate titanium alloy plate Ti6al4v plate Grade 5 titanium is one of the most commonly used alloys in titanium industry, accounting for 50% of the world titanium consumption. Also known as Ti-6Al-4V (or ti6-4), this name refers to its main chemical composition of 90% titanium, 6% aluminum, 4% vanadium, 0.25% (maximum) iron and 0.2% (maximum) oxygen. It has almost the same high corrosion resistance as pure titanium, but has better strength, low elastic modulus, good weldability and heat treatment. The addition of aluminum and vanadium improves the hardness and physical and mechanical properties of the alloy. Product name:Titanium Sheet ,grade 5 titanium sheet ,titanium alloy sheet,10mm titanium sheet,5mm titanium sheet,gr5 titanium sheet,6Al4V sheet, Ti6Al4V titanium sheet,Titanium sheet plate price per kg Material: Titanium Grade 5 (Ti6al4v) Standard: ASTM/ASME B265, AMS 4911, ASTM F136 Demension: Thickness*1000*2000mm Thickness*3000*6000mm (Standard size); Thickness: 0.5mm; 0.8mm; 1.0mm; 1.2mm; 1.5mm; 2.0mm; 3.0mm; 4.0mm ......40mm etc Technique : Rolled Status: Annealed(M) MTC: EN10204.3.1 certificate Grade 5 (Ti6Al4V) titanium sheet/plate Chemical compositions(weight%,<=) Ti Al V Fe C Remainder 5.5-6.75 3.5-4.5 0.30 0.08 N H O Other(total) 0.05 0.015 0.2 0.4 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 895 830 12 25

Product Name: Titanium Screw Standard: DIN933 DIN934 Material: Gr2 Unit Price: $0.5usd/pc-$3.2usd/pc Head Type: Hexagon Head Surface: Polished Technique: CNC Machined, Forged MOQ: 200pcs

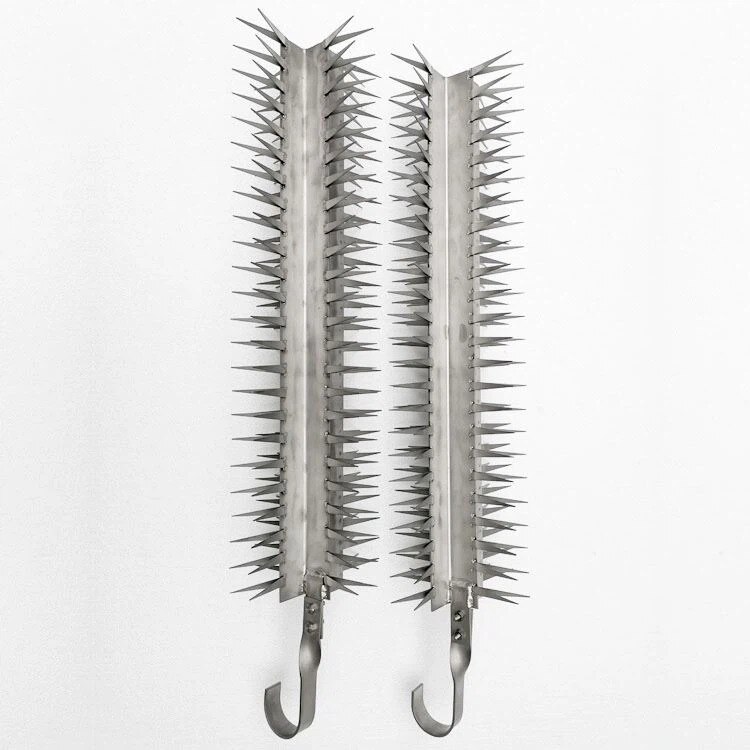

Product Name: Titanium anodizing jigs Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished What is a titanium anodizing jigs/titanium jig/titanium rack? Titanium installation in electroplating production is mainly conducted, supported and fixed parts, pendants and electrode connections, so that the current is more evenly transmitted to the parts for electroplating. In some cases, the uniform distribution of the coating can also be compensated by a suspension because the solution properties limit it. Item Anodizing Tianium jig/rack Size Customsed size Material Titanium Size(mm)in Bulk Stock 20/30/50 teeth Can be customized Grade Gr1 Gr2 Performance Corrosion-resisant Chemical composition (Wt%) ASTM No. Fe max O max N max C max H max Pd Al Bal Grade 1 0.2 0.18 0.03 0.1 0.015 - - Ti Grade 2 0.3 0.25 0.03 0.1 0.015 - - Ti Physical Properties (Min) of Titanium Anodizing Jigs ASTM Grade Alloy Composition Tensile Strength Yield Strength Elongation min % ksi Mpa ksi Mpa Grade 1 Unalloyed Ti ("Pure") 35A -CP1 35 240 25 170 30 Grade 2 Unalloyed Ti ("Pure") 50A -CP2 58 400 40 275 25
