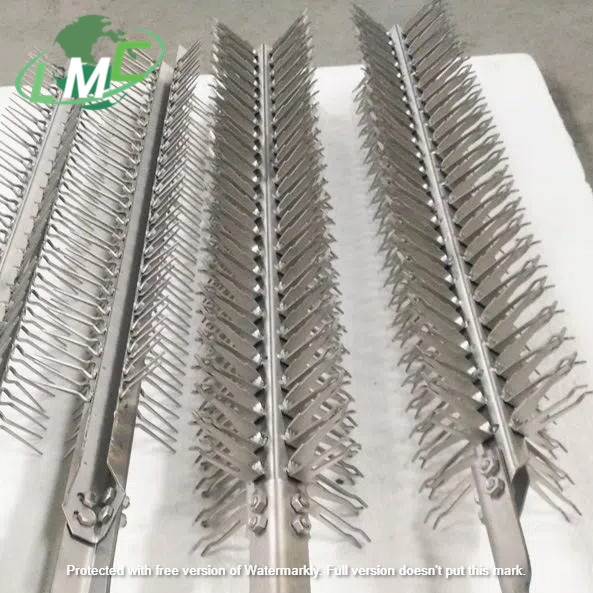

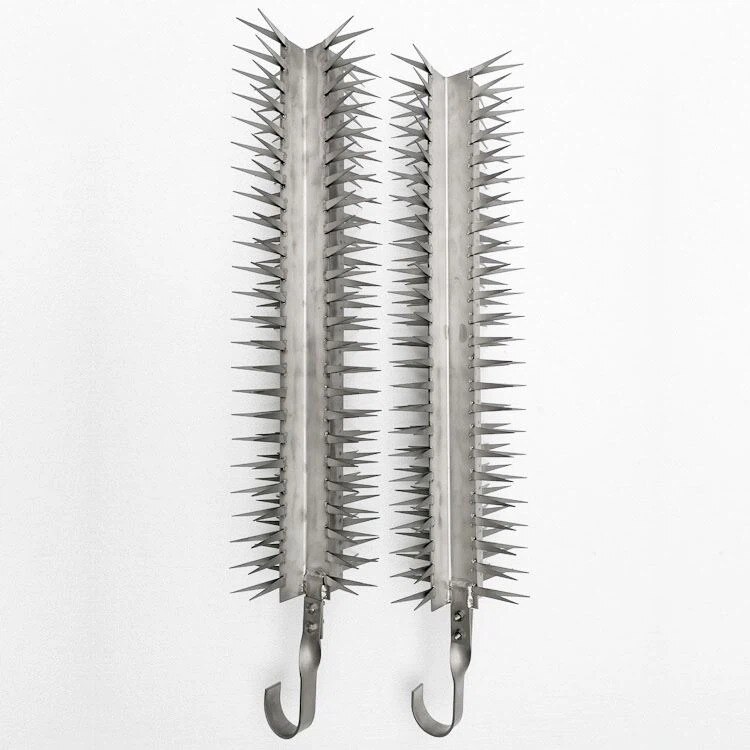

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright Characteristics Sufficient mechanical strength Good electrical conductivity Light weight Sturdiness and durability Convenient loading and unloading of parts Appropriate loading

Product Name: Titanium Rack Material: Gr1, Gr2 Application: Anodizing Size: Customized Surface: Bright

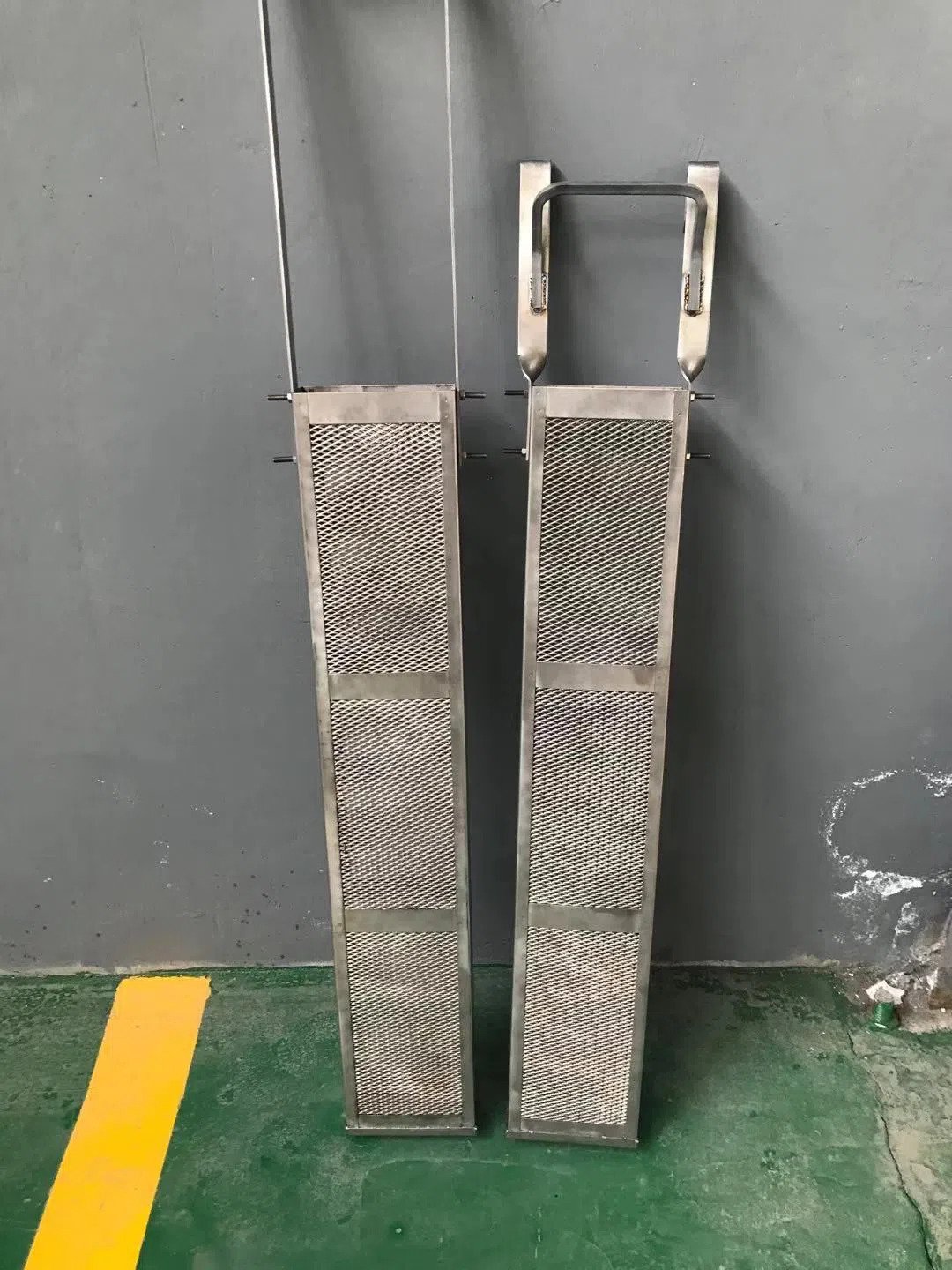

Product Name: Titanium Anode Basket Material: Gr1, Gr2 Size: Customized Application: Anodizing Electroplating Plating Shape: Rectangular, round and spiral etc.

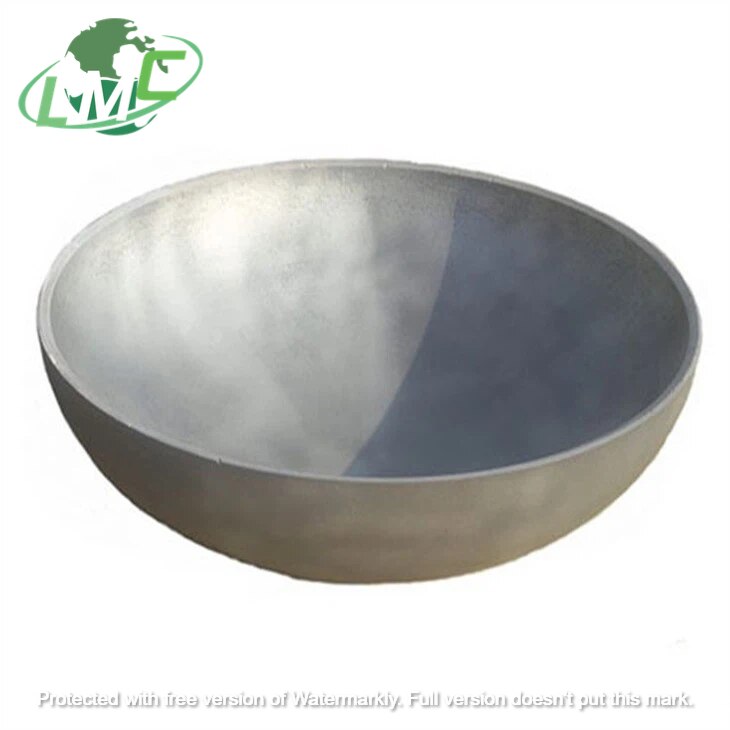

Product name:Gr12 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR1, GR2, GR7, GR12 Size: Customized Gr12 Titanium Hemispherical Head Hemispherical head refers to the head composed of half spherical shell and straight edge (cylindrical short joint). The radius of curvature of the spherical shell is equal everywhere and the force is uniform. Compared with other heads, hemispherical heads require the smallest wall thickness under the same internal pressure. At the connection between the spherical shell and the cylinder with the same thickness, the edge stress caused by the change of curvature radius is only 3.1% of the overall membrane stress of the cylinder, which can be ignored. Therefore, the mechanical properties of hemispherical head are the best and the materials used are the most economical. Product name:Gr12 Titanium Hemispherical Head Standard: ASME VIII-I, DIN28013 Material: GR12 Size: Customized MOQ:1PC Spherical head, also known as spherical crown head, is a head formed by the spherical crown part of the spherical shell, including hemispherical head and non folded spherical head. The spherical head has excellent forging, smooth surface, acid and alkali resistance, high temperature resistance, beautiful appearance and strong texture performance. The applicable medium of spherical head is gas, liquid and steam. Spherical heads are used in petroleum, electronics, chemical industry, medicine, textile, food, machinery, construction, nuclear power, aerospace, military and other industries. Precautions for use of spherical head: 1. Carbon steel spherical head will crack in nitrate, ammonia, alkaline sodium and other environments. Explain to eliminate residual stress when ordering head. 2. Stress corrosion cracking of austenitic stainless steel will occur in the specific environment with chloride ions. Select appropriate materials when designing spherical head. 3. For carbon steel vessels requiring hot galvanizing or aluminizing, heat treatment shall be carried out first to remove residual stress Titanium grade 12 pipe (Ti-0.3Mo-0.8Ni) Chemical compositions(weight%,<=) Mo Ni Fe C N 0.2-0.4 0.6-0.9 0.30 0.08 0.03 H O Ti Others Total 0.015 0.25 Remainder 0.10 0.40 Physical properties(>=) Σb Tensile Strength (Mpa) σr0.2 Yield Strength (Mpa) δL0+50mm Elongation (%) ψ Reduction of area (%) 440 345 18

Ladhani Metal Corporation offers SS 304L Half Round Tube Shields specifically designed to protect reheater (R/H) tubes in boilers, power plants, and industrial steam systems. Reheater tubes carry steam through the reheater section of the boiler, where the steam is reheated after partial expansion in the high-pressure turbine to improve efficiency and prevent moisture formation. Manufactured from low-carbon austenitic stainless steel grade SS 304L, these shields provide excellent corrosion resistance, high-temperature oxidation resistance, and superior weldability, reducing the risk of carbide precipitation during welding. Function of R/H Tubes • Carry steam through the reheater section of the boiler • Exposed to very high temperatures (often > 540°C) and erosion from flue gases • Often protected with Half Round Tube Shields in areas where flue gas velocity and ash particles cause wear Ladhani Metal Corporation manufactures, supplies, and exports SS 304L Half Round Tube Shields in various lengths, diameters, and thicknesses, catering to both domestic and international markets. SS 304L Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.03% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 18.00 – 20.00% • Nickel (Ni): 8.00 – 12.00% • Iron (Fe): Balance Applications: Suitable for reheater sections in thermal power plants, waste heat recovery boilers (WHRBs), and heat recovery steam generators (HRSGs) operating in oxidizing and moderately corrosive service environments. Uses • Protects reheater tubes from erosion, oxidation, and soot blower damage • Shields R/H tubes in high-velocity flue gas zones • Extends service life of steam circuit components in high-temperature operations • Applicable in utility boilers, WHRBs, HRSGs, and industrial steam plants Features • Superior corrosion resistance – Ideal for oxidizing boiler atmospheres • High thermal stability – Maintains mechanical integrity at elevated temperatures • Low-carbon content – Minimizes sensitization risk during welding • Precision-engineered fit – Matches exact tube curvature for maximum coverage Applications • Power generation boilers – Protection for reheater tubes under extreme thermal conditions • Waste heat recovery systems – Guards R/H tubes against particle erosion • Industrial steam plants – Reliable in fluctuating temperature cycles • Petrochemical and process heaters – Suitable for high-efficiency reheating sections Conclusion The SS 304L Half Round Tube Shield for Reheater (R/H) Tubes by Ladhani Metal Corporation offers long-lasting, corrosion-resistant protection for tubes operating under extreme temperature and erosive conditions. Designed for precision fit and durability, these shields reduce maintenance needs and extend equipment life, with availability in a wide range of export-ready specifications. For technical details and supply inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #HalfRoundReheaterShield #ReheaterTubeShield #BoilerReheaterProtection #PowerPlantTubeShield #BoilerErosionShield #SteamBoilerTubeShield #HighTempTubeShield

Ladhani Metal Corporation offers SS 304 Half Round Tube Shields designed for reheater (R/H) tubes in boilers and power plant steam systems. Reheater tubes carry steam through the reheater section of the boiler, where it is reheated after partial expansion in the high-pressure turbine to increase efficiency and prevent condensation. Manufactured from austenitic stainless steel grade SS 304, these shields offer excellent corrosion resistance, high-temperature oxidation resistance, and mechanical strength. Precision-formed to match the tube surface, they ensure secure coverage and reliable performance. Function of R/H Tubes • Carry steam through the reheater section of the boiler • Exposed to very high temperatures (often > 540°C) and erosion from flue gases • Often protected with Half Round Tube Shields in areas where flue gas velocity and ash particles cause wear Ladhani Metal Corporation manufactures, supplies, and exports SS 304 Half Round Tube Shields in various lengths, diameters, and thicknesses for both domestic and international markets. SS 304 Grade Chemical Composition – Austenitic Stainless Steel • Carbon (C): ≤ 0.08% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.045% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 18.00 – 20.00% • Nickel (Ni): 8.00 – 10.50% • Iron (Fe): Balance Uses • Shields reheater tubes from erosion, oxidation, and soot blower damage • Protects tubes in boiler reheater sections exposed to abrasive flue gases • Extends operational life of R/H tubes in high-temperature steam circuits • Suitable for utility boilers, WHRBs, and HRSG systems Features • Excellent corrosion and oxidation resistance – Ensures durability in flue gas environments • Thermal stability – Retains strength at reheater operating temperatures • Precision fit – Designed for accurate coverage of reheater tube surfaces • Long service life – Reduces wear and maintenance downtime • Multiple installation options – Welded, clamped, or banded securely Applications • Power generation boilers – Protects reheater sections from high-temperature wear • Waste heat recovery systems – Guards R/H tubes in oxidizing gas flows • Industrial steam plants – Reliable under thermal cycling • Petrochemical and process industries – Suitable for furnace steam reheating Conclusion The SS 304 Half Round Tube Shield for Reheater (R/H) Tubes by Ladhani Metal Corporation is engineered for robust protection against erosion, oxidation, and thermal wear in demanding boiler reheater environments. With excellent corrosion resistance and mechanical performance, these shields extend tube life, reduce maintenance, and are available in export-ready custom specifications. For detailed technical data and supply options, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield #HalfRoundReheaterShield #ReheaterTubeShield #BoilerReheaterProtection #PowerPlantTubeShield #BoilerErosionShield #SteamBoilerTubeShield #HighTempTubeShield #BoilerWearProtection #IndustrialBoilerShield #HeatExchangerTubeShield

Ladhani Metal Corporation offers SS 430 Boiler Half Round Tube Shields designed to protect straight boiler and heat exchanger tubes from erosion, oxidation, and high-temperature wear. Manufactured from ferritic stainless steel grade SS 430, these shields provide good corrosion resistance, excellent formability, and reliable thermal stability in moderately aggressive service environments. The shields are precision-formed into a half-round profile to match the curvature of standard boiler tubes, ensuring a secure fit and effective coverage. This design provides a physical barrier against soot blower impact, abrasive flue gas, and particulate erosion, extending the operational life of tubes and reducing maintenance costs. Ladhani Metal Corporation manufactures, supplies, and exports SS 430 Boiler Half Round Tube Shields in a wide range of lengths, diameters, and thicknesses, catering to both domestic and international markets. SS 430 Grade Chemical Composition – Ferritic Stainless Steel • Carbon (C): ≤ 0.12% • Manganese (Mn): ≤ 1.00% • Phosphorus (P): ≤ 0.040% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 16.0 – 18.0% • Nickel (Ni): ≤ 0.75% • Iron (Fe): Balance Applications: Ideal for power plants, WHRBs, HRSGs, and industrial boiler systems requiring protection in dry heat and oxidizing environments. Uses • Shields straight tubes in utility boilers and superheaters • Protects against flue gas erosion and surface scaling • Applied in WHRBs and HRSGs operating with clean or mildly corrosive gases • Suitable for industrial furnaces and heat recovery systems Features • Cost-effective protection – Combines durability with economic material choice • Oxidation resistance – Performs well in clean flue gas and dry heat conditions • Thermal reliability – Withstands repeated heating cycles without deformation • Precision fit – Formed to match tube diameter for secure installation • Flexible mounting – Can be clamped, banded, or tack welded • Export quality – Manufactured to meet international standards Applications • Thermal power stations – Guards steam and boiler tubes from scaling • Waste heat recovery boilers – Shields tubes in clean gas environments • Process heaters – Effective in less corrosive gas heating systems • Food and cement industries – Protects tubes from oxidation and moderate wear Conclusion The SS 430 Boiler Half Round Tube Shield from Ladhani Metal Corporation delivers cost-efficient and reliable protection for boiler tubes in dry heat and oxidizing service conditions. With good formability, corrosion resistance, and thermal performance, these shields are a practical solution for extending tube life and reducing operational downtime. Available in custom dimensions and export-ready specifications, they serve a wide range of industrial boiler applications worldwide. For detailed sizing, technical support, or export inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield

Ladhani Metal Corporation offers 1Cr20Ni14Si2 Boiler Half Round Tube Shields engineered for superior tube protection in high-temperature and corrosive boiler environments. Manufactured from a heat-resistant austenitic stainless steel alloy with high chromium, nickel, and silicon content, 1Cr20Ni14Si2 provides exceptional resistance to oxidation, carburization, and scaling. These shields are accurately formed into a half-round profile to fit securely over straight sections of boiler tubes. They act as a durable protective barrier against high-velocity flue gases, soot blower impact, and particulate erosion, significantly increasing tube service life and reducing unscheduled maintenance. Ladhani Metal Corporation manufactures, supplies, and exports 1Cr20Ni14Si2 Boiler Half Round Tube Shields in various sizes, lengths, and thicknesses to meet the exact specifications of clients across domestic and international markets. 1Cr20Ni14Si2 Grade Chemical Composition – Heat Resistant Austenitic Stainless Steel • Carbon (C): ≤ 0.15% • Manganese (Mn): ≤ 2.00% • Phosphorus (P): ≤ 0.035% • Sulfur (S): ≤ 0.030% • Silicon (Si): 1.00 – 2.00% • Chromium (Cr): 19.00 – 21.00% • Nickel (Ni): 13.00 – 15.00% • Iron (Fe): Balance Uses • Shields straight boiler tubes in superheater and reheater sections • Protects against oxidation, scaling, and abrasive flue gas erosion • Suitable for applications requiring excellent high-temperature stability • Extends operational life of boiler tubes in severe service conditions Features • High chromium-nickel-silicon alloy – Ensures outstanding oxidation and scaling resistance • Excellent thermal stability – Maintains mechanical strength at elevated temperatures • Precision half-round profile – Guarantees accurate and secure tube coverage • Long-lasting protection – Withstands high-temperature flue gas environments • Flexible installation – Compatible with welding, clamping, or banding methods • Export quality – Manufactured to meet global standards for durability and performance Applications • Power generation plants – Protects tubes in superheater and reheater assemblies • Petrochemical refineries – Resists carburization and oxidation in furnace atmospheres • Waste heat recovery boilers – Guards tubes in high-temperature gas flow zones • Cement and metallurgy industries – Provides protection in abrasive and thermal cycling environments Conclusion The 1Cr20Ni14Si2 Boiler Half Round Tube Shield from Ladhani Metal Corporation is specifically designed for extreme temperature and corrosive boiler environments. Its high chromium, nickel, and silicon composition delivers unmatched oxidation resistance and mechanical stability, ensuring long-lasting protection for critical boiler components. Available in customized sizes for both domestic and international supply, these shields provide dependable and efficient boiler tube safeguarding. For detailed specifications and global export services, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield

Ladhani Metal Corporation offers SS 420 Boiler Half Round Tube Shields designed to protect straight boiler and heat exchanger tubes from erosion, scaling, and high-temperature wear. SS 420 is particularly effective in dry flue gas conditions and abrasive particle exposure. The shields are precision-formed into a half-round profile to match the curvature of standard boiler tubes, ensuring a secure fit and consistent coverage. This design offers a strong protective barrier against soot blower impact, fly ash abrasion, and surface scaling, thereby extending tube service life and reducing maintenance costs. Ladhani Metal Corporation manufactures, supplies, and exports SS 420 Boiler Half Round Tube Shields in a wide range of lengths, diameters, and thicknesses to meet specific requirements for domestic and international applications. SS 420 Grade Chemical Composition – Martensitic Stainless Steel • Carbon (C): 0.15 – 0.40% • Manganese (Mn): ≤ 1.00% • Phosphorus (P): ≤ 0.040% • Sulfur (S): ≤ 0.030% • Silicon (Si): ≤ 1.00% • Chromium (Cr): 12.0 – 14.0% • Nickel (Ni): ≤ 0.75% • Iron (Fe): Balance Applications: Suitable for high-temperature and abrasive service environments such as power plant boilers, waste heat recovery systems, and process heaters. Uses • Shields straight boiler tubes in utility and industrial boilers • Protection from soot blower erosion and ash particle wear • Suitable for dry, high-temperature flue gas areas • Used in furnaces and process heaters with abrasive gas streams • Effective in extending tube life in cost-sensitive operations Features • High strength and hardness – Withstands mechanical impact and wear • Good oxidation resistance – Performs well in dry heat environments • Cost-effective – Offers durability at a competitive material cost • Precision fit – Half-round profile ensures full contact and coverage • Simple installation – Can be clamped, banded, or tack welded • Export ready – Manufactured to meet global dimensional and quality standards Applications • Thermal power plants – For protection of superheater and economizer tubes • Petrochemical and refinery boilers – Guards against scaling and erosion • Waste heat boilers – Effective against particulate-laden flue gases • Cement industry – Shields tubes from abrasive kiln dust exposure Conclusion The SS 420 Boiler Half Round Tube Shield from Ladhani Metal Corporation offers durable and wear-resistant protection for boiler tubes in high-temperature, abrasive service environments. Combining strength, hardness, and oxidation resistance, these shields are an effective solution for extending tube life and minimizing downtime. Available in custom dimensions and export-grade quality, they serve industrial boiler systems worldwide. For technical assistance, sizing options, or global supply inquiries, contact Ladhani Metal Corporation. #Mumbai #Pune #Ahmedabad #Vadodara #Surat #Rajkot #Jamnagar #Bharuch #Ankleshwar #Vapi #Delhi #Faridabad #Ghaziabad #Noida #Gurugram #Chennai #Coimbatore #Tiruchirappalli #Hyderabad #Visakhapatnam #Vijayawada #Bangalore #Mangalore #Mysore #Kolkata #Durgapur #Asansol #Bhubaneswar #Rourkela #Raipur #Bhilai #Bilaspur #Nagpur #Nashik #Aurangabad #Indore #Bhopal #Jabalpur #Kanpur #Lucknow #Varanasi #Jaipur #Kota #Udaipur #Jodhpur #Chandigarh #Ludhiana #Jalandhar #Haridwar #Dehradun #Agra #Meerut #Aligarh #Moradabad #Bareilly #Mathura #Gwalior #Rewa #Satna #Sagar #Ujjain #Ratlam #Solapur #Kolhapur #Amravati #Akola #Jalgaon #Latur #Sangli #Nanded #Gandhinagar #Bhavnagar #Mehsana #Surendranagar #Junagadh #Nadiad #Nizamabad #Karimnagar #Warangal #Kurnool #Nellore #Tirupati #Salem #Erode #Madurai #Tirunelveli #Thoothukudi #Belgaum #Hubli #Tumkur #Hassan #Cuttack #Sambalpur #Jamshedpur #Ranchi #Dhanbad #Patna #Gaya #Muzaffarpur#halftubeshield #utypehalftubeshield #tubeshieldexporter #TubeShield #HalfTubeShield #SSHalfRoundShield #BoilerTubeShield #BoilerShield #TubeProtection #Tubeshieldmanufacturer #BoilerTubeProtection #SSTubeShield #MetalIndustry #SteelFabrication #IndustrialShielding #SS304Shield #SS316Shield #StainlessSteelShield #WeldOnShield #WeldedTubeShield #TubeCladding #BoilerTubeSleeve #TubeSleeve #MetalFabrication #PowerPlantSupplies #RefineryEquipment #ProcessIndustry #MetalComponent #TubeShieldForBoilers #BoilerParts #SteelSolutions #TubeShieldManufacturer #TubeShieldSupplier #SSShielding #IndustrialTubeShield #BoilerTubeGuard #CustomMetalParts #SteelIndustryIndia #MetalEngineering #HeavyIndustrySupply #StainlessSteelIndia #SteelExporters #MetalComponentExport #FabricatedProducts #SteelDealer #IndustrialSupplyIndia #BoilerTubeFittings #TubeShieldingSolutions #HalfTubeCover #HeatExchangerShield
