Ladhani Metal Corporation: A Detailed Overview of ISO 1234 Split Pins

What Are ISO 1234 Split Pins?

ISO1234 split pins, or cotter pins, are a type of fastener used to secure or lock components in place. They are commonly used in mechanical assemblies where parts need to stay fixed and be resistant to loosening due to vibrations or movement.

Characteristics and Design of ISO1234 Split Pins

Design and Shape:

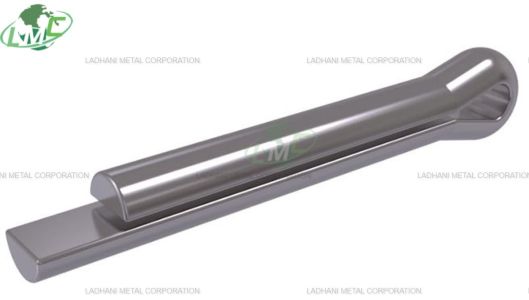

• Split pins are made of a straight pin with a split in the center, which allows the two legs to be bent around a securing component (such as a bolt or nut) to hold it in place.
• The legs are bent after insertion to lock the pin in position, ensuring that the fastener will not come undone under vibration or load.

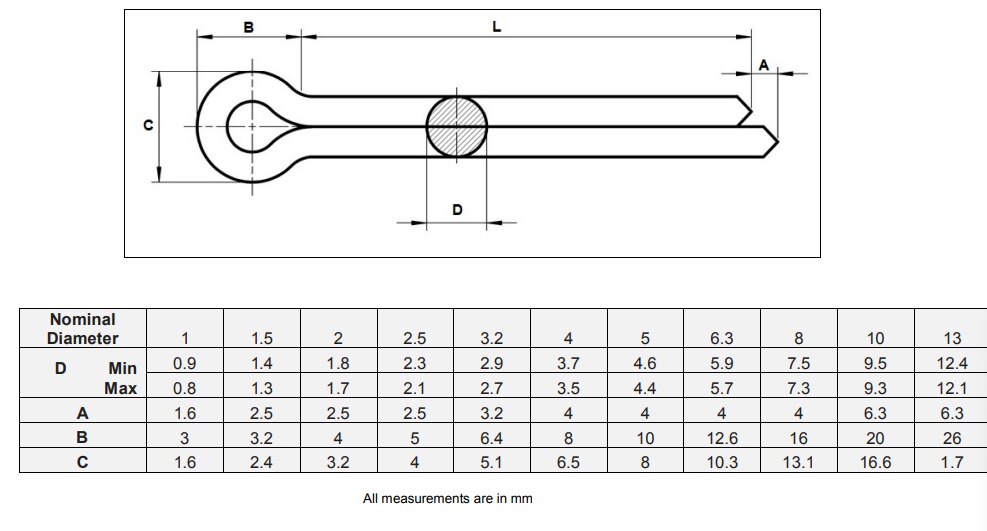

Dimensions and Sizes:

• ISO1234 split pins come in a variety of sizes, with diameters ranging from 1.5 mm to 25 mm and lengths ranging from 15 mm to 100 mm. This variety ensures compatibility with a wide range of applications, from small precision machinery to heavy industrial equipment.
• The pins typically have a length that is approximately 1.5 to 2 times the diameter, which makes them easy to bend and secure.

Materials: Ladhani Metal Corporation manufactures ISO1234 split pins in various materials to suit different environmental conditions. The most commonly used materials are:

• Titanium Grades 1, 2, and 5: Titanium is a lightweight and strong material known for its excellent corrosion resistance, especially in demanding environments.
• Stainless Steel (A2 and A4 grades): This material is highly resistant to corrosion, making it ideal for applications in harsh environments or where the pin may be exposed to moisture, chemicals, or high temperatures.
• Brass: Brass split pins are available for specific applications where non-corrosive, non-magnetic properties are required.

Technical Chemical Composition

The chemical composition of the materials used in Ladhani Metal Corporation's ISO1234 split pins is crucial for ensuring their durability, corrosion resistance, and overall performance in demanding applications.

1. Stainless Steel (A2 Grade – 304)
• Chromium (Cr): 18%
• Nickel (Ni): 8%
• Manganese (Mn): 2%
• Silicon (Si): 1%
• Carbon (C): ≤0.07%
• Phosphorus (P): ≤0.045%
• Sulfur (S): ≤0.03%
2. Stainless Steel (A4 Grade – 316)
• Chromium (Cr): 16-18%
• Nickel (Ni): 10-14%
• Molybdenum (Mo): 2-3% (providing enhanced resistance to corrosion, particularly in marine environments)
• Manganese (Mn): 2%
• Silicon (Si): 1%
• Carbon (C): ≤0.07%
• Phosphorus (P): ≤0.045%
• Sulfur (S): ≤0.03%
3. Titanium Grade 1 (Commercially Pure Titanium)
• Titanium (Ti): ≥99%
• Oxygen (O): 0.18-0.40%
• Nitrogen (N): ≤0.03%
• Carbon (C): ≤0.08%
• Iron (Fe): ≤0.30%
• Hydrogen (H): ≤0.015%

Titanium Grade 1 is known for its excellent corrosion resistance, especially in aggressive environments like seawater, and its high strength-to-weight ratio.

4. Titanium Grade 2
• Titanium (Ti): ≥99%
• Oxygen (O): 0.18-0.40%
• Nitrogen (N): ≤0.03%
• Carbon (C): ≤0.08%
• Iron (Fe): ≤0.30%
• Hydrogen (H): ≤0.015%

Titanium Grade 2 offers improved strength compared to Grade 1 and is ideal for moderately corrosive environments such as chemical processing and marine applications.

5. Titanium Grade 5 (Ti-6Al-4V)
• Titanium (Ti): 90-94%
• Aluminum (Al): 5.5-6.8%
• Vanadium (V): 3.5-4.5%
• Oxygen (O): ≤0.20%
• Carbon (C): ≤0.08%
• Iron (Fe): ≤0.30%
• Hydrogen (H): ≤0.015%

Titanium Grade 5 is a high-strength alloy, making it suitable for demanding applications in aerospace, automotive, and high-performance machinery. It provides a strong balance of high strength, low weight, and superior corrosion resistance.

Physical Properties of ISO 1234 Split Pins

1. Density:
• The density of the split pin material affects its weight and strength. Typical densities are as follows:
• Carbon Steel: ~7.85 g/cm³
• Stainless Steel: ~7.90 g/cm³
• Brass: ~8.50 g/cm³
2. Elastic Modulus:
• The modulus of elasticity (also known as Young’s modulus) is a measure of the stiffness of the material. It indicates how much a material will deform under stress.
• Typical values for carbon steel are around 200 GPa, while stainless steel has a modulus of around 200-210 GPa.
3. Corrosion Resistance:
• Corrosion resistance is critical for ensuring that split pins remain functional over time, especially in harsh environmental conditions. Stainless steel offers superior corrosion resistance, while carbon steel may need to be plated or coated to improve its resistance to rust and corrosion.
4. Conductivity:
• Brass split pins offer moderate electrical conductivity, making them ideal for applications where conductivity is a concern, such as electrical systems or machinery where electrical grounding is necessary.

Manufacturing Process of ISO1234 Split Pins

The manufacturing process for ISO1234 split pins at Ladhani Metal Corporation follows stringent quality control measures to ensure the final product meets the required standards. The process typically involves:

1. Material Selection: High-quality raw materials, such as stainless steel, titanium, zinc-plated steel, and brass, are chosen based on the application requirements.
2. Stamping and Shaping: The materials are fed into stamping machines, which form the basic shape of the split pin. The pins are then cut to the required lengths and sizes.
3. Forming the Split: A precise split is made in the center of the pin, creating two legs that can be bent to lock the pin in place.
4. Finishing and Surface Treatment: To enhance corrosion resistance, split pins may undergo surface treatments such as electroplating (e.g., zinc plating) or passivation for stainless steel and titanium pins.
5. Inspection and Testing: Each batch of split pins undergoes rigorous testing, including dimensional checks, tensile strength tests, and corrosion resistance assessments, to ensure they meet the ISO1234 standard.

Applications of ISO1234 Split Pins

ISO1234 split pins find use in a wide range of applications due to their simplicity, reliability, and cost-effectiveness. Some common uses include:

• Automotive and Transport: Used to secure bolts in steering systems, axles, wheels, and other parts of vehicles.
• Construction Machinery: Split pins are widely used in cranes, loaders, and other heavy equipment to ensure critical components stay in place under heavy loads and vibrations.
• Aerospace and Aviation: The pins secure components in aircraft and spacecraft, where safety and reliability are paramount.
• Agriculture and Industrial Machinery: Split pins are used to secure parts in agricultural machinery, engines, and other industrial equipment.
• Marine and Offshore Applications: Titanium split pins (Grade 1, 2, and 5) are ideal for use in marine environments, where exposure to saltwater and other harsh conditions is common.

Advantages of Using ISO1234 Split Pins

• Simple and Effective: The design of ISO1234 split pins is straightforward, making them easy to use in a wide variety of applications.
• Reliable: Once secured, they ensure that components remain locked in place, preventing accidental disassembly due to vibration or movement.
• Corrosion Resistance: The use of materials like titanium, stainless steel, and zinc-plated steel ensures that split pins resist corrosion and wear, even in challenging environments.
• Cost-Effective: Compared to other fasteners, split pins are relatively inexpensive while still offering excellent reliability.

Conclusion

Ladhani Metal Corporation continues to be a leader in the manufacturing and supply of high-quality ISO1234 split pins. Their commitment to providing durable, reliable, and cost-effective fasteners has made them a preferred choice for industries worldwide. Whether you're in automotive, aerospace, construction, or any other sector, Ladhani Metal Corporation's split pins ensure the secure assembly and longevity of your mechanical systems.
