Introduction
Ladhani Metal Corporation is a trusted manufacturer, supplier, and exporter of premium-quality Hastelloy butterfly valves designed for exceptional corrosion resistance, mechanical integrity, and reliability in aggressive chemical and high-temperature environments. These valves are engineered to provide long-term performance under severe service conditions found in industries such as chemical processing, petrochemical refining, marine engineering, pollution control, power generation, and pharmaceutical production.

Hastelloy butterfly valves from Ladhani Metal Corporation are fabricated using advanced nickel-molybdenum-chromium alloys that deliver superior resistance to oxidizing and reducing environments, making them ideal for handling strong acids such as hydrochloric acid, sulfuric acid, phosphoric acid, and other corrosive media. Their robust construction ensures tight sealing, low torque operation, and long service life even in chloride-contaminated or oxidizing process streams. Each valve is rigorously tested according to international standards to guarantee exceptional performance, safety, and reliability in the most demanding industrial systems.

What is a Butterfly Valve
A butterfly valve is a quarter-turn flow control device used to regulate, start, or stop the flow of liquids, gases, or slurries through a pipeline. It consists of a circular disc mounted on a rotating shaft positioned at the center of the pipe. When the actuator turns the shaft by 90 degrees, the disc moves from a fully closed to a fully open position, allowing controlled fluid passage. Owing to their compact structure, lightweight, and economical design, butterfly valves are widely used in large-diameter and high-flow systems requiring quick and reliable shut-off or throttling control.

Types of Hastelloy Butterfly Valves

Flanged Hastelloy Butterfly Valve
Flanged Hastelloy butterfly valves feature integral flanged ends that bolt directly to pipe flanges, providing a strong and leak-tight joint ideal for high-pressure and high-vibration applications. This design ensures uniform load distribution and precise alignment during installation, reducing stress on the pipeline and sealing components.

These valves are available in various pressure classes such as Class 150, Class 300, Class 600, and Class 900, suitable for diverse industrial conditions. Lower pressure classes (150/300) are commonly used in general chemical and marine systems, while higher classes (600/900) serve in power plants, acid production units, and offshore processing installations.

Flanged Hastelloy butterfly valves offer superior sealing integrity, ease of maintenance, and long service life, especially when used with PTFE, Viton, or EPDM seats. They are widely installed in reactors, scrubbers, evaporators, and chlorination plants where exposure to aggressive oxidizing or reducing agents demands materials of the highest corrosion resistance.

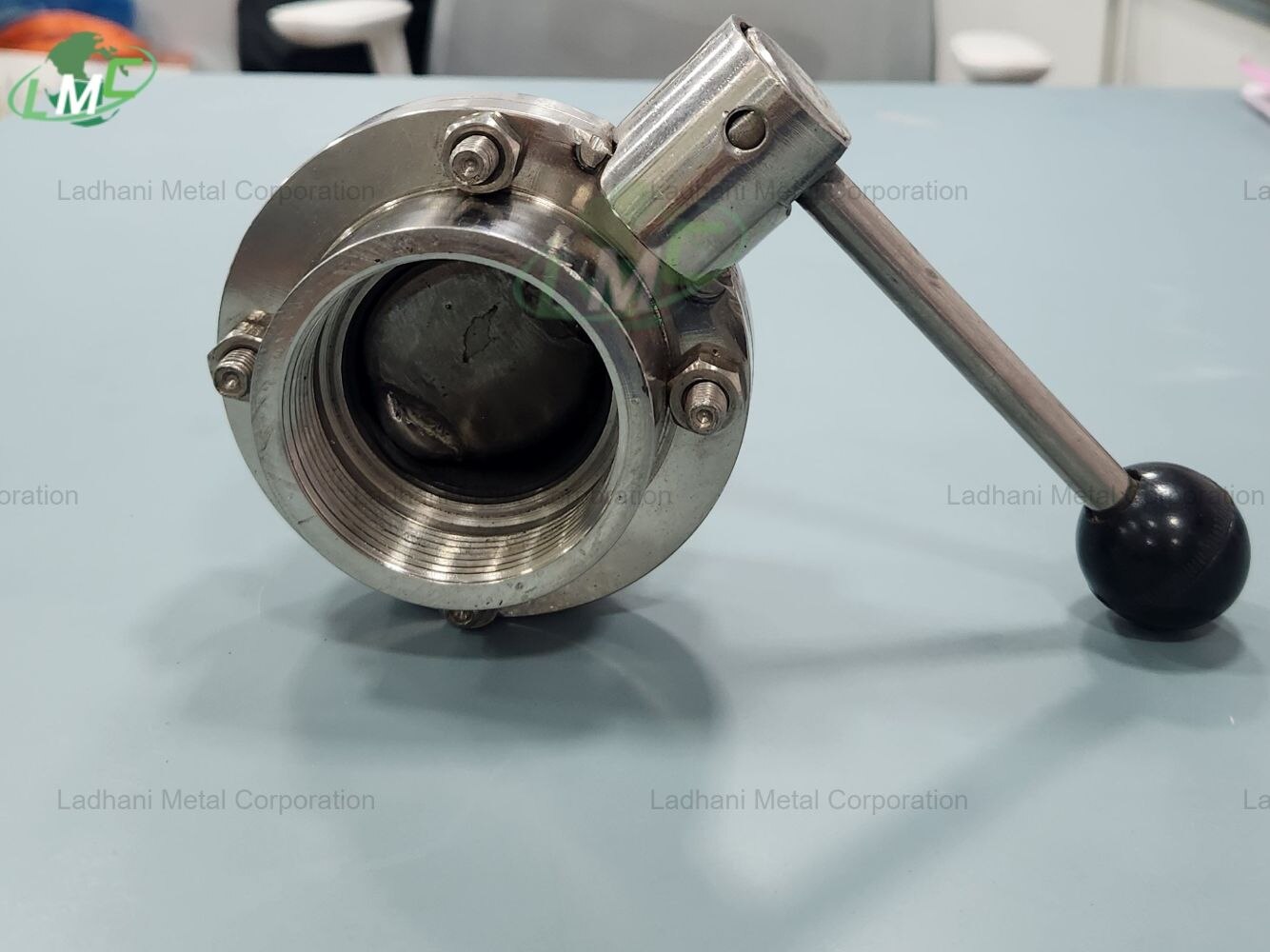

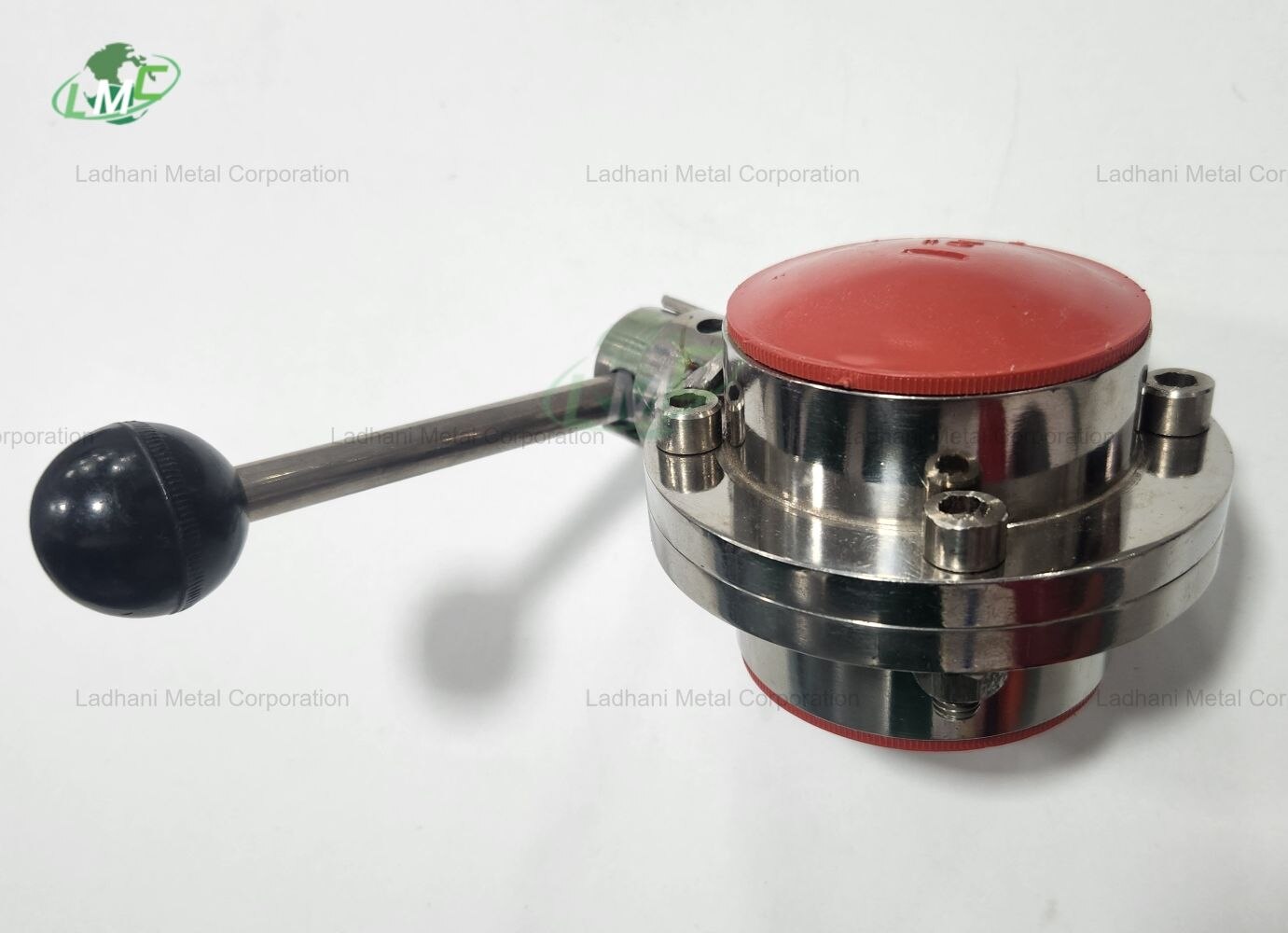

Threaded Hastelloy Butterfly Valve
Threaded Hastelloy butterfly valves are designed for compact systems where space is limited and quick installation or removal is required. The precision-machined threads ensure secure, leak-proof connections without the need for welding or flanged fittings, making them ideal for laboratory setups, pilot plants, and modular chemical systems.

Their excellent corrosion resistance prevents thread galling or seizing even after long-term service in chlorinated, acidic, or oxidizing media. These valves are suitable for low to moderate pressure applications such as chemical dosing, cooling circuits, and portable processing equipment where lightweight and corrosion-proof solutions are critical.

Actuation Methods of Hastelloy Butterfly Valves
Hastelloy butterfly valves can be operated using different actuation methods depending on process requirements, torque demands, and automation levels. Ladhani Metal Corporation provides all standard actuation configurations.

Manual Actuation
Manual operation uses a lever handle or gear operator for direct mechanical control. Lever types are suitable for smaller valves, while gear-operated units handle larger diameters with higher torque. This method is cost-effective, reliable, and requires minimal maintenance.

Pneumatic Actuation
Pneumatic actuators use compressed air to rotate the valve disc quickly and accurately. They are ideal for automated systems with frequent cycling requirements, offering high-speed operation and excellent reliability. Pneumatic actuation is common in chemical, wastewater, and refining applications.

Electric Actuation
Electric actuators utilize motor-driven mechanisms for controlled, remote operation. These are preferred in automated and monitored systems requiring modulating flow control, such as chemical reactors or power generation units. They enable precise positioning, feedback, and integration with digital control networks.

Hydraulic Actuation
Hydraulic actuators use pressurized fluid to provide high torque output, making them suitable for large valves or high-pressure systems. This method is often used in offshore drilling, refinery, and power plant environments where dependable performance under extreme conditions is essential.

Electro-Pneumatic Actuation
Electro-pneumatic systems combine the rapid action of pneumatic actuators with precise electronic control, offering remote adjustability, signal feedback, and integration with industrial control systems. They are widely used in modern automated chemical and process plants.

Chemical Composition of Hastelloy Grades
Ladhani Metal Corporation manufactures Hastelloy butterfly valves using corrosion-resistant grades such as Hastelloy C-22, Hastelloy C-276, and Hastelloy C-4, each formulated to deliver optimum resistance against oxidizing and reducing agents, localized corrosion, and pitting in aggressive environments.

Hastelloy C-22
• Nickel (Ni): Balance
• Chromium (Cr): 20.0 – 22.5%
• Molybdenum (Mo): 12.5 – 14.5%
• Iron (Fe): 2.0 – 6.0%
• Tungsten (W): 2.5 – 3.5%
• Cobalt (Co): ≤ 2.5%
• Manganese (Mn): ≤ 0.5%
• Silicon (Si): ≤ 0.08%
• Carbon (C): ≤ 0.01%

Hastelloy C-276
• Nickel (Ni): Balance
• Molybdenum (Mo): 15.0 – 17.0%
• Chromium (Cr): 14.5 – 16.5%
• Iron (Fe): 4.0 – 7.0%
• Tungsten (W): 3.0 – 4.5%
• Cobalt (Co): ≤ 2.5%
• Manganese (Mn): ≤ 1.0%
• Silicon (Si): ≤ 0.08%
• Carbon (C): ≤ 0.01%

Hastelloy C-4
• Nickel (Ni): Balance
• Molybdenum (Mo): 14.0 – 17.0%
• Chromium (Cr): 14.0 – 18.0%
• Iron (Fe): ≤ 3.0%
• Cobalt (Co): ≤ 2.0%
• Manganese (Mn): ≤ 1.0%
• Silicon (Si): ≤ 0.08%
• Carbon (C): ≤ 0.01%

Mechanical Properties of Hastelloy Grades

Function of Hastelloy Butterfly Valve
· Provides precise throttling and isolation control with minimal pressure drop.
· Resists pitting, crevice corrosion, and stress corrosion cracking in harsh environments.
· Offers smooth and leak-tight operation even in strong acid and oxidizing conditions.
· Ensures high performance in both unidirectional and bidirectional flow.
· Enables quick actuation with minimal torque requirements.
· Retains mechanical strength and sealing integrity under elevated temperatures.
· Prevents scaling, fouling, and erosion in aggressive process streams.
· Offers compatibility with various seat materials (PTFE, Viton, EPDM) for chemical versatility.
· Requires minimal maintenance and supports high-cycle automated operation.
· Maintains dimensional stability under thermal cycling and high-stress applications.

Applications
Hastelloy butterfly valves are engineered for critical applications that demand superior corrosion resistance, high mechanical reliability, and extended operational life.

· Chemical and Petrochemical Processing: Ideal for acid handling systems, chlorine reactors, and heat exchangers exposed to oxidizing and reducing agents.
· Pollution Control and Waste Management: Used in flue gas scrubbers, waste incineration plants, and neutralization units.
· Pharmaceutical and Bioprocessing: Suitable for sterile and hygienic flow systems resistant to aggressive cleaning chemicals.
· Marine and Offshore Engineering: Provides exceptional protection against seawater corrosion and brine exposure in marine systems.
· Power Generation: Used in condenser, boiler feed, and cooling circuits exposed to corrosive media.
· Pulp and Paper Industry: Resists damage from bleaching agents and process chemicals.
· Desalination Plants: Performs reliably in brine and high-salinity environments.
· Oil and Gas Refining: Withstands sour gas, chlorinated streams, and aggressive hydrocarbon processes.
· Metal Finishing and Electroplating: Handles corrosive baths and pickling solutions.
· Water Treatment Plants: Controls flow in highly acidic or oxidizing wastewater systems.

Conclusion
Ladhani Metal Corporation manufactures, supplies, and exports high-performance Hastelloy Butterfly Valves in flanged and threaded configurations with various actuation options including manual, pneumatic, electric, hydraulic, and electro-pneumatic systems. Each valve is crafted from corrosion-resistant Hastelloy alloys such as C-22, C-276, and C-4, ensuring outstanding performance in the harshest chemical and industrial environments.

With advanced design, durable sealing systems, and precision-engineered construction, Ladhani Metal Corporation’s Hastelloy butterfly valves deliver unparalleled reliability, longevity, and efficiency for critical flow control applications across global industries.

For technical details, dimensional data, or customized configurations, contact:
info@ladhanimetals.com
or visit https://www.ladhanimetal.in/
