CONTACT US FOR MORE DETAILS
LADHANI METAL CORPORATION, MUMBAI, INDIA
En10297 16MnCr5 Cold Drawn Steel Tube Mechanical and General Engineering Purpose, Manufacturer, Supplier, Exporter.
Product Details:
| Brand Name: | LMC |
|---|
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ: 2-3 ton |
|---|---|
| Price: | USD 700- 2000/ton |
| Packaging Details: | Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips. |
| Delivery Time: | Within 15-35 days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 3000 ton/month |
| Delivery Condition: | BK, BKS, GBK, NBK | Length: | 1-12m, Customized. |
|---|---|---|---|
| Inspection: | Third Party Inspection Such As BV, SGS Are Accepted. | Package: | Standard Seaworthy Packing. |
| High Light: | Cold Drawn Seamless Tube, Cold Drawn Seamless Steel Tube, Cold Drawn Stainless Steel | ||
|---|---|---|---|

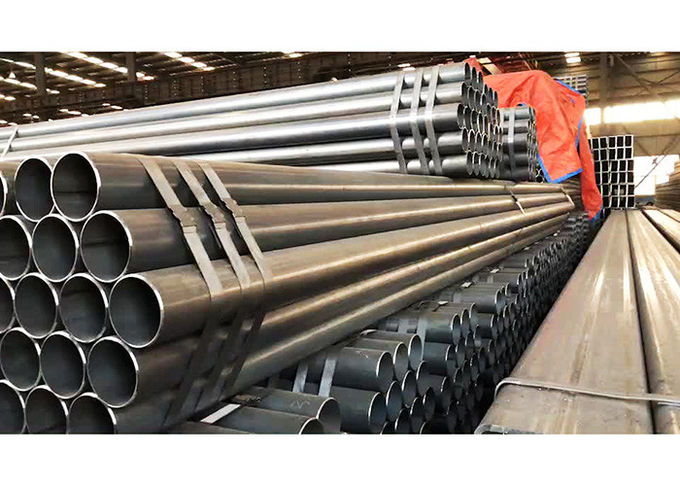

En10297 16MnCr5 Cold Drawn Steel Tube Mechanical and General Engineering Purpose
Introduction
Steel 16MnCr5 have better hardenability and machinability, the larger cross-section parts, heat treatment can get a higher surface hardness and wear resistance, low temperature impact toughness is also higher. 16MnCr5 gear steel after carburizing quenching use, mainly used in the manufacture of gears, worms, seals and other parts of the sleeve.
Chemical Composition and Mechanical Properties
| Steel Grade | Chemical composition (%) | Mechanical properties | |||||||
| C | Si | Mn | P | S | Cr | Tensile strength (MPa) | Yield strength (MPa) | Elongation (%) | |
| max | max | max | max | max | max | min | min | min | |
| En10297 16MnCr5 | 0.14-0.19 | 0.40 | 1.00-1.30 | 0.035 | 0.035 | 0.80-1.10 | 880-1180 | 635 | 9 |
Surface
Smooth, bright, painted, oiled, black or as required.
Delivery Conditions
1. BK (+C): No heat treatment after last cold forming process.
2. BKW (+LC): After last heat treatment there is a light finishing pass (cold drawing).
3. BKS (+SR): After the final cold forming process the tubes are stress relieve annealed.
4. GBK (+A): After the final cold forming process the tubes are annealed in a controlled atmosphere.
5. NBK (+N): After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere.
End
- Plain
- Beveled
- Thread with Coupling or cap
- Chamfer
- Groove
- Screw
Package
Export standard package; bundled wooden box, suit for all kinds of transport, or be required
What we can offer?
-We offer a wide range of steel products in a wide variety of dimensions and executions, according to the common international specifications or customize.
-Machining and heat treatment are available.
-Also, we advise you in choosing the right materials.
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
Package
In standard export packing and seaworthy material with hexagon shape bundle, covered with tarpaulin, in containers or in bulk, or upon request
Payment & Delivery
1. Both T/T and L/C will be acceptable
2. Trade Terms: FOB, CIF, CFR
3. The delivery will be in 10-15 days if have stock; For customized items, the delivery will be negotiated by both parties
4. Shipping by sea freight from Shanghai Port (PRC) for Bulk orders, by airfreight or express for samples
Company Information
Ladhani Metal Corporation.
We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales.
In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India.
What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want!
