Introduction
EN 10111 is a European
standard that specifies requirements for continuously hot rolled low carbon
steel sheet, strip, plate, and coil products intended for cold forming and
general engineering applications. These steels offer excellent formability,
weldability, and surface quality, making them suitable for manufacturing
components that require bending, drawing, pressing, and fabrication.

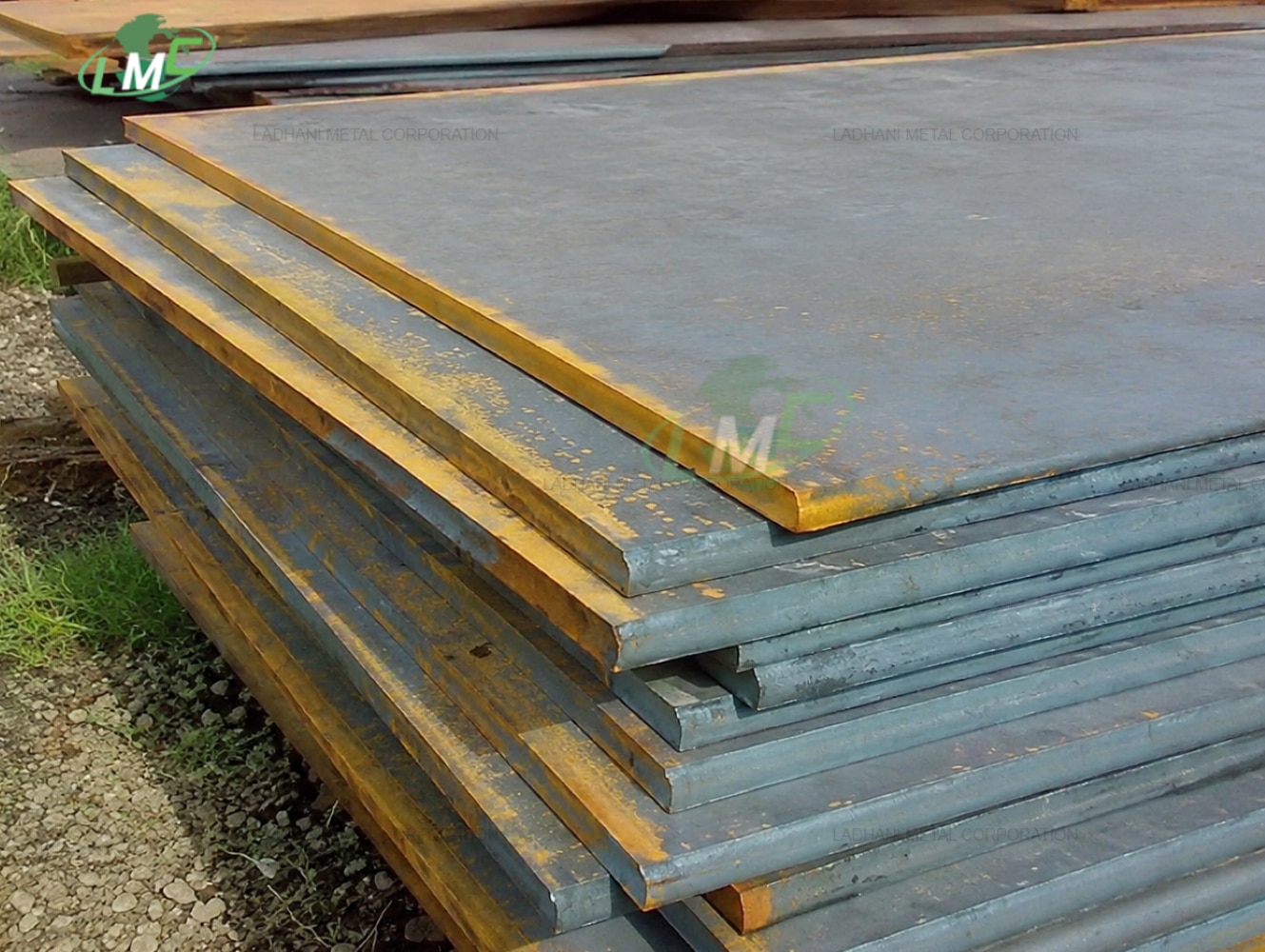

EN 10111 steel plates, strips,
and coils are extensively used in automotive manufacturing, construction
equipment, agricultural machinery, storage systems, industrial fabrication, and
general engineering industries. Their excellent processing characteristics and
cost-effectiveness make them one of the most widely used hot rolled steel
products in Europe and international markets.
Ladhani Metal Corporation is
a manufacturer, supplier, and exporter of EN 10111 hot rolled steel plates,
strips, and coils, supplying premium-quality steel products for industrial and
engineering applications worldwide.
Applicable Standard
Standard Specification: EN
10111
Organization: European
Committee for Standardization (CEN)
Title: Continuously Hot
Rolled Low Carbon Steel Sheet and Strip for Cold Forming
This standard covers hot
rolled low carbon steel flat products intended for forming and fabrication
applications.
Forms of Supply
EN 10111 steel products are
supplied in the following forms:
- Hot rolled steel plates
- Hot rolled steel sheets
- Hot rolled steel strips
- Hot rolled steel coils
- Slit coils
- Cut-to-length sheets
- Precision cut plates
- Flat steel products
- Customized blanks
- Profile cut components
- Fabricated steel parts
Grades Covered Under EN 10111
· DD11
· DD12
· DD13
· DD14
Supply Condition
- Hot rolled
- Pickled and oiled
- Unpickled condition
- Skin passed condition
- Cut-to-length condition
Surface Finish
- Hot rolled finish
- Pickled finish
- Oiled finish
- Pickled and oiled finish
- Descaled finish
- Mill finish
Standard Sizes
Thickness: 1.2 mm to 25 mm
Width: 600 mm to 2500 mm
Length: Up to 12000 mm
Coil Weight: Up to 35 metric
tons
Custom dimensions are
available according to customer requirements.
Chemical Composition of EN 10111 Grades (%)
|
Grade |
Carbon (C) Max |
Manganese (Mn) Max |
Phosphorus (P) Max |
Sulfur (S) Max |
|
DD11 |
0.12 |
0.60 |
0.045 |
0.045 |
|
DD12 |
0.10 |
0.45 |
0.035 |
0.035 |
|
DD13 |
0.08 |
0.45 |
0.030 |
0.030 |
|
DD14 |
0.08 |
0.40 |
0.025 |
0.025 |
Mechanical Properties of EN 10111 Steel
|
Grade |
Yield Strength (MPa) Max |
Tensile Strength (MPa) |
Elongation (%) Min |
|
DD11 |
280 |
270 – 410 |
26 |
|
DD12 |
260 |
270 – 370 |
28 |
|
DD13 |
240 |
270 – 370 |
30 |
|
DD14 |
220 |
270 – 350 |
34 |
Mechanical properties may
vary depending on thickness and processing conditions.
Key Features of EN 10111 Plates, Strips and Coils
- Excellent formability
- Superior weldability
- Good surface quality
- Consistent mechanical properties
- Suitable for cold forming
operations
- Excellent bending characteristics
- Good dimensional accuracy
- High productivity during
fabrication
- Cost-effective engineering material
- Available in multiple forming
grades
Applications of EN 10111 Plates, Strips and Coils
Automotive Industry
- Vehicle body components
- Chassis parts
- Reinforcement components
- Automotive assemblies
Construction Industry
- Structural fabrications
- Building components
- Roofing systems
- Cladding applications
Agricultural Equipment
- Farm machinery
- Equipment frames
- Storage systems
- Agricultural components
Industrial Manufacturing
- Fabricated structures
- Machinery parts
- Equipment enclosures
- Material handling systems
Storage and Material Handling Industry
- Storage tanks
- Containers
- Shelving systems
- Industrial racks
General Engineering Applications
- Pressed components
- Formed sections
- Structural fabrications
- Engineering assemblies
Fabrication and Forming
EN 10111 steels are specifically
designed for forming operations and offer excellent fabrication
characteristics.
- Suitable for bending
- Excellent stamping performance
- Good drawing characteristics
- Suitable for roll forming
- Easy cutting and machining
- Excellent welding properties
- Suitable for deep drawing
operations depending on grade
DD13 and DD14 grades are
particularly suitable for demanding deep drawing applications.
Heat Treatment
EN 10111 products are
generally supplied in the hot rolled condition and are not normally heat
treated.
- Suitable for stress relieving if
required
- Good stability during fabrication
- Mechanical properties achieved
through controlled rolling processes
- Uniform grain structure for forming
applications
Advantages of EN 10111 Steel Products
- Excellent forming performance
- Good weldability
- Reliable mechanical properties
- Superior surface quality
- Wide range of available sizes
- Cost-effective material solution
- Suitable for automated
manufacturing
- Easy processing and fabrication
- High production efficiency
- Versatile industrial applications
Conclusion
EN 10111 DD11, DD12, DD13,
and DD14 hot rolled steel plates, strips, and coils are widely used low carbon
steel products developed for cold forming, fabrication, and engineering
applications. Their excellent formability, weldability, surface quality, and
mechanical consistency make them suitable for automotive, construction,
agricultural, industrial, and manufacturing sectors.
Ladhani Metal Corporation
supplies EN 10111 hot rolled steel plates, strips, and coils in various grades,
thicknesses, widths, and customized dimensions, ensuring high-quality material
solutions for forming and fabrication applications worldwide.
