DIN EN 20CrMo4 (1.7321) Alloy Steel Bar / Rod, Manufacturer, Supplier, Exporter.

Product Details:

Payment & Shipping Terms:

INTRODUCTION

One of the most popular and widely used carborizing steels available. 20MoCr4 is a hardenable chromium, molybdenum, nickel low steelalloy steel often used for carburizing to develop a case-hardened part. This case-hardening will result in good wear characteristics.

APPLICATIONS

Gears, shafts and other applications where a hard carborized case and a tough core are desired.

SUPPLY RANGE OF of EN 20CrMo4 1.7321

-Dimension: Diameter 4-1600 mm, any length below 16 meters

-Delivery Conditions:

Cold drawn: 4-100 mm

Peeled: 30-160 mm

Grinded: 4- 600 mm

Turned: 130-1200 mm

Hot rolled: 12-320 mm

Hot forged: 130-1600 mm

-EAF+(ESR) or EAF+LF+VD+(ESR)

-HOT rolled; Cold rolled; Forged; Cold Drawn

-Heat Treatment: Untreated, Annealing, N+T, Q+T

-Smelting: EAF+LF+VD (+ESR)

-Surface Finish: Black, Rough Machined, Peeled, Turned or upon request

-UT 100% passed

-Cutting service provided

-Third Party inspection is acceptable (SGS, BV etc.)

Standard

ASTM A213; ASTM A335; ASTM A519; ASTM A106; ASTM A29; JIS G3462; JIS G3458; JIS G3444; JIS G4053; DIN17175; DIN1629; DIN2391; GB/9948, GB/6479; GB/T8162; GB/T8163; GB/T 3077; EN 10297; EN 10084; EN 10083; ISO 683/11; IOS 683/10; IOS 683/1; etc.

Chemical Requirements, Composition, %

20CrMo4 - General Mechanical Properties

Quality Assurance

Below inspection will be done in the production.
(1) ray detection---RT;

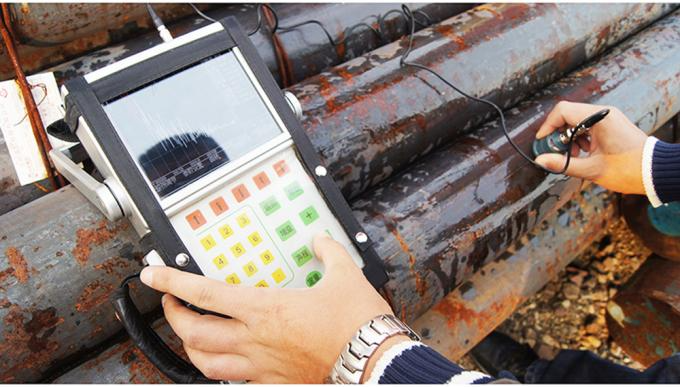

(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET

PROCESSING

Soft Annealing
Heat to 650-700oC, cool slowly. This will produce a maximum Brinell hardness of 207.

Heat Treatment


Hardenability Diagram

Forging
Hot forming temperature: 1050-850oC.

Machinability
Machining is done prior to carburizing to within as close a tolerance as possible. Finish machining, after heat treatment and/or carburizing, should be at a minimum so as not to impair the hardened case of the part. Machining may be done by conventional means prior to heat treatment - after carburizing machining is usually limited to grinding.

Welding
The alloy may be welded by conventional methods, usually gas or arc welding. Preheating at 200oC is beneficial and subsequent heating after welding is recommended - consult the approved weld procedure for the method used.

Cold working
The alloy may be cold worked in the annealed condition by conventional methods. Cold working, as with machining, should be done to as close a tolerance as possible before heat treatment or carburizing.

What we can offer?

-We offer a wide range of steel products in a wide variety of dimensions and executions, according to the common international specifications or customize.

-Machining and heat treatment are available.

-Also, we advise you in choosing the right materials.

Shape Available

• Solid round bar
• Flat bar
• Square bar
• Hexagon bar
• Block
• Plate
• Sheet
• Wire rod
• Strip

Our Advantages

• High mechanical property and quenching, enable the surface share equal hardness after deal with it
• Good polishing and low roughness
• Making the heat-treatment to harden condition before using it
• Competitive price
• Fast production lead-time
• All the material are inspected with 3 times to meet the highly standards
• Pure steel quality & stable quality to be guarantee

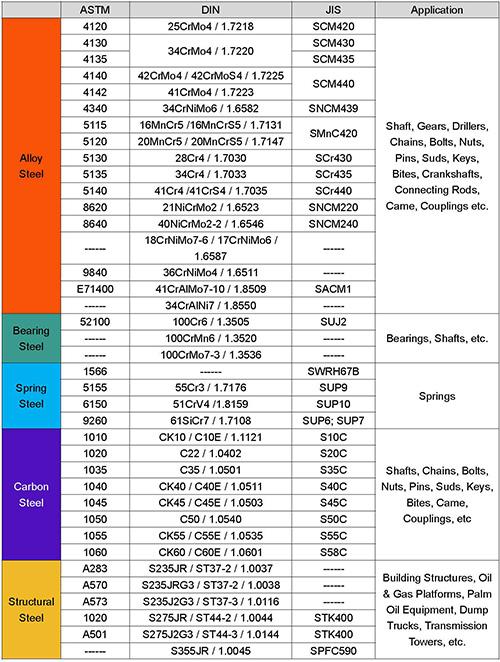

OUR MAIN PRODUCTS ARE LISTED AS BELOW

Notes:

Available Size:
-Round: Dia. 4 -1600 mm
-Flat: T. 10-120 mm x W. 60-810 mm
-Block: T. 80-1200 mm x W. 100-1600 mm

Payment & Delivery

1. Both T/T and L/C will be acceptable

2. Trade Terms: FOB, CIF, CFR

3. The delivery will be in 10-15 days if have stock; For customized items, the delivery will be negotiated by both parties

4. Shipping by sea freight from Shanghai Port (PRC) for Bulk orders, by airfreight or express for samples

Company Information

Ladhani Metal Corporation.

We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales.

In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India.

What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want!
