DIN 2391 SAE 52100 Alloy Steel Tube Cold Drawn / Rolled Technical OD 10-150 Mm, Manufacturer, Supplier, Exporter.
Product Details:
| Brand Name: | LMC |
|---|
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ: 2-3 ton |
|---|---|
| Price: | USD 700- 2000/ton |
| Packaging Details: | Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips. |
| Delivery Time: | Within 15-35 days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 3000 ton/month |
| Usage: | Automobile | Production Technique: | Hot Rolled/cold Rolled |
|---|---|---|---|
| Quality Standard: | DIN 2391, EN10305 | Surface: | Black, Bright, Smooth |
| Delivery Condition: | BKS, NBK,BK ,BKW, GBK(+A), NBK(+N), BK(+C) | Product Name: | Alloy Steel Tube SAE52100 |
| High Light: | Rolled Steel Tube, Rolled Steel Pipe | ||
|---|---|---|---|

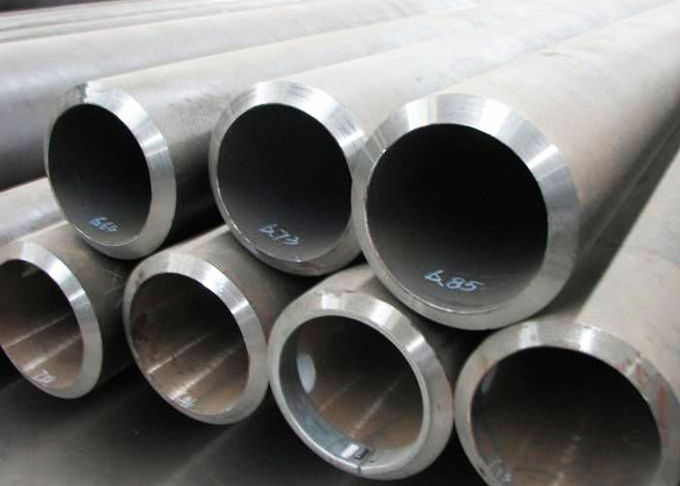

DIN 2391 Seamless Cold Rolled Steel Tube Precision cold drawn/rolled steel tubes SAE 52100
Applications:
- Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
- Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
- The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
- Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Specifications
| Material |
10#, 20#, 45#, Cr-Mo alloy, 16Mn, SAE1010, SAE1020, SAE1045, SKTM11,37Mn5,40Cr, ST35, ST52 etc
|
| Standard |
GB8713, GB3639, DIN2391, EN10305-1, EN10305-4, JIS-G3445, ASTM A519, ASTM A192, ASTM A179
|
| Main sizes |
OD: 10.00—150.00mm,WT:2.00—25.00mm
|
| Length |
Fixed length or random length
|
| Heat treatment |
BK, GBK, NBK, BKS, BKW
|
| Surface treatment |
Oiled, polished, honed
|
| Ends processing |
Plain ends, ends chamfer
|
Dimension Tolerance
| I.D tolerance (mm) | O.D tolerance (mm) | I.D Roughness (µm) | Straightness (mm/meter) |
| H7-H9 | -/+0.5% | 0.10-0.80 | 0.2-0.80 |
Chemical Composition(%)
| Grade | C | Si | Mn | P | S | Cr |
| SAE52100 | 0.95-1.10 | 0.20-0.35 | 0.25-0.45 | 0.025max | 0.025max | 1.30-1.60 |
Our Services
Third Party inspection acceptable. such as SGS, BV etc.
Supplying financial support with usance L/C 180 days after B/L date.
What we can offer?
-We offer a wide range of steel products in a wide variety of dimensions and executions, according to the common international specifications or customize.
-Machining and heat treatment are available.
-Also, we advise you in choosing the right materials.
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET

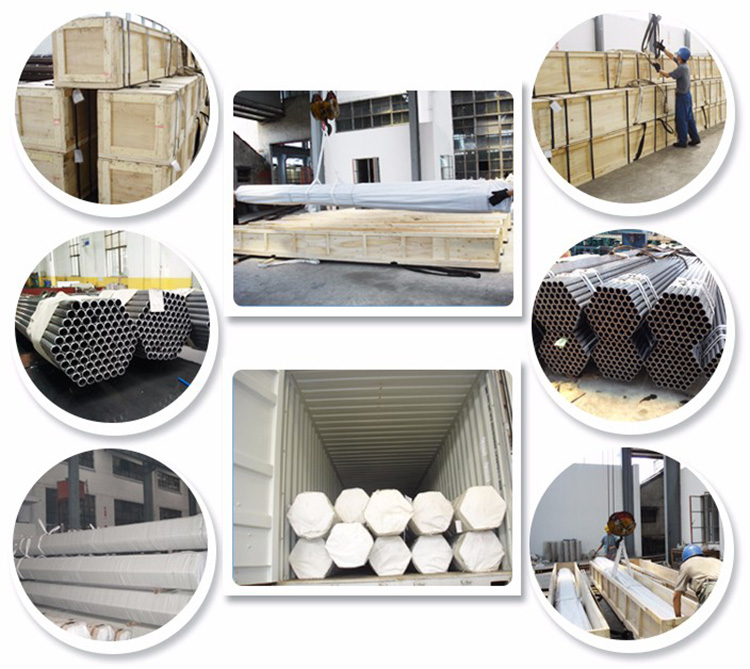

Package
In standard export packing and seaworthy material with hexagon shape bundle, covered with tarpaulin, in containers or in bulk, or upon request
Payment & Delivery
1. Both T/T and L/C will be acceptable
2. Trade Terms: FOB, CIF, CFR
3. The delivery will be in 10-15 days if have stock; For customized items, the delivery will be negotiated by both parties
4. Shipping by sea freight from Shanghai Port (PRC) for Bulk orders, by airfreight or express for samples
