C17200 Beryllium Copper Bar, Plate, Tube, Wire, Strip, Shapes, Manufacturer, Supplier, Exporter.
C17200 Beryllium Copper data sheet
C17200 Beryllium Copper chemical composition / properties
C17200 Beryllium Copper mechanical properties
C17200 Beryllium Copper physical properties
C17200 Beryllium Copper application and usage
C17200 Beryllium Copper advantages and disadvantages
C17200 Beryllium Copper qualities
C17200 Beryllium Copper material test report
C17200 Beryllium Copper ultra test report
C17200 Beryllium Copper is an age-hardened alloy having developed higher strengths while maintaining acceptable levels of toughness for many industrial applications. The age-hardening response of this alloy depends on the factors of time, temperature, and cold work applied to the metal. Toughness, fatigue strength, corrosion resistance, etc., can be modified and controlled by either underaging or overaging during the precipitation hardening process of the alloy.
C17200 Beryllium Copper is an age-hardened alloy having developed higher strengths while maintaining acceptable levels of toughness for many industrial applications. The age-hardening response of this alloy depends on the factors of time, temperature,and cold work applied to the metal. Toughness, fatigue strength, corrosion resistance, etc., can be modified and controlled by either underaging or overaging during the precipitation hardening process of the alloy.
Physical Properties
Melting Point - Liquidus °F 1800
Melting Point - Solidus °F 1590
Density lb/cu in @ 68 °F 0.29
Specific Gravity 8.26
Electrical Conductivity % IACS @ 68 °F 22
Thermal Conductivity Btu/ sq ft/ ft hr/ °F at 68°F 62
Coefficient of Thermal Expansion 10 -6 per °F (68-212 °F) 9.9
Specific Heat Capacity Btu/lb/ °F @ 68 °F 0.1
Modulus of Elasticity in Tension ksi 18500
Incipient Melting°F 600
Modulus of Rigidity ksi 7300
Machinability Rating 20
Chemical Composition:
Be: 1.80-2.0%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.
Related Standard :
Rods/Bars/: ASTM B196; SAE J461,463; AMS 4533,4534,4535; AMS4650,4651;
RWMA Class 4, GOST 15835
Tubes: ASTM B251,643
Strips: ASTM B194, AMS4530,4532; SAE J461,463, GOST 1789
Sheets: ASTM B194
Wires: ASTM B197, AMS4725, SAE J461,463, JIS 3270, GOST 15834
Plates: ASTM B194, SAE J461,463; AMS4530,4533,4534,AMS4650,4651; RWMA Class 4.
European Standards: CuBe2/CW101C, 2.1247, BrB2
C17200 Beryllium Copper Bar
Diameter: min.1.0mm

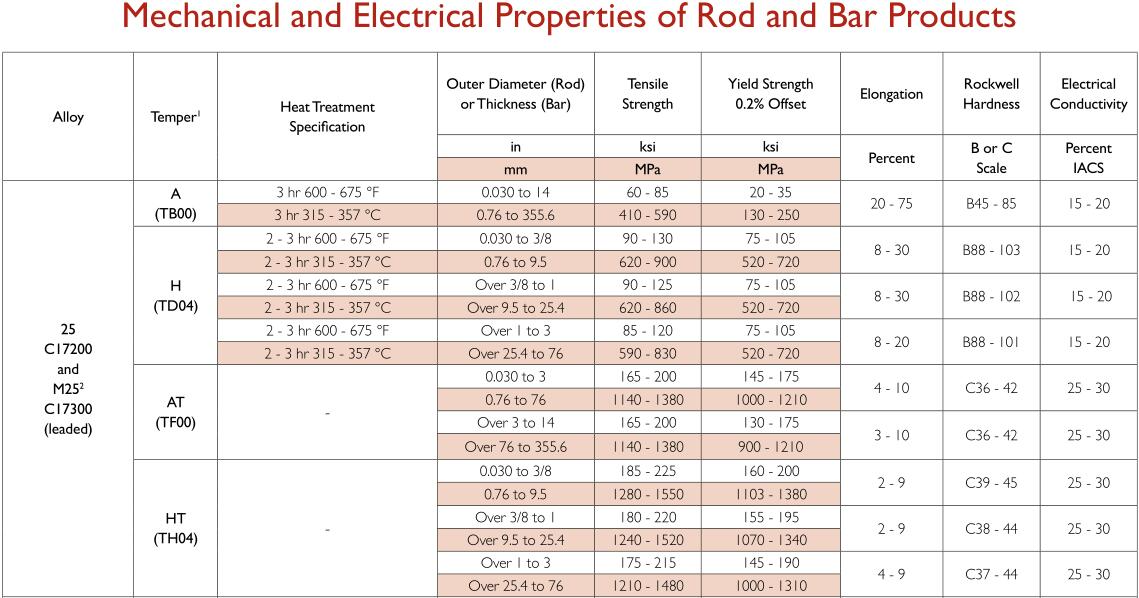

Mechanical and Electrical Properties of Rod and Bar Products.
C17200 Beryllium Copper Plate
Thickness : min.1.0mm

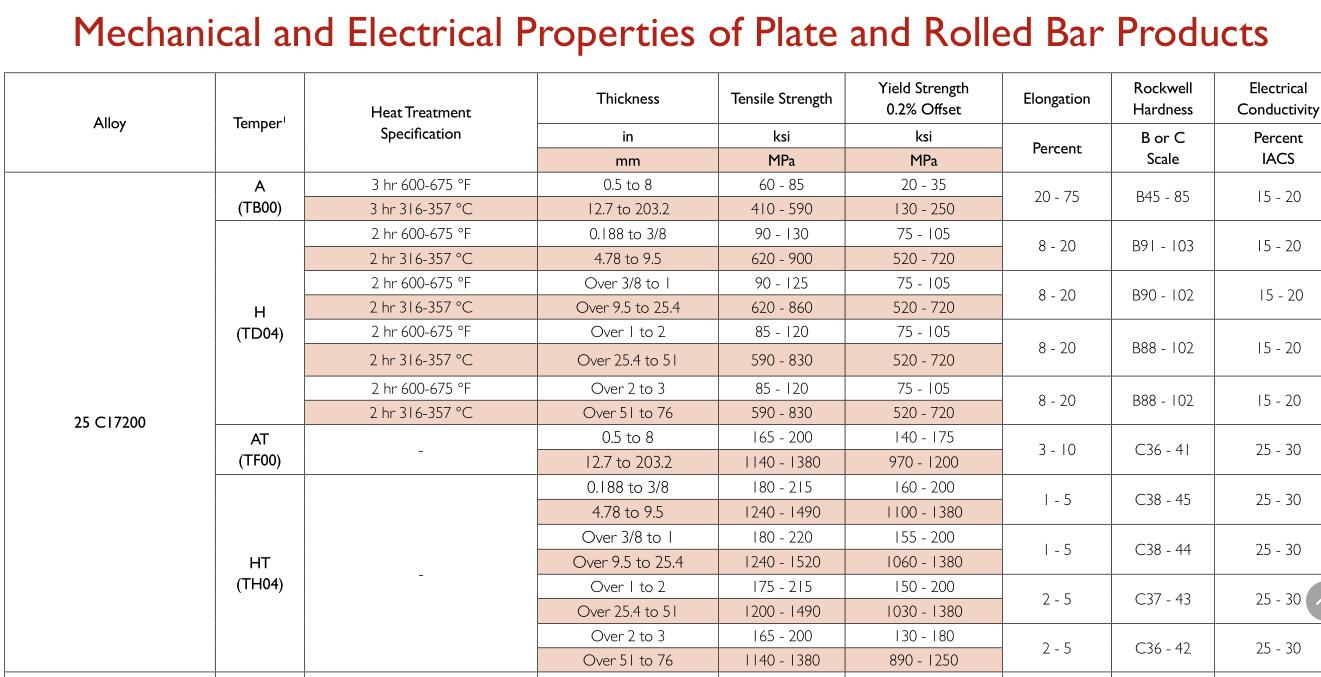

Mechanical and Electrical Properties of Plate and Rolled Bar Products.
C17200 Beryllium Copper Tube
Thickness: min 2.0mm

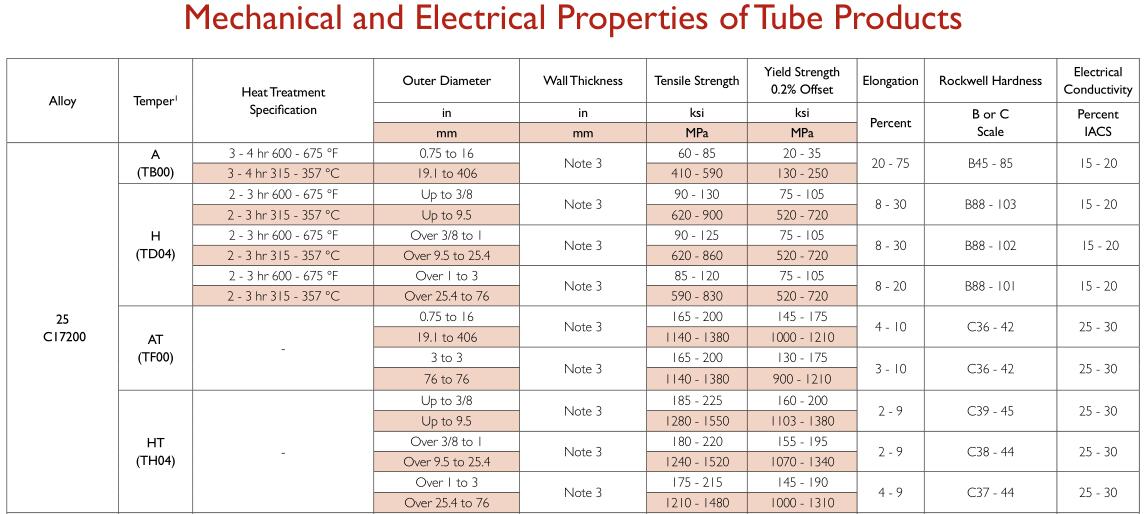

Mechanical and Electrical Properties of Tube Products.

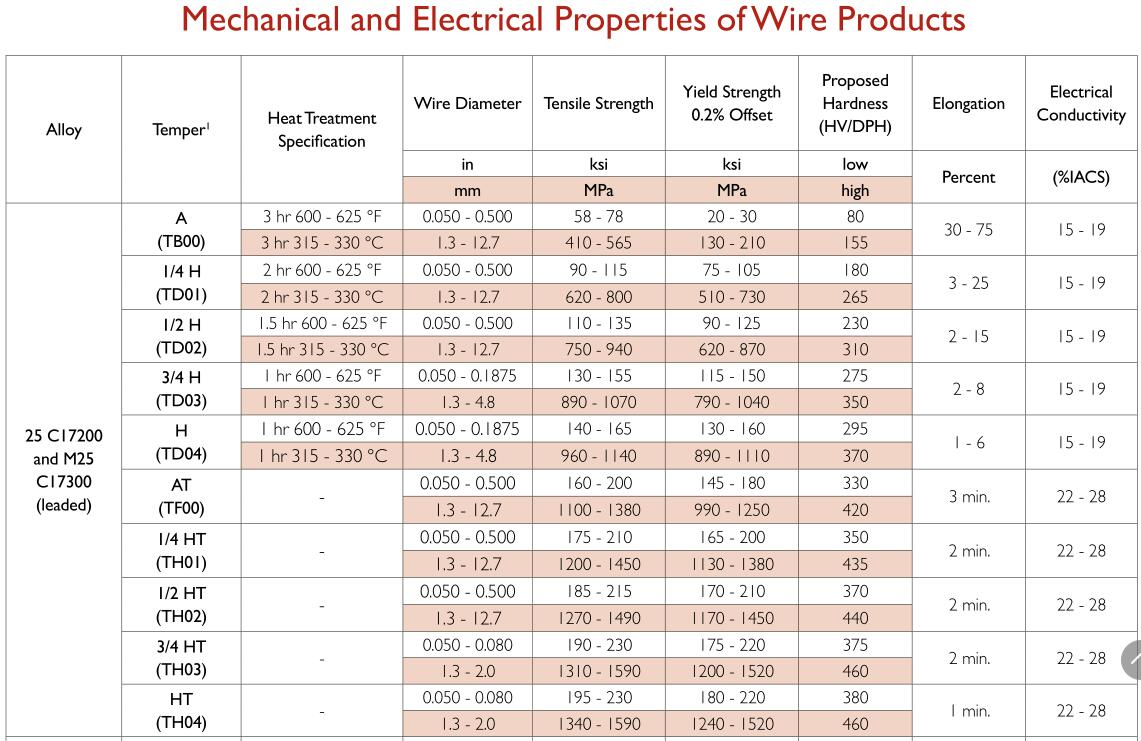

C17200 Beryllium Copper Wire
Diameter: min.0.1mm
Mechanical and Electrical Properties of Tube Products.
C17200 Beryllium Copper Strip
Thickness : min.0.05mm

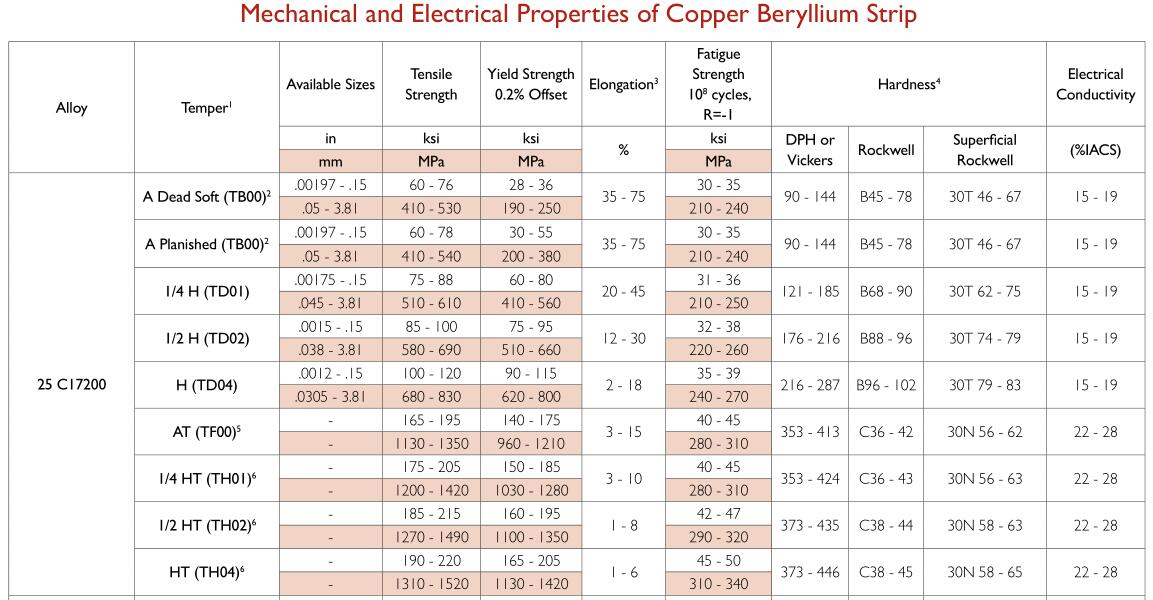

Mechanical and Electrical Properties of Copper Beryllium Strip.

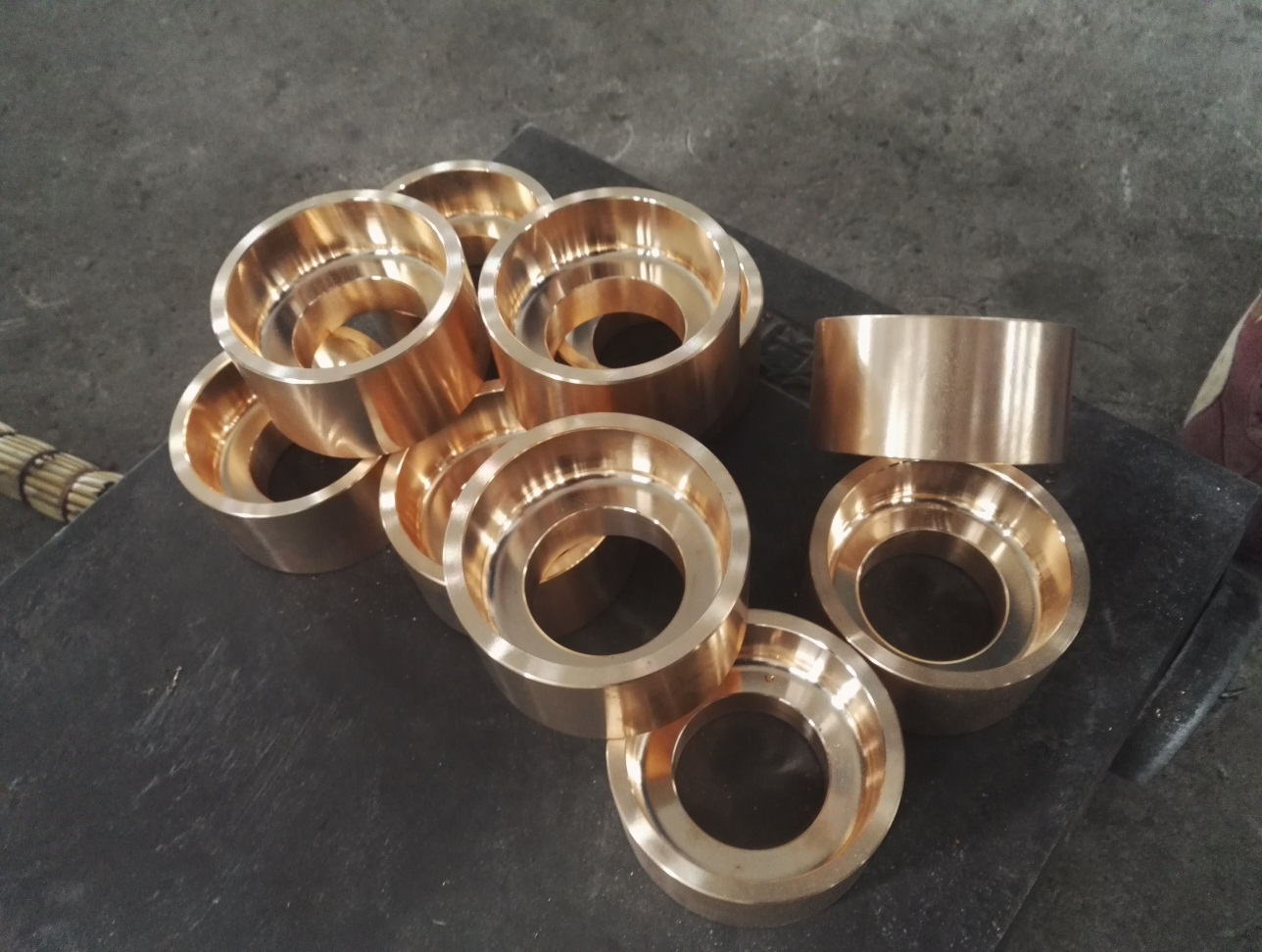

C17200 Beryllium Copper Shapes
Dimension: as per drawings
