Introduction
ASTM A778 is the standard
specification for welded, unannealed austenitic stainless steel tubular
products intended for low and moderate-temperature corrosive service where
post-weld heat treatment is not required. These tubes are manufactured from
stainless steel strip or plate using automatic welding processes and are widely
used in industries requiring excellent corrosion resistance, durability, and
cost-effective performance.

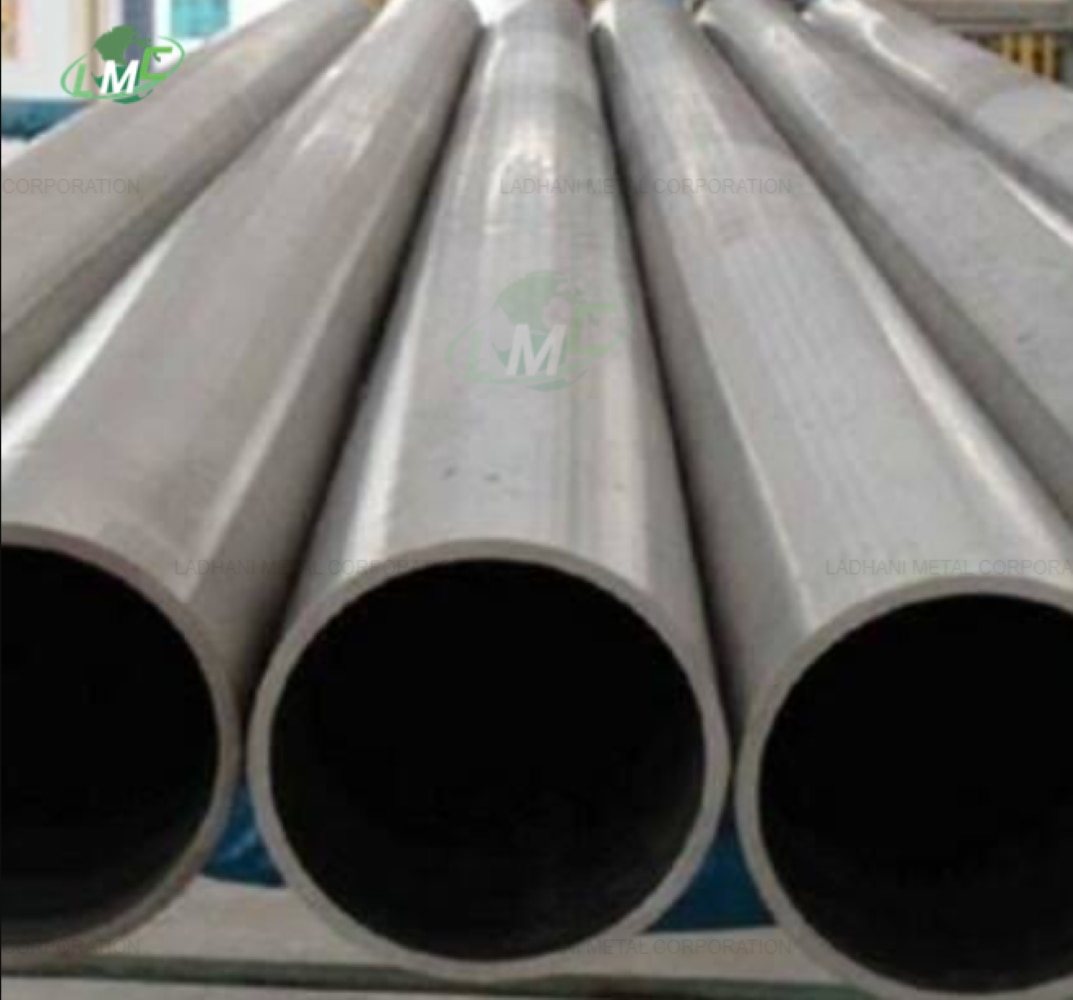

ASTM A778 Stainless Steel
Tubes are extensively used in chemical processing, food and beverage,
pharmaceuticals, water treatment, pulp and paper, petrochemical plants, marine
applications, and industrial process piping.
What is ASTM A778?
ASTM A778 covers
straight-seam welded, unannealed austenitic stainless steel tubes produced from
flat-rolled stainless steel. The tubes are manufactured using automatic welding
methods and are supplied without post-weld heat treatment unless specifically
requested by the purchaser.
These tubes provide excellent
corrosion resistance, good mechanical strength, and reliable performance in
mildly corrosive environments.
ASTM A778 Grades
ASTM A778 Stainless Steel
Tubes are commonly available in the following grades:
- TP304L
- TP316L
- TP317L
- TP321
- TP347
Chemical Composition
|
Grade |
Carbon Max % |
Manganese Max % |
Phosphorus Max % |
Sulfur Max % |
Silicon Max % |
Chromium % |
Nickel % |
Titanium % |
Columbium Plus Tantalus % |
Nitrogen Max % |
|
TP 304L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
18.0–20.0 |
8.0–13.0 |
— |
— |
0.10 |
|
TP 316L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0–18.0 |
10.0–14.0 |
2.00–3.00 |
— |
0.10 |
|
TP 317L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
18.0–20.0 |
11.0–15.0 |
3.00–4.00 |
— |
0.10 |
|
TP 321 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
17.0–19.0 |
9.0–12.0 |
C* |
— |
— |
|
TP 347 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
17.0–19.0 |
9.0–12.0 |
— |
D* |
— |
Notes:
- C: Titanium content shall be not less than five times the carbon
content and not more than 0.70%.
- D: Columbium plus tantalum
content shall be not less than ten
times the carbon content and not more than 1.10%.
The chemical composition is
controlled in accordance with ASTM A778 requirements for the selected grade.
Supply Condition
ASTM A778 Stainless Steel
Tubes are commonly supplied in the following conditions:
- Welded
- Unannealed
- Pickled
- Bright Finish
- Mill Finish
- Polished Finish
- Custom Cut Lengths
- Plain End
- Beveled End
Additional finishing and
testing can be supplied according to customer requirements.
The Manufacturing Process
manufacturing process
generally includes:
- Raw material inspection
- Slitting
- Roll forming
- Automatic welding
- Sizing
- Straightening
- Surface finishing
- Cutting
- Dimensional inspection
- Final quality testing
Key Properties
ASTM A778 Stainless Steel
Tubes offer several performance advantages, including:
- Excellent corrosion resistance
- Good oxidation resistance
- High mechanical strength
- Excellent weldability
- Good dimensional accuracy
- Smooth surface finish
- Excellent durability
- Good fabrication characteristics
- Reliable performance
- Long service life
Advantages
ASTM A778 Stainless Steel
Tubes provide numerous benefits, including:
- Cost-effective welded construction
- Excellent corrosion resistance
- High structural strength
- Low maintenance requirements
- Easy fabrication
- Excellent hygienic properties
- Good resistance to oxidation
- Long operational life
- Lightweight compared to many
alternative materials
- Suitable for a wide range of
industrial applications
Available Forms
ASTM A778 products are
commonly supplied as:
- Round Tubes
- Welded Tubes
- Process Tubes
- Mechanical Tubes
- Heat Exchanger Tubes
- Custom Length Tubes
- Large Diameter Tubes
- Thin Wall Tubes
Applications
Chemical Processing
Used for transporting
corrosive chemicals and process fluids.
Food and Beverage Industry
Suitable for hygienic process
piping and production equipment.
Pharmaceutical Industry
Used in clean process systems
requiring corrosion-resistant tubing.
Water Treatment Plants
Applied in water distribution
and treatment systems.
Petrochemical Industry
Used for low-pressure process
piping and auxiliary systems.
Marine Industry
Suitable for seawater and
marine process applications.
Pulp and Paper Industry
Applied in chemical handling
and processing equipment.
Power Generation
Used in cooling water systems
and process piping.
Oil and Gas Industry
Suitable for utility piping
and non-critical process lines.
General Industrial Fabrication
Widely used for structural,
decorative, and industrial piping applications.
Quality Testing
ASTM A778 Stainless Steel
Tubes undergo comprehensive testing, including:
- Chemical composition analysis
- Tensile testing
- Yield strength testing
- Elongation testing
- Flattening test
- Reverse bend test
- Hydrostatic testing (when
specified)
- Non-destructive testing
- Dimensional inspection
- Surface quality inspection
Factors to Consider
When Selecting ASTM A778 Tubes
Several factors should be
evaluated before selecting ASTM A778 Stainless Steel Tubes:
- Stainless steel grade
- Tube diameter
- Wall thickness
- Operating temperature
- Corrosive environment
- Pressure requirements
- Surface finish
- Fabrication requirements
- Applicable standards
- Inspection requirements
Why Choose ASTM A778
Stainless Steel Tubes?
ASTM A778 Stainless Steel
Tubes are widely preferred because they offer excellent corrosion resistance,
good mechanical strength, reliable weldability, and economical fabrication.
Their unannealed welded construction makes them an ideal solution for low and
moderate-temperature corrosive service where high performance and cost
efficiency are required.
Conclusion
ASTM A778 Stainless Steel Tubes are engineered to provide dependable performance in corrosive and industrial environments. Available in a wide range of austenitic stainless steel grades, these welded tubes combine excellent corrosion resistance, good mechanical properties, and reliable fabrication characteristics. Their versatility makes them suitable for chemical processing, pharmaceuticals, food processing, water treatment, petrochemical plants, marine engineering, power generation, and numerous other industrial applications where durability and long service life are essential.
