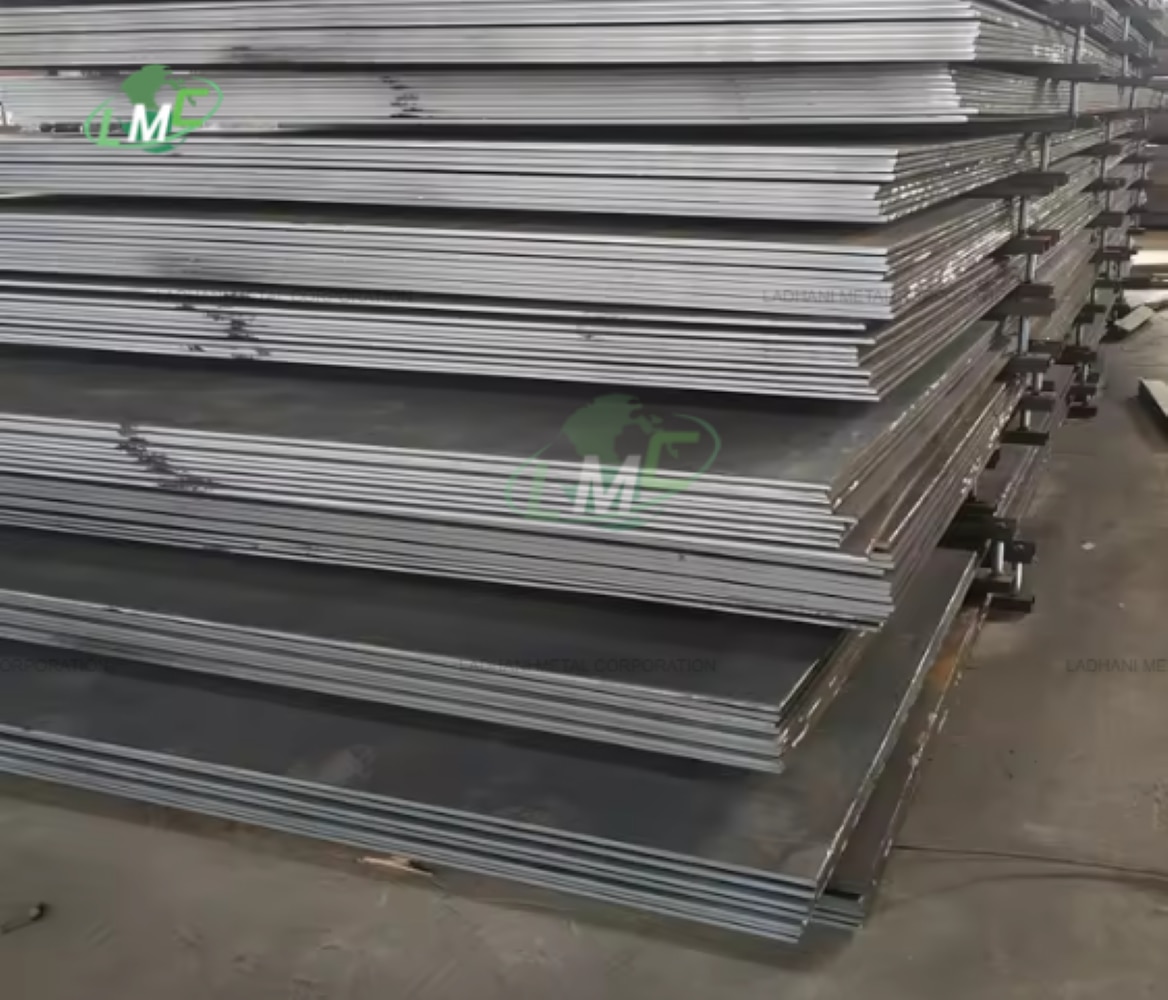

Introduction
ASTM
A537 / A537M is a standard specification covering heat-treated
carbon-manganese-silicon steel plates intended primarily for fusion-welded
pressure vessels and boilers. These plates are manufactured to provide higher
strength and improved toughness compared to conventional pressure vessel steel
grades, making them suitable for critical industrial applications.
ASTM
A537 pressure vessel plates are widely used in oil and gas processing plants,
petrochemical facilities, power generation stations, chemical processing
equipment, storage tanks, heat exchangers, reactors, and industrial pressure
vessels. The heat treatment process enhances the mechanical properties of these
plates, ensuring excellent performance under pressure and elevated temperature
conditions.
Ladhani
Metal Corporation is a manufacturer, supplier, and exporter of ASTM A537 /
A537M pressure vessel plates, offering high-quality steel plates for demanding
industrial applications worldwide.
Applicable Standard
Standard
Specification: ASTM A537 / A537M
Organization:
ASTM International
Title:
Standard Specification for Pressure Vessel Plates, Heat-Treated,
Carbon-Manganese-Silicon Steel
This
specification covers heat-treated carbon-manganese-silicon steel plates
intended for welded pressure vessels and boilers.
Forms of Supply
ASTM
A537 pressure vessel plates are available in the following forms:
- Pressure
vessel steel plates
- Boiler
quality plates
- Carbon
steel plates
- Heavy
thickness plates
- Hot
rolled plates
- Normalized
plates
- Quenched
and tempered plates
- Floor
plates
- Cut-to-size
plates
- CNC
profile cut plates
- Flame
cut plates
- Fabricated
plate components
- Rolled
shell plates
- Vessel
shell plates
- Dished
end blanks
- Structural
fabrication plates
Classes Covered
Under ASTM A537
ASTM
A537 Class 1
Class
1 plates are supplied in the normalized condition and offer improved strength
and toughness compared to conventional pressure vessel steels.
ASTM
A537 Class 2
Class
2 plates are supplied in the quenched and tempered condition and provide higher
tensile and yield strength for demanding pressure vessel applications.
ASTM
A537 Class 3
Class
3 plates are supplied in the quenched and tempered condition and are intended
for applications requiring maximum strength and superior toughness.
Supply Condition
ASTM
A537 Class 1
- Normalized
ASTM
A537 Class 2
- Quenched
and tempered
ASTM
A537 Class 3
- Quenched
and tempered
Surface Finish
- Hot
rolled finish
- Shot
blasted finish
- Pickled
finish
- Primer
coated finish
- Shop
coated finish
- Clean
mill finish
Standard Sizes
Thickness:
6 mm to 200 mm
Width:
1000 mm to 3500 mm
Length:
Up to 18000 mm or customized dimensions
Chemical
Composition of ASTM A537 Pressure Vessel Plates (%)
Class 1
|
Element |
Composition (%) |
|
Carbon
(C) |
0.24
Max |
|
Manganese
(Mn) |
0.70
– 1.60 |
|
Silicon
(Si) |
0.15
– 0.50 |
|
Phosphorus
(P) |
0.035
Max |
|
Sulfur
(S) |
0.035
Max |
Class 2
|
Element |
Composition (%) |
|
Carbon
(C) |
0.24
Max |
|
Manganese
(Mn) |
1.00
– 1.60 |
|
Silicon
(Si) |
0.15
– 0.50 |
|
Phosphorus
(P) |
0.035
Max |
|
Sulfur
(S) |
0.035
Max |
Class 3
Chemical
composition requirements are established by agreement between the manufacturer
and purchaser depending upon service conditions and application requirements.
Tensile
Requirements
Tensile Strength
|
Thickness |
Class 1 ksi [MPa] |
Class 2 ksi [MPa] |
Class 3 ksi [MPa] |
|
2½ in. and under
[65 mm and under] |
70–90 [485–620] |
80–100 [550–690] |
80–100 [550–690] |
|
Over 2½ to 4 in.
[Over 65 to 100 mm, incl] |
65–85 [450–585] |
75–95 [515–655] |
75–95 [515–655] |
|
Over 4 to 6 in.
[Over 100 to 150 mm, incl] |
— |
70–90 [485–620] |
70–90 [485–620] |
Yield Strength, Minimum
|
Thickness |
Class 1 ksi [MPa] |
Class 2 ksi [MPa] |
Class 3 ksi [MPa] |
|
2½ in. and under
[65 mm and under] |
50 [345] |
60 [415] |
55 [380] |
|
Over 2½ to 4 in.
[Over 65 to 100 mm, incl] |
45 [310] |
55 [380] |
50 [345] |
|
Over 4 to 6 in.
[Over 100 to 150 mm, incl] |
— |
46 [315] |
40 [275] |
Elongation
|
Property |
Class 1 |
Class 2 |
Class 3 |
|
Elongation in 2
in. [50 mm], min, % (4 in. [100 mm] and under) |
22 |
22 |
22 |
|
Elongation in 2
in. [50 mm], min, % (Over 4 in. [100 mm]) |
— |
20 |
20 |
|
Elongation in 8
in. [200 mm], min, % |
18 |
— |
— |
Notes
- Product
is not available in this size range.
- See
Specification A20/A20M for elongation adjustments.
- No requirement for elongation in 8
in. [200 mm] for Classes 2 and 3.
Key Features of
ASTM A537 Pressure Vessel Plates
- Higher
strength than conventional pressure vessel steels
- Excellent
notch toughness
- Superior
weldability
- Enhanced
pressure resistance
- Excellent
fabrication properties
- Good
elevated temperature performance
- Uniform
mechanical properties
- Long
service life
- Suitable
for critical industrial applications
- Available
in multiple classes
Applications of
ASTM A537 Pressure Vessel Plates
Pressure Vessel Manufacturing
- Pressure
vessels
- Process
vessels
- Reactor
vessels
- High-pressure
chambers
Boiler Industry
- Industrial
boilers
- Steam
drums
- Boiler
shells
- Heat
recovery systems
Petrochemical Industry
- Chemical
reactors
- Heat
exchangers
- Refinery
equipment
- Process
vessels
Oil and Gas Industry
- Separator
vessels
- Storage
tanks
- Pressure
systems
- Offshore
processing equipment
Power Generation Industry
- Steam
generation equipment
- Thermal
power plant vessels
- Pressure
systems
- Heat
recovery units
Chemical Processing Industry
- Processing
tanks
- Industrial
reactors
- Storage
systems
- Manufacturing
equipment
Fabrication and
Welding
ASTM
A537 pressure vessel plates possess excellent fabrication characteristics and
can be readily welded using conventional welding methods.
- Suitable
for pressure vessel fabrication
- Excellent
weldability
- Good
cold forming characteristics
- Good
hot forming characteristics
- Easy
machining and cutting
- Suitable
for rolling and shaping operations
- Compatible
with major pressure vessel fabrication codes
Proper
welding procedures should be followed to maintain the desired mechanical
properties and service performance.
Heat Treatment
The
superior mechanical properties of ASTM A537 plates are achieved through
controlled heat treatment processes.
Class
1 plates are normalized to improve grain structure and toughness.
Class
2 plates are quenched and tempered to achieve higher strength and improved
impact resistance.
Class
3 plates are quenched and tempered to provide maximum strength and toughness
for severe service conditions.
Heat
treatment ensures consistent mechanical properties throughout the plate
thickness.
Advantages of ASTM
A537 Pressure Vessel Plates
- High
strength-to-weight ratio
- Excellent
pressure-retaining capability
- Improved
toughness characteristics
- Reliable
performance at elevated temperatures
- Long
operational life
- Reduced
fabrication weight
- Superior
weldability
- Excellent
structural integrity
- Cost-effective
solution for pressure vessel fabrication
Conclusion
ASTM
A537 / A537M Class 1, Class 2, and Class 3 pressure vessel plates are
high-performance heat-treated carbon-manganese-silicon steel plates designed
for demanding pressure vessel and boiler applications. Their combination of
high strength, excellent toughness, superior weldability, and reliable pressure
resistance makes them an ideal choice for petrochemical plants, power
generation facilities, oil and gas installations, and heavy engineering
projects.
Ladhani
Metal Corporation supplies ASTM A537 / A537M pressure vessel plates in various
classes, thicknesses, and customized dimensions, ensuring premium-quality
materials for pressure vessel fabrication, boiler manufacturing, and industrial
applications.
