Introduction

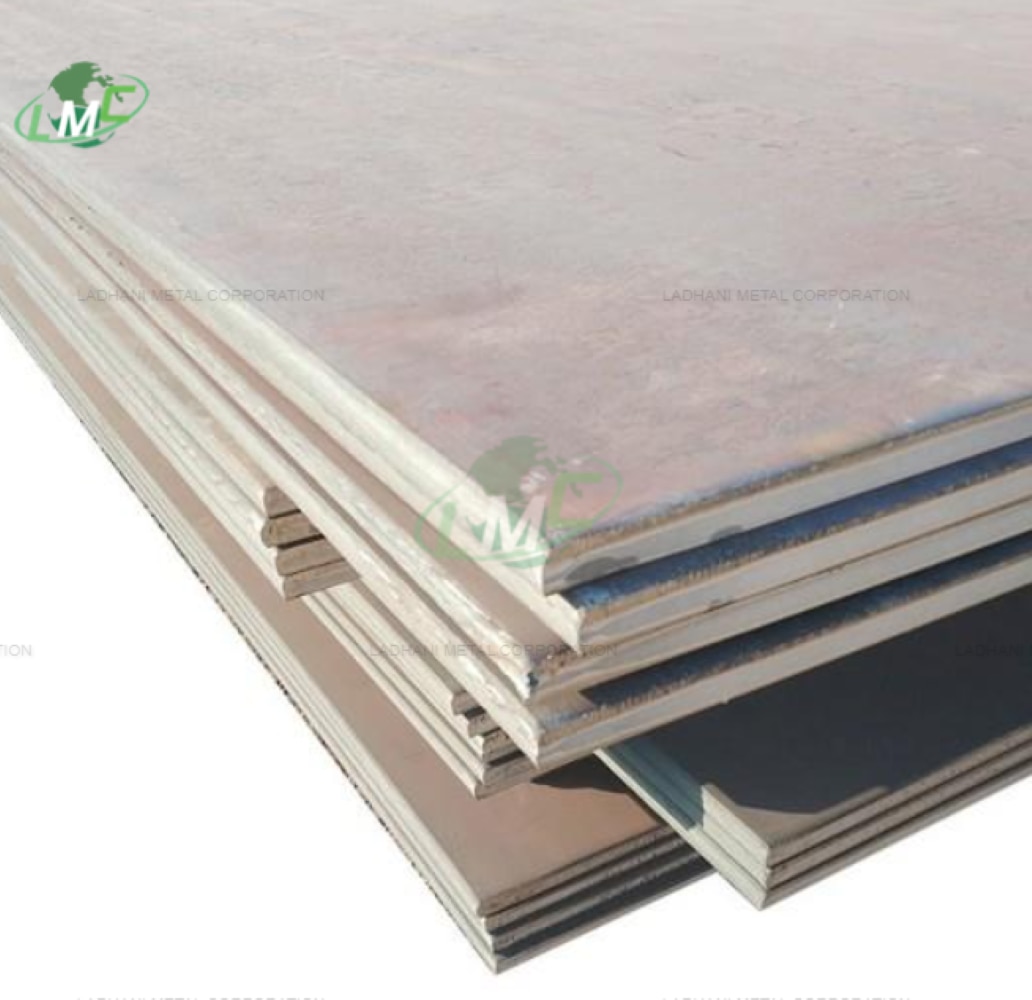

ASTM A533 / A533M alloy steel
plates are manganese-molybdenum and manganese-molybdenum-nickel alloy steel
plates designed for welded pressure vessels requiring high strength, excellent
toughness, and reliable performance under demanding operating conditions. These
plates are extensively used in nuclear power plants, pressure vessels,
reactors, steam generators, and heavy industrial equipment.
ASTM A533 alloy steel plates
offer superior mechanical properties, excellent weldability, and outstanding
notch toughness, making them suitable for critical pressure-containing
applications.
Ladhani Metal Corporation is
a manufacturer, supplier, and exporter of ASTM A533 / A533M alloy steel plates,
supplying premium-quality pressure vessel steel plates for industrial and
engineering applications.
Applicable Standard
Standard Specification: ASTM A533 / A533M
Organization:
ASTM International
Title:
Standard Specification for Pressure Vessel Plates, Alloy Steel, Quenched and
Tempered Manganese-Molybdenum and Manganese-Molybdenum-Nickel Steel
This specification covers
quenched and tempered alloy steel plates intended primarily for welded pressure
vessels.
Forms of Supply
ASTM A533 alloy steel
products are supplied in the following forms:
- Pressure vessel steel plates
- Alloy steel plates
- Heavy thickness plates
- Quenched and tempered plates
- Hot rolled plates
- Cut-to-size plates
- CNC profile cut plates
- Fabricated plate components
Supply Condition
- Quenched and tempered
- Heat treated condition
- Normalized and tempered condition
- Fabrication-ready condition
Surface Finish
- Hot rolled finish
- Shot blasted finish
- Pickled finish
- Primer coated finish
- Clean surface finish
Standard Sizes
Thickness: 6 mm to 250 mm
Width:
1000 mm to 4000 mm
Length:
Up to 18000 mm or customized sizes
Grades Covered Under ASTM A533 / A533M
ASTM A533 Grade A
- Class 1
- Class 2
ASTM A533 Grade B
- Class 1
- Class 2
- Class 3
ASTM A533 Grade C
- Class 1
- Class 2
These grades are designed for
high-pressure and high-performance pressure vessel applications requiring
exceptional toughness and strength.
Chemical Composition of ASTM A533 Alloy Steel Plates (%)
|
Element |
Type A |
Type B |
Type C |
Type D |
|
Carbon, max |
0.25 |
0.25 |
0.25 |
0.25 |
|
Manganese |
||||
|
Heat analysis |
1.15–1.50 |
1.15–1.50 |
1.15–1.50 |
1.15–1.50 |
|
Product analysis |
1.07–1.62 |
1.07–1.62 |
1.07–1.62 |
1.07–1.62 |
|
Phosphorus, max |
0.035 |
0.035 |
0.035 |
0.035 |
|
Sulfur, max |
0.035 |
0.035 |
0.035 |
0.035 |
|
Silicon |
||||
|
Heat analysis |
0.15–0.40 |
0.15–0.40 |
0.15–0.40 |
0.15–0.40 |
|
Product analysis |
0.13–0.45 |
0.13–0.45 |
0.13–0.45 |
0.13–0.45 |
|
Molybdenum |
||||
|
Heat analysis |
0.45–0.60 |
0.45–0.60 |
0.45–0.60 |
0.45–0.60 |
|
Product analysis |
0.41–0.64 |
0.41–0.64 |
0.41–0.64 |
0.41–0.64 |
|
Nickel |
||||
|
Heat analysis |
— |
0.40–0.70 |
0.70–1.00 |
0.20–0.40 |
|
Product analysis |
— |
0.37–0.73 |
0.67–1.03 |
0.17–0.43 |
Tensile
Requirements
|
Property |
Class 1 |
Class 2 |
Class 3 |
|
Tensile Strength,
ksi [MPa] |
80–100 [550–690] |
90–115 [620–795] |
100–125 [690–860] |
|
Yield Strength,
min, ksi [MPa] |
50 [345] |
70 [485] |
83 [570] |
|
Elongation in 2
in. [50 mm], min, % |
18 |
16 |
16 |
Notes:
- Carbon, phosphorus, and sulfur limits apply to both heat and product analyses.
- Maximum manganese may be increased to 1.60% (heat analysis) and 1.65% (product analysis) when Class 2 or Class 3 properties are specified and Supplementary Requirement S3 is invoked.
- Elongation adjustment shall be in accordance with Specification A20/A20M.
Key Features of ASTM A533 Alloy Steel Plates
- High strength and toughness
- Excellent notch toughness
properties
- Superior weldability
- Excellent pressure resistance
- Outstanding low-temperature
performance
- Suitable for critical pressure
vessel applications
- Excellent structural integrity
- Long service life in demanding
environments
Applications of ASTM A533 Alloy Steel Plates
ASTM A533 plates are widely
used in critical industrial applications.
Nuclear Power Industry
- Nuclear reactor vessels
- Steam generators
- Reactor containment systems
Power Generation Industry
- High-pressure vessels
- Boiler components
- Heat recovery systems
Petrochemical Industry
- Reactors
- Pressure vessels
- Process equipment
Oil and Gas Industry
- High-pressure storage systems
- Processing equipment
- Industrial pressure vessels
Heavy Engineering Industry
- Specialized fabrication
- High-performance industrial
equipment
- Structural pressure systems
Fabrication and Welding
ASTM A533 alloy steel plates
provide excellent fabrication characteristics.
- Suitable for welded pressure vessel
fabrication
- Good forming and machining
properties
- Controlled welding procedures are
recommended
- Preheating may be required for
thicker sections
Heat Treatment
ASTM A533 plates are supplied
in quenched and tempered condition.
- Quenching increases strength and
hardness
- Tempering improves toughness and
ductility
- Controlled heat treatment ensures
uniform mechanical properties throughout the plate
Advantages of ASTM A533 Alloy Steel Plates
- Exceptional strength and toughness
- Excellent pressure vessel
performance
- Superior weldability
- Reliable operation under severe
service conditions
- High resistance to cracking and
brittle fracture
- Long operational life
- Suitable for critical applications
Conclusion
ASTM A533 / A533M Class 1,
Class 2, and Class 3 alloy steel plates are premium pressure vessel materials
designed for critical industrial applications requiring exceptional strength,
toughness, and reliability. These plates are extensively used in nuclear power
plants, pressure vessels, reactors, and heavy engineering projects where safety
and performance are essential.
Ladhani Metal Corporation
supplies ASTM A533 / A533M alloy steel plates in various grades, classes, thicknesses,
and customized dimensions, ensuring high-quality materials for pressure vessel,
power generation, and industrial fabrication applications.
