Introduction

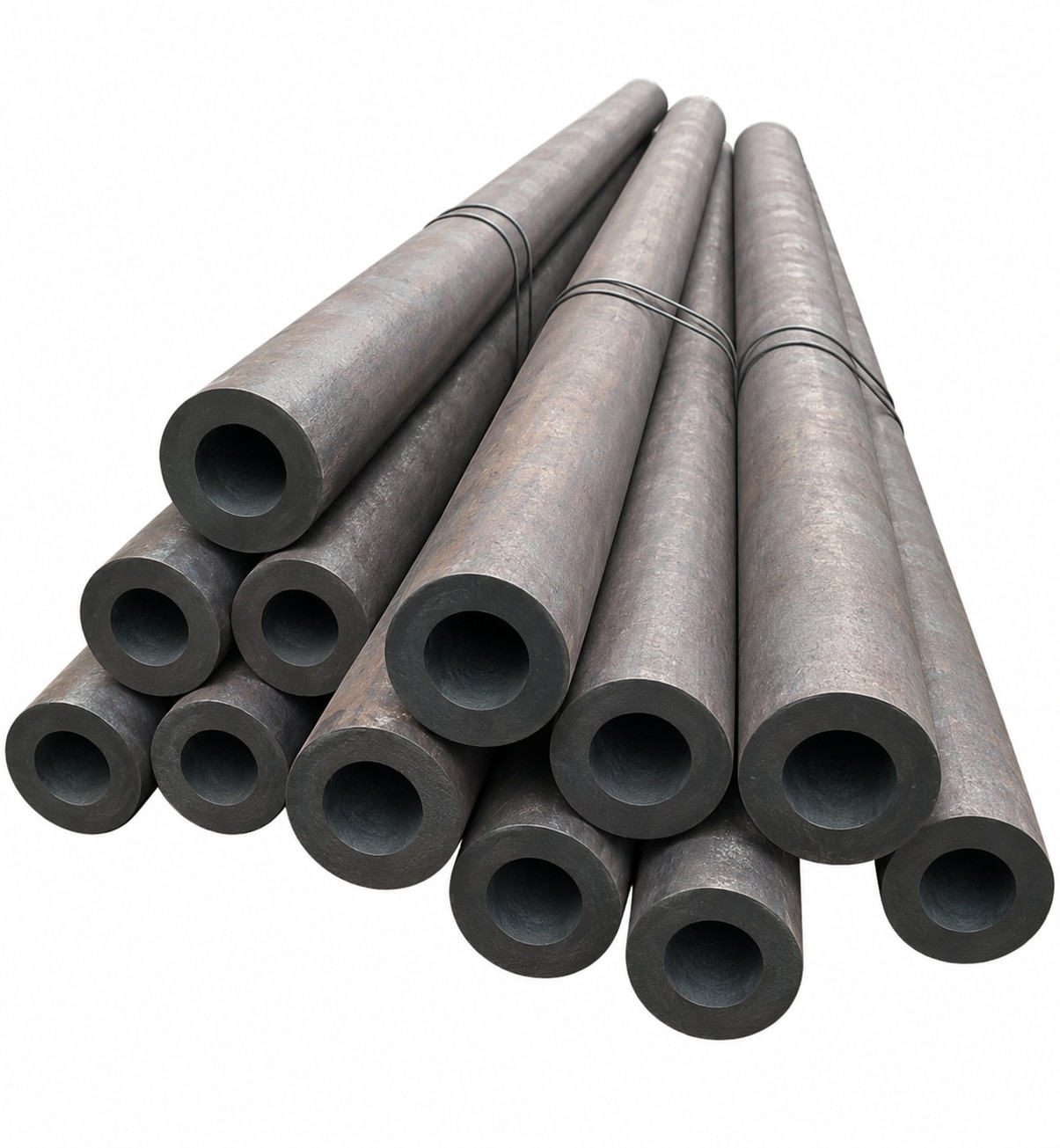

ASTM A513 covers electric-resistance-welded (ERW) carbon and alloy steel mechanical tubing intended for mechanical, structural, automotive, and industrial applications. These tubes are manufactured with excellent dimensional accuracy, superior surface finish, good machinability, and reliable mechanical properties.
ASTM A513 carbon steel mechanical tubing is widely used in industries requiring precision tubing for machinery, automotive components, hydraulic systems, furniture, agricultural equipment, and engineering applications.
Ladhani Metal Corporation is a manufacturer, supplier, and exporter of ASTM A513 carbon steel mechanical tubing, supplying high-quality tubes for industrial and engineering applications.
Applicable
Standard
Standard Specification: ASTM A513
Organization: ASTM International
Title: Standard Specification for Electric-Resistance-Welded
Carbon and Alloy Steel Mechanical Tubing
This specification covers electric-resistance-welded carbon and alloy steel tubing for mechanical and structural applications.
Forms
of Supply
ASTM A513 carbon steel tubing is supplied in the following forms:
- ERW
mechanical tubing
- Cold-drawn
tubing
- Round
tubes
- Square
tubes
- Rectangular
tubes
- Cut-to-length
tubes
Supply Condition
- Cold
drawn
- Hot
rolled
- Annealed
condition
- Normalized
condition
Surface Finish
- Bright
finish
- Smooth
finish
- Black
finish
- Oiled
finish
Standard Sizes
Outside Diameter: 6 mm to 200 mm
Wall Thickness: 0.5 mm to 12 mm
Length: Up to 6 meters or as required
Grades
Covered Under ASTM A513
- 1006 | 1008 | 1009 | 1010 | 1012 | 1015 | 1016 | 1017 | 1018 | 1019 | 1020 | 1021 | 1022 | 1023 | 1024 | 1025 | 1026 | 1027 | 1030 | 1033 | 1035 | 1040 | 1050 | 1060 | 1340 | 1524 | 4118 | 4130 | 4140 | 5130
These grades are carbon steel mechanical tubing grades offering excellent machinability, weldability, and mechanical performance.
Chemical
Composition of ASTM A513 Carbon Steel Tubing (%)
|
Grade Designation |
Carbon |
Manganese |
Phosphorus, max |
Sulfur, max |
Silicon |
Nickel |
Chromium |
Molybdenum |
|
1006 |
0.08 max |
0.45 max |
0.030 |
0.035 |
... |
... |
... |
... |
|
1008 |
0.10 max |
0.50 max |
0.035 |
0.035 |
... |
... |
... |
... |
|
1009 |
0.15 max |
0.60 max |
0.035 |
0.035 |
... |
... |
... |
... |
|
1010 |
0.08–0.13 |
0.30–0.60 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1012 |
0.10–0.15 |
0.30–0.60 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1015 |
0.13–0.18 |
0.30–0.60 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1016 |
0.13–0.18 |
0.60–0.90 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1017 |
0.15–0.20 |
0.30–0.60 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1018 |
0.15–0.20 |
0.60–0.90 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1019 |
0.15–0.20 |
0.70–1.00 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1020 |
0.18–0.23 |
0.30–0.60 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1021 |
0.18–0.23 |
0.60–0.90 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1022 |
0.18–0.23 |
0.70–1.00 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1023 |
0.20–0.25 |
0.30–0.60 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1024 |
0.18–0.25 |
1.30–1.65 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1025 |
0.22–0.28 |
0.30–0.60 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1026 |
0.22–0.28 |
0.60–0.90 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1027 |
0.22–0.29 |
1.20–1.55 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1030 |
0.28–0.34 |
0.60–0.90 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1033 |
0.30–0.36 |
0.70–1.00 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1035 |
0.32–0.38 |
0.60–0.90 |
0.035 |
0.035 |
... |
... |
... |
... |
|
1040 |
0.37–0.44 |
0.60–0.90 |
0.040 |
0.050 |
... |
... |
... |
... |
|
1050 |
0.48–0.55 |
0.60–0.90 |
0.040 |
0.050 |
... |
... |
... |
... |
|
1060 |
0.55–0.65 |
0.60–0.90 |
0.040 |
0.050 |
... |
... |
... |
... |
|
1340 |
0.38–0.43 |
1.60–1.90 |
0.035 |
0.040 |
0.15–0.35 |
... |
... |
... |
|
1524 |
0.19–0.25 |
1.35–1.65 |
0.040 |
0.050 |
... |
... |
... |
... |
|
4118 |
0.18–0.23 |
0.70–0.90 |
0.035 |
0.040 |
0.15–0.35 |
... |
0.40–0.60 |
0.08–0.15 |
|
4130 |
0.28–0.33 |
0.40–0.60 |
0.035 |
0.040 |
0.15–0.35 |
... |
0.80–1.10 |
0.15–0.25 |
|
4140 |
0.38–0.43 |
0.75–1.00 |
0.035 |
0.040 |
0.15–0.35 |
... |
0.80–1.10 |
0.15–0.25 |
|
5130 |
0.28–0.33 |
0.70–0.90 |
0.035 |
0.040 |
0.15–0.35 |
... |
0.80–1.10 |
... |
|
8620 |
0.18–0.23 |
0.70–0.90 |
0.035 |
0.040 |
0.15–0.35 |
0.40–0.70 |
0.40–0.60 |
0.15–0.25 |
|
8630 |
0.28–0.33 |
0.70–0.90 |
0.035 |
0.040 |
0.15–0.35 |
0.40–0.70 |
0.40–0.60 |
0.15–0.25 |
Mechanical
Properties
|
Grade |
Tensile
Strength (MPa) |
Yield Strength
(MPa) |
Elongation (%) |
|
1010 |
≥ 365 |
≥ 205 |
≥ 25 |
|
1018 |
≥ 440 |
≥ 370 |
≥ 15 |
|
1020 |
≥ 420 |
≥ 350 |
≥ 15 |
|
1026 |
≥ 480 |
≥ 415 |
≥ 12 |
|
1035 |
≥ 550 |
≥ 460 |
≥ 10 |
Key
Features of ASTM A513 Carbon Steel Mechanical Tubing
- Excellent
dimensional accuracy
- Good
machinability and weldability
- Smooth
internal and external surface finish
- Reliable
mechanical strength
- Suitable
for precision engineering applications
- Available
in multiple carbon steel grades
- Cost-effective
tubing solution
- Excellent
concentricity and wall thickness control
Applications
of ASTM A513 Carbon Steel Tubing
ASTM A513 tubing is widely used in industries requiring precision mechanical tubing.
Automotive Industry
- Drive
shafts
- Suspension
components
- Steering
columns
Industrial Equipment
- Hydraulic
cylinders
- Machinery
components
- Rollers
and conveyors
Engineering Applications
- Mechanical
assemblies
- Structural
tubing
- Fabrication
projects
Manufacturing Industry
- Furniture
tubing
- Agricultural
equipment
- Equipment
fabrication
Heat
Treatment
- Tubing
may be annealed or normalized
- Cold
drawing improves dimensional accuracy and surface finish
- Heat
treatment enhances machinability and mechanical properties
Conclusion
ASTM A513 carbon steel mechanical tubing provides a reliable solution for mechanical, automotive, and industrial applications. With excellent dimensional accuracy, weldability, machinability, and mechanical properties, these tubes are ideal for precision engineering and structural applications.
Ladhani Metal Corporation supplies ASTM A513 carbon steel mechanical tubing in various grades and sizes, ensuring high-quality products for automotive, engineering, and industrial applications.
