ASTM 1035 DIN CK35 JIS S35C Carbon Steel Bar / Rod, Manufacturer, Supplier, Exporter.
Product Details:
Brand Name: | LMC |
Payment & Shipping Terms:
Minimum Order Quantity: | MOQ: 2-3 ton |
Price: | USD 700- 2000/ton |
Packaging Details: | Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips. |
Delivery Time: | Within 15-35 days |
Payment Terms: | L/C, T/T, D/A, D/P |
Supply Ability: | 3000 ton/month |
| High Light: | Old finished steel bar, hexagonal steel bar | ||
|---|---|---|---|
INTRODUCTION
Carbon steels have carbon as the key alloying element in their composition. They also contain up to 0.4% silicon and 1.2% manganese. In addition, the residual elements such as copper, molybdenum, aluminium, chromium and nickel are present in these steels.
AISI 1035 is a water resisting carbon steel whose wear resistance and hardenability are increased by the addition of small quantity of chromium.
Applications of AISI 1035 Steel
This grade of steel is used for forged parts where the strength and toughness of the material are appropriate. C1035 may be used for the manufacture of links and couplings, gears, forged shafts and axles. It may also be used for the production, by open die forging, of such diverse parts as a 4,000 lb hub for a mining shovel. The following are the major applications of AISI 1035 carbon steel:
- Levers
- Bolts
- Nuts
- Studs
SUPPLY RANGE OF of AISI 1035
-Dimension: Diameter 4-1600 mm, any length below 16 meters
-Delivery Conditions:
Cold drawn: 4-100 mm
Peeled: 30-160 mm
Grinded: 4- 600 mm
Turned: 130-1200 mm
Hot rolled: 12-320 mm
Hot forged: 130-1600 mm
-EAF+(ESR) or EAF+LF+VD+(ESR)
-HOT rolled; Cold rolled; Forged; Cold Drawn
-Heat Treatment: Untreated, Annealing, N+T, Q+T
-Smelting: EAF+LF+VD (+ESR)
-Surface Finish: Black, Rough Machined, Peeled, Turned or upon request
-UT 100% passed
-Cutting service provided
-Third Party inspection is acceptable (SGS, BV etc.)
Standard
ASTM A213; ASTM A335; ASTM A519; ASTM A106; ASTM A29; JIS G3462; JIS G3458; JIS G3444; JIS G4053; DIN17175; DIN1629; DIN2391; GB/9948, GB/6479; GB/T8162; GB/T8163; GB/T 3077; EN 10297; EN 10084; EN 10083; ISO 683/11; IOS 683/10; IOS 683/1; etc.

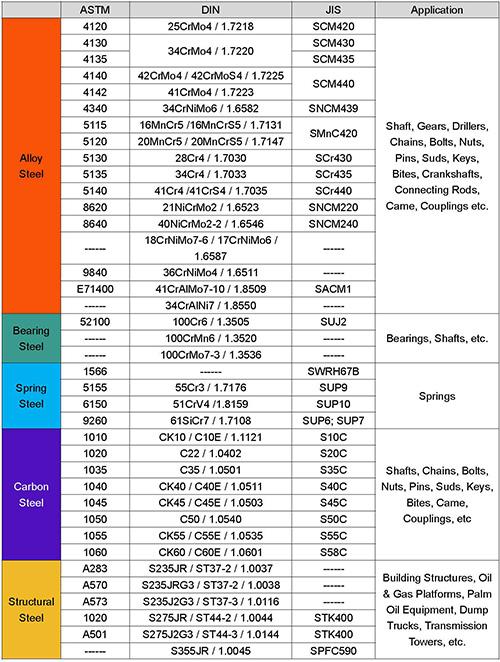

Equivalent grades of steel AISI 1030
| ASTM A29/M | BS | JIS | China GB | Inter ISO |
| 1035 | 060A35 | S35C | 35 | C35E4 |
Chemical Requirements, Composition, %
| Element | ASTM A29 1035 | EN 10083 C35 1.0501 | JIS G4051 S35C |
| Carbon | 0.32–0.38 | 0.32-0.39 | 0.32-0.38 |
| Manganese | 0.60–0.90 | 0.50-0.80 | 0.60-0.90 |
| Phosphorus | 0.040 max | 0.045 max | 0.030 max |
| Sulfur | 0.050 max | 0.045 max | 0.035 max |
| Silicon | 0.10 max | 0.40 max | 0.15-0.35 |
Mechanical properties
| Standard | Steel Grade | Yield strength MPa (>=) | Tensile strength MPa (>=) | Elongation % (>=) | Reduction of area % (>=) | Hardness Brinell |
| ASTM A29 | 1035 | 370 | 585 | 30 | 53 | 183 |
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
PROCESSING
FORGING
C1035 may be forged from 2200ºF (1205ºC) down to 1650ºF (900ºC.) The actual forging and finishing temperatures will depend on a number of factors, including overall reduction during forging and complexity of part being forged. Experience alone will determine near exact values for these two parameters.
Parts are air cooled after forging.
HEAT TREATMENT
ANNEALING
Full annealing of small C1035 forgings is carried out from 1550-1625ºF (840-890ºC) followed by furnace cooling at 50ºF (28ºC) per hour, to 1200ºF (650ºC) soaking and air cooling.
NORMALIZING
The normalizing temperature range for this grade is typically 1600-1650ºF (870-900ºC.)
Normalizing is followed by cooling in still air. When forgings are normalized before hardening and tempering or other heat treatment, the upper range of the normalizing temperature is used. When normalizing is the final treatment, the lower temperature range is used.
HARDENING
Hardening of this grade is carried out from an austenitizing temperature of 1525-1575ºF (830-860ºC) and oil or water quenching.
Flame and induction hardening may be carried out by heating quickly to the desired case depth and quenching in water or oil. This should be followed by a tempering treatment at 300-400ºF (150-200ºC) to reduce stresses in the case without affecting its hardness. A surface hardness of Rc 50 may be obtained by this treatment.
TEMPERING
Tempering after normal hardening and oil or water quenching is carried out at 750-1260 ºF (400-680ºC) to give the required mechanical properties as determined by practical experience.
MACHINABILITY
Machinability of C1035 is good providing the full annealing cycle described above is used, ensuring a coarse lamellar pearlite to coarse spheroidite microstructure.
WELDABILITY
This grade is readily welded with the correct procedure. Welding in the through-hardened or flame or induction-hardened conditions is not recommended.
What we can offer?
-We offer a wide range of steel products in a wide variety of dimensions and executions, according to the common international specifications or customize.
-Machining and heat treatment are available.
-Also, we advise you in choosing the right materials.
Shape Available
- Solid round bar
- Flat bar
- Square bar
- Hexagon bar
- Block
- Plate
- Sheet
- Wire rod
- Strip
Our Advantages
- High mechanical property and quenching, enable the surface share equal hardness after deal with it
- Good polishing and low roughness
- Making the heat-treatment to harden condition before using it
- Competitive price
- Fast production lead-time
- All the material are inspected with 3 times to meet the highly standards
- Pure steel quality & stable quality to be guarantee
OUR MAIN PRODUCTS ARE LISTED AS BELOW
Notes:
Available Size:
-Round: Dia. 4 -1600 mm
-Flat: T. 10-120 mm x W. 60-810 mm
-Block: T. 80-1200 mm x W. 100-1600 mm
Payment & Delivery
1. Both T/T and L/C will be acceptable
2. Trade Terms: FOB, CIF, CFR
3. The delivery will be in 10-15 days if have stock; For customized items, the delivery will be negotiated by both parties
4. Shipping by sea freight from Shanghai Port (PRC) for Bulk orders, by airfreight or express for samples
Company Information
Ladhani Metal Corporation.
We are committed to integrate engineering steel resources in India and serve the global engineering steel market. Our company has more than 32 years of experience in steel researching, production, managing and sales.
In the aspect of resources and information, we have established cooperative and stronger relationship with nearly hundred enterprises, either state-owned or private owned in India.
What’s more, we have built long, deep and close business relationship with dozens of steel company, Sharing and holding equities with several steel enterprises. Because of the close cooperation with steel companies and our pioneering spirit, which can ensure us stay at the top competition, and ensure our customers get what they really want!
