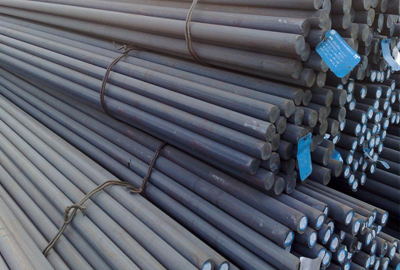

1.8519, DIN 31CrMoV9 Bar Manufacturer , Supplier , Exporter

1.8519, DIN 31CrMoV9 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI PO735 735 1.8519 31CrMoV9 - - Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.30 max. 0.40 0.55 2.50 0.20 - 0.15 - - DescriptionAl-alloyed nitriding steel grade for large-sections. ApplicationsStructural parts with high surface hardness – piston rods, extruders, cylinders, shafts, straightening tools, measuring tools, etc.  Physical properties (avarage values) at ambient temperatureM...

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 Al-alloyed nitriding steel grade for large-sections.

Applications
 Structural parts with high surface hardness – piston rods, extruders, cylinders, shafts, straightening tools, measuring tools, etc.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 210
 Density [g/cm³]: 7.73

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

Time-Temperature Transformation (TTT) Diagram



Soft Annealing
 Heat to 650-720^oC, cool slowly. This will produce a maximum Brinell hardness of 248.

Hardening
 Harden from a temperature of 870-930^oC followed by oil/polymer or water quenching.

Tempering
 Tempering temperature: 580-700^oC.

Nitriding
 Temperature: 480-570^oC.
 Surface hardness after nitriding: 800 HV

Mechanical Properties in Quenched and Tempered Condition

Mechanical Properties in Quenched and Tempered Condition

Forging
 Hot forming temperature: 1050-850^oC.

Machinability
 No data.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
