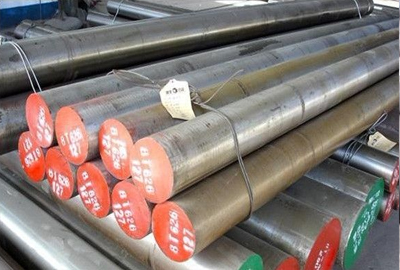

1.7139, DIN 16MnCrS5, SAE 5117 Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI 16MNCRS5 779 1.7139 16MnCrS5 - SAE 5117 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.16 max. 0.40 1.15 0.95 - - - - - DescriptionAlloy special structural steels. ApplicationsComponent parts for steam boilers and turbines, shafts for higher temperature ranges. Physical properties (avarage values) at ambient temperatureModulus of elasticity [103 x N/mm2]: 210 Density [g/cm3]: 7.85 Co...

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 Alloy special structural steels.

Applications
 Component parts for steam boilers and turbines, shafts for higher temperature ranges.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 210
 Density [g/cm³]: 7.85

Continuous Cooling Transformation (CCT) Diagram

 Click the image to enlarge the diagram.

Time-Temperature Transformation (TTT) Diagram

 Click the image to enlarge the diagram.

Soft Annealing
 Heat to 650-700^oC, cool slowly. This will produce a maximum Brinell hardness of 207.

Heat Treatment

Tempering
 Tempering temperature: 150-200^oC, air.

Hardness in Various Treated Conditions
 Treated for stregth: 156-207 HB
 Soft Annealed: 207 HB
 Annealed to spherical carbides: max. 165 HB
 Treated to pearlite structure: 140-187 HB

Distance From Quenched End in mm

Forging
 Hot forming temperature: 1150-850^oC.

Machinability
 No data.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
