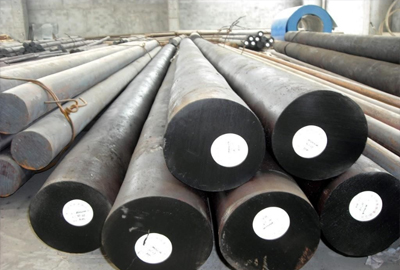

1.7016, DIN 17Cr3, AISI 5117, 4615 Bar Manufacturer , Supplier , Exporter

1.7016, DIN 17Cr3, AISI 5117, 4615 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI EC60 709 1.7016 17Cr3 - 5117, 4615 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.17 max. 0.40 0.55 0.85 - - - - - DescriptionAlloyed carbon steel. ApplicationsLow stressed components – gears, shafts, crankshafts, connecting rods, cam shafts, etc.  Physical properties (avarage values) at ambient temperatureModulus of elasticity [103 x N/mm2]: 210 Density [g/cm3]: 7.85Therm...

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 Alloyed carbon steel.

Applications
 Low stressed components – gears, shafts, crankshafts, connecting rods, cam shafts, etc.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 210
 Density [g/cm³]: 7.85
 Thermal conductivity [W/m.K]: 44.0
 Electric resistivity [Ohm mm²/m]: 0.16
 Specific heat capacity[J/g.K]: 0.46

Coefficient of Linear Thermal Expansion 10^-6oC^-1

Continuous Cooling Transformation (CCT) Diagram

Soft Annealing
 Heat to 800-840^oC, cool slowly. This will produce a maximum Brinell hardness of 250.

Stress Relieving
 Stress relieving to remove machining stresses should be carried out by heating to 650^oC, holding for one hour at heat, followed by air cooling. This operation is performed to reduce distortion during heat treatment.

Hardening
 Harden from a temperature of 940-980^oC followed by oil quenching or warm bath approx. 400^oC. Hardness after quenching is 64-66 HRC.

Tempering
 Tempering temperature: 150-400^oC.

Tempering Temperature (^oC) vs. Hardness (HRC)

Forging
 Hot forming temperature: 1050-850^oC.

Machinability
 The machinability rating of D3 is roughly 25 % that of free machining carbon steel 1018. Due to its abrasion resistant nature, machining in the hardened condition should be limited to finish grinding.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
