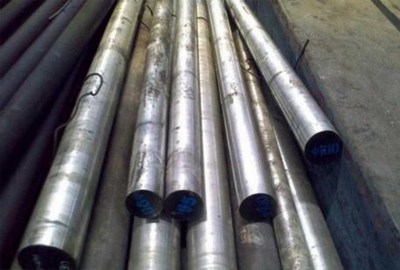

1.6511, DIN 36CrNiMo4, AISI 4340 Bar Manufacturer , Supplier , Exporter

1.6511, DIN 36CrNiMo4, AISI 4340 Bar Manufacturer , Supplier , Exporter

CONTACT US FOR MORE DETAILS



www.ladhanimetal.com
www.ladhanimetal.in
ladhanimetal@gmail.com


LADHANI METAL CORPORATION, MUMBAI, INDIA

Short Description:

Designation by Standards Brand Name Ravne No. Mat. No. DIN EN AISI VCNMO100 747 1.6511 36CrNiMo4 36CrNiMo4 4340 Chemical Composition (in weight %) C Si Mn Cr Mo Ni V W Others 0.36 max. 0.40 0.65 1.05 0.20 1.05 - - - DescriptionVCNMO100 is a heat treatable, low alloy steel containing nickel, chromium and molybdenum. It is known for its toughness and capability of developing high strength in the heat treated condition while retaining good fatigue strength.  ApplicationsFor ...

Send email to usDownload as PDF

Product Detail

Designation by Standards

Chemical Composition (in weight %)

Description
 VCNMO100 is a heat treatable, low alloy steel containing nickel, chromium and molybdenum. It is known for its toughness and capability of developing high strength in the heat treated condition while retaining good fatigue strength.

Applications
 For permanently stressed components with large cross sections for automotive and mechanical engineering. For economic performance under severe dynamic stress, parts must be designed for optimum strength or toughness.

Physical properties (avarage values) at ambient temperature
 Modulus of elasticity [10³ x N/mm²]: 210
 Density [g/cm³]: 7.84

Continuous Cooling Transformation (CCT) Diagram



Time-Temperature Transformation (TTT) Diagram

Soft Annealing
 Heat to 650-700^oC, cool slowly. This will produce a maximum Brinell hardness of 248.

Normalizing
 Temperature: 850-880^oC.

Hardening
 Harden from a temperature of 820-860^oC followed by water or oil quenching.

Tempering
 Tempering temperature: 540-680^oC.

Mechanical Properties in Hardening and Tempering Condition

Diagram Tempering Temperature – Mechanical Properties

Forging
 Hot forming temperature: 1050-850^oC.

Machinability
 Machining is best done with this alloy in the annealed or normalized and tempered condition. It can be machined by all conventional methods.

Corrosion Resistance
 This is a low alloy steel and not a corrosion resistant alloy. Protective coating should be used.

Welding
 The alloy can be fusion or resistance welded. Preheat and post heat weld procedures should be followed when welding this alloy by established methods.

Cold working
 The VCNMO100 alloy may be cold worked, in the annealed condition, by conventional methods and tooling. It has good ductility.

Forms manufactured: Please see the Dimensional Sales Program.

Disclaimer
 The information and data presented herein are typical or average values and are not a guarantee of maximum or minimum values. Applications specifically suggested for material described herein are made solely for the purpose of illustration to enable the reader to make his own evaluation and are not intended as warranties, either express or implied, of fitness for these or other puposes. There is no representation that the recipient of this literature will receive updated editions as the become available.
